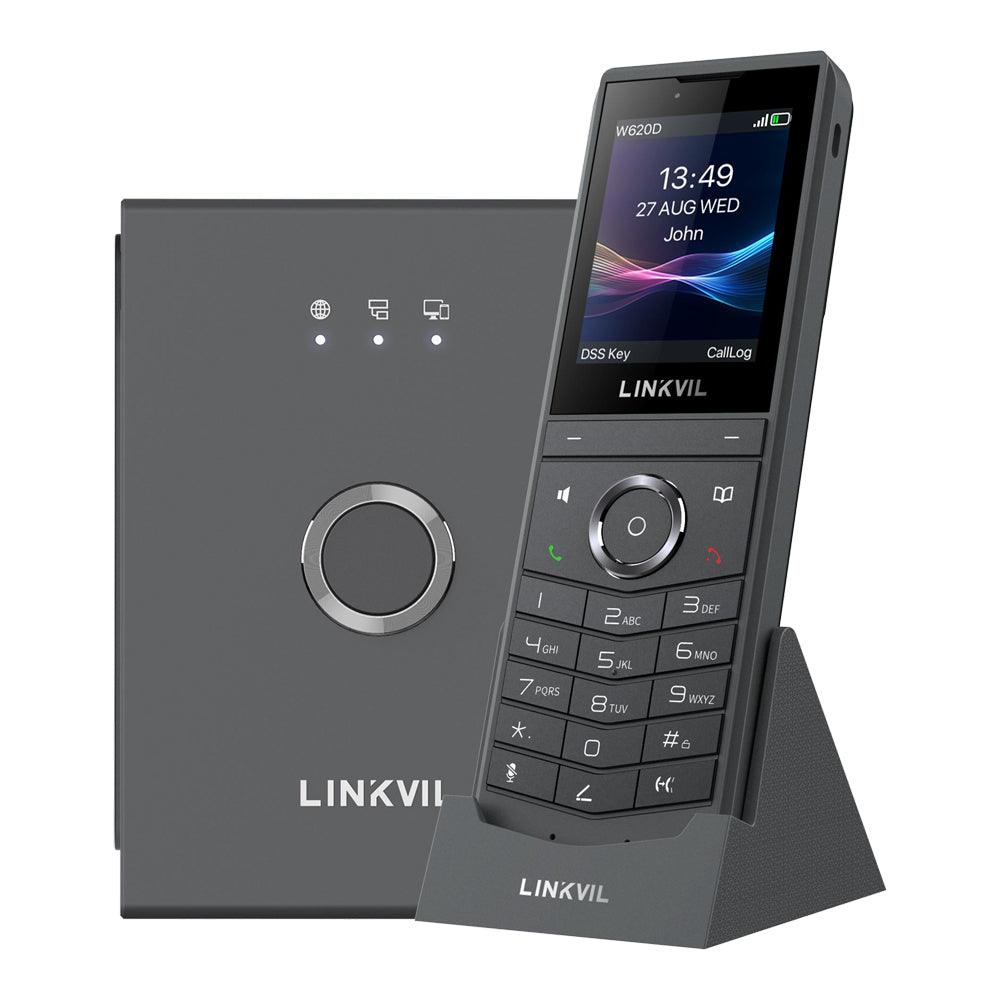

Fanvil W620P DECT IP Phone System with W710D Base and W620D Cordless Handset
Reliable Cordless Communication for Growing Teams.
The Fanvil W620P is a single-cell DECT IP phone system designed for small to medium-sized offices, retail environments and light commercial deployments. Combining the W710D base station with the W620D cordless handset, it supports up to 20× SIP accounts, 10× handsets and 10× simultaneous calls. DECT coverage reaches up to 50m indoors and 300m outdoors, helping users stay connected while moving throughout the workplace. The W620D features a 2.4" colour display, HD voice, intelligent noise reduction, programmable DSS keys, Push-to-Talk functionality and a long-lasting 3,000mAh battery. Centralised web management, auto-provisioning and fast handset pairing simplify deployment and ongoing administration.
Features
- Scalable DECT Phone System - Supports up to 10× W620D handsets and 10× simultaneous calls from one W710D base
- 20× SIP Accounts - Accommodates multiple users, extensions and SIP services within a compact deployment
- Extended Wireless Coverage - Provides up to 50m indoor and 300m outdoor DECT coverage under suitable conditions
- HD Voice Quality - Supports G.722 and Opus wideband codecs for clear, natural conversations
- Intelligent Noise Reduction - Acoustic Shield and noise reduction technologies help improve call clarity
- 2.4" Colour Display - 240 × 320 high-definition screen provides a clear and responsive user interface
- Programmable Communication Controls - Includes 16× virtual DSS keys, one physical DSS key and a configurable side PTT key
- 6-Way Audio Conferencing - Supports collaborative calls directly from the handset
- Long Battery Duration - Provides up to 13 hours of talk time and 240 hours of standby time under ideal conditions
- Large Contact Capacity - Stores up to 1,000 local contacts per handset with XML and LDAP remote phonebook support
- Flexible Calling Modes - Supports handset, hands-free speaker, wired headset and compatible Bluetooth headset operation
- Centralised Management - Administrators can manage handsets, SIP accounts, configurations, firmware and maintenance through the W710D web interface
- Fast Handset Pairing - Auto-authorised registration mode simplifies adding compatible DECT handsets
- PoE or DC Base Power - The W710D can operate from PoE or a 5V 1A DC supply
- Durable Mobile Design - W620D handset is rated for drops of up to 1.8m
Specifications
System
- System Type: Single-Cell DECT IP Phone System
- Included Base Station: W710D
- Included Handset: W620D
- Maximum Handsets: 10
- Maximum Simultaneous Calls: 10
- SIP Accounts: up to 20
- SIP Servers: up to 20
- Internal Extensions: up to 10
- Wireless Coverage: up to 50m Indoors / 300m Outdoors
- DECT Frequency: 1880~1900MHz
- Base Call Log Capacity: up to 20,000 Entries
- Handset Call Log Capacity: up to 600 Entries
W620D Handset
- Display: 2.4" 240 × 320 Colour LCD
- SIP Lines: 4
- Local Phonebook: Up to 1,000 Contacts
- Virtual DSS Keys: 16
- Physical DSS Keys: 1
- Side Key: 1× Programmable PTT Key
- Conference Calling: up to 6-Way Audio Conference
- Incoming Call Alert: Ringing and Vibration
- Wideband Codecs: G.722, Opus
- Narrowband Codecs: G.711a/u, G.729, G.729A, G.729B, G.729AB
- Battery: 3,000mAh Rechargeable Battery
- Talk Time: up to 13 Hours
- Standby Time: up to 240 Hours
- Charging Input: 5V 2A
- Drop Resistance: up to 1.8m
- Dimensions: 160 × 53 × 16mm
- Construction: Plastic
- Colour: Black
W710D Base Station

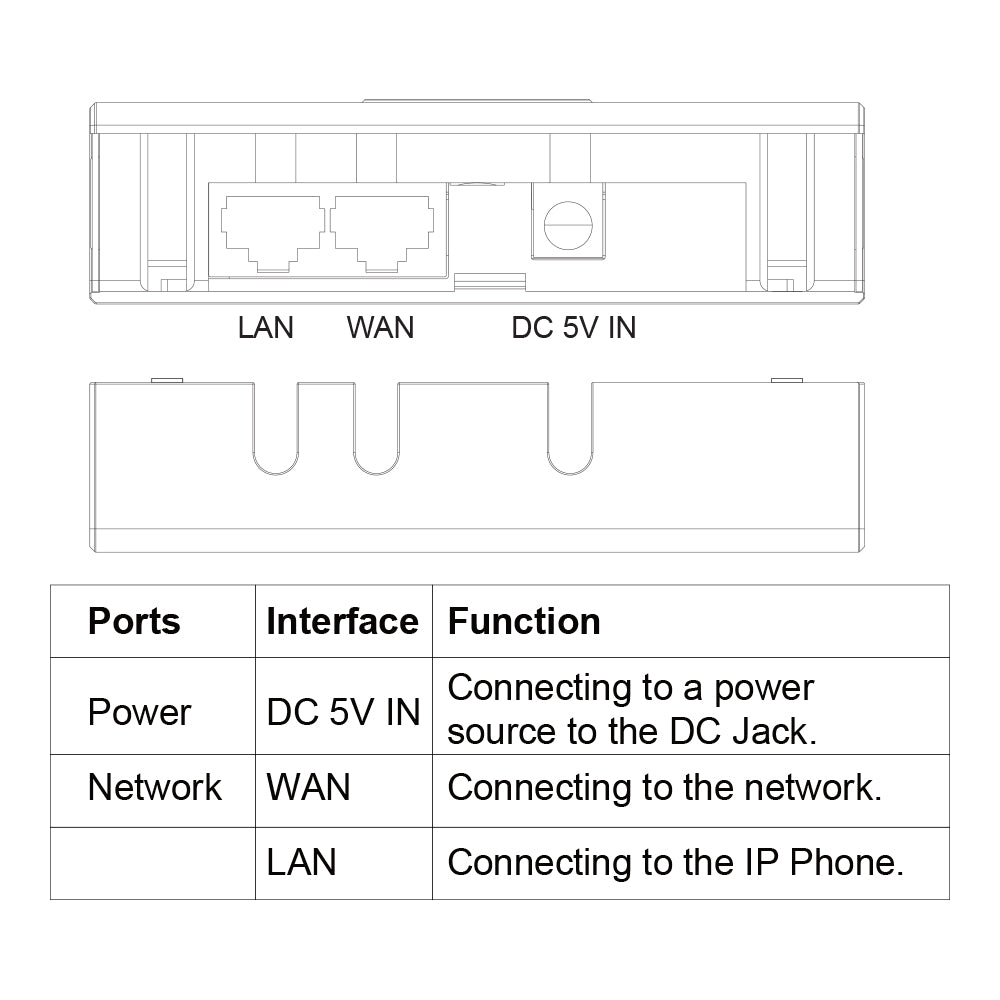

- Network Ports: 2× 10/100Mbps RJ45
- Port Functions: 1× Network and 1× Bridged PC Port
- IP Modes: IPv4, IPv6 or Dual Stack
- Network Protocols: UDP, TCP, TLS, RTP, SRTP, DHCP, LLDP, 802.1X and SNTP
- VPN Support: L2TP and OpenVPN
- VLAN Support: Yes
- Power Input: 5V 1A DC or PoE
- PoE Power Consumption: 1.17~1.39W
- DC Power Consumption: 0.803~0.94W
- Installation: Wall-Mounted
- Dimensions: 140 × 100 × 26mm
- Weight: 184.5g
- Colour: Black
Environmental
- Operating Temperature: -10~45°C
- Storage Temperature: -20~60°C
- Operating Humidity: 5~95%
Notes
- The W620P is a single-cell system and does not support roaming between multiple base stations
- The W710D power adapter is optional because the base can be powered through PoE
- The W620D charging base requires the supplied 5V 2A power adapter
- The correct Country/Region setting must be selected on both the base and handset for South African DECT operation
- Bluetooth support applies to compatible headset connections on the W620D
