FANVIL VIK-01 VIDEO INTERCOM KIT I60 AND I504W

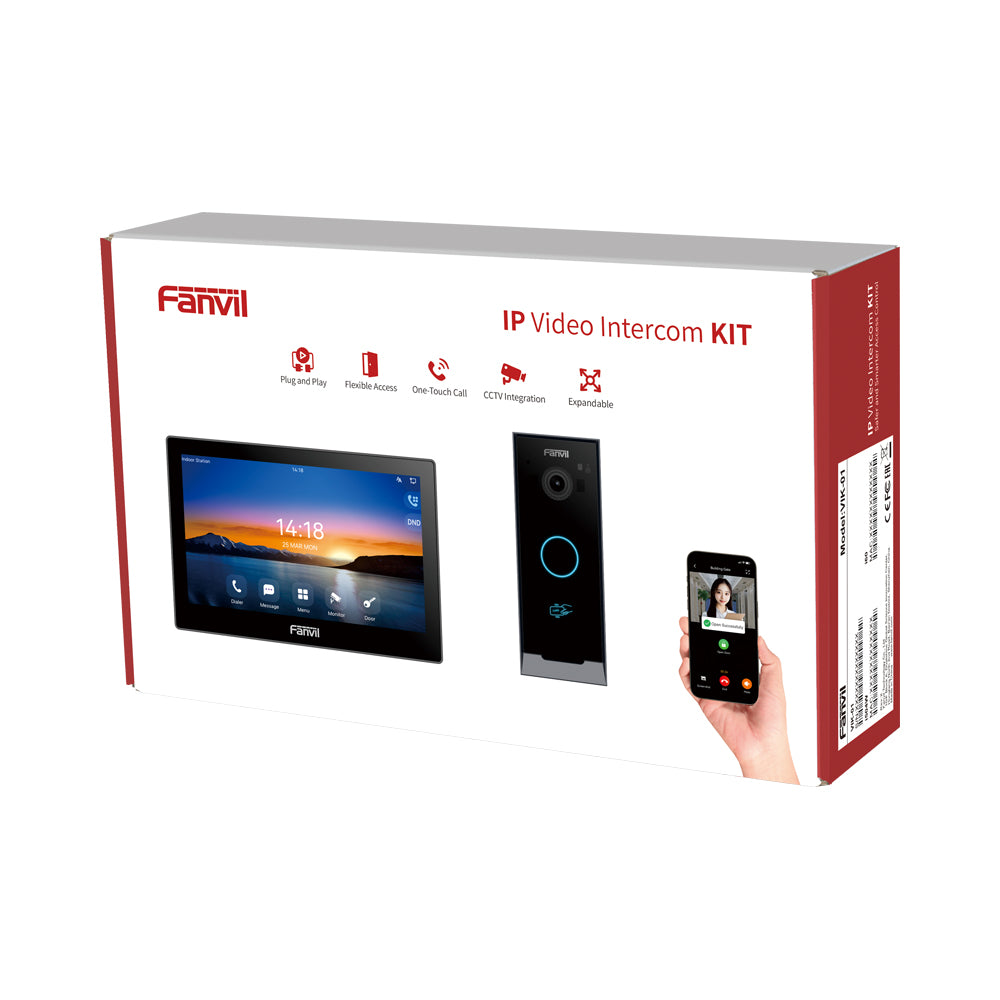

Fanvil VIK-01 Intercom Kit - 7" Colour Touch Screen Indoor Station, 2W Speaker and 2MP Video Door Phone - Dual-Band Wireless

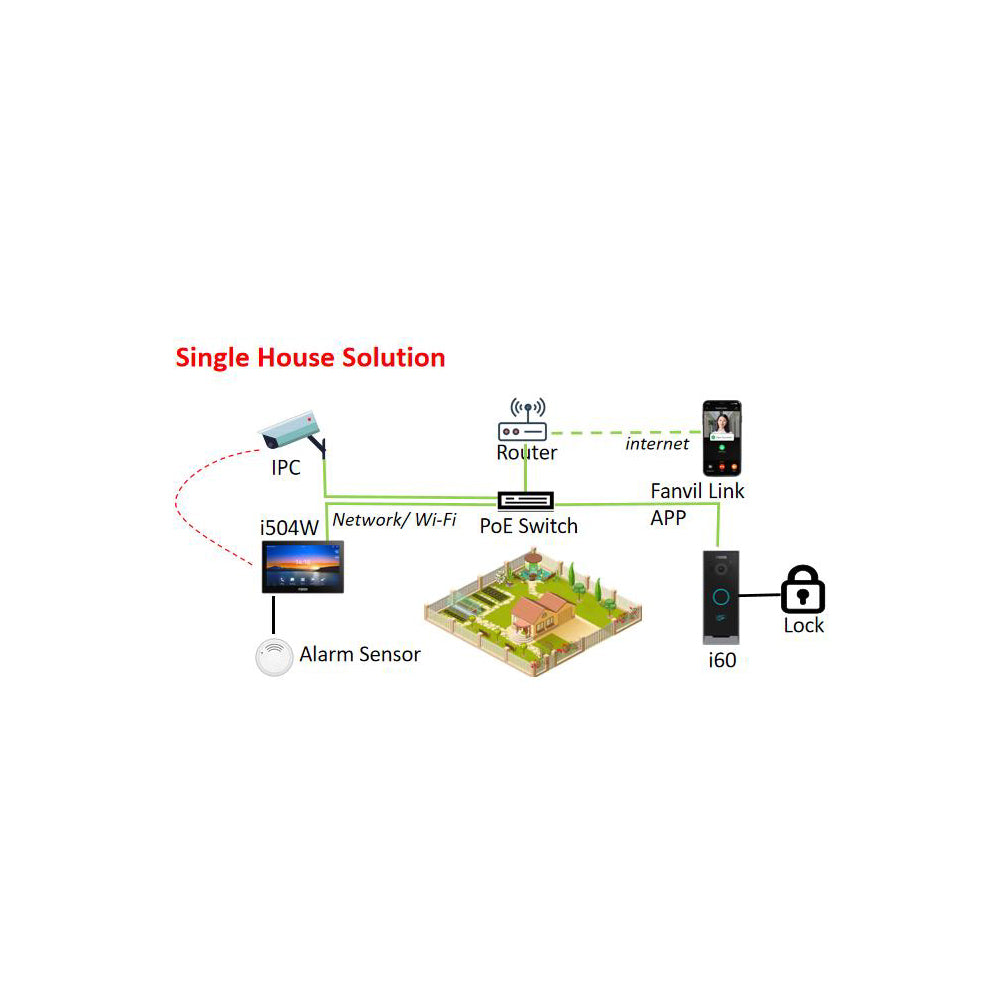

Single-Family Smart Key: Instant Access

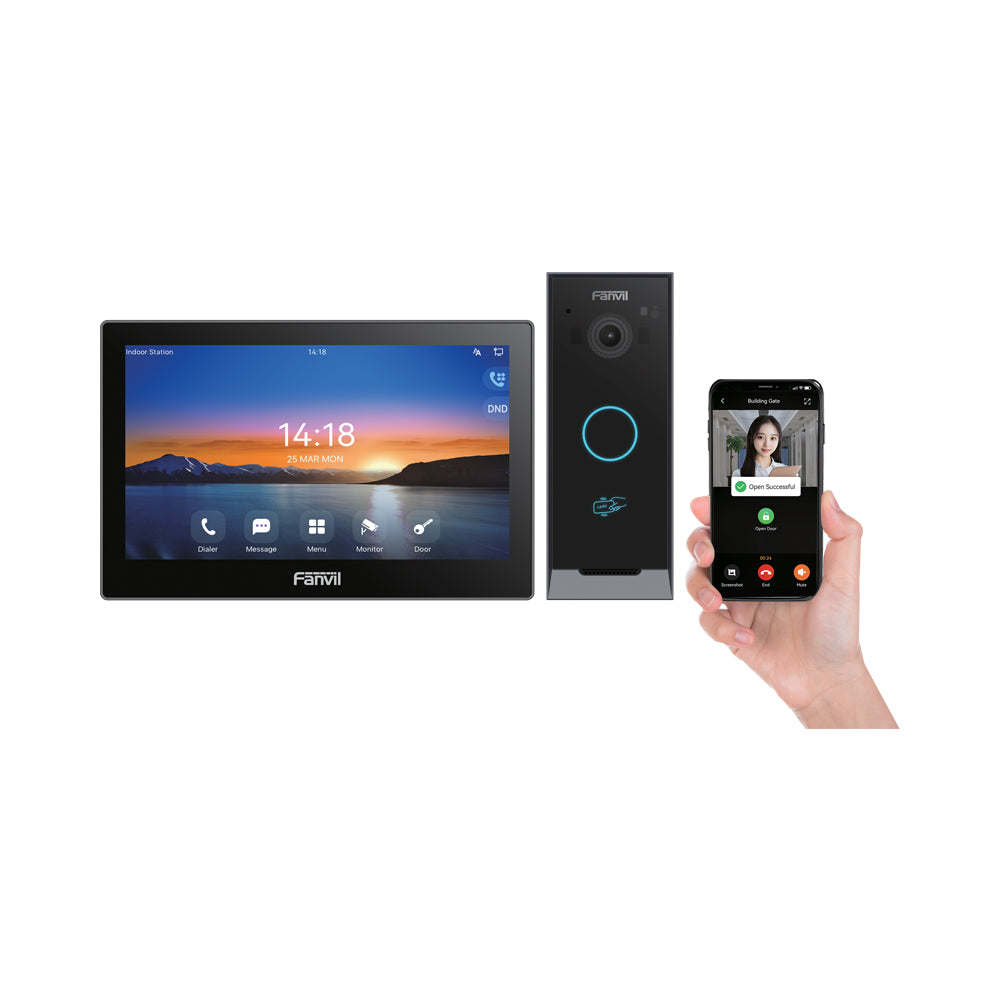

The Fanvil VIK-01 Video Intercom Kit integrates the i504W SIP Indoor Station, i60 Video Door Phone and Fanvil Link App. Users can make HD video calls and remotely unlock doors via the indoor unit or Fanvil Link App, with multiple unlocking options and 2.4GHz/5.0GHz Wi-Fi support. Achieve plug and play deployment with simple power and network connections.

Features

• Plug and play, quickly deployment
• Flexible door access methods
• Monitor door phone camera footage on both mobile and indoor station
• Remote door opening anytime, anywhere
• Supports one-touch calling
• CCTV integration

Fanvil I504W Specifications

• Screen: 7" 1024×600 Colour Capacitive Touch Screen
• Body: ABS
• Speaker: 2W
• Wi-Fi: 2.4GHz/5.0GHz

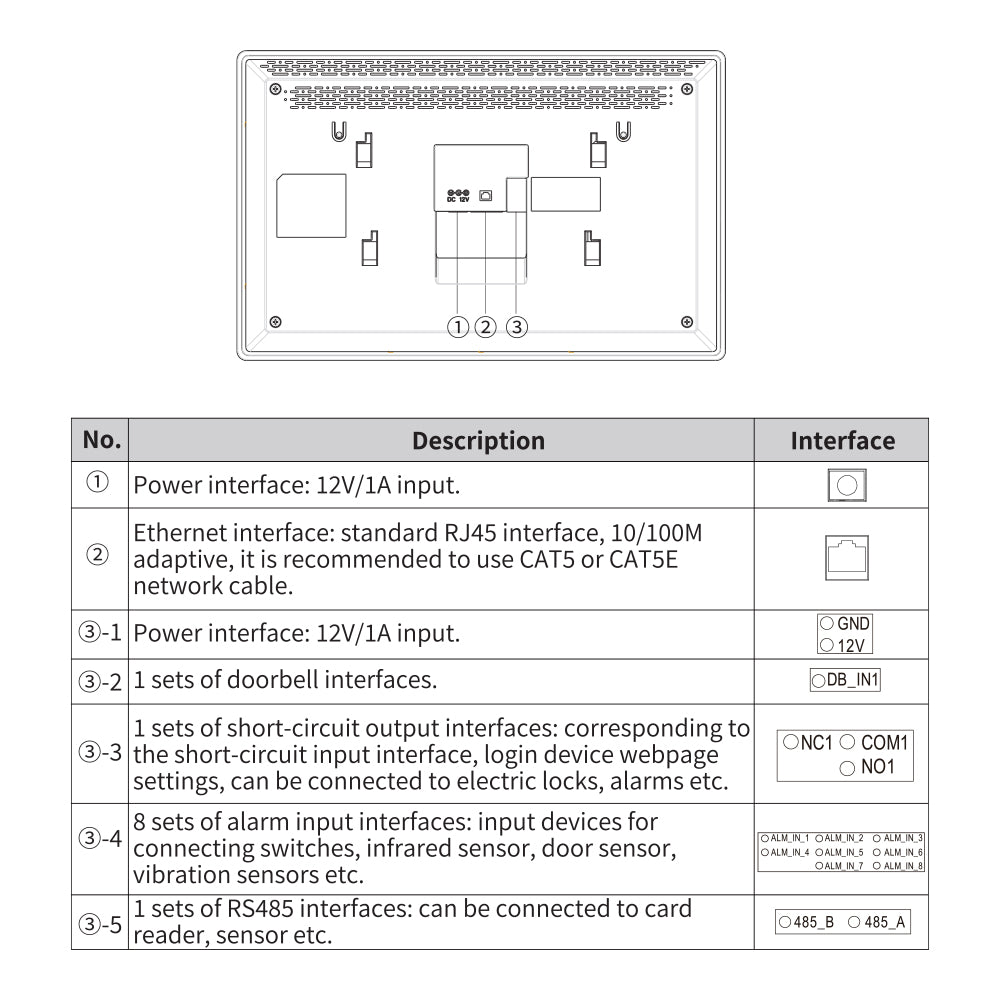

• Interface: 8× Alarm Input, 1× Short -Circuit Output, 1× Doorbell input, 1× RS485 (Reserved)
• Network: 10/100Mbps Adaptive
• Power Supply:

Dc12V 1A

PoE: 3.65~6.64W

• Working Temperature: -10~50°C
• Storage Temperature: -40~80°C
• Working Humidity: 10~90%
• Size (L × W × H): 177.38 × 113.99 × 22.5mm
• Installation: Wall-Mounted

Functional Capabilities

• Supported Protocols: SIP 2.0 over UDP/TCP/TLS
• Audio:

Narrowband Codec: G.711A/U, G.723.1, G.726-16 / 24 / 32 /40, G.729AB, iLBC

Broadband Codec: G.722, OPUS

Full-Duplex Hands-Free Calling, Supports Acoustic Echo Cancellation (AEC)

• Video:

Hardware Decoding: H.264, H.265 (Optional)

Video Call Resolutions: QVGA / CIF / VGA / 4CIF / 720p / 1080p

• DTMF:

In-Band

Out-of-Band DTMF (RFC2833)

SIP Info

• Do Not Disturb (DND): Supported and the Time Can Be User-Defined
• Supports:

Viewing Video from Third-Party IP Cameras

Customising Incoming Call Ringtones

Remote Door Unlocking

Sending/Receiving Messages

Fanvil I60 Specifications

• Keyboard: 1× Speed-Dial Button
• Body: ABS and PC
• Colours:

Panel: Black

Housing: Gunmetal

• Sensor: 1/2.9", CMOS
• Camera: 2MP, Supports Infrared
• Viewing Angle: 140° (FOV), 100° (Horizontal), 57° (Vertical)
• Output Video: H.264 (Baseline, Main Profile)
• Light Sensitivity: 0.1 Lux
• Card Storage: 1,0000
• Power Consumption:

PoE: 1.63~6.93W

Adapter: 1.51~6.16W

• Power Supply:

Dc12V 1A

PoE 802.3af Class 3

• Working Temperature: -40~70°C
• Storage Temperature: -40~70°C
• Dimensions: 50 × 130 × 30mm
• IP Level: IP65
• Installation:

Wall-Mounted

Rain Cover

Functional Capabilities

• Supported: SIP 2.0 over UDP/TCP/TLS
• Lock Opening:

IC Card

By DTMF Code

Remote Door Opening

Ble

• Interface:

Wiegand Input / Output

Short-Circuit Input / Output

• Supported Wiegand: 26, 34bit
• Supported ONVIF: Profile S
• Supported Standards:

IC Card

Dtmf

Indoor Switch

BLE Cards 13.56 MHz

• Talking Mode: Full-Duplex (High-Definition Audio)
• Supports:

Built-In Relay

Motion Detection

Tamper Alarm

TF Card

Open API
