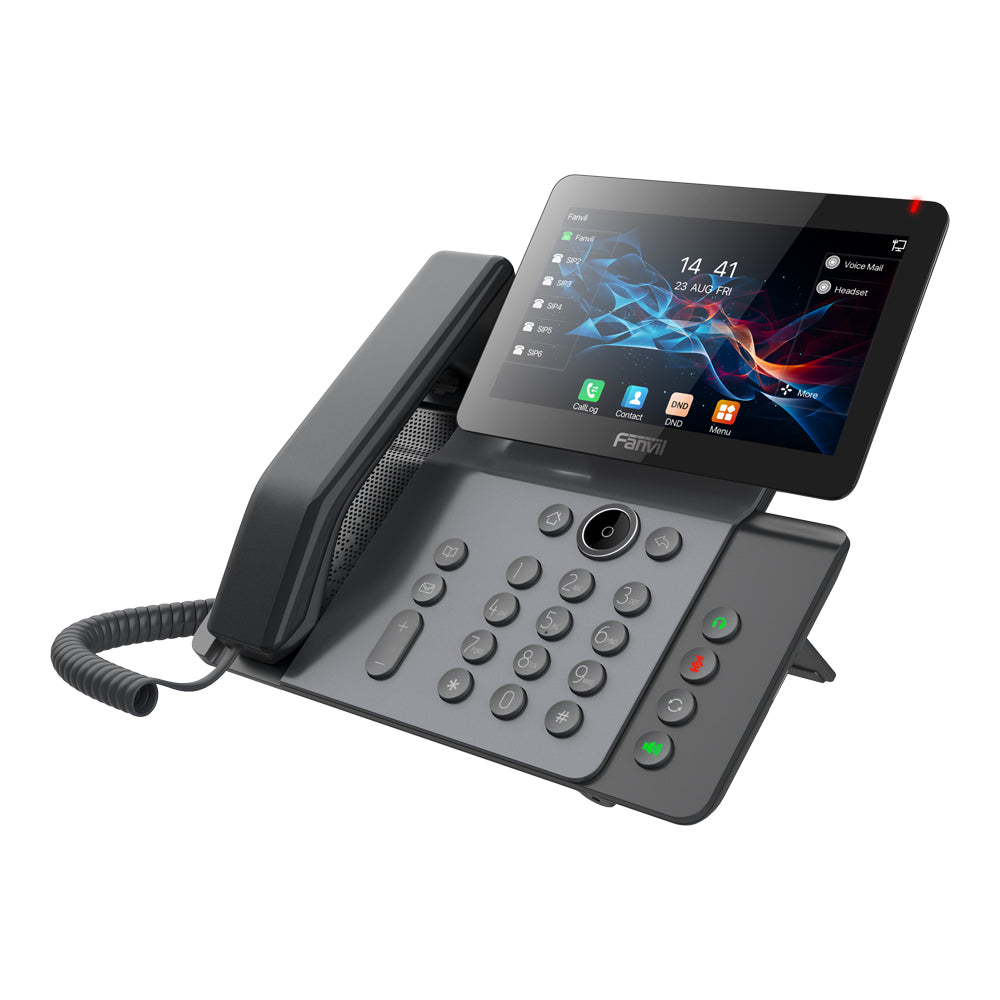

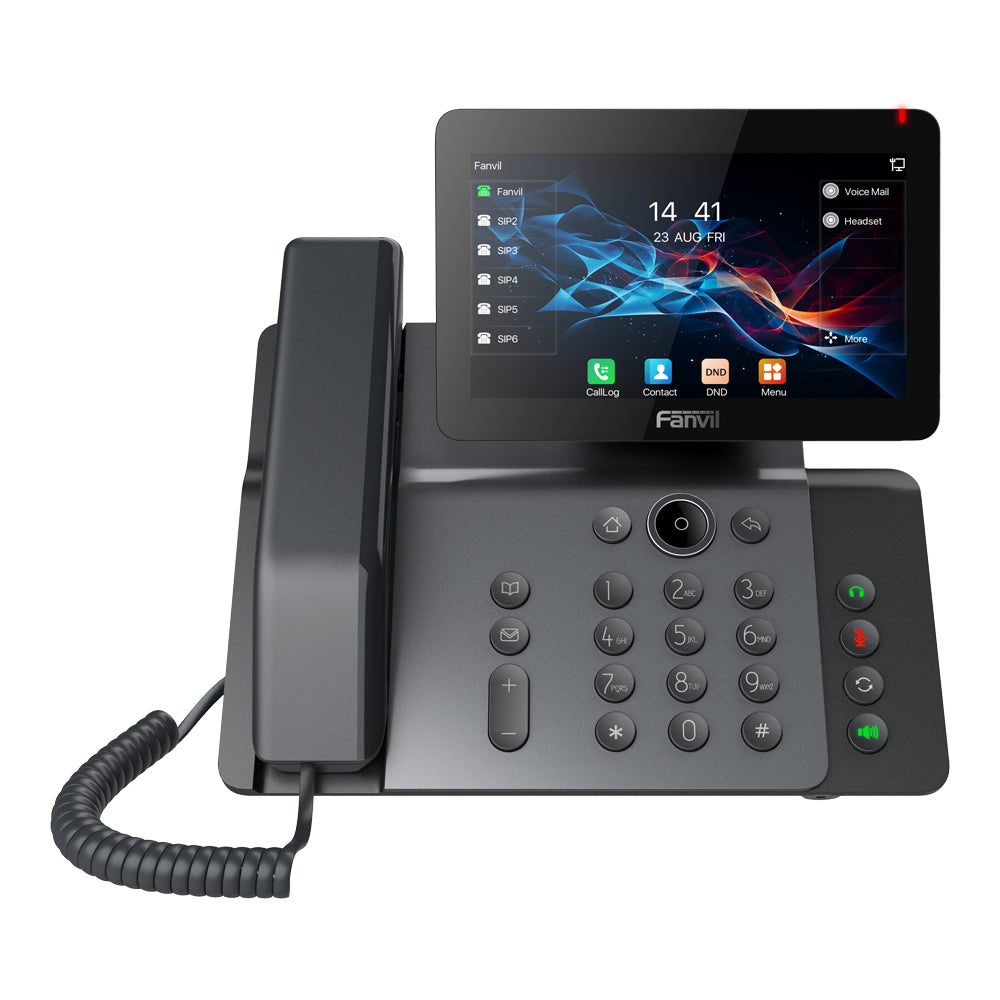

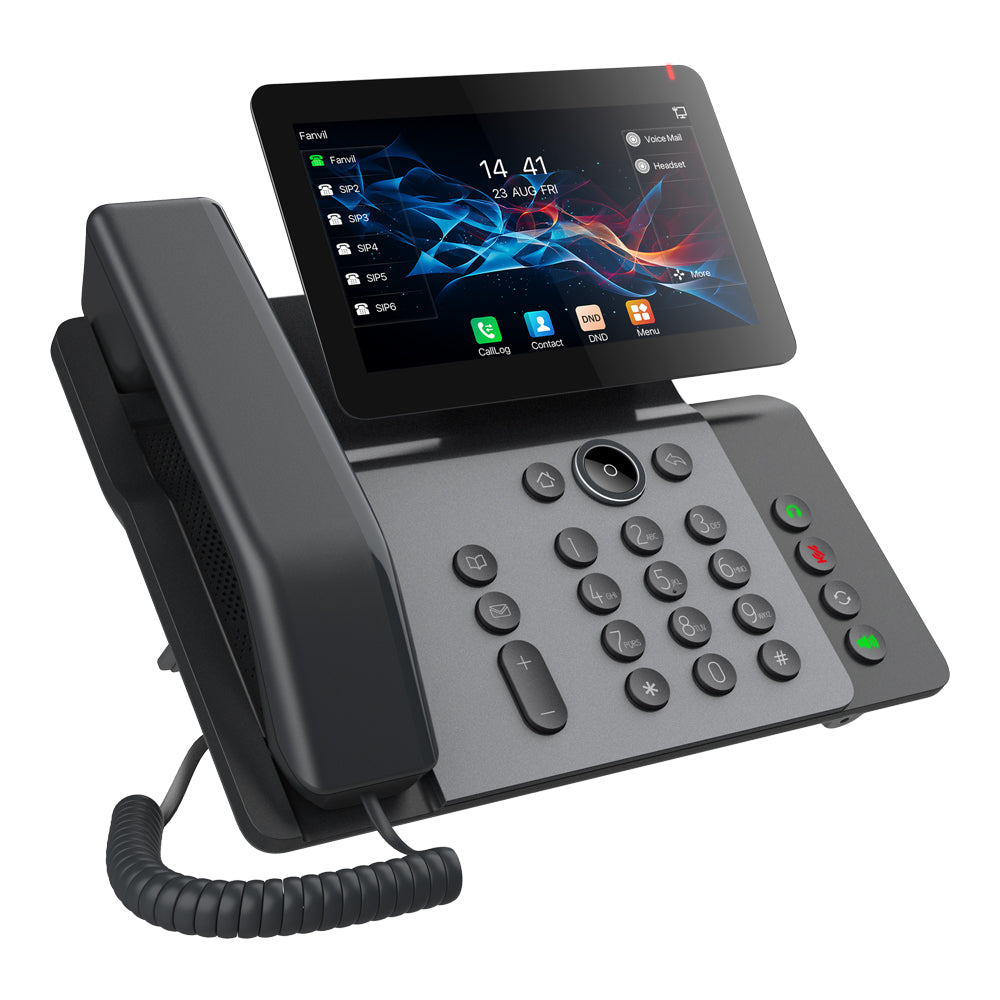

Fanvil V66 Prime Business Phone with 7" Colour Screen, Dual-Band Wi-Fi 6 and BT 5.4
Premium Business Communication with HD Voice, Wi-Fi 6 and Smart Touch Control.
The Fanvil V66 Prime Business Phone is designed for professional users who need efficient voice, video and network communication from one modern desktop phone. It features a 7-inch adjustable IPS colour touch screen, 20 SIP lines, HD voice, Opus and G.722 audio codecs, 6-way audio conferencing and H.264 1080p video decoding. Built-in 2.4GHz/5.0GHz dual-band Wi-Fi 6 and Bluetooth 5.4 provide flexible connectivity, while dual Gigabit Ethernet ports, PoE support, up to 116 DSS keys and antibacterial handset and keypad surfaces make the V66 ideal for executive desks, reception areas, offices and high-demand business environments.
Features
- 7-Inch Adjustable Touch Screen - IPS colour touch screen with 1024 × 600 resolution and 0~40° adjustable angle
- 20 SIP Lines - Supports multiple SIP accounts for advanced business communication
- HD Voice - Delivers clear audio through HD handset and HD speaker support
- Opus and G.722 Audio - Supports wideband codecs for improved call clarity
- 6-Way Audio Conference - Enables multi-party conference calling directly from the phone
- H.264 Video Decoding - Supports receiving video calls with up to 1080p video decoding
- Built-In Dual-Band Wi-Fi - Supports 2.4GHz and 5.0GHz Wi-Fi with Wi-Fi 6 connectivity
- Built-In Bluetooth 5.4 - Supports Bluetooth headset pairing and mobile device pairing
- Dual Gigabit Ethernet Ports - Provides 10/100/1000Mbps network and PC ports
- PoE Enabled - Supports IEEE 802.3af PoE for simplified power and data deployment
- Up to 116 DSS Keys - Provides 29 × 4 virtual DSS keys for BLF, line, speed dial and other functions
- Antibacterial Surface - Handset and keypad surface inhibits more than 99.5% of bacteria growth
- HAC Handset - Supports hearing aid compatibility for improved accessibility
- EHS Headset Support - Compatible with selected Poly and Jabra wireless headset solutions using supported EHS cables
- Desktop Or Wall Mountable - Supports desktop stand installation, with optional wall mounting (Sold Separately)
Specifications
- Display: 7" IPS Colour Touch Screen
- Display Resolution: 1024 × 600
- Screen Angle: Adjustable 0~40°
- SIP Lines: 20
- DSS Keys: Up to 116, 29 × 4 Virtual DSS Keys
- Audio Conference: 6-Way Audio Conference
- HD Voice: HD Handset, HD Speaker
- Wideband Codecs: G.722, Opus
- Narrowband Codecs: G.711a/u, G.723.1, G.726, G.729, G.729A, G.729B, G.729AB, iLBC
- Audio Processing: Full-Duplex AEC, VAD, CNG, BNE, NR, AGC, PLC And Adaptive Jitter Buffer
- Video Decoding: H.264
- Video Call Resolution: QVGA, CIF, VGA, 4CIF, 720p, 1080p

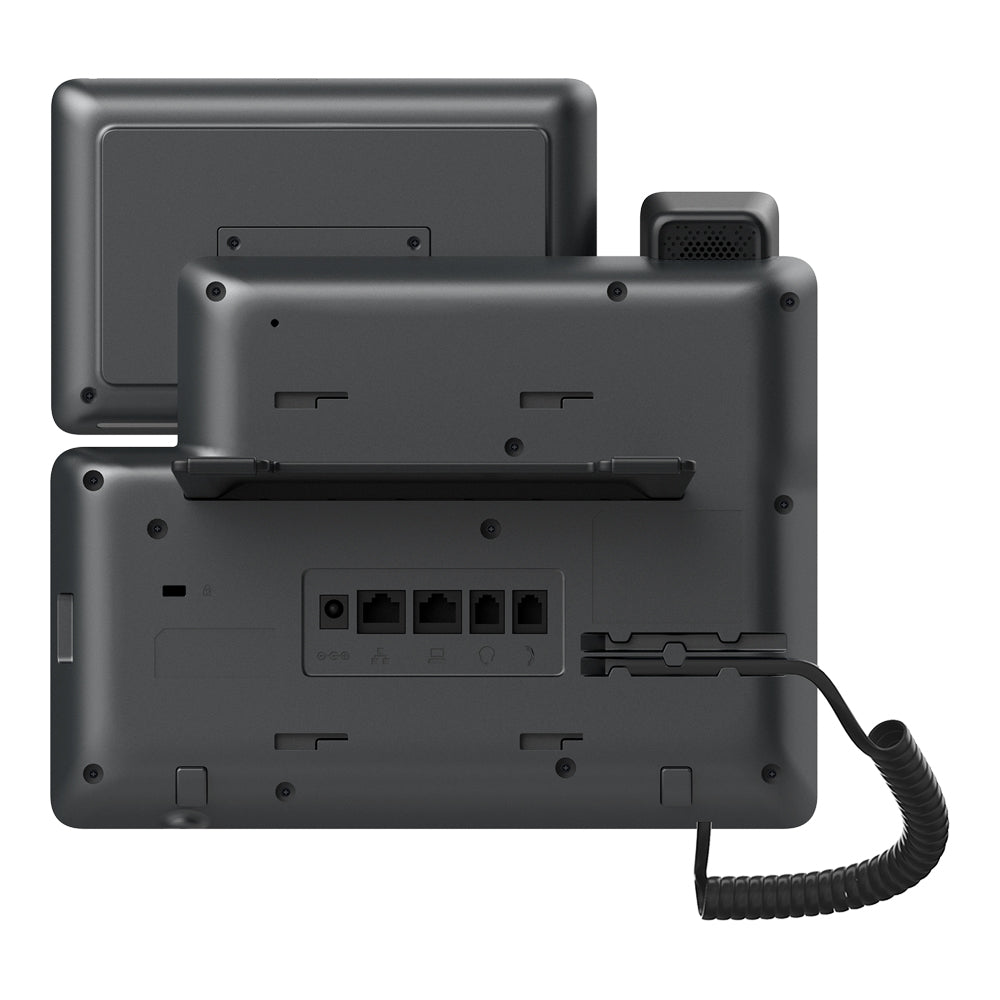

- Ethernet Ports: 2× 10/100/1000Mbps RJ45 Ports, Network and PC
- Wi-Fi: Built-In 2.4GHz/5.0GHz Dual-Band Wi-Fi, Wi-Fi 6 Support
- Wi-Fi Standards: 2.4GHz 802.11b/g/n/ax, 5.0GHz 802.11a/n/ac/ax
- Bluetooth: Built-In Bluetooth 5.4
- USB Port: 1× USB2.0 Type-A Port
- RJ9 Ports: 1× Handset Port, 1× Headset Port
- Network Mode: IPv4, IPv6, IPv4 and IPv6
- IP Configuration: Static IP, DHCP, PPPoE
- VPN: L2TP, OpenVPN
- Network Features: VLAN, LLDP, QoS, 802.1x, DNS-SRV and Redundant Server Support
- Protocols: SIP V1/V2, UDP, TCP, TLS, RTP, RTCP, SRTP, STUN, DHCP, PPPoE, SNTP, FTP, TFTP, HTTP, HTTPS, TR-069, AES128 and AES256
- Phonebook: Local Phonebook 2000 Entries, Remote Phonebook XML/LDAP
- Call Logs: In, Out and Missed Call Logs, 1000 Entries
- Installation: Desktop Stand, Optional Wall Mount (Sold Separately)
- Power Input: DC12V/1.5A or PoE
- PoE Standard: IEEE 802.3af
- Power Adapter Input: 100~240V AC, 50/60Hz
- Power Adapter Output: 12V 1.5A
- Power Consumption with Adapter: 1.9~7.9W (Sold Separately)
- Power Consumption with PoE: 3.2~10.1W
- Working Temperature: 0~45°C
- Working Humidity: 10~95%
- Colour: Dark Grey
- Device Dimensions: 245.4 × 252.5 × 63mm
- Package Dimensions: 357 × 258 × 71mm
Notes
- The V66 does not include a built-in camera and is specified for H.264 video decoding and receiving video calls
- PoE requires an IEEE 802.3af compatible PoE switch or injector
- Bluetooth headset and mobile device pairing depend on compatible devices
- EHS headset support requires compatible Poly or Jabra headset accessories
- Wall mounting requires the optional wall mount bracket
