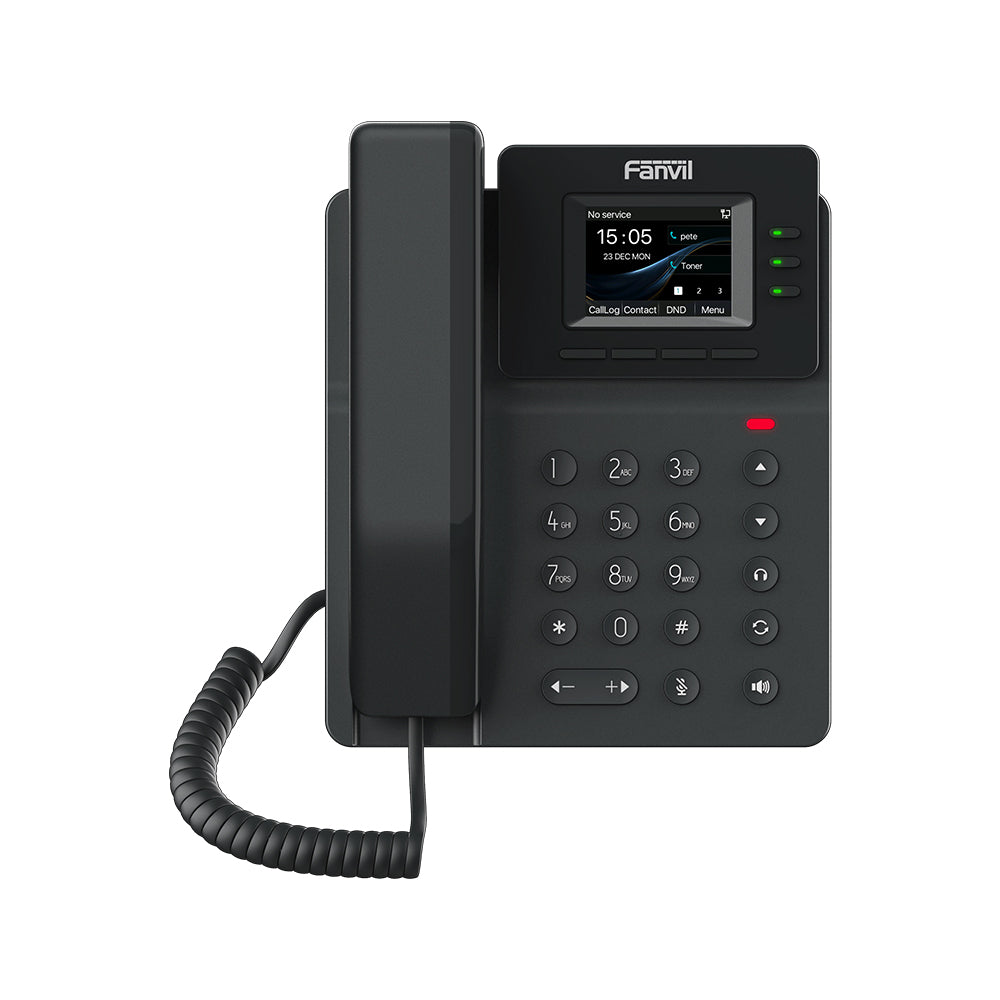

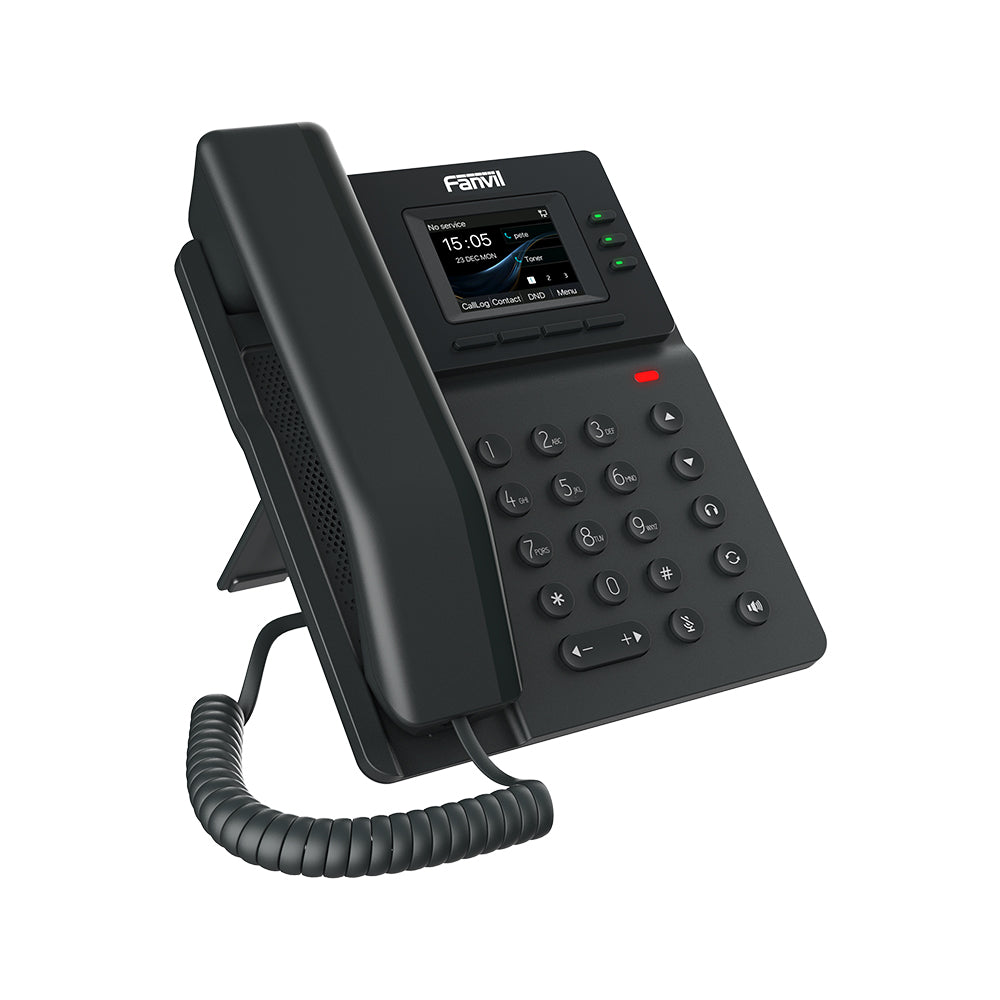

Fanvil V60G Cost-Effective IP Phone with 2.4" Colour Screen
Professional Communication. Effortless Control.
The Fanvil V60G IP Phone is a high-performance cost-effective IP phone designed for efficient and reliable communication. Featuring a 2.4-inch colour display, support for up to 4× SIP lines and 6-way audio conferencing, it delivers clear HD voice and intuitive operation. With PoE support and enterprise-grade features, the V60G provides a comfortable and efficient communication experience for modern office environments.
Features
- 2.4" Colour Display - 320 × 240 screen for clear call information and easy navigation
- 4× SIP Lines - Supports multiple accounts for flexible call management
- 6-Way Audio Conference - Efficient group collaboration directly from the phone
- HD Voice Technology - Delivers clear, natural audio for professional communication
- PoE Support - Power and network connectivity through a single Ethernet cable
- Dual Gigabit Ethernet Ports - High-speed network connectivity with PC Passthrough
- Programmable DSS Keys - Customisable keys for BLF, speed dial and quick functions
Specifications
Phone Functions
- Local Phonebook: up to 1,000 Entries
- Remote Phonebook Support: XML / LDAP
- Call Logs: Incoming, Outgoing, Missed (up to 1,000 Entries)
- Programmable DSS / Soft Keys
- Voicemail Waiting Indication (MWI)
- Speed Dial Support
- Network Time Synchronisation
- XML Browser Support
- Customisable UI, Background and Ringtones
- Hot Desking Support
- Server-Based Call Recording Support
Call Functions
- Call Out, Answer, Reject
- Call Hold / Resume / Call Waiting
- Caller ID Display
- Call Transfer: Attended and Unattended
- Call Forwarding: Always / Busy / No Answer
- Do Not Disturb (DND) with Timed Option
- 6-Way Audio Conferencing
- Intercom Support
- Speed Dial
- Redial / Auto-Redial / Call Completion
- Anonymous Call and Anonymous Call Blocking
Audio
- HD Voice on Handset and Speakerphone
- Wideband Codec Support: G.722, Opus
- Narrowband Codecs: G.711, G.729, G.726, G.723.1
- Full-Duplex Acoustic Echo Cancellation (AEC)
- Noise Reduction and Automatic Gain Control (AGC)
- Voice Activity Detection (VAD)
- Dynamic Adaptive Jitter Buffer
- Packet Loss Concealment (PLC)
- DTMF Support: RFC2833 / SIP INFO / In-Band
- Voice Quality Monitoring (VQM)
Network
- Dual-Port Gigabit Ethernet: 10/100/1000Mbps with PC Passthrough
- IPv4 / IPv6 Support
- IP Configuration: Static IP / DHCP / PPPoE
- VLAN Support
- QoS Traffic Prioritisation
- 802.1x Network Authentication
- VPN Support: L2TP / OpenVPN
- LLDP Network Discovery
- Redundant SIP Server Support
Protocols
- SIP v1 / SIP v2 Support
- Transport Protocols: UDP / TCP / TLS
- SRTP Secure Voice Encryption
- STUN NAT Traversal Support
- DHCP Support
- SNTP Time Synchronisation
- FTP / TFTP / HTTP / HTTPS Management Protocols
- TR-069 Remote Device Management
- AES-128 / AES-256 Encryption
Deployment And Management
- Auto-Provisioning: FTP / TFTP / HTTP / HTTPS / DHCP
- SIP Plug-and-Play Provisioning
- Web-Based Management Interface
- Firmware Upgrade Support
- Configuration Import / Export
- Phonebook Import / Export
- Syslog Monitoring Support
- Web-Based Packet Capture
- Screenshot Tool for Remote Troubleshooting
- Built-In Network Firewall
Physical
- 2.4" Colour LCD: 320 × 240

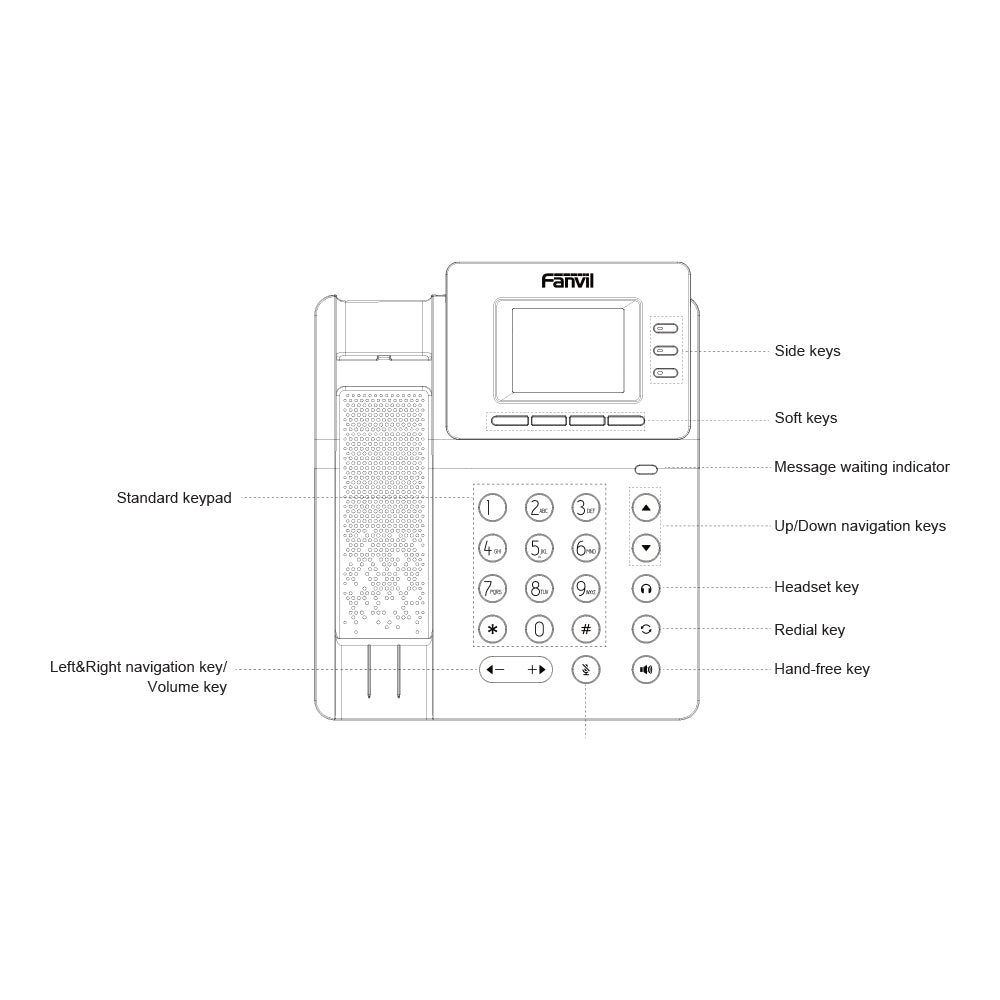

- 27× Physical Keys Including Function and Navigation Keys
- up to 6× DSS Programmable Keys with LED Indicators
- HD Handset with Hall Switch
- RJ9 Ports for Handset and Headset

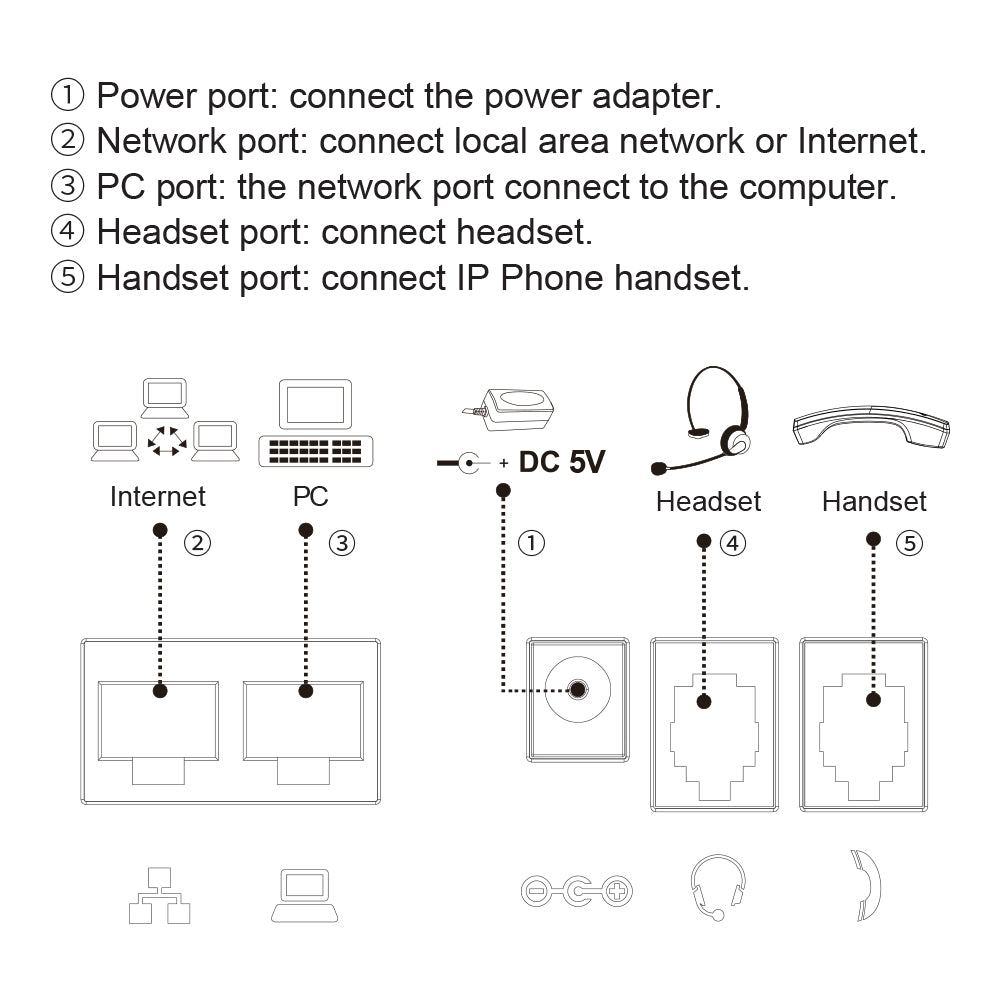

- Dual RJ45 Network Ports: LAN + PC Passthrough
- PoE: IEEE 802.3af or 5V DC Power (Optional Extra)
- Power Consumption: 1.56~2.43W (PoE)
- Operating Temperature: 0~45°C

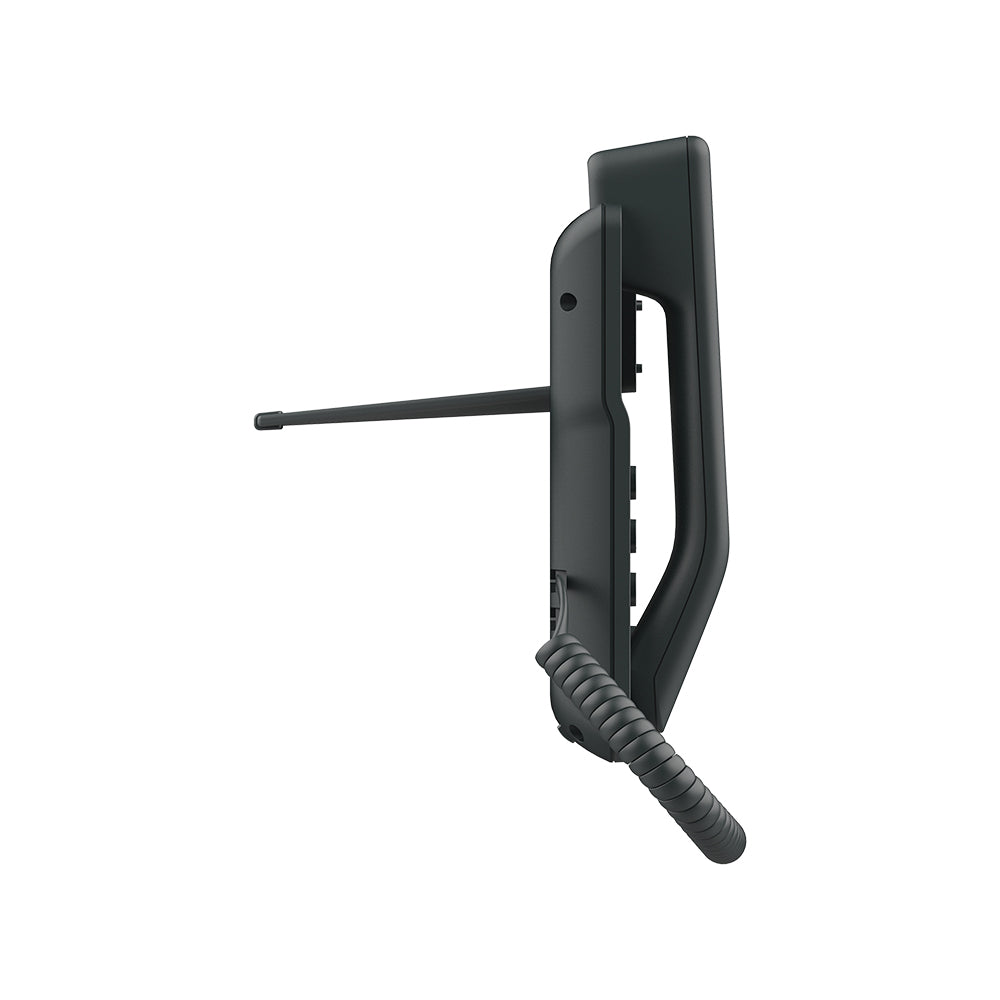

- Installation: Desktop Stand or Wall Mount (Optional Extra)
- Dimensions: Approx. 173 × 185 × 170mm
