FANVIL V50G BASIC LEVEL IP PHONE
FEATURES
• 2.3" Dot-Matrix Display - 132 × 64 pixel screen with backlight for clear visibility
• HD Voice Audio - Supports G.722 and Opus codecs for high-quality sound on handset and speakerphone
• 6-Way Audio Conference - Enables efficient multi-party communication
• Gigabit Ethernet Connectivity - Dual 10/100/1000Mbps ports with integrated PoE support
• HAC Handset Support - Hearing Aid Compatible handset with full-duplex hands-free speaker
• Flexible Installation - Supports desktop stand or wall-mount installation
• EHS Headset Support - Compatible with EHS wireless headsets for hands-free operation
SPECIFICATIONS
GENERIC
• 2.3" Dot-Matrix Display: 132 × 64 with Backlight
• 2× SIP Lines
• HD Voice Support
• PoE Enabled: IEEE 802.3af
• Handset, Hands-Free and Headset Modes
• Installation: Desktop Stand or Optional Wall Mount
• Optional External Power Supply Support
• Handset with Hall-Effect Sensor Switch
PHONE FUNCTIONS
• Local Phonebook: up to 1,000 Entries
• Remote Phonebook Support: XML / LDAP
• Call Logs: Incoming, Outgoing, Missed (up to 1,000 Entries)
• Blocked / Allowed Call Lists
• Voice Message Waiting Indication (MWI)
• Programmable Soft Keys
• Network Time Synchronisation
• Wireless Headset Support: Poly / Jabra via EHS Cables
• Server-Based Call Recording Support
• XML Browser Support
• Customisable UI, Background and Ringtones
CALL FUNCTIONS
• Call Out / Answer / Reject
• Call Hold / Resume / Call Waiting
• Caller ID Display
• Speed Dial Support
• Call Transfer: Attended and Unattended
• Call Forwarding: Always / Busy / No Answer
• Do Not Disturb (DND) with Timed Option
• 6-Way Audio Conferencing
• Hot Desking Support
• Direct IP Call Without SIP Proxy
• Auto-Redial / Call Completion
AUDIO
• HD Voice on Handset and Speakerphone
• Wideband Codec Support: G.722, Opus
• Narrowband Codec Support: G.711, G.729, G.726, G.723.1
• 16kHz ADC / DAC Audio Processing
• Full-Duplex Acoustic Echo Cancellation (AEC)
• Noise Reduction and Automatic Gain Control (AGC)
• Voice Activity Detection (VAD)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF Support: RFC2833 / SIP INFO / In-Band
NETWORK
• Gigabit Ethernet: 10/100/1000Mbps Dual Ports
• PC Passthrough Network Port
• IPv4 / IPv6 Support
• IP Configuration: Static IP / DHCP / PPPoE
• 802.1x Network Authentication
• VLAN Support
• QoS Traffic Prioritisation
• VPN Support: L2TP / OpenVPN
• LLDP Network Discovery
• Redundant SIP Server Support
PROTOCOLS
• SIP v1 / SIP v2 Support
• Transport Protocols: UDP / TCP / TLS
• SRTP Secure Voice Encryption
• STUN NAT Traversal Support
• DHCP Network Configuration
• SNTP Time Synchronisation
• FTP / TFTP / HTTP / HTTPS Management Protocols
• TR-069 Remote Device Management
• AES128 / AES256 Encryption
DEPLOYMENT AND MANAGEMENT
• Auto-Provisioning: FTP / TFTP / HTTP / HTTPS / DHCP
• SIP Plug-and-Play Provisioning
• Web Management Interface
• Firmware Upgrade Support
• Configuration Import / Export
• Phonebook Import / Export
• Syslog Monitoring Support
• Web-Based Packet Capture
• Built-In Network Firewall
PHYSICAL
• 2.3" Backlit LCD Display: 132 × 64

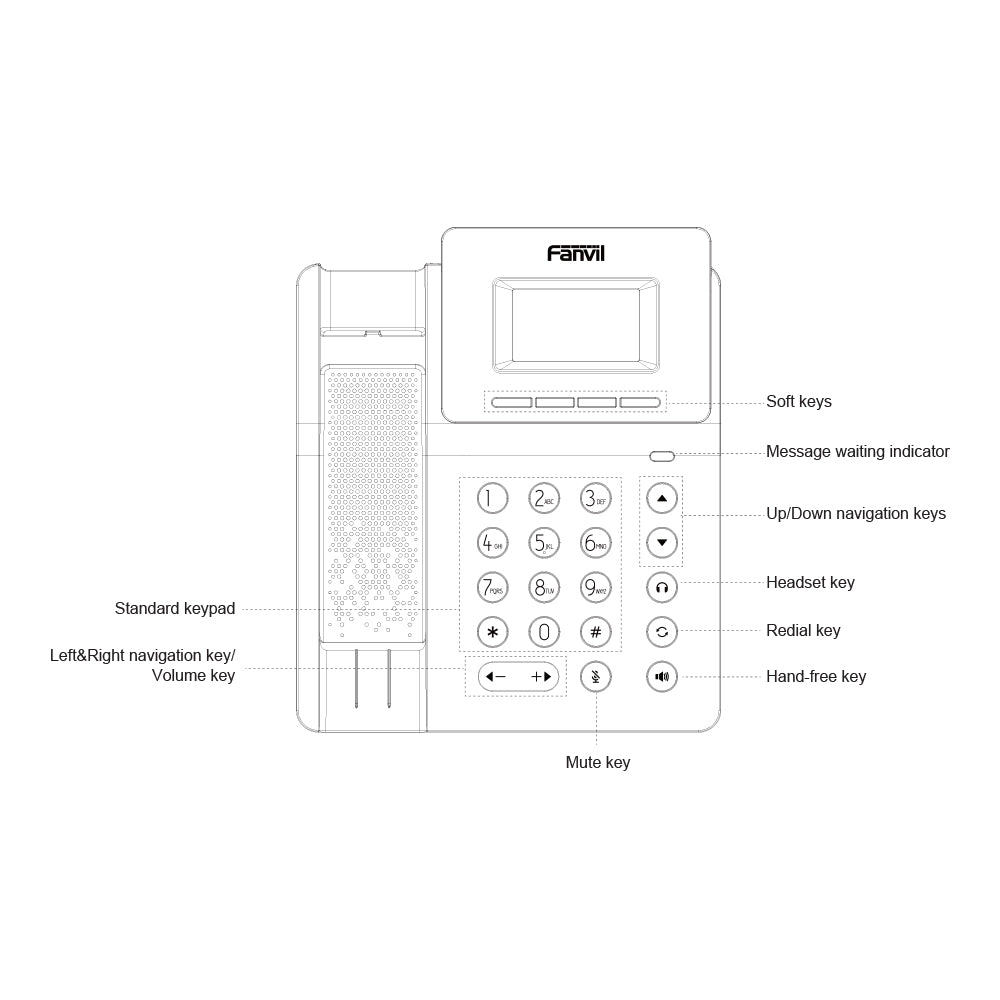

• 24-Key Keypad with Navigation and Soft Keys
• HD Handset with Hall Switch

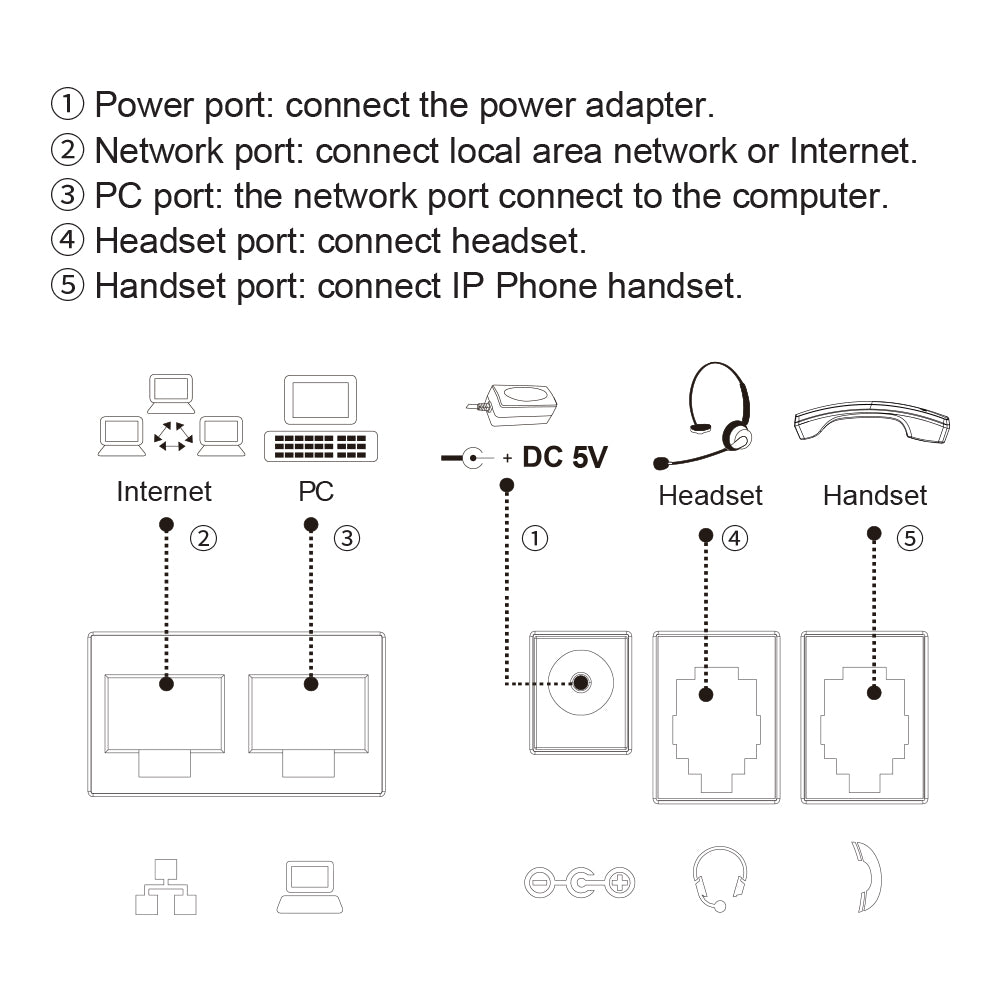

• RJ9 Ports for Handset and Headset
• Dual RJ45 Ports: Network + PC Passthrough
• PoE: IEEE 802.3af or 5V DC Power Adapter (Optional Extra)
• Power Consumption: 1.45~2.37W (PoE)
• Operating Temperature: 0~45°C
• Installation: Desktop Stand or Wall Mount (Optional Extra)
• Dimensions: Approx. 173 × 185 × 170mm (Desktop Mode)
