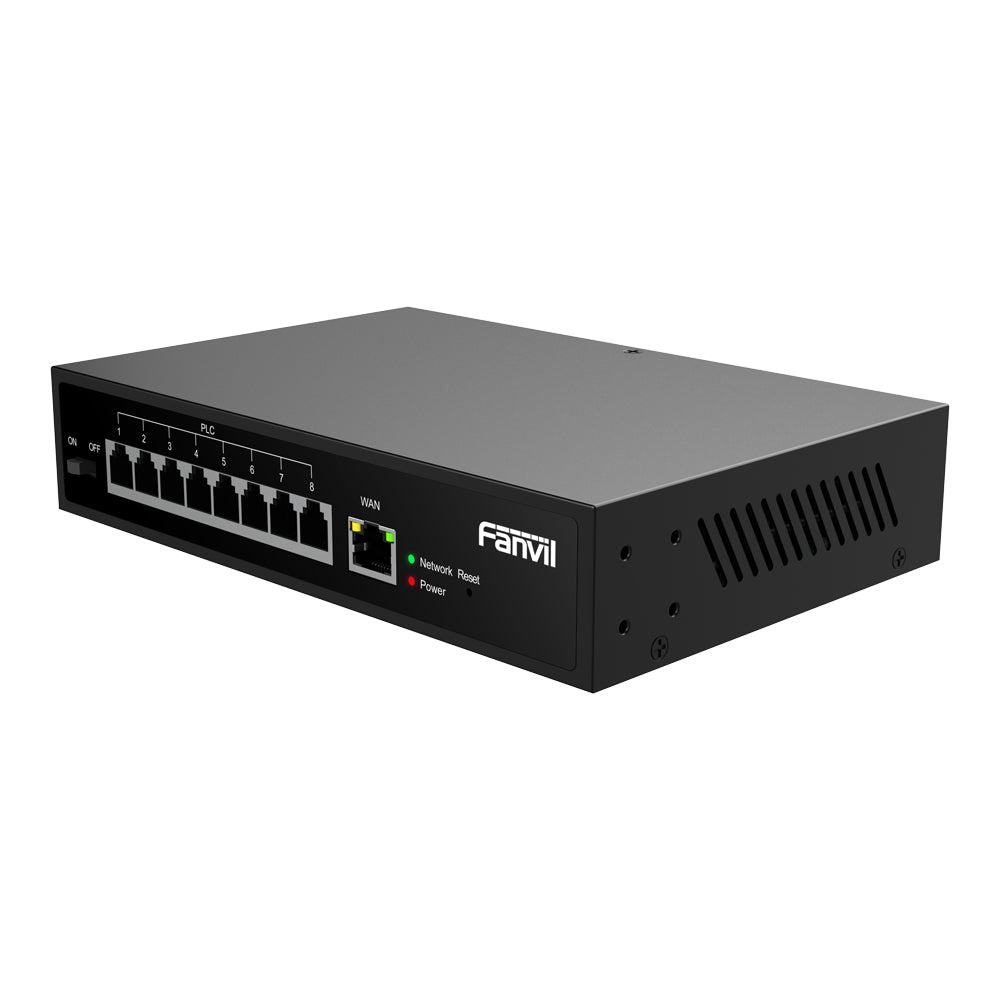

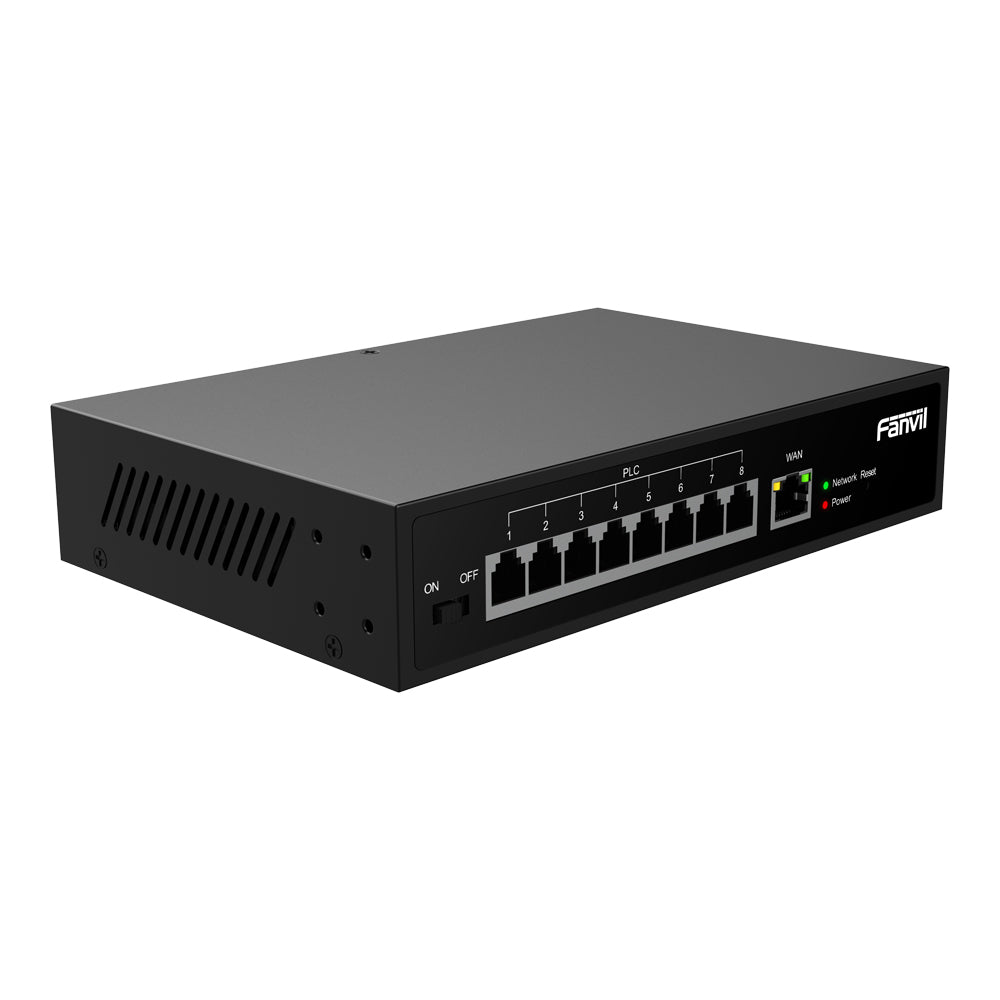

Fanvil PN8 8-Port 2-Wire PoE Switch
Upgrade Existing Telephone Cabling with Power and Network Connectivity.

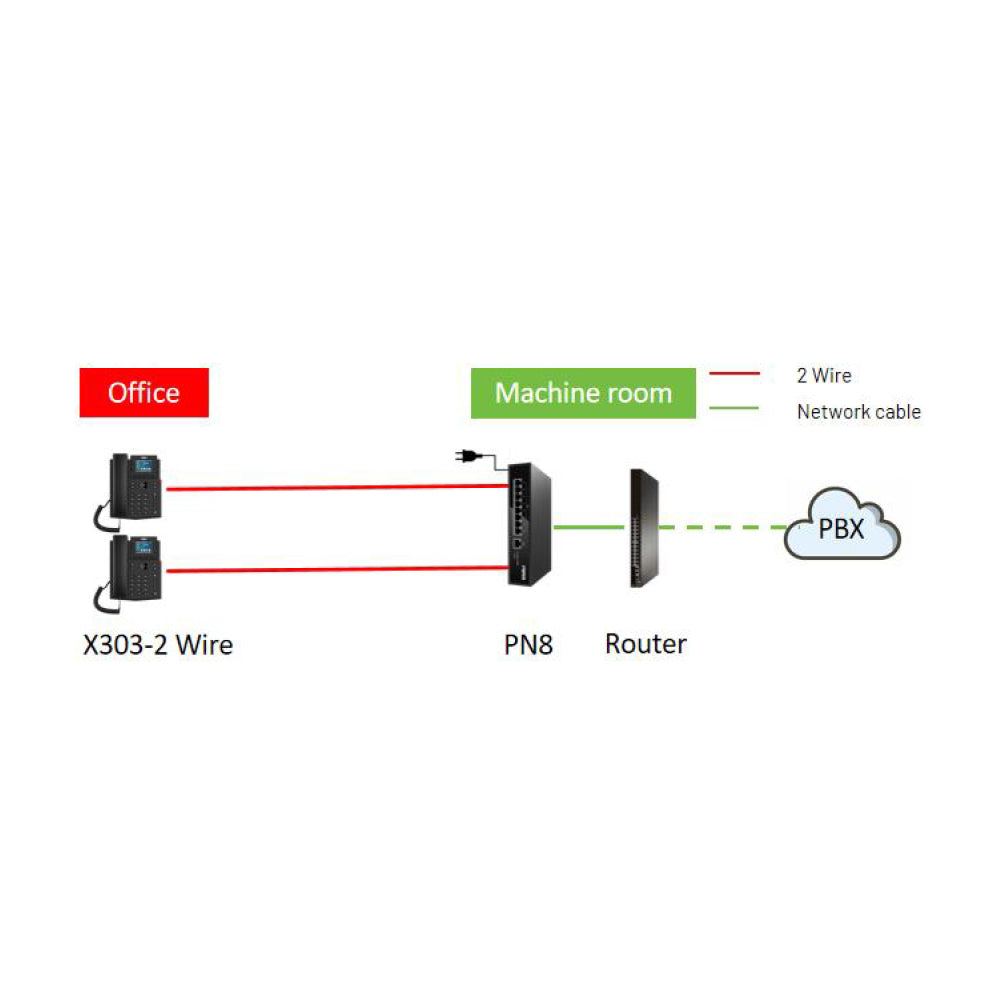

The Fanvil PN8 is an 8-port 2-Wire PoE switch designed to modernise existing telephone installations without extensive rewiring. It reuses compatible PSTN and RVV cabling to deliver both network connectivity and power to supported Fanvil 2-wire devices over distances up to 300m. Eight RJ11 interfaces support multi-device deployments, while the Gigabit RJ45 uplink connects the PN8 to the wider IP network. A built-in power supply with 100~240V AC input, plug-and-play operation and a compact galvanised steel housing make it suitable for offices, residential communities, hotels and building renovation projects.
Features
- 8-Port 2-Wire Connectivity - Connects and powers up to eight compatible Fanvil 2-wire devices
- Existing Cable Reuse - Supports compatible PSTN and RVV cabling to reduce replacement wiring requirements
- Power and Network Transmission - Delivers network connectivity and power through a single 2-wire connection
- Up to 300m Transmission - Supports power and network transmission over distances up to 300m
- Plug-and-Play Deployment - Simplifies installation without complex configuration
- Gigabit Network Uplink - Connects to an upstream router or network switch through the RJ45 WAN port
- Ethernet Cascading - Supports cascading through Ethernet for stable network expansion
- Built-In Power Supply - Accepts 100~240V AC input without requiring an external power adapter

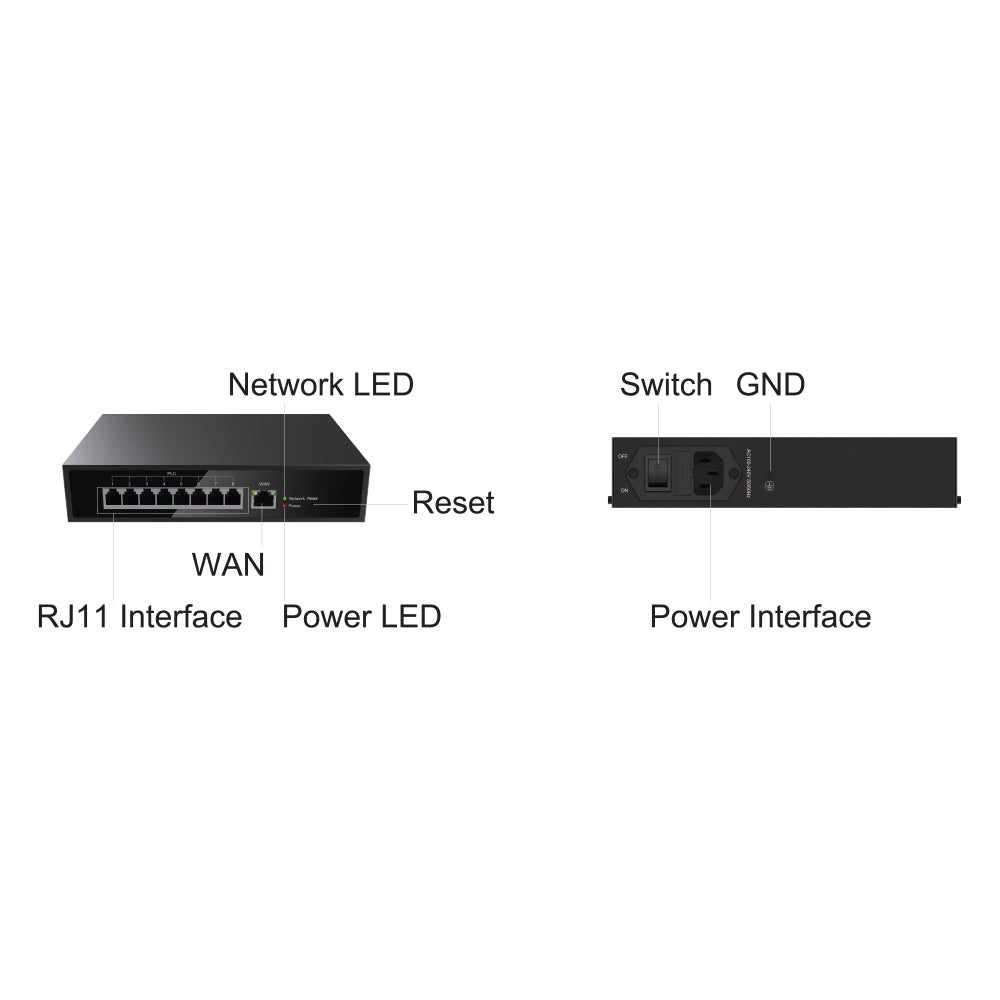

- Integrated Mode Switch - Selects whether connected lines receive both power and network or network connectivity only
- Status Indicators - Displays power and network operating status
- Galvanised Steel Housing - Provides a durable enclosure for professional installations
Specifications

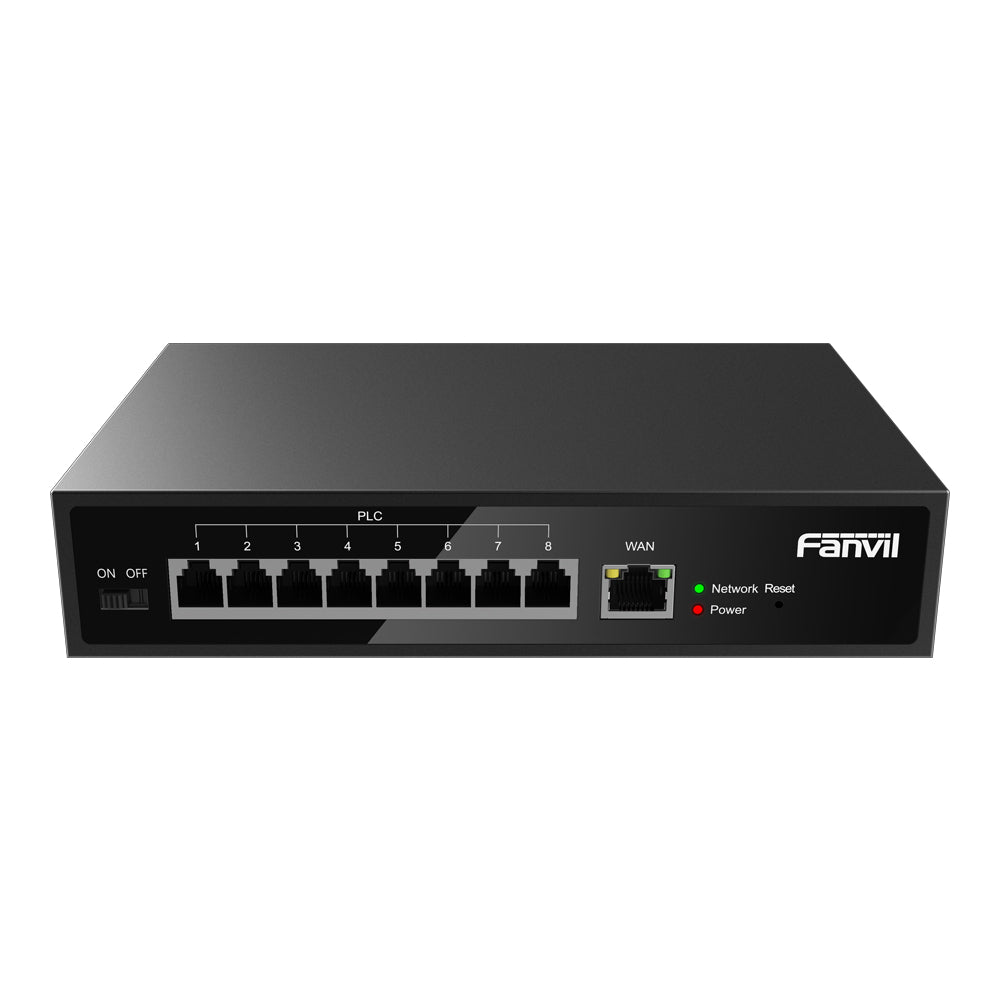

- 2-Wire Interfaces: 8× RJ11
- Network Interface: 1× RJ45 Gigabit WAN Port
- Transmission Function: Network and Power Over 2-Wire
- Maximum Transmission Distance: Up to 300m
- Supported Cabling: CAT5e 24AWG and RVV 2× 0.5

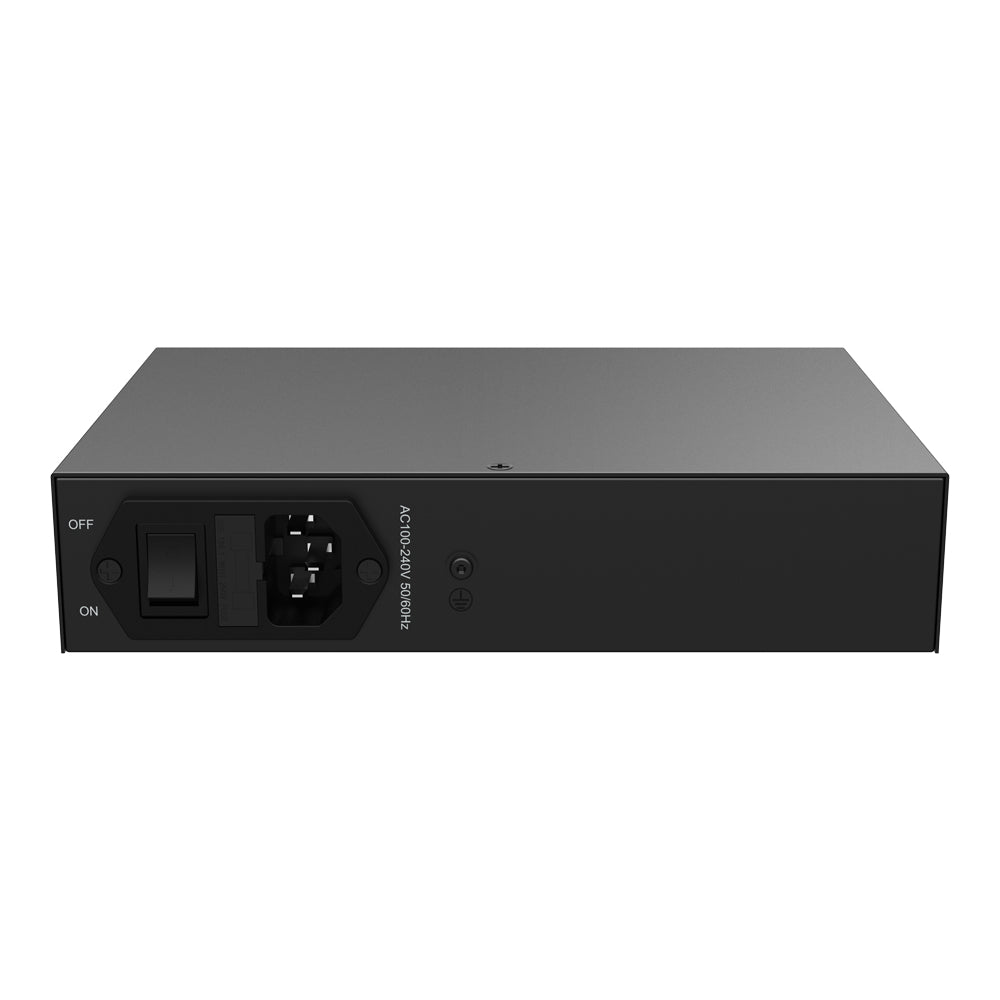

- Input Voltage: 100~240V AC, 50/60Hz
- Power Output: 54V 1.5A
- Power Supply: Built-In
- Operating Modes: Power and Network, or Network without Power
- Reset Button: 1
- Device Power Switch: 1
- Status Indicators: Power and Network
- Housing Material: Galvanised-Steel
- Colour: Gunmetal
- Installation: Wall-Mounted or Flush-Mounted
- Product Dimensions: 195 × 130 × 40mm
- Operating Temperature: -20~50°C
- Storage Temperature: -20~70°C
Notes
- Designed for compatible Fanvil 2-wire devices and cannot directly operate a standard analogue telephone
- A compatible IP network connection is required through the Gigabit WAN port
