Fanvil PN24 24-Port 2-Wire PoE Switch
Modernise Existing Telephone Infrastructure without Replacing Compatible Cabling.

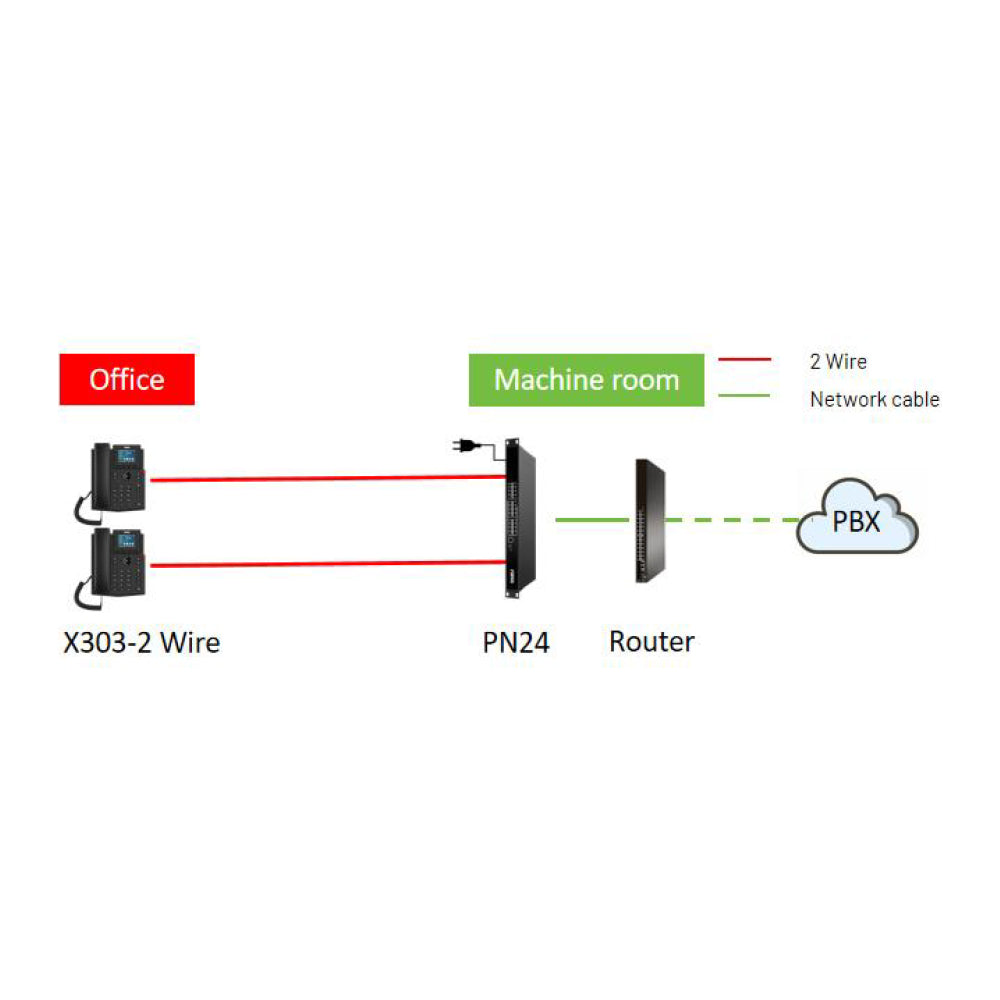

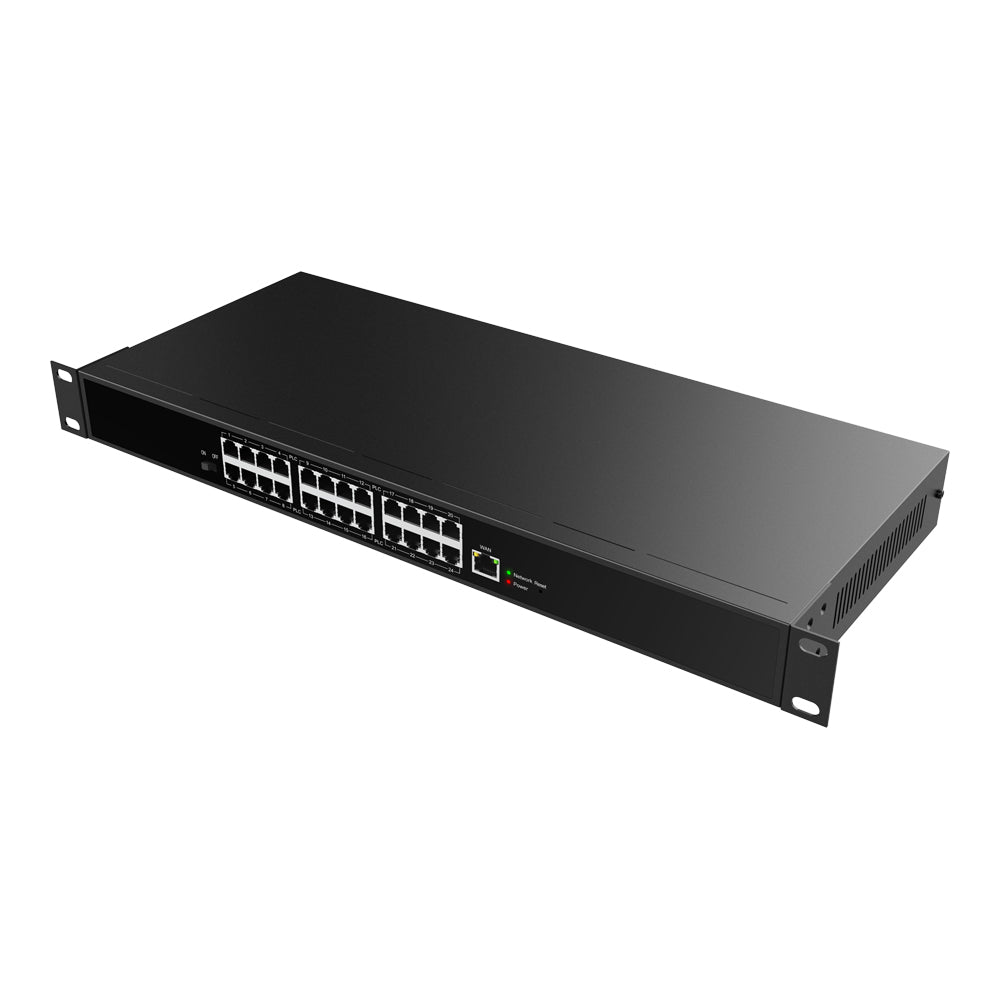

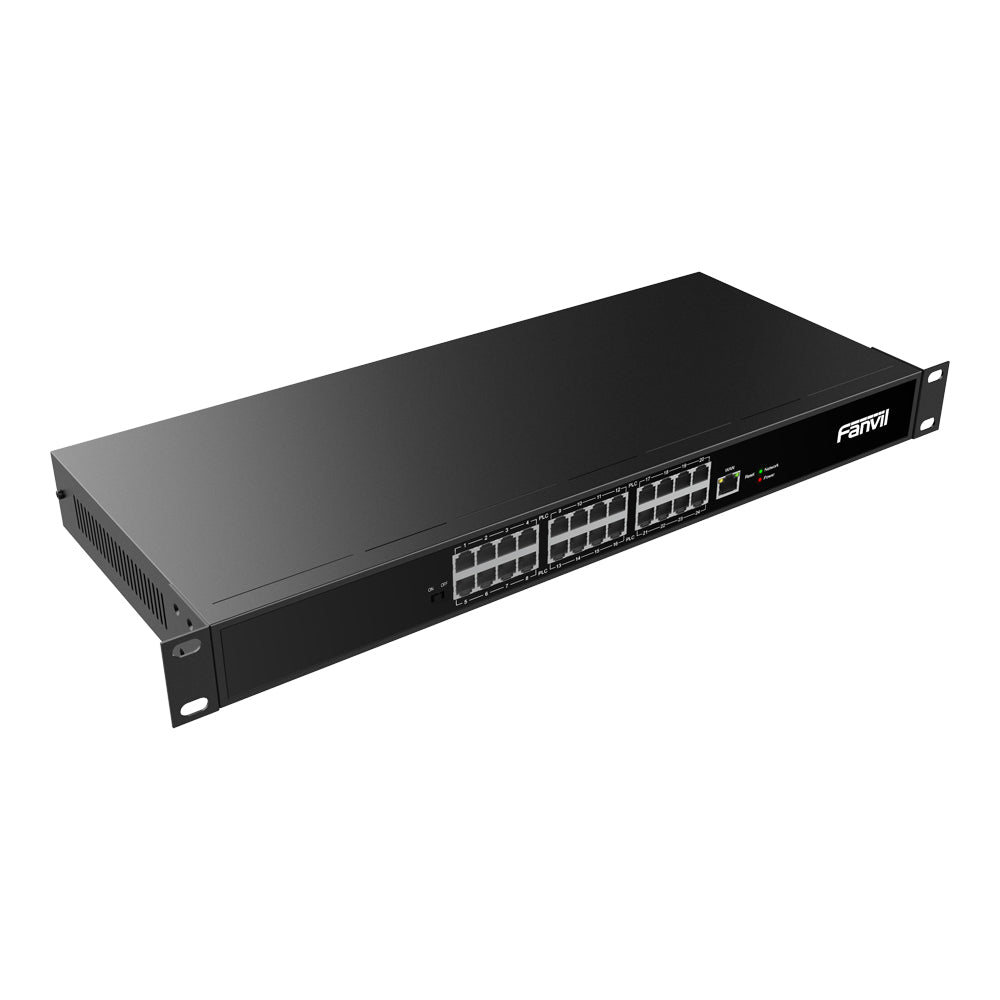

The Fanvil PN24 is a high-density 24-port 2-Wire PoE switch designed to deliver network connectivity and power through existing compatible telephone cabling. It supports PSTN and RVV cable reuse, helping reduce installation time, rewiring costs and disruption during upgrades in offices, residential communities, hotels and older buildings. Each of the 24 RJ11 interfaces connects a compatible Fanvil 2-wire device, while the Gigabit RJ45 WAN port links the switch to the IP network. With plug-and-play operation, transmission distances up to 300m, a built-in 100~240V AC power supply and a galvanised-steel rackmount housing, the PN24 provides a practical platform for large-scale 2-wire IP phone deployments.
Features
- 24-Port 2-Wire Connectivity - Connects and powers up to 24 compatible Fanvil 2-wire devices
- Existing Cable Reuse - Supports compatible PSTN and RVV cabling to reduce rewiring requirements
- Power and Network Transmission - Delivers network connectivity and power through a single 2-wire connection
- Up to 300m Transmission - Supports power and network delivery over distances up to 300m
- Plug-and-Play Deployment - Simplifies installation without complex configuration
- Gigabit Network Uplink - Connects to an upstream router or network switch through the RJ45 WAN port
- Ethernet Cascading - Supports cascading through Ethernet for stable network expansion

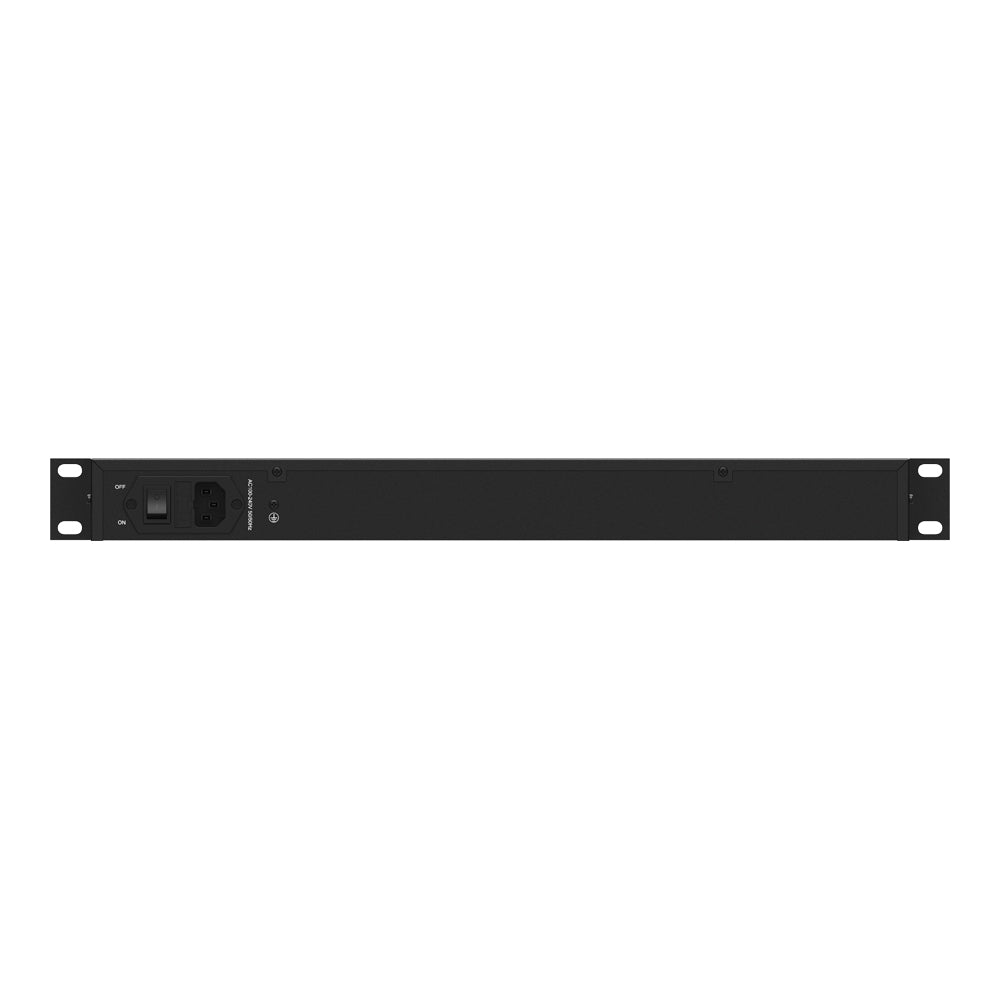

- Built-In Power Supply - Accepts 100~240V AC input without requiring an external power adapter
- Integrated Mode Switch - Allows connected ports to operate with power and network or network connectivity only
- Status Indicators - Provides power and network operating status at a glance
- Galvanised-Steel Housing - Durable construction for professional communication installations
- Rackmount Design - Includes mounting hardware for installation in compatible network cabinets
Specifications

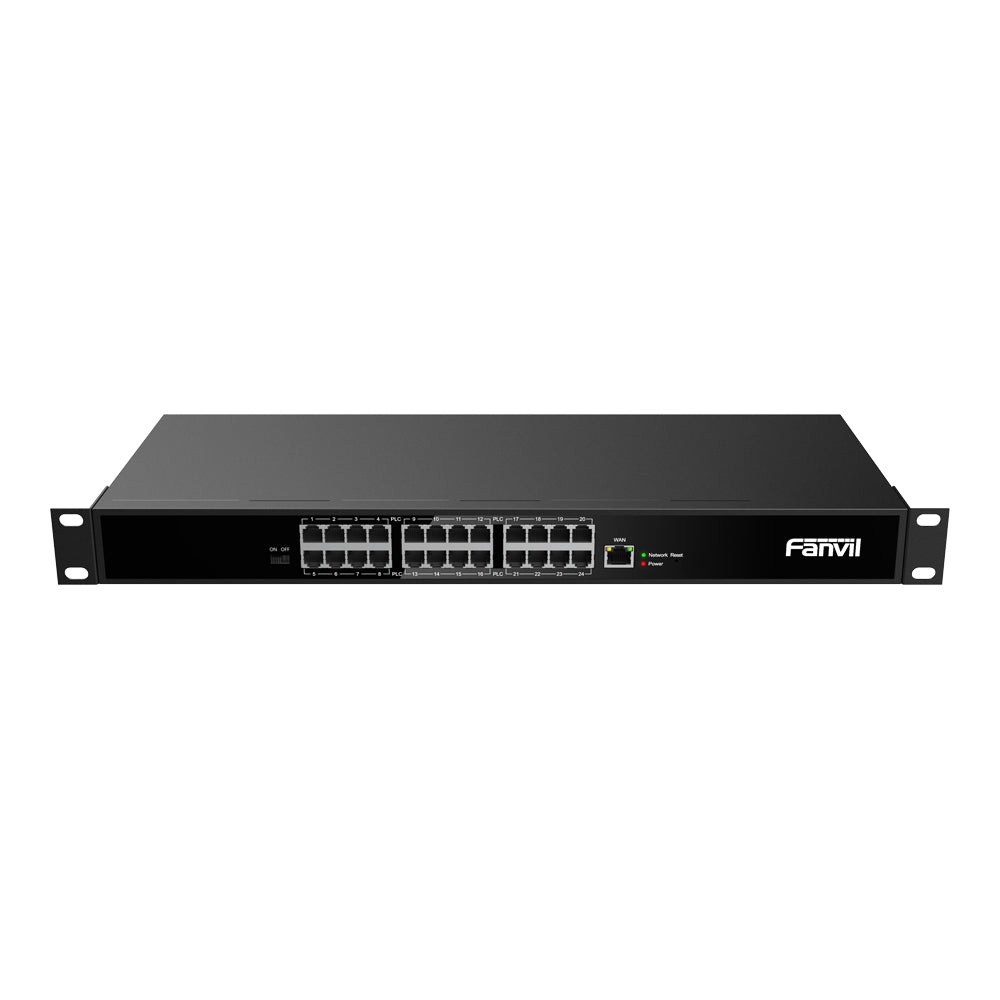

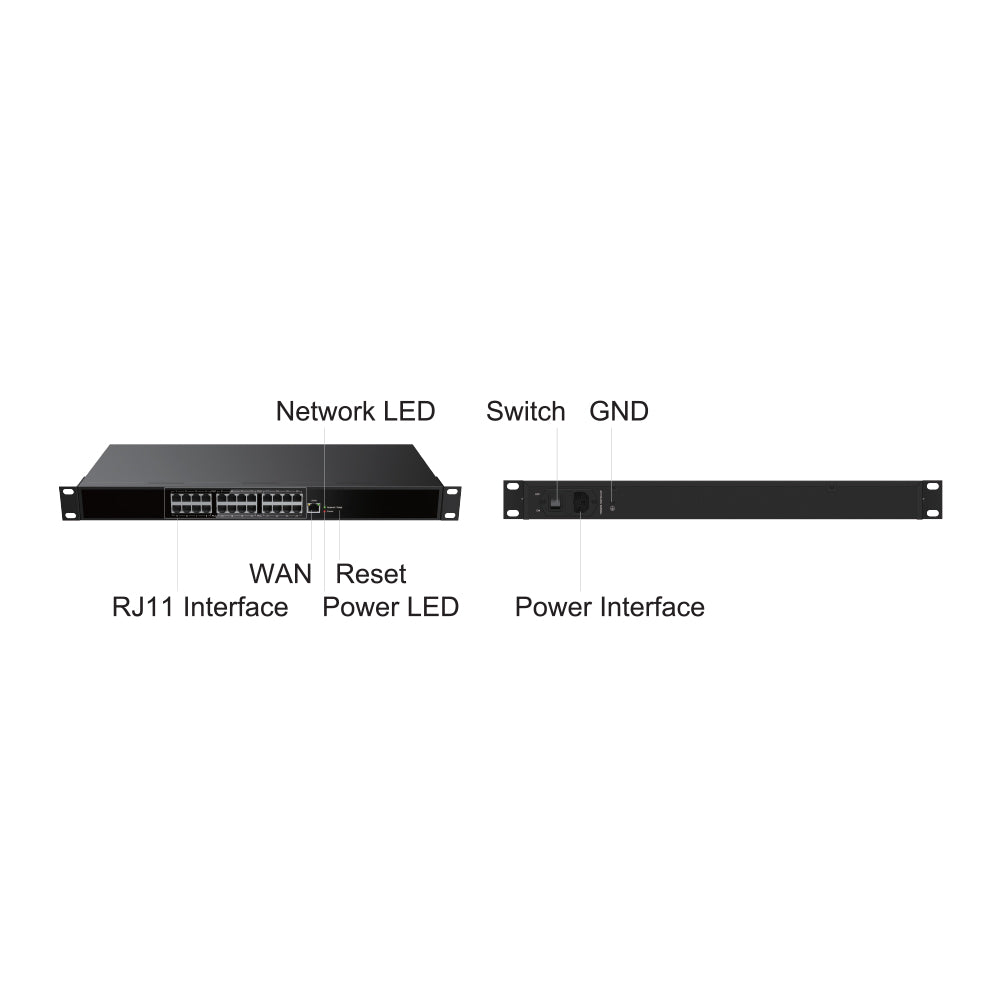

- 2-Wire Interfaces: 24× RJ11
- Network Interface: 1× RJ45 Gigabit WAN Port
- Transmission Function: Network and Power Over 2-Wire
- Maximum Transmission Distance: Up to 300m
- Supported Cabling: CAT5e 24AWG and RVV 2× 0.5
- Input Voltage: 100~240V AC, 50/60Hz
- Power Output: 54V 3A
- Power Supply: Built-In
- Operating Modes: Power and Network, or Network without Power
- Reset Button: 1
- Device Power Switch: 1
- Status Indicators: Power and Network
- Housing Material: Galvanised-Steel
- Colour: Gunmetal
- Installation: Rackmount
- Product Dimensions: 440 × 189.85 × 44mm
- Operating Temperature: -20~50°C
- Storage Temperature: -20~70°C
Notes
- Designed for compatible Fanvil 2-wire devices and cannot directly operate a standard analogue telephone
- A compatible IP network connection is required through the Gigabit WAN port
