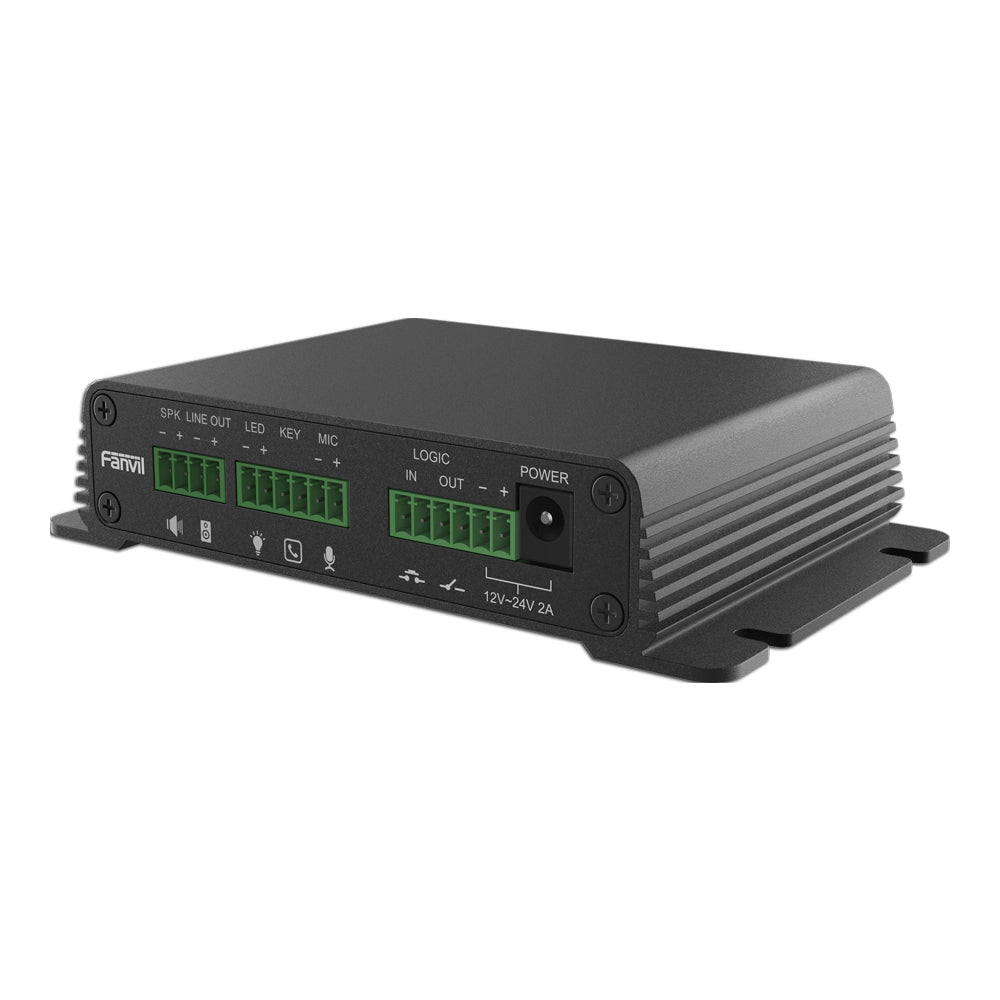

FANVIL PA2S SIP AUDIO/VIDEO INTERCOM AND PAGING GATEWAY

Fanvil PA2S SIP Audio/Video Intercom and Paging Gateway

Flexible SIP Intercom, Paging and Public Address Integration.

The Fanvil PA2S is a compact SIP audio/video intercom and paging gateway designed for industrial, commercial and access control applications. It supports 2 SIP lines, IP camera integration, multicast paging, MP3 broadcasting, recording and programmable emergency call buttons. Multiple audio interfaces allow connection to microphones, active speakers and passive speakers, while the integrated mono amplifier delivers up to 30W depending on the selected power source. Short-circuit input and relay output interfaces support integration with sensors, electric locks and alarm devices. With PoE, external DC power, web management and automatic provisioning, the PA2S provides a flexible platform for customised intercom and public address systems.

Features

• SIP Audio and Video Intercom - Integrates SIP voice communication with a compatible IP camera for video intercom applications
• Public Address Gateway - Supports paging, announcements, multicast audio and MP3 broadcasting
• 2 SIP Lines - Provides two SIP accounts for flexible communication deployment
• Integrated Amplifier - Delivers up to 30W mono speaker output depending on the power source
• Passive Speaker Support - Directly powers a compatible 4Ω or 8Ω passive speaker
• Active Speaker Output - Can connect an external powered speaker or amplifier through the adjustable line output
• Microphone and Line Input - Multipurpose input supports a compatible microphone or external audio source
• Emergency Call Button Support - Programmable DSS interface connects external call or assistance buttons
• Camera Integration - Dedicated RJ45 camera port links the PA2S with a compatible IP camera
• Recording Output - Provides mixed output of local microphone and call audio through a 3.5mm port
• Short-Circuit Input and Relay Output - Integrates sensors, alarm lights, electric locks and other compatible equipment
• Auto-Answering - Automatically answers configured SIP and intercom calls
• Multicast Paging - Sends and receives RTP multicast audio without standard SIP call signalling
• Time Plan Management - Schedules playback, restart, upgrade and other supported actions
• PoE Support - Receives network connectivity and power through the WAN port
• Web-Based Management - Supports browser configuration, firmware upgrades, system logs and packet capture
• Automatic Provisioning - Supports FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP and TR-069
• Aluminium-Alloy Housing - Durable compact enclosure for professional installations

Specifications

• SIP Lines: 2

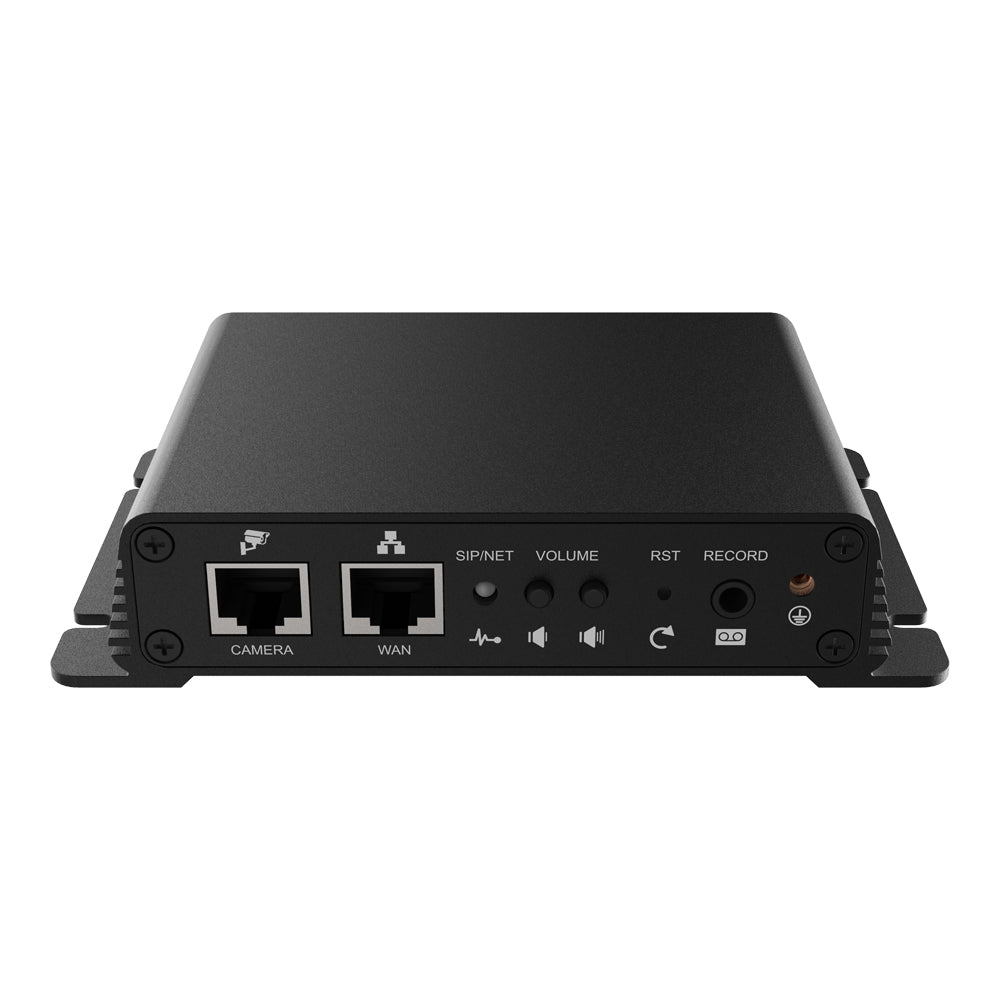

• Network Ports: 2× RJ45 10/100Mbps Ports
• Network Interfaces: 1× PoE WAN Port, 1× Camera Port
• PoE: Supported
• PoE Level: Class 3
• External Power Input: DC12V~24V 2A

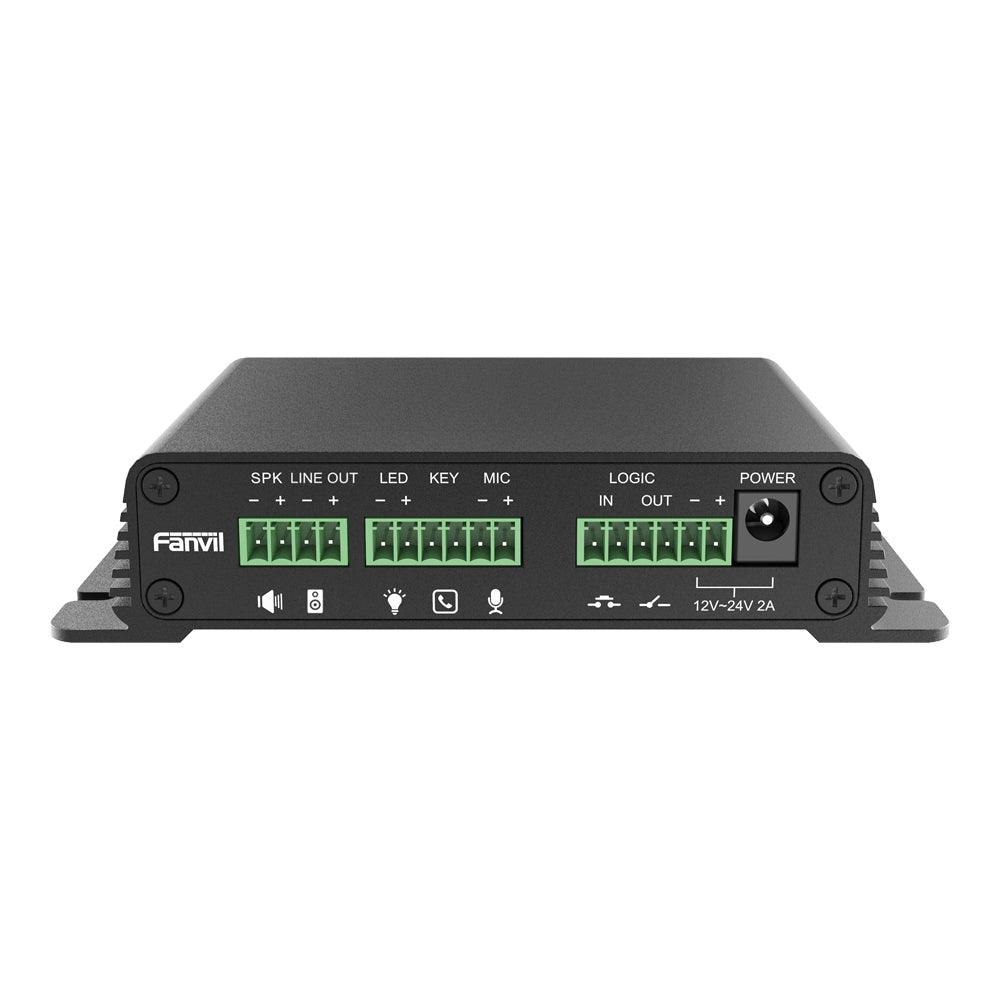

• Power Inputs: 1× 5.5mm DC Port, 1× 2-Pin Terminal Input
• Amplifier Type: Integrated Mono Amplifier
• Passive Speaker Output: 1× Terminal Socket
• Speaker Impedance: 4Ω or 8Ω
• 4Ω Speaker Output with PoE: up to 10W
• 4Ω Speaker Output with 12V/2A: up to 10W
• 4Ω Speaker Output with 18V/2A: up to 20W
• 4Ω Speaker Output with 24V/2A: up to 30W
• 8Ω Speaker Output with PoE: up to 5W
• 8Ω Speaker Output with 12V/2A: up to 5W
• 8Ω Speaker Output with 18V/2A: up to 10W
• 8Ω Speaker Output with 24V/2A: up to 15W
• Line Output: 1× Terminal Socket, Adjustable up to 1.2Vpp
• Recording Output: 1× 3.5mm Audio Port
• Microphone/Line Input: 1× Multipurpose Terminal Socket
• Recommended Microphone: Electret Condenser Microphone
• Microphone Sensitivity: -38dB
• Microphone Impedance: 2.2kΩ
• Microphone Bias Voltage: 2.54Vpp
• DSS Key Port: 1× Programmable Button Interface with LED Support
• DSS LED Output: 5V DC 5mA
• Short-Circuit Input and Output: 1× Interface with Built-In Relay
• Relay Rating: Maximum DC30V 2A or AC125V 0.5A
• Controls: Volume Up, Volume Down and Reset
• Status Indicator: 1× Blue SIP and Network LED
• Wideband Codecs: G.722 and Opus
• Narrowband Codecs: G.711A/U, G.729A/B, iLBC, G.723.1 and G.726-32K
• Audio Processing: Full-Duplex Acoustic Echo Cancellation
• DTMF: In-Band, RFC2833 and SIP INFO
• IP Modes: IPv4, IPv6 and IPv4/IPv6
• IP Configuration: Static IP, DHCP and PPPoE
• VPN: L2TP and OpenVPN
• Network Features: VLAN, LLDP, QoS and 802.1X
• SIP Protocol: SIP V1 and SIP V2 over UDP, TCP and TLS
• Media Protocols: RTP, RTCP, SRTP and RTSP
• Management: Web Portal, Configuration Import and Export, Firmware Upgrade, Syslog and Packet Capture
• Housing Material: Aluminium-Alloy
• Installation: Desktop or Wall-Mounted
• Colour: Black
• Device Dimensions: 113 × 83 × 28mm
• Working Temperature: -30~60°C
• Storage Temperature: -30~60°C
• Working Humidity: 10~95%
• Certifications: CE, FCC and RoHS
• Safety Compliance: EN 62368-1 Compliant

Notes

• The PA2S does not include a built-in camera and requires a compatible external IP camera for video intercom functions
• Speaker output depends on the connected speaker impedance and selected power source
• PoE or 12V 2A DC supports up to 10W output with a compatible 4Ω speaker
• 18V 2A DC supports up to 20W output with a compatible 4Ω speaker
• 24V 2A DC supports up to 30W output with a compatible 4Ω speaker
• Default panel speaker mode limits output to below 10W to help protect compatible integrated speakers
• When PoE and external DC power are connected simultaneously, PoE is used as the primary power source
