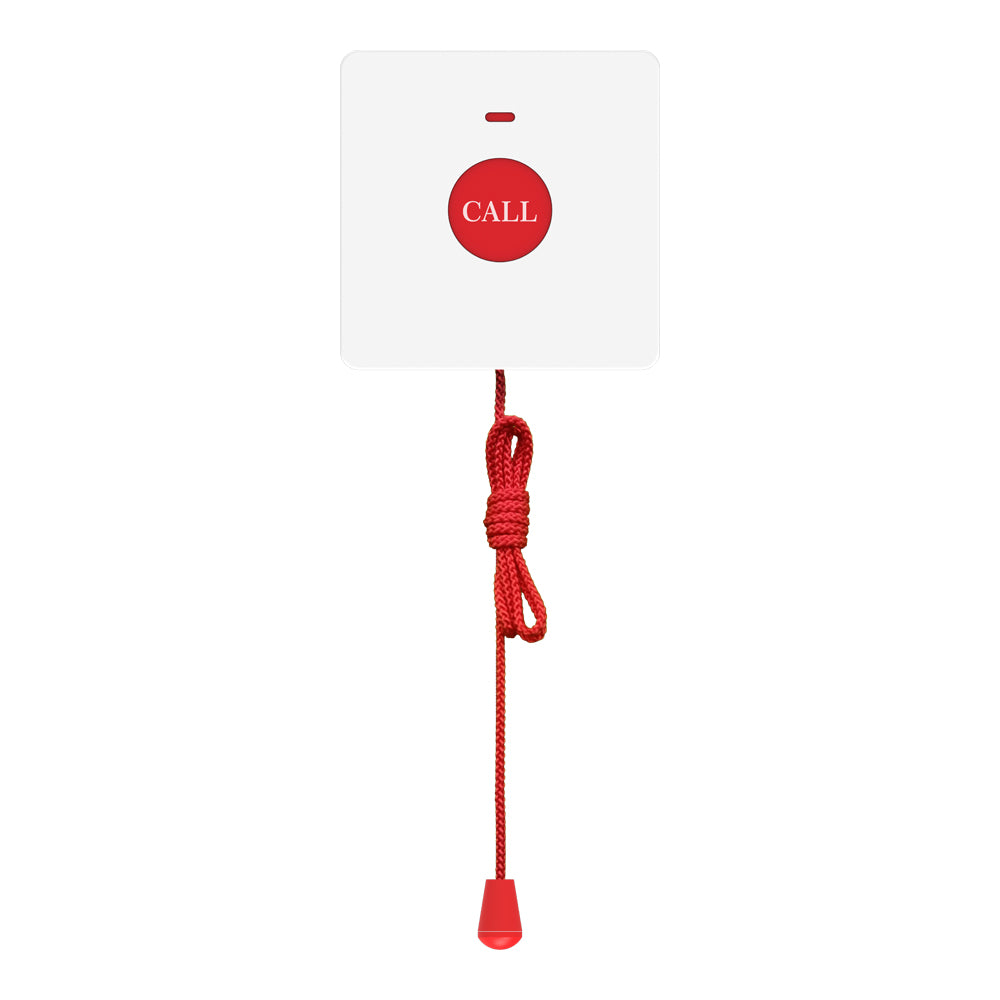

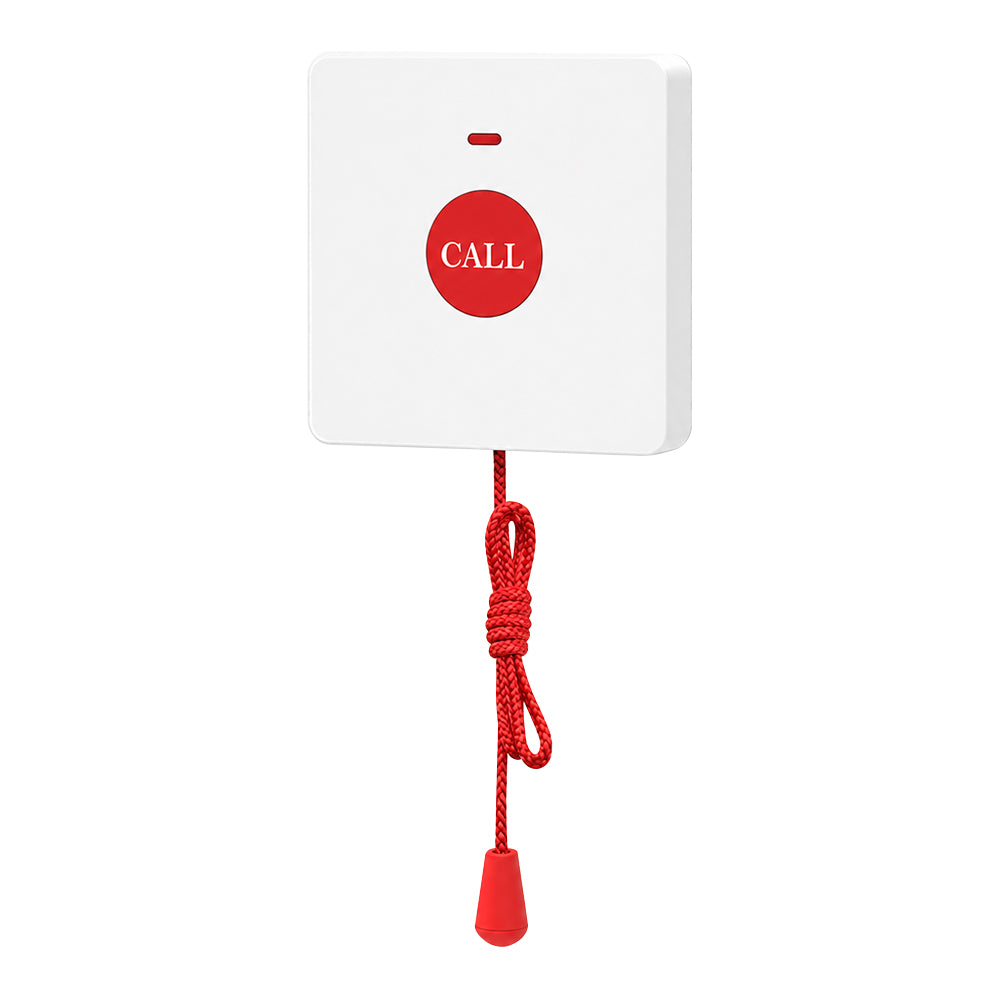

Fanvil KT30 IP65 433MHz Wireless SOS Emergency Button with 2m Pull-Cord
Fast, Accessible Wireless Emergency Assistance for Wet Environments.
The Fanvil KT30 is a wall-mounted wireless emergency button designed for bathrooms, care facilities and other locations where users may need immediate assistance. A clearly marked call button and extended 2m pull-cord allow an alert to be triggered directly or from a lower position after a fall. Its IP65-rated ABS enclosure provides protection against water and dust, making it better suited to wet environments than the wired IP44-rated KT31. Using 433MHz wireless communication, FSK modulation and the Ebelong1.1 protocol, the KT30 pairs with compatible Fanvil healthcare intercoms and the X305 Big Button IP Phone. Battery-powered operation supports approximately 100,000 activations for dependable, low-maintenance emergency calling.
Features
- Wireless Emergency Calling - Sends an assistance alert to compatible Fanvil devices without signal cabling
- Dual Activation Design - Allows emergency calls using either the main call button or extended pull-cord
- 2m Pull-Cord - Provides accessible activation after a fall or when the wall-mounted button cannot be reached
- IP65 Protection - Dustproof and water-resistant construction for bathrooms and other wet environments
- Compatible Fanvil Pairing - Designed for selected Fanvil Y501 series devices, X305, i506W and i507W
- 433MHz Wireless Communication - Provides reliable emergency signalling to compatible receiving devices
- FSK Modulation - Supports stable wireless signal transmission
- Ebelong1.1 Protocol - Uses the Ebelong1.1 communication protocol for compatible device pairing
- Extended Wireless Range - Supports up to 6~25m indoors and 70~80m outdoors in spacious environments
- Low-Power Operation - Battery supports approximately 100,000 button activations

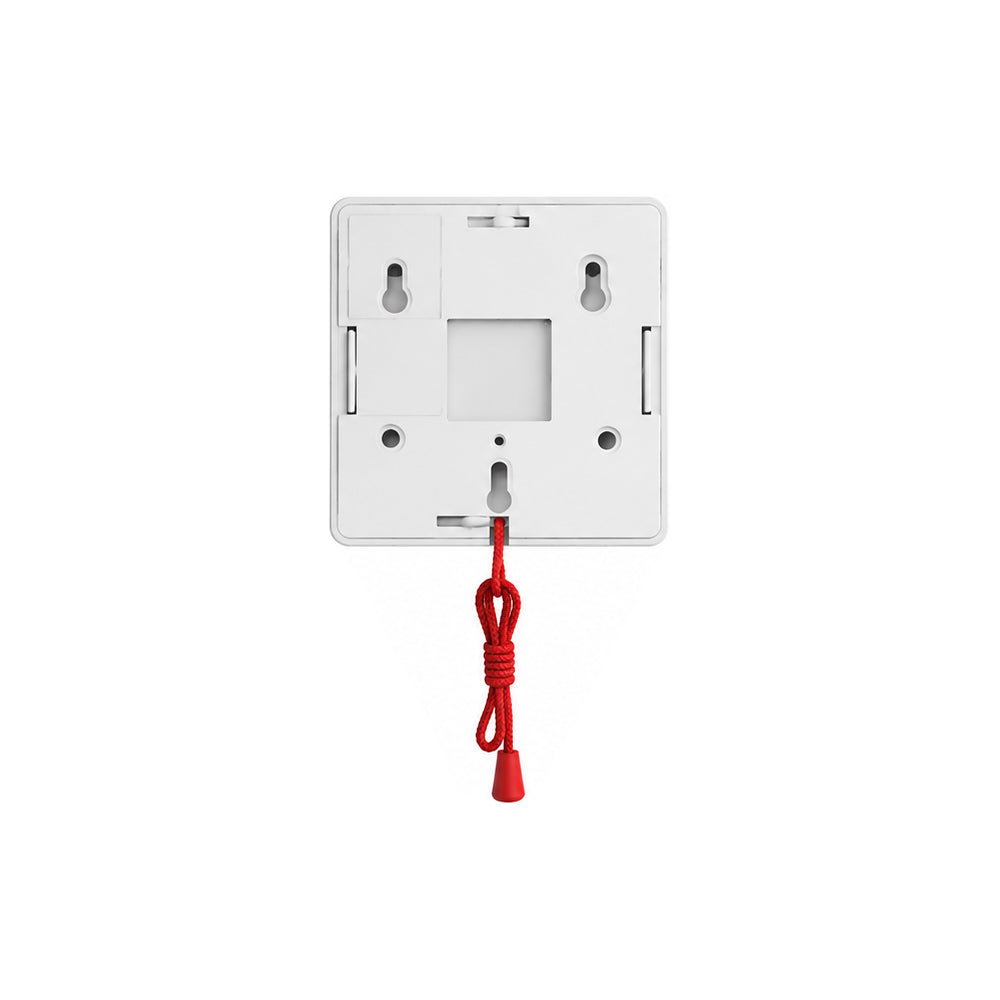

- Wall-Mounted Design - Provides a fixed and clearly visible emergency call point
- ABS Housing - Lightweight and durable construction for everyday care environments
Specifications
- Applicable Models: Fanvil Y501/Y501-Y Series, X305, i506W and i507W
- Number of Keys: 1
- Activation Methods: Call Button and Pull-Cord
- Pull-Cord Length: 2m
- Power Supply: 1× 23A 12V Battery
- Modulation Mode: FSK
- Communication Protocol: Ebelong1.1
- Radio Frequency: 433MHz
- Operating Life: ≥100,000 Activations
- Spacious Indoor Operating Range: 6~25m
- Spacious Outdoor Operating Range: 70~80m
- Protection Rating: IP65
- Material: ABS
- Dimensions: 86 × 86 × 19mm
- Working Temperature: -20~55°C
Notes
- Designed for use with compatible Fanvil devices only
- IP65 protection does not mean the device is suitable for submersion
