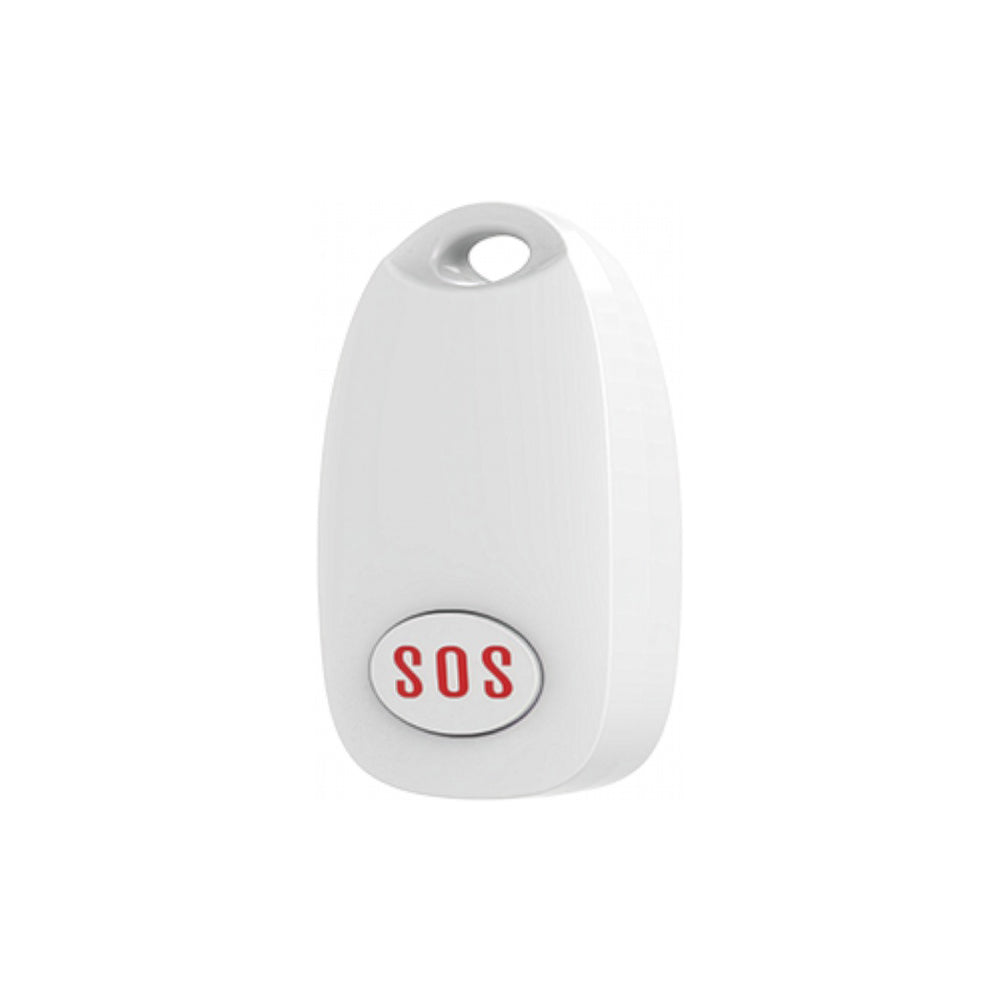

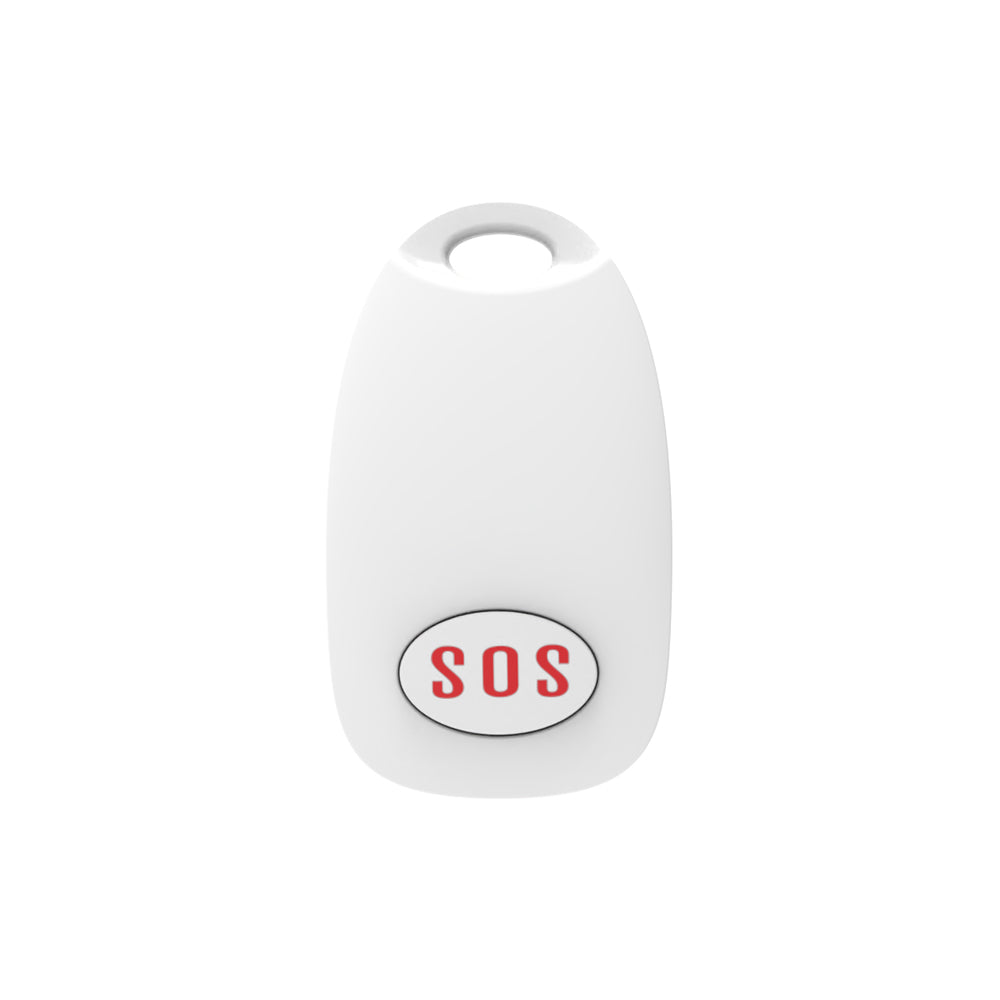

Fanvil KT10 Self-Powered Wireless Emergency Button
Compact Battery-Free Emergency Calling for Compatible Fanvil Devices.
The Fanvil KT10 is a compact self-powered wireless emergency button designed for simple assistance calling and equipment control in compatible Fanvil deployments. Using patented micro-energy harvesting technology, the KT10 requires no battery and generates power from the button press itself. It pairs with Fanvil Y501/Y501-Y series devices and the X305 Big Button IP Phone, making it suitable for care environments, assisted living, hospitality, reception areas and other locations where quick access to help is important. With a single-key SOS-style design, 433MHz wireless communication, FSK modulation and an operating life of at least 100,000 presses, the KT10 delivers a reliable, low-maintenance emergency button solution.
Features
- Self-Powered Operation - Uses kinetic micro-energy harvesting technology with no battery required
- Emergency Button Design - Provides a simple single-button solution for quick assistance requests
- Compatible Fanvil Pairing - Designed to pair with Fanvil Y501/Y501-Y series and X305 devices
- Compact Form Factor - Small 21 × 51.6 × 18.5mm design for discreet placement or carrying
- 433MHz Wireless Communication - Supports wireless signalling without network cabling
- FSK Modulation - Provides stable wireless signal transmission
- Ebelong1.1 Protocol - Uses Ebelong1.1 communication protocol for compatible device pairing
- Durable Operating Life - Rated for at least 100,000 button presses
- Indoor And Outdoor Range - Supports 12~25m spacious indoor range and 70~80m spacious outdoor range
- ABS Housing - Lightweight ABS material for everyday use
Specifications
- Applicable Models: Fanvil Y501/Y501-Y Series, X305
- Power Supply: Self-Powered
- Modulation Mode: FSK
- Communication Protocol: Ebelong1.1
- Radio Frequency: 433MHz
- Operating Life: ≥100,000 Times
- Spacious Indoor Operating Range: 12~25m
- Spacious Outdoor Operating Range: 70~80m
- Material: ABS
- Product Dimensions: 21 × 51.6 × 18.5mm
- Working Temperature: -20~55°C
Notes
- Designed for use with compatible Fanvil devices only
- No battery is required for operation
- Operating range may vary depending on walls, interference, installation environment and device placement
