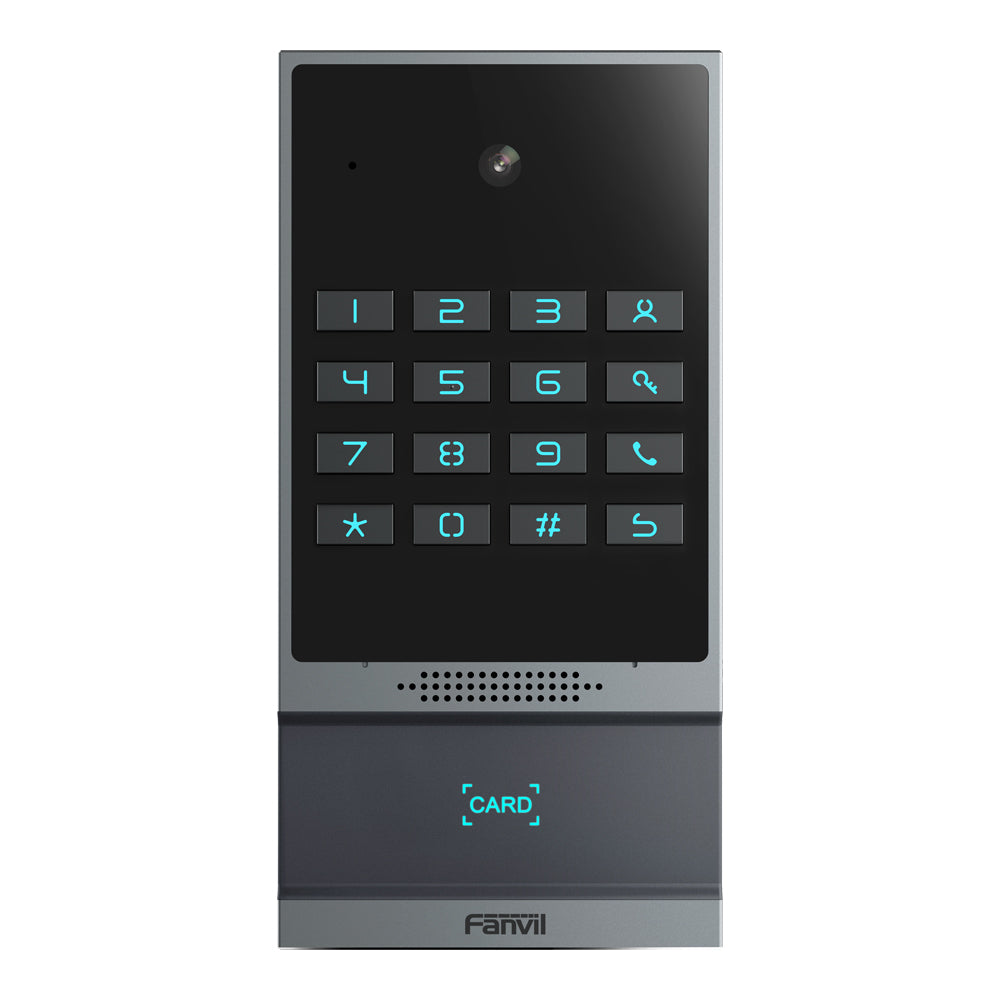

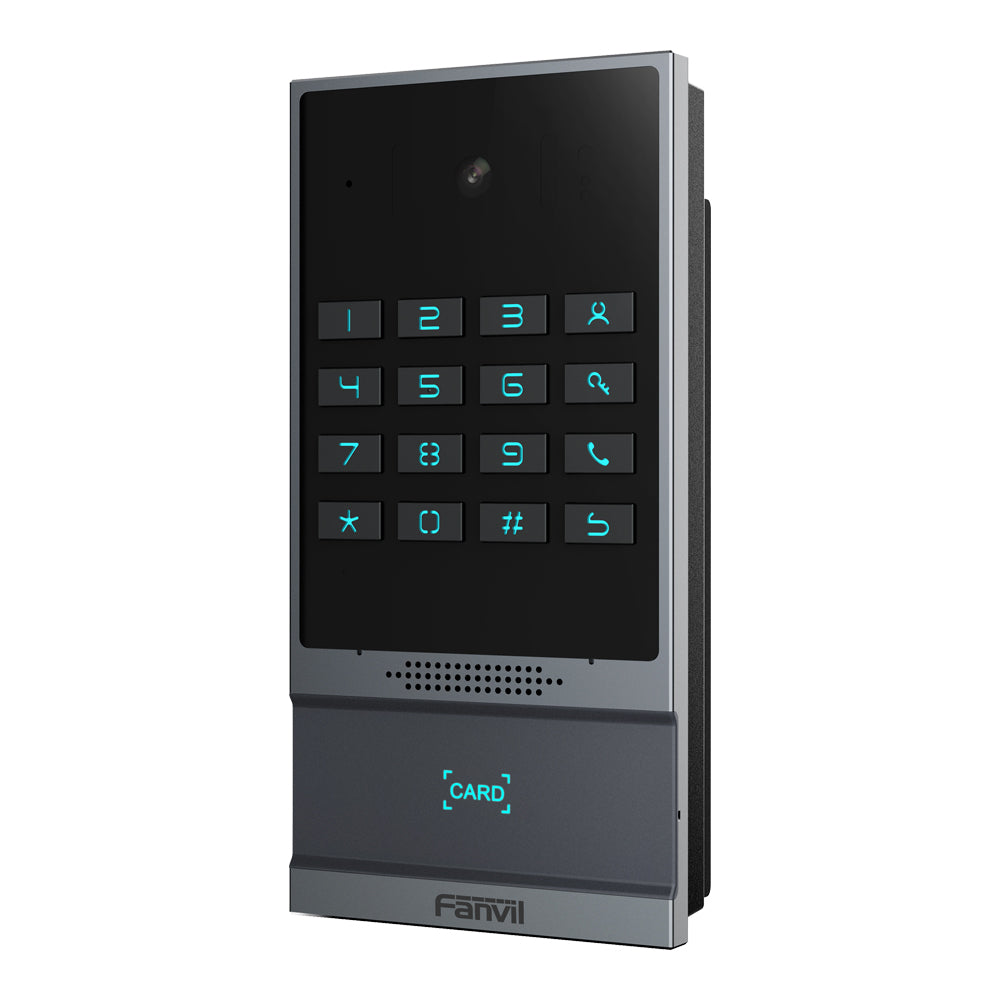

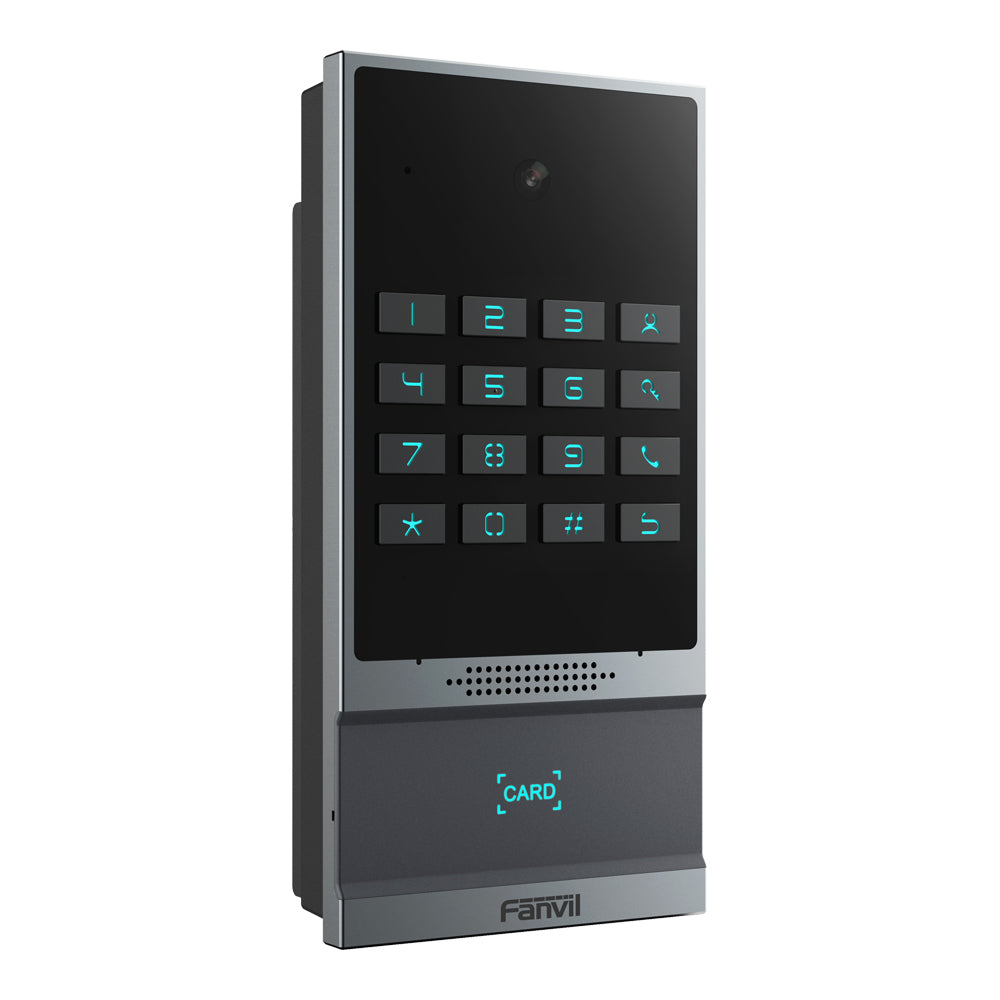

Fanvil i64 IP66 2MP SIP Video Door Phone with Keypad and RFID
Secure Video Entry, Flexible Access Control and Outdoor-Ready Protection.
The Fanvil i64 is a SIP video door phone designed for residential complexes, office buildings, communities, hotels and industrial sites. Its 2MP HDR camera with infrared support provides clear visitor imaging, while full-duplex HD audio enables natural two-way communication. A colour-backlit numeric keypad and dual-frequency RFID reader support convenient PIN and card-based access, with additional remote and DTMF unlocking options. Built with an aluminium-alloy housing, IP66 weather resistance and IK07 impact protection, the i64 is suited to demanding outdoor installations. SIP 2.0 and ONVIF Profile S support simplify integration with compatible communication and security platforms, while PoE or 12V DC power provides flexible deployment.
Features

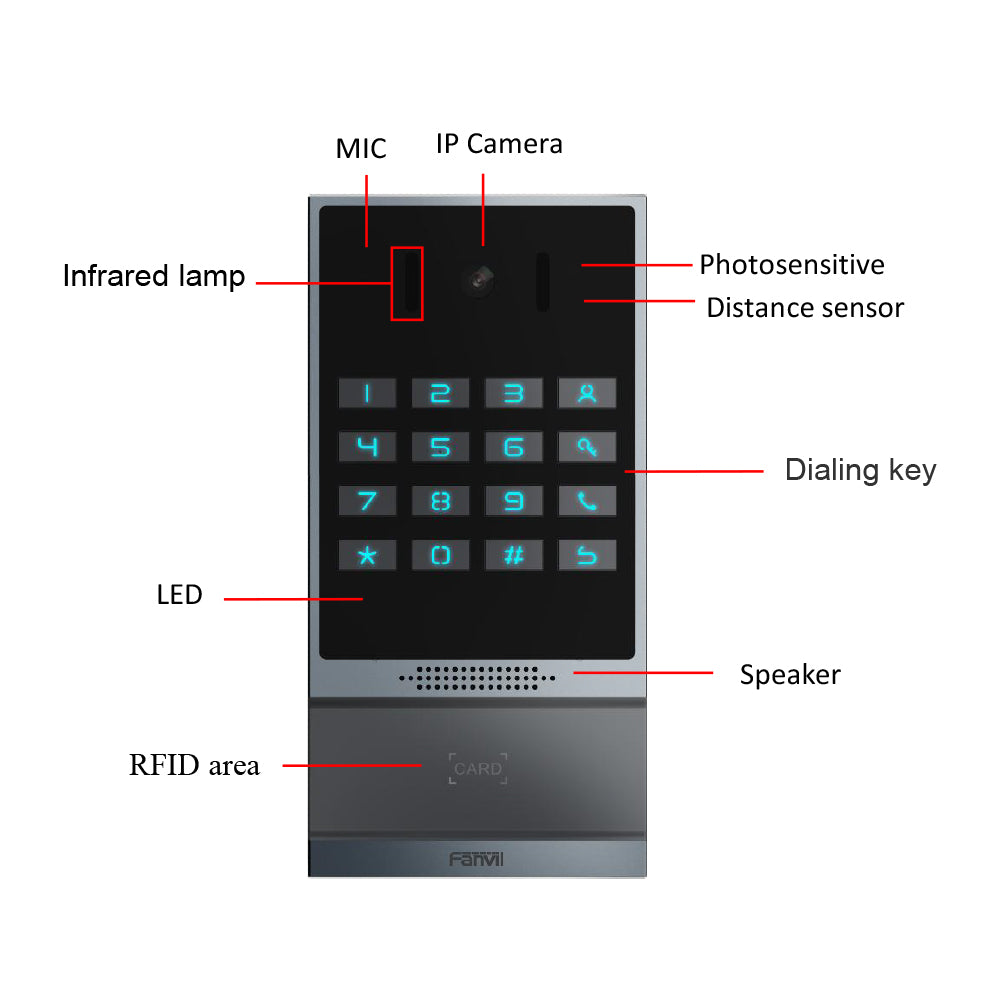

- 2MP HDR Video Camera - Provides clear visitor imaging with infrared support for low-light environments
- Colour-Backlit Keypad - Includes 12 numeric keys and four function keys for PIN access and direct calling
- Dual-Frequency RFID Access - Supports compatible 125kHz and 13.56MHz cards
- Multiple Unlocking Methods - Supports RFID cards, PIN codes, DTMF codes, remote unlocking and indoor exit controls
- Full-Duplex HD Audio - Enables clear, natural two-way voice communication
- SIP and ONVIF Integration - Supports SIP 2.0 and ONVIF Profile S for compatible intercom and security systems
- Outdoor-Ready Construction - IP66 weather resistance and IK07 impact protection for demanding installations
- Wide Security Interface Support - Includes Wiegand, RS485, short-circuit inputs and outputs, relay control and line output
- Flexible Power Options - Operates from 12V DC or IEEE 802.3af PoE
- Wall or Flush Mounting - Supports standard wall mounting, with optional EX102 accessory required for flush mounting
Specifications
- Camera Resolution: 2MP
- Image Sensor: 1/2.9" CMOS
- Video Codec: H.264 Baseline and Main Profile
- Viewing Angle: 120° Horizontal / 60° Vertical
- Light Sensitivity: 0.1Lux
- Night Vision: Infrared Support
- Audio Mode: Full-Duplex HD Audio
- Keypad: 12 Numeric Keys and 4 Function Keys
- Keypad Lighting: Colour Backlight
- RFID Frequencies: 125kHz and 13.56MHz
- Card Capacity: Up to 10,000 Cards
- Supported Cards: MIFARE Classic 1K/4K, MIFARE DESFire, MIFARE Ultralight, MIFARE Plus and Compatible ID Cards
- Supported Wiegand Formats: 26-bit and 34-bit
- Network Interface: 1× 10/100Mbps RJ45 Ethernet
- Supported Protocols: SIP 2.0 over UDP, TCP and TLS
- ONVIF Support: Profile S
- Interfaces: Wiegand Input/Output, RS485, Short-Circuit Input/Output, Line Output and Built-In Relay
- Additional Functions: Motion Detection, Tamper Alarm, Open API and TF Card Support
- Power Input: 12V DC, 1A
- PoE Input: 48V DC, 0.3A via IEEE 802.3af Class 3
- PoE Power Consumption: 1.71~6.96W
- Adapter Power Consumption: 1.52~6.26W
- Housing Material: Aluminium-Alloy
- Colour: Gunmetal
- Protection Rating: IP66 / IK07
- Operating Temperature: -40~70°C
- Storage Temperature: -40~70°C

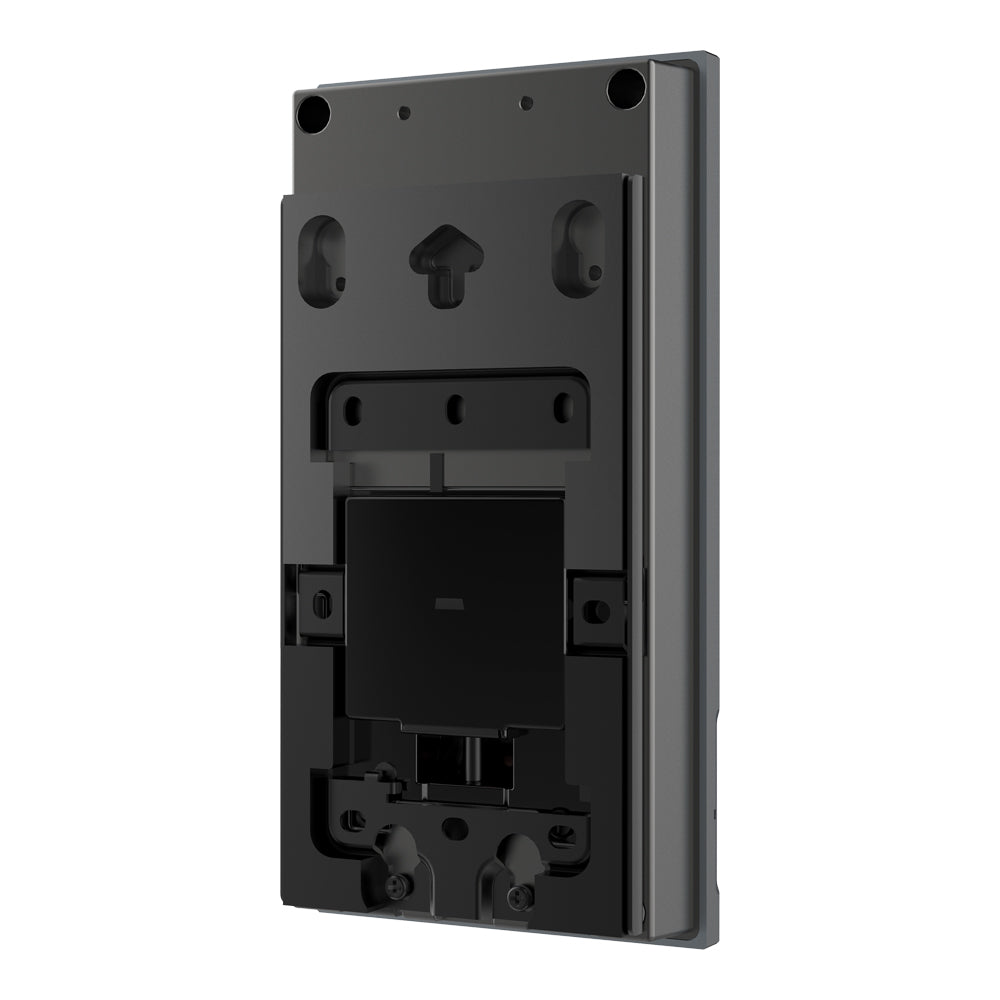

- Installation: Wall-Mounted or Optional Flush-Mounted
- Dimensions (H × W × D): 177.4 × 88 × 36.15mm
- Compliance: CE, EU Radio Equipment Directive 2014/53/EU and EU Low Voltage Directive 2014/35/EU
- Standards: EN 62368-1:2014+A11:2017, EN IEC 62311:2020 and ETSI EN 300 330 V2.1.1
Notes
- Flush mounting requires the optional Fanvil EX102 accessory
- A compatible 12V DC power adapter or IEEE 802.3af PoE source is required
- When PoE and an external power adapter are connected simultaneously, the external power adapter is used as the primary power source
