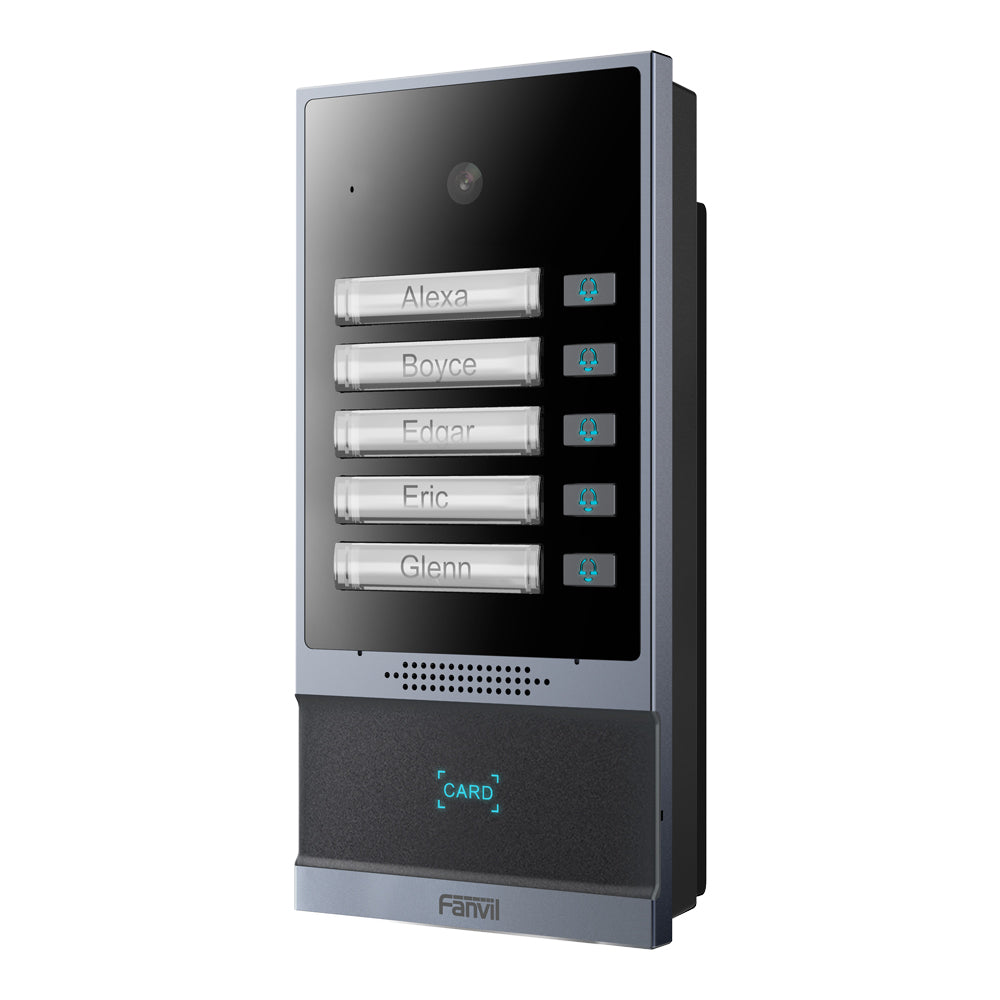

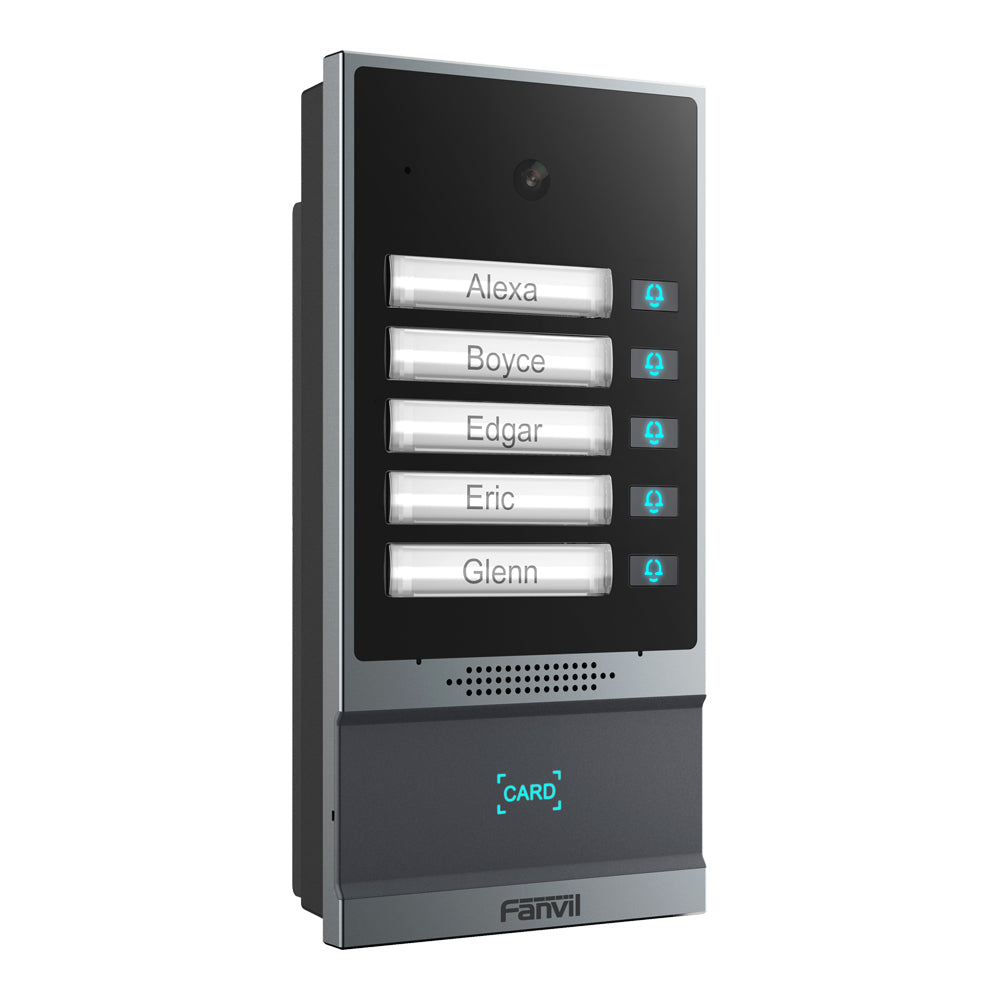

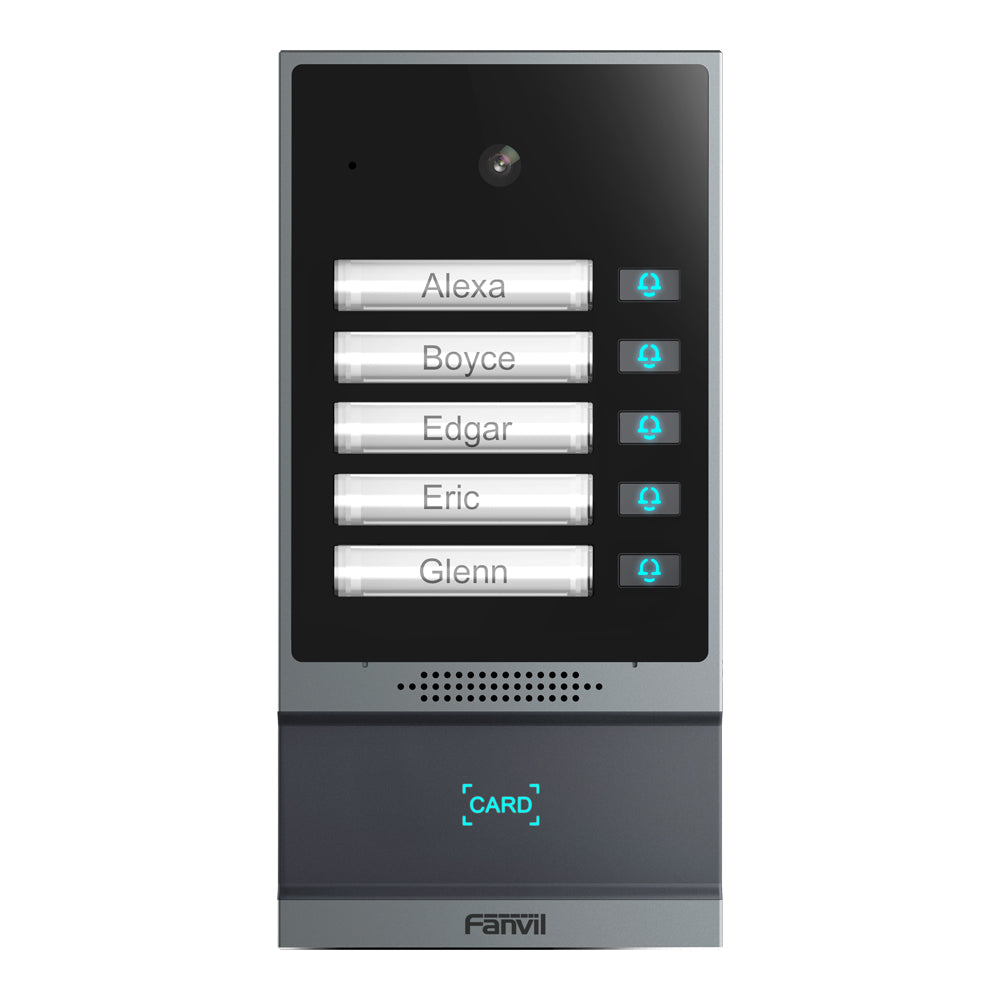

Fanvil i63 Video Door Phone
Advanced Video Intercom and Access Control for Secure Multi-Tenant Entrances.
The Fanvil i63 is a SIP video door phone that combines visitor communication, access control and security monitoring in one durable outdoor unit. Five individually labelled speed-dial buttons allow visitors to contact specific apartments, offices or departments with a single press. Its 2MP HDR camera provides clear video with infrared support for low-light environments, while full-duplex HD audio enables natural two-way communication. Access can be managed using compatible RFID cards, DTMF codes or remote door release. SIP 2.0 and ONVIF Profile S support integration with compatible communication and surveillance platforms. An aluminium-alloy housing with IP66 weather protection and IK07 impact resistance makes the i63 suitable for apartments, offices, communities and industrial facilities.
Features
- Five Speed-Dial Buttons - Connect visitors directly to individually assigned contacts
- Custom Name Labels - Clearly identifies each apartment, office or department
- 2MP HDR Camera - Provides detailed video with improved light and contrast handling
- Infrared Night Support - Improves visibility in low-light entrance environments
- 120° Horizontal Viewing Angle - Captures a wide view of the entrance area
- Full-Duplex HD Audio - Enables clear and natural two-way conversations
- Built-In 2.5W Speaker - Delivers clear, audible voice communication at entrance points
- RFID Access Control - Supports compatible 13.56MHz and 125kHz access cards
- 10,000-Card Capacity - Accommodates extensive user access databases
- Multiple Door-Unlock Methods - Supports RFID cards, DTMF codes and remote unlocking
- SIP 2.0 Compatibility - Integrates with compatible IP communication platforms
- ONVIF Profile S - Supports integration with compatible video surveillance systems
- Integrated Security Interfaces - Connects compatible locks, sensors, alarms and access controllers
- Motion Detection - Supports automated monitoring and security-event responses
- Tamper Alarm - Provides an alert when unauthorised interference is detected
- IP66 Weather Protection - Resists dust and water in demanding outdoor installations
- IK07 Impact Resistance - Provides added protection against accidental or deliberate impact
- PoE Support - Carries power and network data through one Ethernet cable
- Wide Temperature Operation - Supports reliable use in harsh outdoor environments
Specifications
Calling And Intercom
- Call Buttons: 5
- Button Type: Quick Call with Custom Label
- Communication Mode: Full-Duplex HD Audio
- Built-In Speaker Output: 2.5W
- Supported Protocol: SIP 2.0 over UDP, TCP or TLS
- Remote Door Opening: Supported
- DTMF Door Release: Supported
Camera And Video
- Camera Resolution: 2MP
- Camera Type: HDR CMOS
- Sensor Size: 1/2.9"
- Infrared Support: Yes
- Horizontal Viewing Angle: 120°
- Vertical Viewing Angle: 60°
- Light Sensitivity: 0.1Lux
- Video Codec: H.264 Baseline and Main Profile
- Supported Video Resolutions: 1080p, 720p, 4CIF, VGA, CIF and QVGA
- Motion Detection: Supported
- ONVIF Compatibility: Profile S
Access Control
- Card Capacity: Up to 10,000
- Supported Card Frequencies: 13.56MHz and 125kHz
- Supported Card Types: MIFARE Classic 1K/4K, MIFARE DESFire, MIFARE Ultralight and MIFARE Plus
- Unlock Methods: IC/ID Card, DTMF Code and Remote Door Opening
- Wiegand Support: 26-bit and 34-bit
- Built-In Relay: Yes
- Open API: Supported
- Tamper Alarm: Supported
Interfaces
- Network Interface: 10/100Mbps RJ45 Ethernet
- Wiegand Interface: Input and Output
- Short-Circuit Interfaces: Input and Output
- RS485 Interface: Reserved
- Audio Line Output: Induction-Loop Support
- TF Card Support: Up to 128GB
- External Security Devices: Compatible Locks, Sensors, Alarms and Access Controllers
Power
- DC Power Input: 12V 1A
- Power over Ethernet: IEEE 802.3af Class 3
- PoE Power Consumption: 1.70~6.94W
- DC Adapter Power Consumption: 1.50~6.02W
Physical And Environmental
- Body Material: Aluminium-Alloy
- Colour: Gunmetal
- Dimensions (L × W × H): 177.4 × 88 × 36.15mm
- Weather Protection: IP66
- Impact Protection: IK07
- Operating Temperature: -40~70°C
- Storage Temperature: -40~70°C
Installation

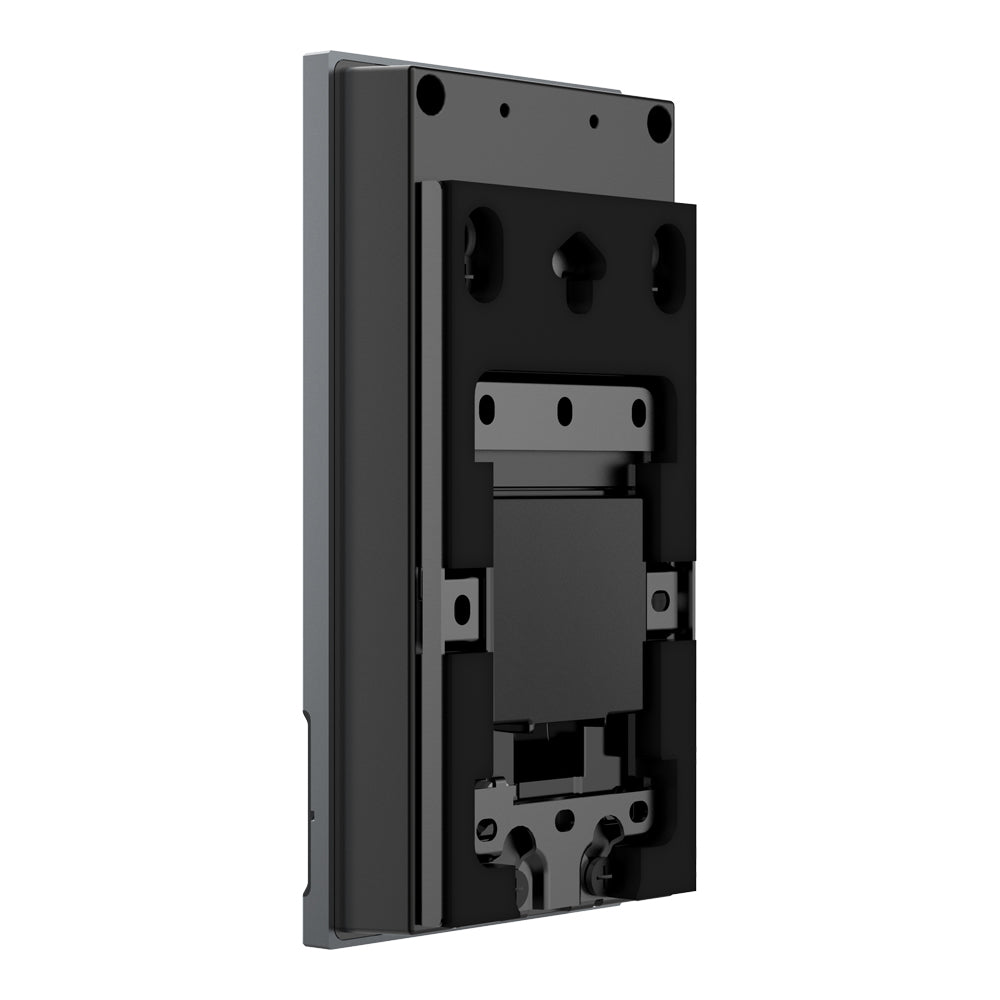

- Standard Installation: Wall-Mounted
- Optional Installation: Flush-Mounted
- Required Flush-Mount Accessory: Fanvil EX102, Sold Separately
Compliance
- Radio Equipment Directive: 2014/53/EU
- Low Voltage Directive: 2014/35/EU
- Product Safety Standard: EN 62368-1:2014+A11:2017
- Human Exposure Standard: EN IEC 62311:2020
- EMC Standards: EN 55032 and EN 55035
- Radio Standard: ETSI EN 300 330
