Fanvil i61 Video Door Phone

Professional SIP Video Intercom and Access Control for Secure Entrances.

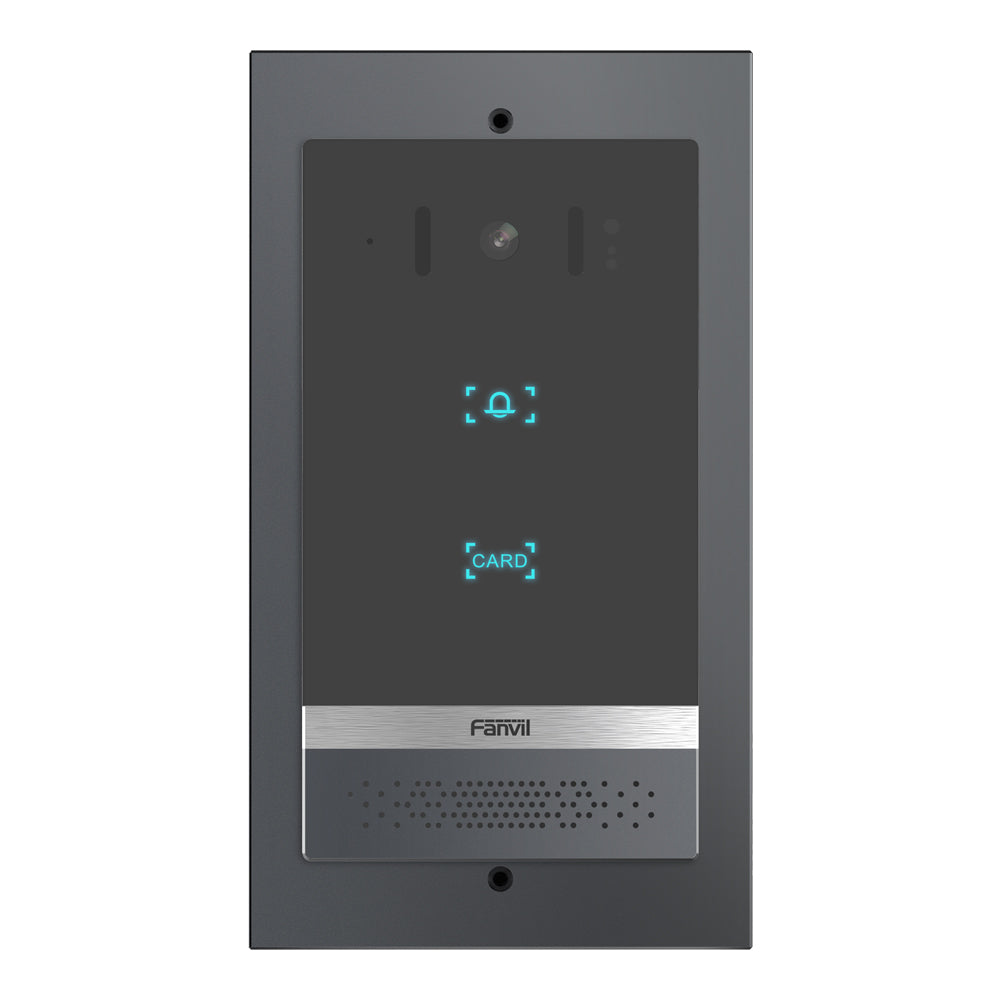

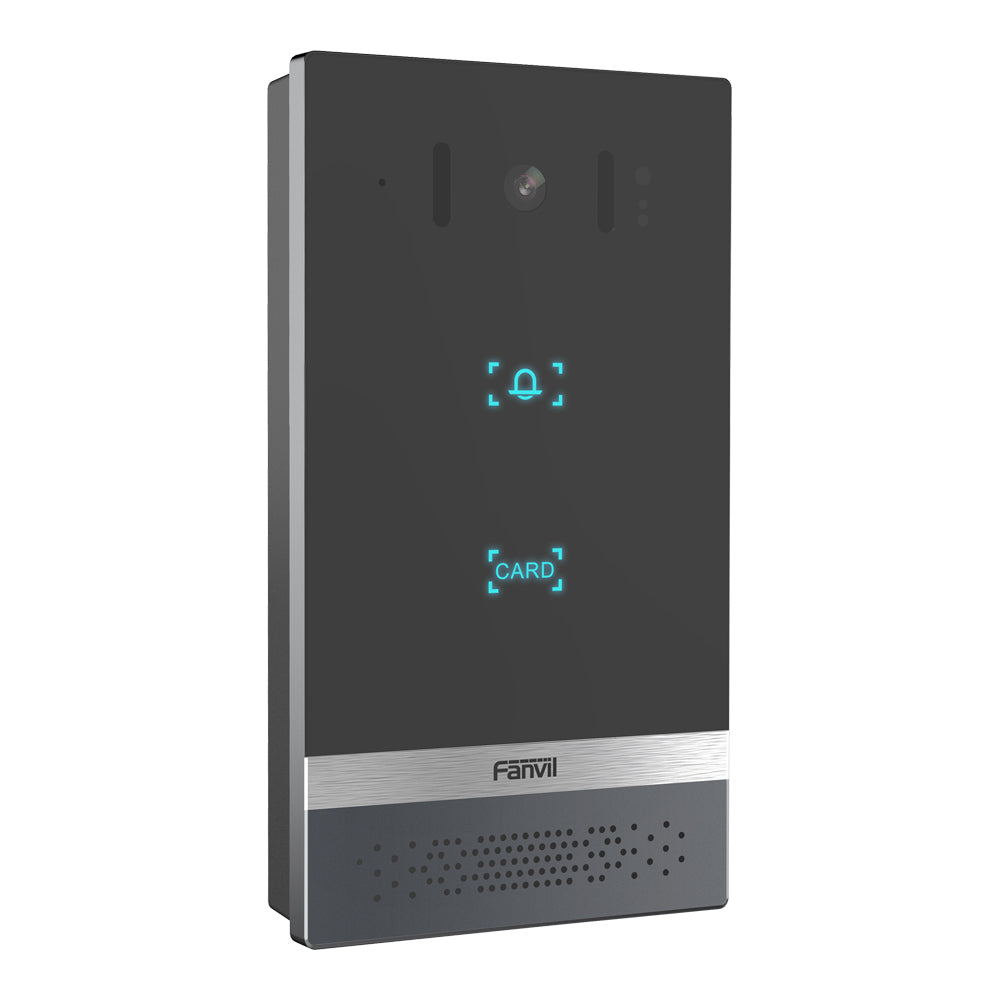

The Fanvil i61 Video Door Phone combines video intercom, access control and entrance security in a robust outdoor unit designed for residential and commercial installations. Its 2MP infrared camera provides a wide 120° horizontal viewing angle, while full-duplex HD audio supports clear two-way communication with visitors. A capacitive speed-dial button enables convenient one-touch calling, and support for RFID cards, remote DTMF unlocking and relay-based access provides flexible entry management. SIP 2.0 and ONVIF Profile S compatibility simplify integration with supported communication and video surveillance platforms. Housed in a durable aluminium enclosure with IP66 weather protection and IK07 impact resistance, the i61 is suitable for apartments, offices, hotels, residential estates and industrial facilities.

Features

• 2MP Infrared Camera - Captures detailed video with a wide field of view for effective entrance monitoring
• One-Touch Video Calling - Capacitive speed-dial button provides convenient communication with a configured destination
• Multiple Door-Unlocking Methods - Supports compatible RFID cards, remote DTMF commands and relay-controlled access
• 10,000-Card Capacity - Accommodates large access-control deployments across commercial and residential properties
• SIP 2.0 Support - Integrates with compatible SIP communication and intercom platforms
• ONVIF Profile S Compatibility - Enables integration with supported network video surveillance systems
• Full-Duplex HD Audio - Provides clear, natural two-way communication between visitors and occupants
• Comprehensive Security Interfaces - Includes Wiegand, short-circuit I/O, reserved RS485 and induction-loop line-out connectivity
• Motion Detection and Tamper Alarm - Supports proactive entrance monitoring and device security
• PoE or DC Power - Offers flexible installation using IEEE 802.3af PoE or a 12V DC power source (Optional)
• IP66 Weather Protection - Protects the unit against dust and powerful water jets during outdoor installation
• IK07 Impact Resistance - Provides additional protection against accidental impacts and vandalism

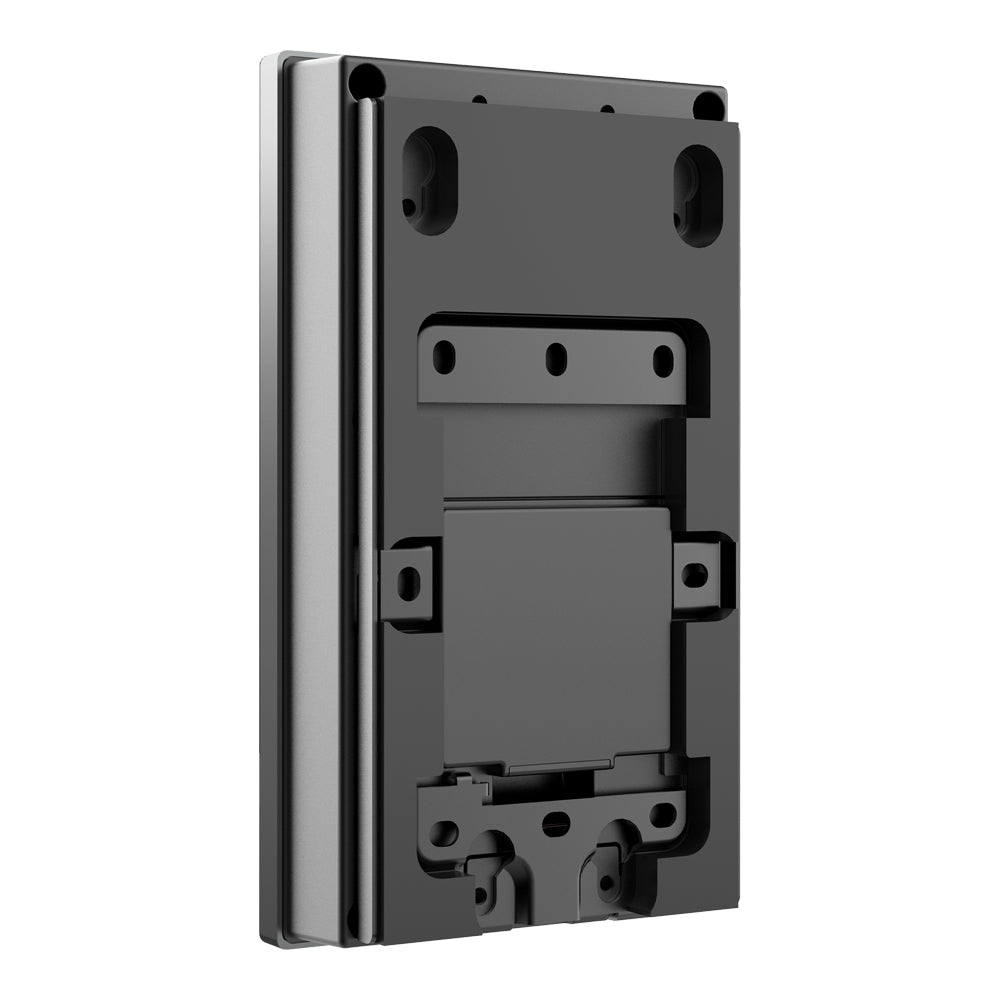

• Flexible Mounting - Supports standard wall mounting or optional flush mounting with the Fanvil EX101 accessory

Specifications

Camera And Video

• Image Sensor: 1/2.9" CMOS
• Camera Resolution: 2MP
• Maximum Video Resolution: Up to 1920 × 1080
• Night Vision: Infrared
• Viewing Angle: 120° Horizontal / 60° Vertical
• Minimum Illumination: 0.1Lux With Infrared or White Fill Light
• Video Compression: H.264 Baseline Profile / Main Profile

Audio And Intercom

• Audio Mode: Full-Duplex HD Audio
• Calling Control: 1× Capacitive Speed-Dial Touch Button
• Audio Codecs: G.711A/U, G.722, G.729, G.726, G.723.1, iLBC and Opus
• Induction Loop Support: Line-Out Interface
• Acoustic Echo Cancellation: Supported

Access Control

• Card Capacity: Up to 10,000 Cards
• Card Frequencies: 13.56MHz and 125kHz
• Supported Card Types: MIFARE Classic 1K/4K, MIFARE DESFire, MIFARE Ultralight and MIFARE Plus
• Door-Unlocking Methods: RFID/IC Card, Remote DTMF and Relay Control
• Wiegand Support: 26-Bit / 34-Bit Input and Output
• Built-In Relay: Yes

Network And Protocols

• Ethernet Interface: 10/100Mbps RJ45
• SIP Protocol: SIP 2.0 Over UDP, TCP or TLS
• Video Integration: ONVIF Profile S
• Application Integration: Open API
• Network Power: IEEE 802.3af PoE Class 3

Interfaces

• Network: 1× RJ45 Ethernet Port
• Access Control: Wiegand Input / Output
• Alarm and Relay: Short-Circuit Input / Output
• Serial Interface: Reserved RS485
• Audio Output: Line-Out for Induction Loop
• Local Storage: TF Card Slot
• DC Input: 12V / 1A

Storage

• Access-Card Database: Up to 10,000 Cards
• Local Storage: TF Card up to 128GB
• Local Functions: Snapshot and Audio Storage Support

Power

• Power Input: IEEE 802.3af PoE Class 3 or 12V DC 1A
• PoE Power Consumption: 1.63~6.93W
• DC Adapter Power Consumption: 1.51~6.16W

Physical And Environmental

• Enclosure Material: Aluminium-Alloy
• Colour: Gunmetal
• Weather Protection: IP66
• Impact Protection: IK07
• Operating Temperature: -40~70°C
• Storage Temperature: -40~70°C
• Installation: Wall Mount or Optional Flush Mount
• Dimensions: 159.7 × 88 × 36.15mm

Compliance

• EU Radio Equipment Directive: 2014/53/EU (RED)
• EU Low Voltage Directive: 2014/35/EU
• Product Safety Standard: EN 62368-1:2014+A11:2017
• Human Exposure Standard: EN IEC 62311:2020
• Radio Standard: ETSI EN 300 330 V2.1.1
• EMC Standards: ETSI EN 301 489-1 and ETSI EN 301 489-3
• CE Marking: Supported
