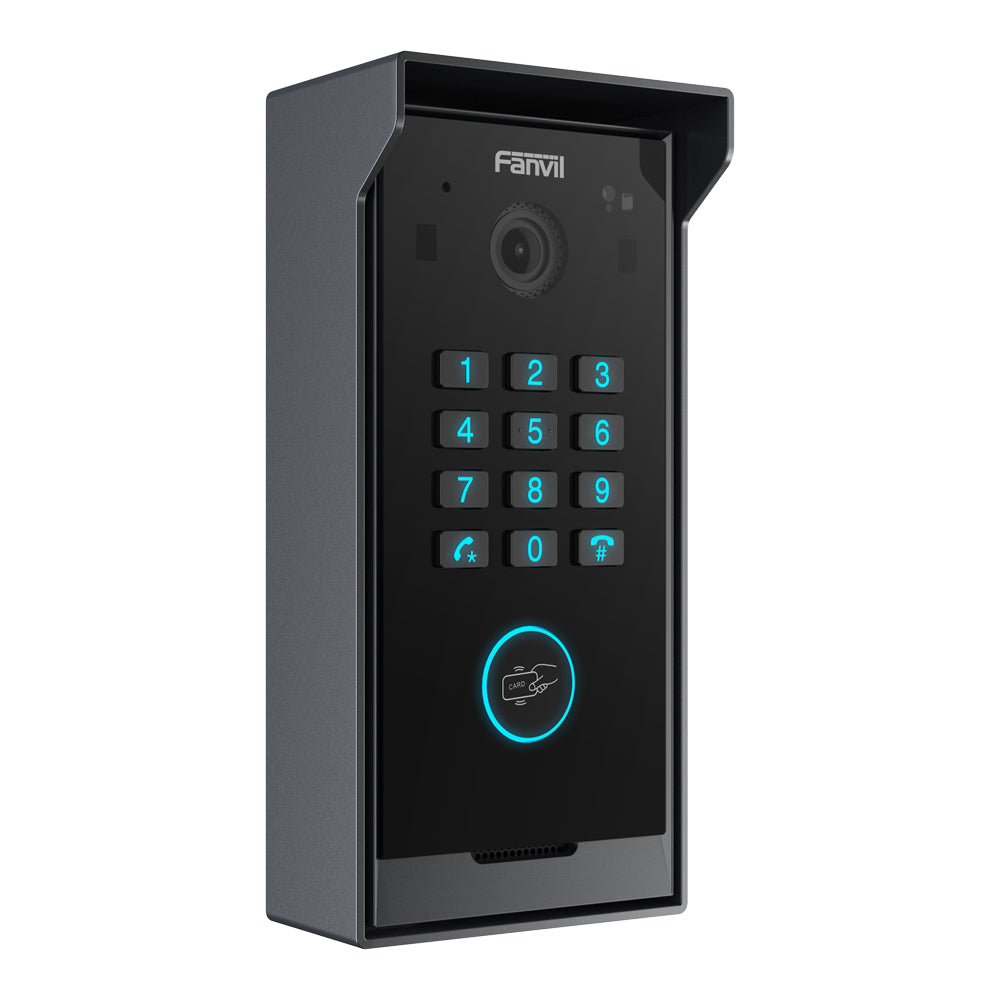

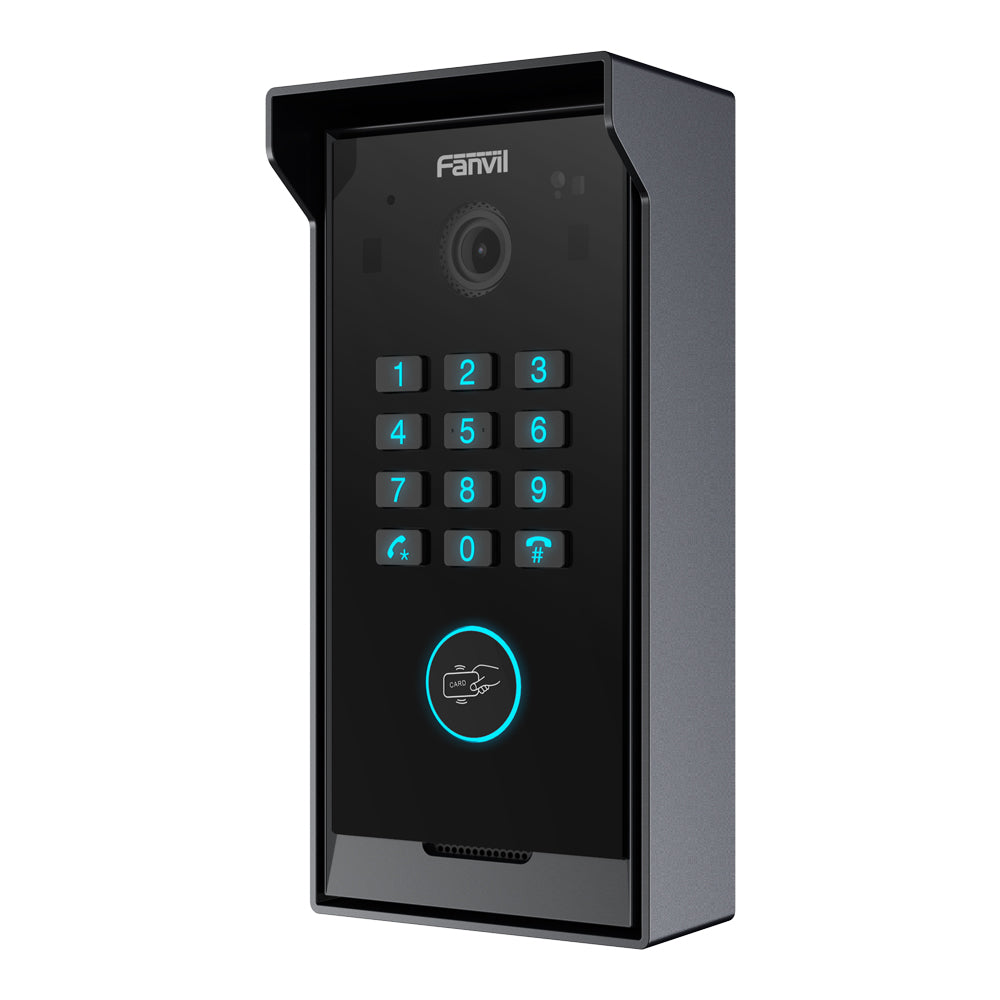

Fanvil i60K IP65 2MP SIP Video Door Phone with Keypad and Rain Cover
Compact Video Entry with Flexible Access Control.
The Fanvil i60K is a compact SIP video door phone designed for villas, apartments, communities and office entrances. Its 2MP HDR camera, wide 140° field of view and infrared support provide clear visitor imaging during the day or at night. A physical numeric keypad, IC card reader, Bluetooth connectivity and remote unlocking support multiple access methods, while the dedicated speed-dial button enables quick SIP audio and video calls. Built for demanding installations, the i60K features IP65 weather protection, anti-tamper detection and an operating range from -40°C to 70°C. SIP 2.0 and ONVIF Profile S support simplify integration with compatible intercom and security systems, while the included rain cover provides additional protection for exposed wall-mounted installations.
Features
- 2MP HDR Camera - Provides clear visitor imaging with infrared night vision support
- Wide-Angle Viewing - Offers a 140° field of view for broader entrance coverage
- Physical Numeric Keypad - Supports PIN access and direct number dialling
- Multiple Unlocking Methods - Supports PIN codes, IC cards, BLE, DTMF, remote unlocking and indoor switches
- Fanvil Link Support - Enables compatible Bluetooth and remote access functions through the Fanvil Link App
- One-Touch Speed Dial - Quickly calls a configured indoor station, IP phone or management centre
- Full-Duplex HD Audio - Delivers clear two-way voice communication
- IP65 Outdoor Protection - Resists dust and water for indoor or outdoor installation
- Anti-Tamper Alarm - Detects unauthorised removal and can report the event to the management system
- SIP and ONVIF Integration - Supports SIP 2.0 and ONVIF Profile S for compatible security platforms
- Included Rain Cover - Provides additional protection for exposed wall-mounted installations
- Flexible Power Options - Operates from 12V DC or IEEE 802.3af PoE
Specifications
- Camera Resolution: 2MP
- Image Sensor: 1/2.9" Colour CMOS
- Viewing Angle: 140° FOV / 100° Horizontal / 57° Vertical
- Video Codec: H.264 Baseline and Main Profile
- Light Sensitivity: 0.1Lux
- Night Vision: Infrared Support
- Audio Mode: Full-Duplex HD Audio
- Speaker Output: 1W
- Controls: 1× Speed-Dial Button and 12-Key Numeric Keypad
- SIP Lines: 2
- Card Type: 13.56MHz IC Card
- Card Capacity: up to 10,000 Cards
- Supported Wiegand Formats: 26-bit and 34-bit
- Network Interface: 1× 10/100Mbps RJ45 Ethernet
- Supported Protocols: SIP 2.0 over UDP, TCP and TLS
- ONVIF Support: Profile S
- Interfaces: Wiegand Input/Output, 2× Short-Circuit Inputs, 1× Short-Circuit Output and Built-In Relay
- Storage Support: TF Card up to 128GB
- Additional Functions: Motion Detection, Human Body Sensing, Tamper Alarm and Open API
- Power Input: 12V DC, 1A
- PoE: IEEE 802.3af Class 3
- PoE Power Consumption: 1.63~6.93W
- Adapter Power Consumption: 1.51~6.16W
- Housing Material: ABS and PC
- Panel Colour: Black
- Housing Colour: Gunmetal
- Protection Rating: IP65
- Operating Temperature: -40~70°C
- Storage Temperature: -40~70°C
- Device Dimensions (W × H × D): 70.7 × 149.7 × 30mm
- Dimensions with Rain Cover: 78.2 × 159.65 × 46.2mm
- Installation: Wall-Mounted or Rain Cover-Mounted
Notes
- A compatible 12V DC power adapter or IEEE 802.3af PoE source is required
- The device supports CAT5, CAT5e and CAT6 Ethernet cables; CAT6A cables may not connect correctly
