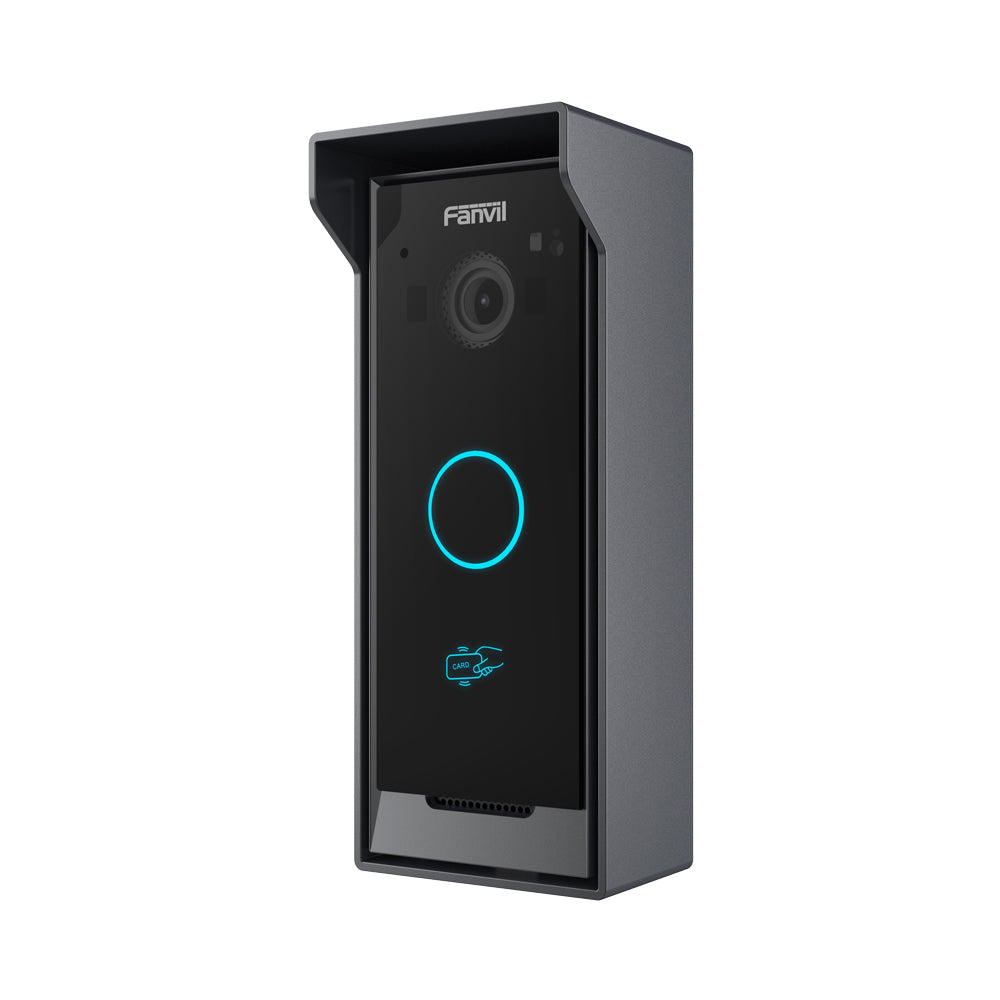

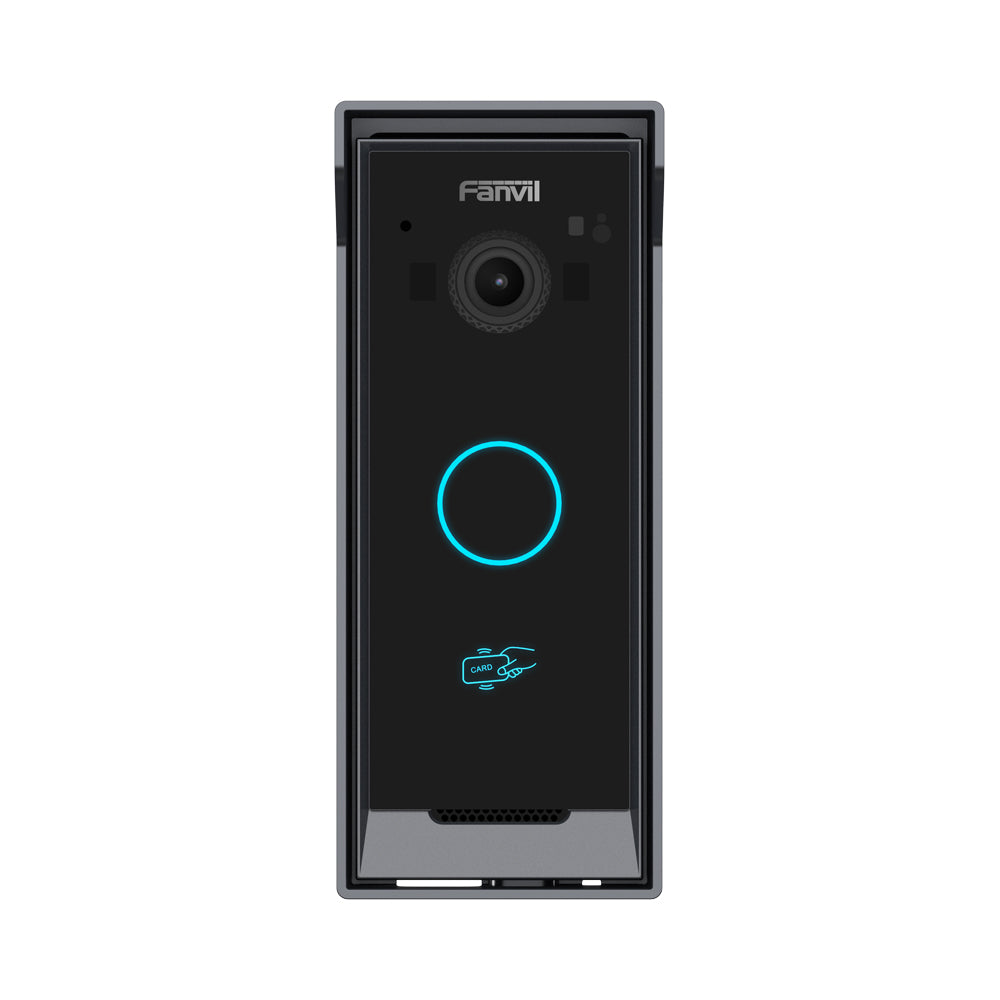

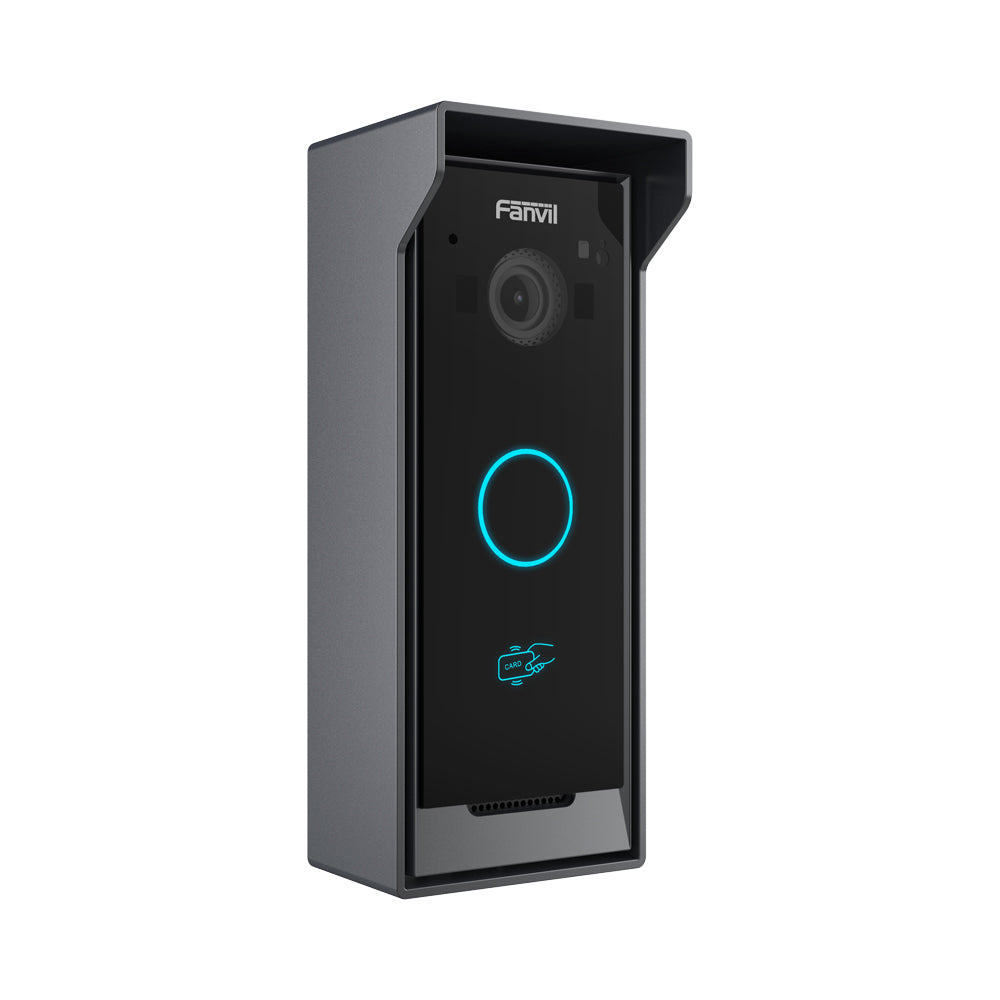

FANVIL I60 COMPACT VIDEO DOOR PHONE
FEATURES
• Dedicated Speed Dial Button - Quick access for fast calling and convenient operation
• 2MP HDR Camera - High-definition imaging for clear video monitoring
• Multiple Access Methods - Unlock doors via password, Bluetooth, IC/ID card or DTMF code
• IP65 Protection Rating - Designed for outdoor use with operating temperatures from -40°C to 70°C
• Multiple Connectivity Interfaces - Supports integration with various security and access devices
• ONVIF Protocol Support - Ensures broad compatibility with standard surveillance systems
SPECIFICATIONS
PANEL
• Keyboard: 1× Speed-Dial Button
• Body Material: ABS and PC
• Colours: Panel Black, Housing Gunmetal
CAMERA
• Sensor: 1/2.9" CMOS
• Camera: 2MP, Infrared Support
• Viewing Angle: 140° (FOV), 100° (Horizontal), 57° (Vertical)
• Video Output: H.264 (Baseline, Main Profile)
• Light Sensitivity: 0.1 Lux
STORAGE
• Card Storage: up to 10,000 Cards
POWER
• Power Consumption:
- PoE: 1.63~6.93W
- Adapter: 1.51~6.16W
• Power Supply:
- DC 12V 1A
- PoE 802.3af Class 3
ENVIRONMENT
• Working Temperature: -40~70°C
• Storage Temperature: -40~70°C
• Protection Rating: IP65
PHYSICAL
• Dimensions (L × W × H): 50 × 130 × 30mm
• Installation: Wall-Mounted
• Rain Cover: Supported
FUNCTIONAL CAPABILITIES
PROTOCOLS
• SIP 2.0 over UDP / TCP / TLS
ACCESS CONTROL
• Lock Opening: IC Card, DTMF Code, Remote Door Opening, BLE
• Supported Wiegand: 26 / 34-bit
INTERFACE
• Wiegand Input / Output
• Short Circuit Input / Output
ONVIF
• Supported ONVIF Types: Profile S
SUPPORTED STANDARDS
• DTMF
• IC Card
• Indoor Switch
• BLE
• 13.56MHz Cards
AUDIO
• Talking Mode: Full-Duplex (High-Definition Audio)
ADDITIONAL FUNCTIONS
• Built-in Relay
• Motion Detection
• Tamper Alarm
• TF Card Support
• Open API Support
