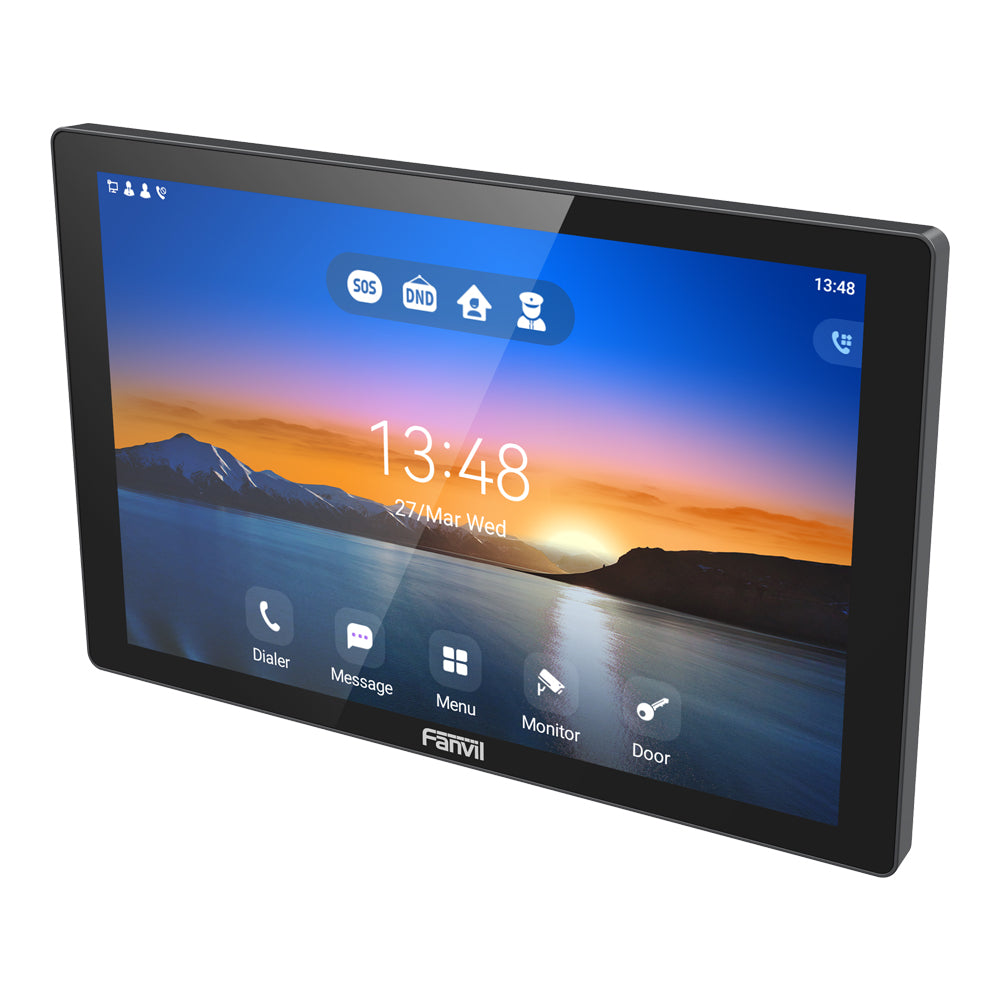

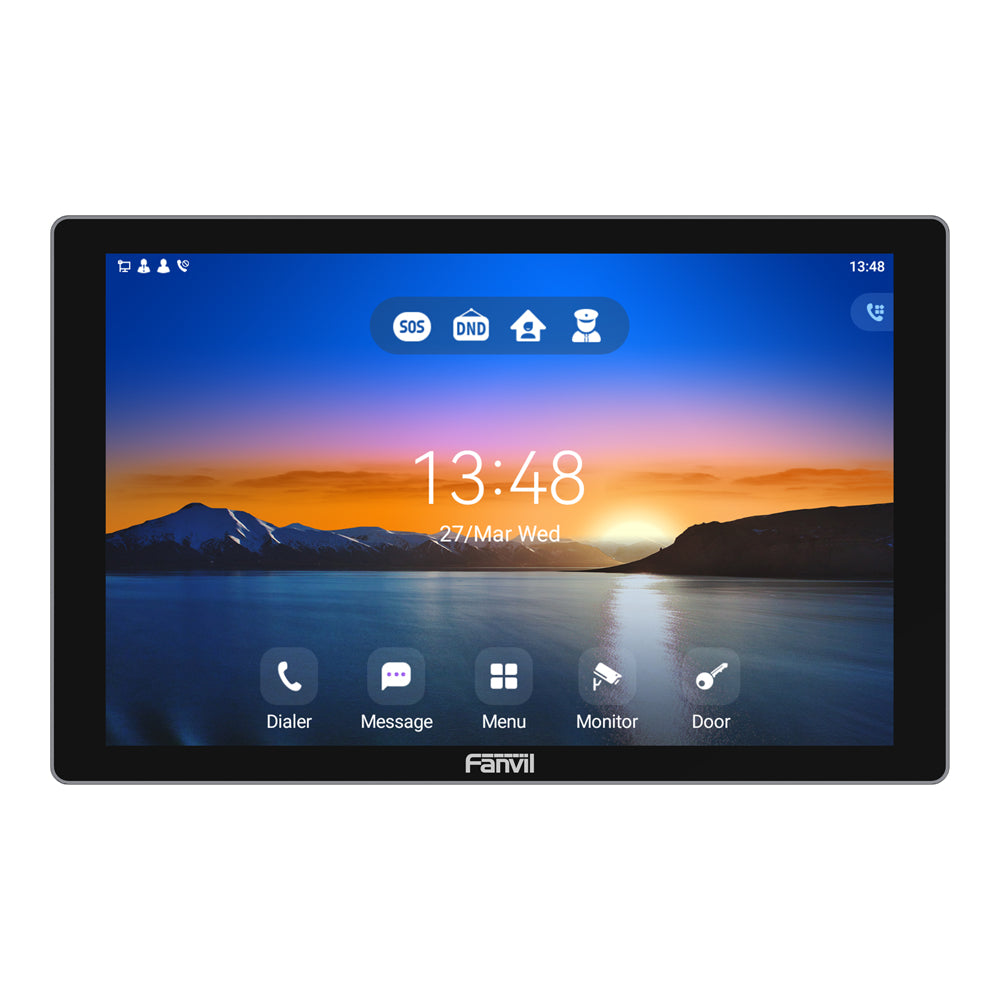

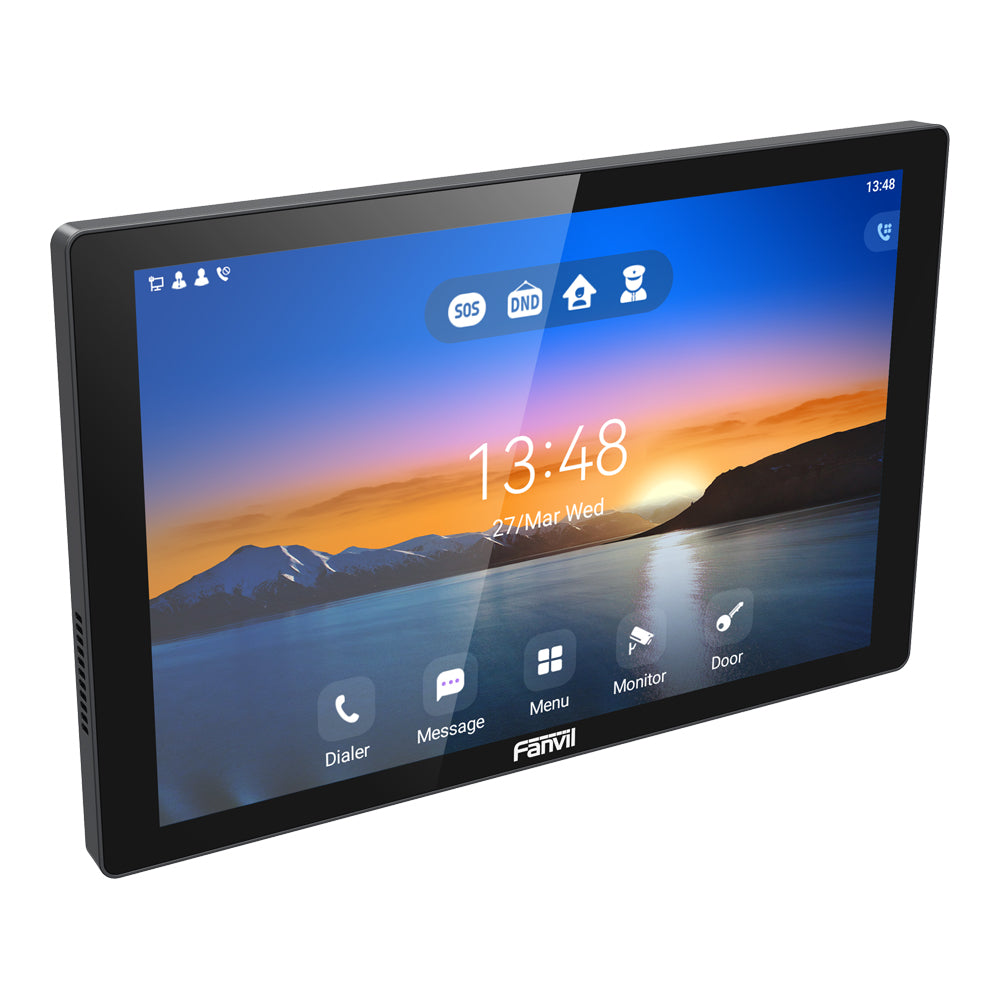

Fanvil i507W 10.1" Android Indoor Station with Dual-Band Wi-Fi and PoE
Smart Access Control and Indoor Communication from One Screen.
The Fanvil i507W is a 10.1" Android indoor station designed for residential communities, villas, offices, hotels and access-controlled buildings. Its 1280 × 800 IPS capacitive touchscreen provides a clear interface for answering entrance calls, viewing compatible door stations and IP cameras, conducting two-way intercom conversations and remotely unlocking connected entrances. Dual-band 2.4GHz and 5.0GHz Wi-Fi, 10/100Mbps Ethernet and IEEE 802.3af PoE provide flexible network and installation options. Eight alarm inputs, a short-circuit output, doorbell input and reserved RS485 interface support integration with sensors, alarms, card readers and compatible access-control equipment. Android 9.0 also supports application customisation and selected third-party applications.
Features
- 10.1" IPS Touchscreen - Large 1280 × 800 capacitive display provides clear video, menus and access-control functions
- Android 9.0 Platform - Supports customised applications, secondary development and selected third-party apps
- Two-Way Video Intercom - Answer entrance calls and communicate with compatible SIP door stations
- Remote Door Unlocking - Unlock compatible connected entrances directly from the touchscreen
- H.264 Video Decoding - Supports H.264 hardware video decoding for compatible video calls and camera streams
- IP Camera Monitoring - View video from compatible third-party IP cameras and access-control cameras
- Dual-Band Wi-Fi - Supports both 2.4GHz and 5.0GHz wireless networks
- PoE or DC Power - Operates through IEEE 802.3af PoE or an optional 12V 1A power supply
- Full-Duplex Hands-Free Audio - Built-in 2W speaker and Acoustic Echo Cancellation support clear two-way communication
- Eight Alarm Inputs - Connect compatible door sensors, infrared sensors, vibration sensors, switches and emergency buttons
- Short-Circuit Output - Supports connection to compatible electric locks, alarms and related equipment
- Doorbell Input - Integrates a compatible external doorbell button
- SIP 2.0 Support - Operates over UDP, TCP or TLS for flexible VoIP deployment
- Custom Ringtones and Messaging - Supports configurable incoming call tones and message sending and receiving
- Flexible Installation - Supports wall-mounted installation, with desktop installation available using a compatible bracket
Specifications
- Operating System: Android 9.0
- Display: 10.1" IPS Capacitive Touchscreen
- Resolution: 1280 × 800
- Body Material: ABS
- Speaker Output: 2W
- Wi-Fi: Dual-Band 2.4GHz and 5.0GHz
- Ethernet: 10/100Mbps Adaptive RJ45
- Network Protocol: SIP 2.0 over UDP, TCP and TLS
- Video Decoding: H.264
- Supported Video Resolutions: QVGA, CIF, VGA, 4CIF, 720p and 1080p
- Narrowband Audio Codecs: G.711A/U, G.729AB and iLBC
- Wideband Audio Codecs: G.722 and Opus
- Audio Mode: Full-Duplex Hands-Free
- Echo Cancellation: Acoustic Echo Cancellation
- DTMF: In-Band, RFC2833 and SIP INFO
- Alarm Inputs: 8
- Short-Circuit Outputs: 1
- Doorbell Inputs: 1
- PoE Standard: IEEE 802.3af
- DC Power Input: 12V 1A
- PoE Power Consumption: 2.99~8.64W
- Adapter Power Consumption: 2.64~7.18W
- Operating Temperature: -10~50°C
- Storage Temperature: -40~80°C
- Operating Humidity: 10~90%
- Dimensions: 247.96 × 156.96 × 25.6mm
- Installation: Wall-Mounted
