Fanvil i16SV Outdoor IP65 IK10 SIP 2MP Video Intercom
Secure Access. Smarter Communication.
The Fanvil i16SV SIP Video Intercom is a rugged, outdoor-ready solution combining HD video, clear audio and advanced access control in a compact design. Built for demanding environments, it features IP65 weatherproof and IK10 vandal-resistant protection for reliable performance. With a 2MP HD camera and infrared night vision, seamless SIP integration and support for broadcasting and remote management, it delivers a flexible and secure communication solution for modern installations.
Features

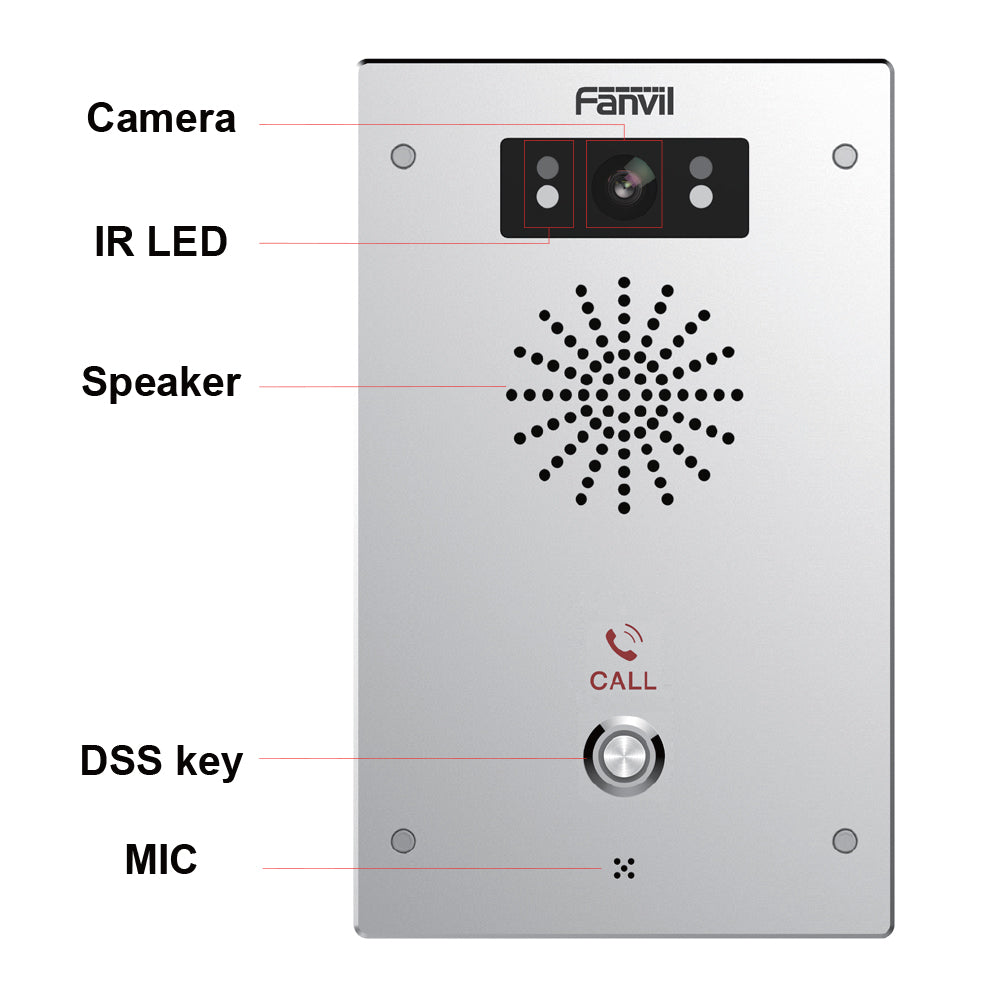

- 2MP HD Camera with Night Vision - Infrared support enables clear 24/7 video monitoring
- HD Audio Performance - 3W speaker with acoustic echo cancellation ensures clear communication
- IP65 and IK10 Protection - Weatherproof and vandal-resistant design for harsh outdoor environments
- PoE Support - IEEE 802.3af simplifies installation with power and data over a single cable
- Dual SIP Line Support - Flexible VoIP integration for modern communication systems
- Access Control Integration - Built-in relay I/O supports door locks, alarms and sensors
- Broadcasting and Storage - Supports multicast, MP3 broadcasting and TF card for local storage
- Advanced Network Security - VPN, VLAN and IPv6 support for secure deployment
- Wide Platform Compatibility - Works with Asterisk, 3CX, Broadsoft, Avaya and more
- Durable Wall-Mount Design - Aluminium housing ensures long-term reliability in outdoor installations
Specifications
Generic
- SIP Lines: 2× SIP Lines
- HD Voice: Full-Duplex Speakerphone with Acoustic Echo Cancellation
- PoE: IEEE 802.3af Class 3
- Video Intercom: Supported
- MP3 Broadcasting: Supported
- DSS Key: Programmable with LED Indicator
- Speaker: Built-In Active Speaker
- Storage: TF Card Slot for Audio Playback
- Alarm: Tamper Alarm Supported
Call Functions
- Call Functions: Call, Answer, Reject, Call Waiting, Speed Dial, Anonymous Call
- Intercom: Intercom and Multicast Calling Supported
Audio
- Audio Codecs: G.722, Opus, G.711A/U, G.729, iLBC, G.726
- DTMF: In-Band, RFC2833, SIP INFO
Video
- Camera: 2MP CMOS
- Video Resolution: 1920 × 1080, 1280 × 720
- Video Compression: H.264
- Night Vision: Infrared Support
- Field of View: Up to 126° Diagonal
Network
- Network: 10/100Mbps Ethernet
- IP Support: IPv4 and IPv6
- IP Mode: Static IP, DHCP, PPPoE
- VLAN: Supported
- VPN: L2TP, OpenVPN
Protocols
- Protocols: SIP v1/v2 (UDP, TCP, TLS), RTP, RTCP, SRTP, STUN, DHCP, SNTP, HTTP, HTTPS, FTP, TFTP, TR-069
Deployment And Management
- Management: Auto-Provisioning (FTP, TFTP, HTTP, HTTPS, DHCP, TR-069), Web Management, Firmware Upgrade, Syslog, Diagnostics
Physical
- Protection Rating: IP65
- Impact Rating: IK10
- Housing: Aluminium-Alloy
- Installation: Wall-Mount
- Operating Temperature: -30~60°C
- Dimensions: 195 × 120 × 40mm
- Interface: 1× RJ45 (PoE)
- I/O Ports: Relay Input and Output for Access Control
- Audio Output: Line-Out and Recording Output
