Fanvil H6W Dual-Band Wi-Fi 6 IP Phone
Smart Hospitality Communication Made Simple.
The Fanvil H6W is a modern Wi-Fi IP hotel phone designed to deliver reliable communication with enhanced flexibility for hospitality environments. Featuring dual-band 2.4GHz and 5.0GHz Wi-Fi 6, it enables fast and stable wireless deployment, reducing installation complexity and cabling costs. Equipped with a 3.5-inch IPS display and 5 programmable DSS keys, the H6W allows quick access to hotel services such as reception, housekeeping and room service, improving guest convenience and operational efficiency. HD voice technology and full-duplex speakerphone functionality ensure clear and natural conversations for both guests and staff. With support for 2 SIP lines, PoE and multiple codecs including Opus and G.722, the H6W integrates easily with existing IP PBX systems. Its compact, elegant design and energy-saving features make it ideal for hotels, hospitals and commercial spaces requiring dependable and cost-effective communication solutions.
Features
- Dual-Band Wi-Fi 6 Connectivity - 2.4GHz and 5GHz Wi-Fi for fast, flexible deployment
- 3.5-Inch IPS Display - Clear interface with support for custom backgrounds and screensaver slideshow
- 5 Programmable DSS Keys - Customisable service buttons with icons for hotel functions
- HD Voice with Full-Duplex Audio - Clear, natural conversations with echo cancellation
- Advanced Audio Processing - AGC, noise reduction and jitter buffer for consistent call quality
- 2 SIP Lines Support - Efficient handling of multiple calls
- PoE Support - Simplified installation with power and data over a single cable
- USB Type-A Charging Port - Convenient device charging without additional adapters
- Hospitality-Optimised Design - Ideal for hotels, hospitals and commercial environments
- Energy Saving Mode - Sleep mode reduces power consumption
Specifications
General
- SIP Lines: 2
- HD Voice: Supported
- Wi-Fi: Dual-Band 2.4GHz and 5.0GHz (Wi-Fi 6)
- PoE: Supported
- Installation: Desktop

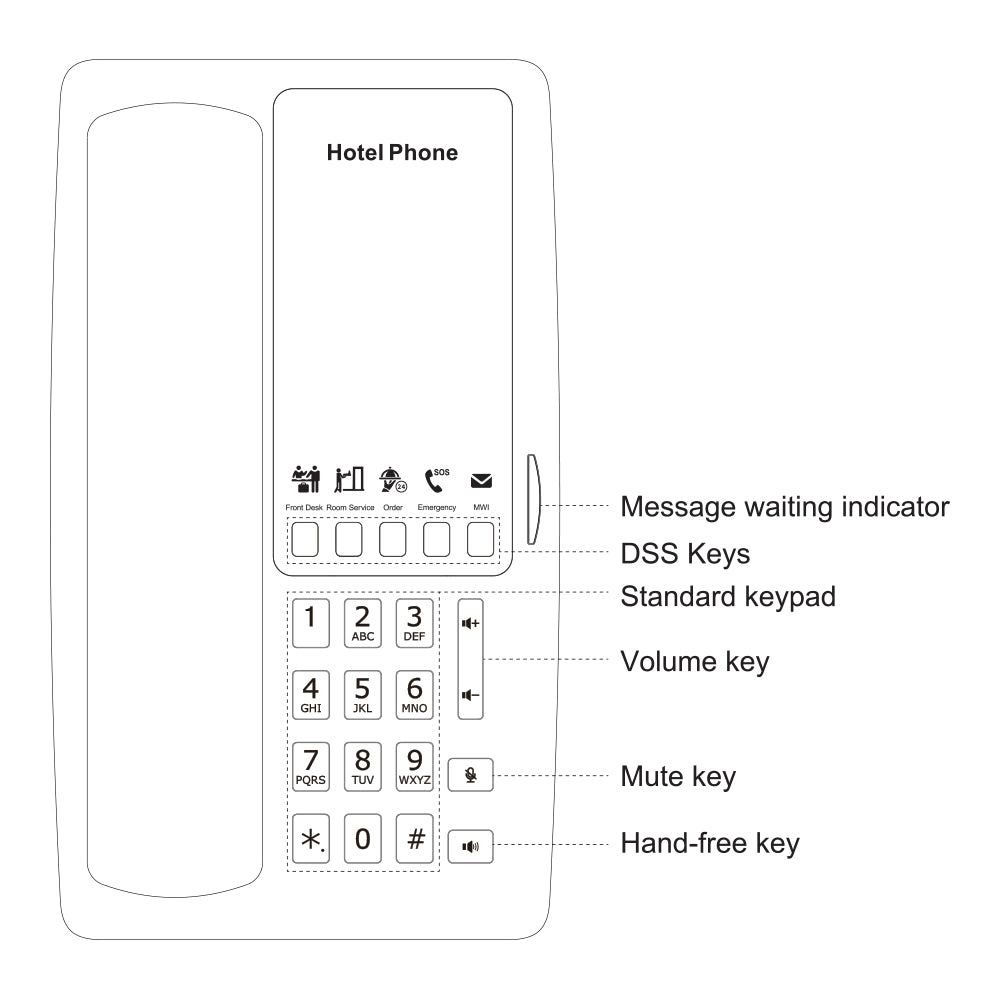

Display And Keys
- Display: 3.5-Inch IPS (320 × 480)
- DSS Keys: 5 Programmable Keys
- Keypad: 21 Keys (Including Function and Hands-Free Keys)
- Visual Indicator: LED Message Indicator
Audio
- Audio Codecs: G.722, Opus, G.711A/U, G.729AB
- Speakerphone: Full-Duplex with AEC
- Noise Reduction: VAD, CNG, BNE, NR
- Automatic Gain Control: Supported
- Echo Cancellation: Advanced Algorithm
Network
- Ethernet: 10/100Mbps
- IP Mode: IPv4 / IPv6
- Wi-Fi Security: WPA / WPA2-PSK / 802.1X
- VPN: L2TP / OpenVPN
- VLAN and QoS: 802.1P/Q, QoS Supported

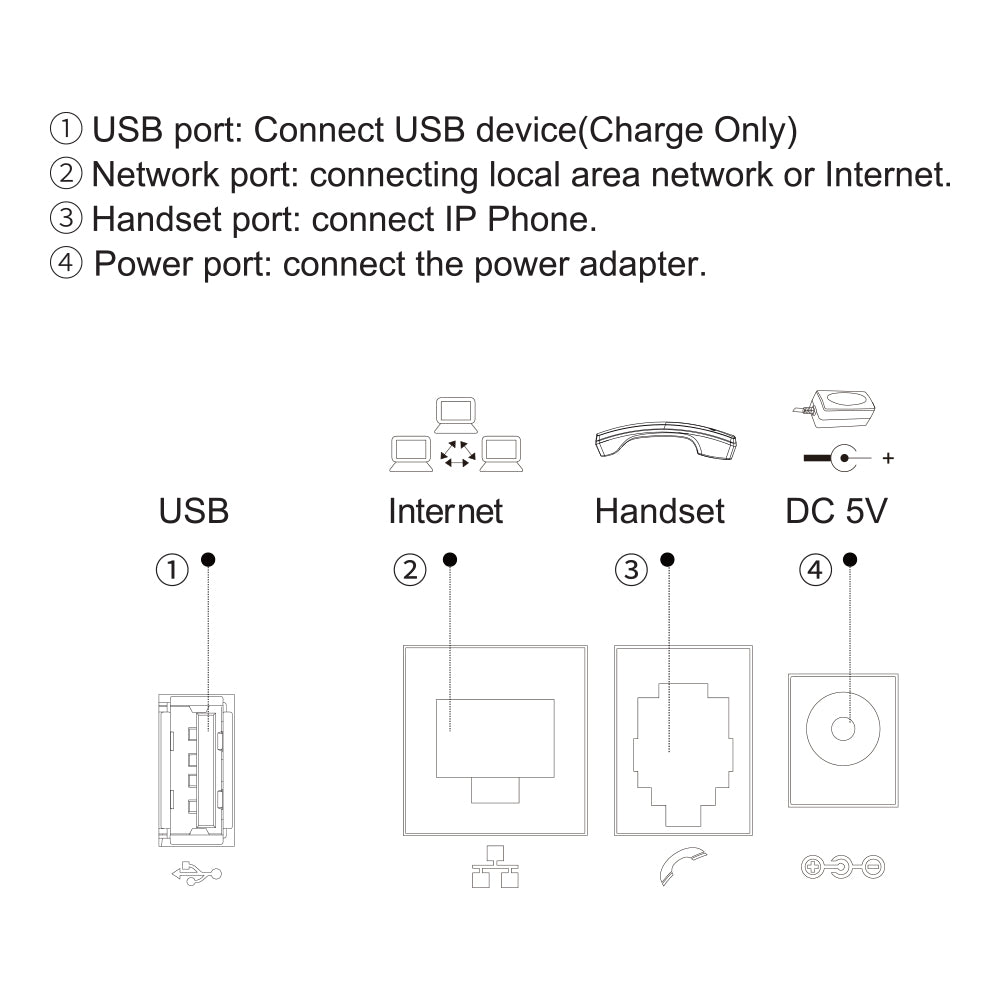

Interfaces
- RJ45 Port: 1× Network
- RJ9 Port: 1× Handset
- USB Port: 1× USB Type-A
- Power Input: DC 5V 2A or PoE
Management And Protocols
- Provisioning: FTP / TFTP / HTTP / HTTPS / DHCP / TR-069
- SIP Protocols: SIP v1 and v2 (UDP / TCP / TLS)
- Security: HTTPS, VPN, 802.1X
- Management: Web Interface and Syslog
Physical
- Dimensions: 221 × 127.5 × 70.5mm
- Operating Temperature: 0~45°C
- Humidity: 10~95%
- Weight: 329g
