Fanvil H1-2 Wire IP Hotel Phone
Upgrade Existing Hotel Telephone Wiring with Modern SIP Communication.
The Fanvil H1-2 Wire is an IP hotel phone designed to modernise guest room communication while reusing compatible existing 2-wire telephone cabling. When connected to a Fanvil PN8 or PN24 2-Wire PoE switch, a single RJ11 connection supplies both network access and power, helping reduce installation time, rewiring costs and disruption during hotel upgrades. The phone supports 2 SIP lines, HD Voice with G.722 and Opus codecs, and 8 programmable DSS keys for convenient access to hotel services. Its full-duplex speakerphone, dedicated call controls, web management and flexible desktop or optional wall-mounted installation make it a practical solution for hotel rooms and hospitality deployments.
Features
- 2-Wire Power and Network - Receives network connectivity and power through a single compatible 2-wire connection
- Existing Cable Reuse - Helps modernise hotel telephone systems without replacing suitable legacy wiring
- 2 SIP Lines - Supports two SIP accounts for flexible hotel communication
- 8 Programmable DSS Keys - Provides one-touch access to services such as reception, room service, voicemail and emergency assistance
- HD Voice - G.722 and Opus codecs deliver clear wideband audio through the handset and speakerphone
- Full-Duplex Speakerphone - Supports natural hands-free conversations with Acoustic Echo Cancellation
- Dedicated Call Controls - Includes hold, transfer, redial, message and volume control keys
- Advanced Call Functions - Supports speed dial, call forwarding, call transfer, call hold, hotline and voicemail
- Secure SIP Communication - Supports SIP over TLS and SRTP media encryption
- Centralised Deployment - Supports auto-provisioning, TR-069 and web-based management
- Flexible Installation - Supports desktop placement or optional wall mounting
Specifications
- SIP Lines: 2
- Operating System: Linux
- Standard Dial Keys: 12
- DSS Keys: 8 Programmable Keys
- Function Keys: Hold, Call Transfer, Redial and Message Waiting
- Volume Controls: Volume Up, Volume Down and Mute
- Hands-Free Key: 1
- Status Indicator: 1× Red LED

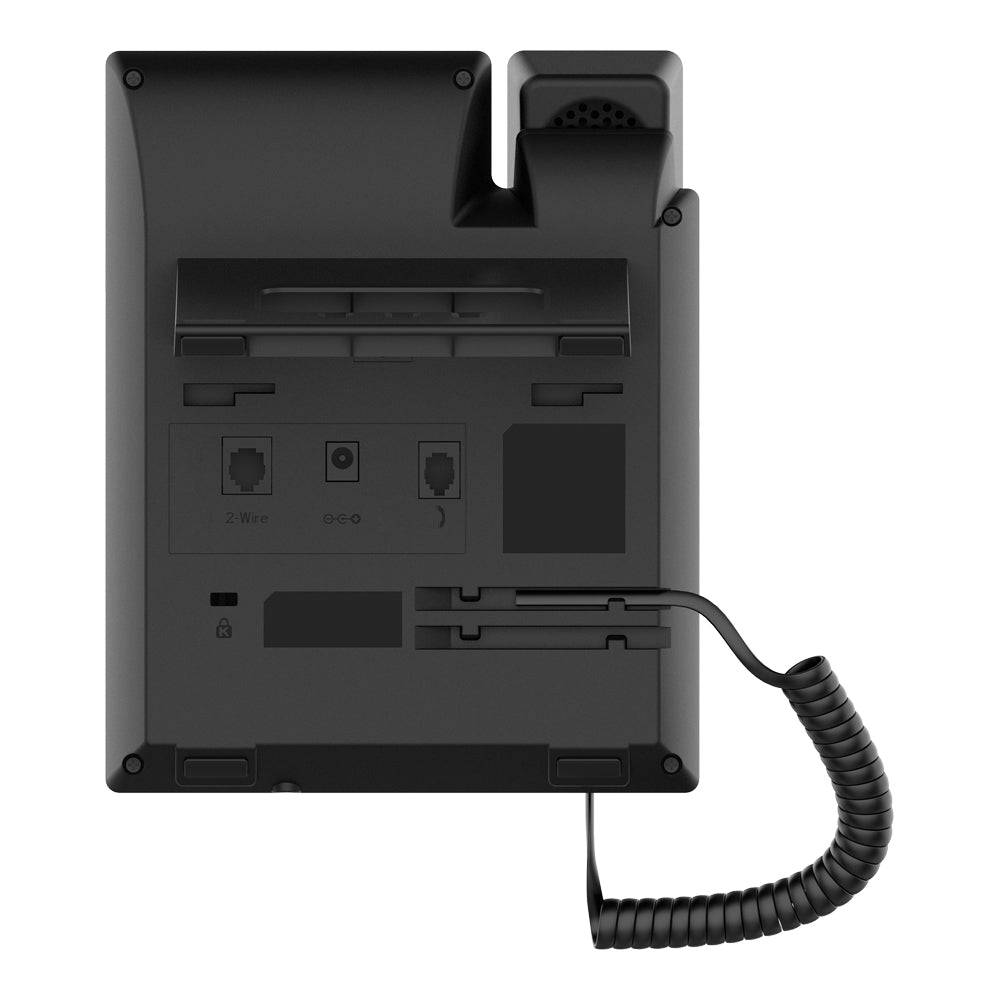

- 2-Wire Interface: 1× 6P2C RJ11 Port
- Handset Port: 1× RJ9
- Power Input: Compatible Fanvil 2-Wire PoE Switch or DC12V 1A (Sold Separately)
- Power and Network Method: 2-Wire Connection
- Housing Material: Plastic
- Colour: Black
- Wideband Codecs: G.722 and Opus
- Narrowband Codecs: G.711A/U, G.723.1, G.726 and iLBC
- Audio Processing: AEC, VAD, CNG, BNE, NR, AGC, PLC and Adaptive Jitter Buffer
- DTMF: In-Band, RFC2833 and SIP INFO
- IP Modes: IPv4 and IPv6
- IP Configuration: Static IP, DHCP and PPPoE
- VPN: L2TP and OpenVPN
- Network Features: VLAN, LLDP, QoS and 802.1X
- SIP Protocol: SIP2.0 Over UDP, TCP and TLS
- Media Protocols: RTP, RTCP and SRTP
- Call Logs: Incoming, Outgoing and Missed, up to 600 Entries
- Management: Web Management, Configuration Import and Export, Firmware Upgrade, Syslog and Packet Capture
- Auto-Provisioning: FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP and TR-069
- Installation: Desktop or Optional Wall-Mounted (Sold Separately)
- Product Dimensions: 169 × 184 × 124mm
- Operating Temperature: 0~45°C
Optional Accessories
- DC12V 1A Power Adapter
- Wall-Mount Stand
Notes

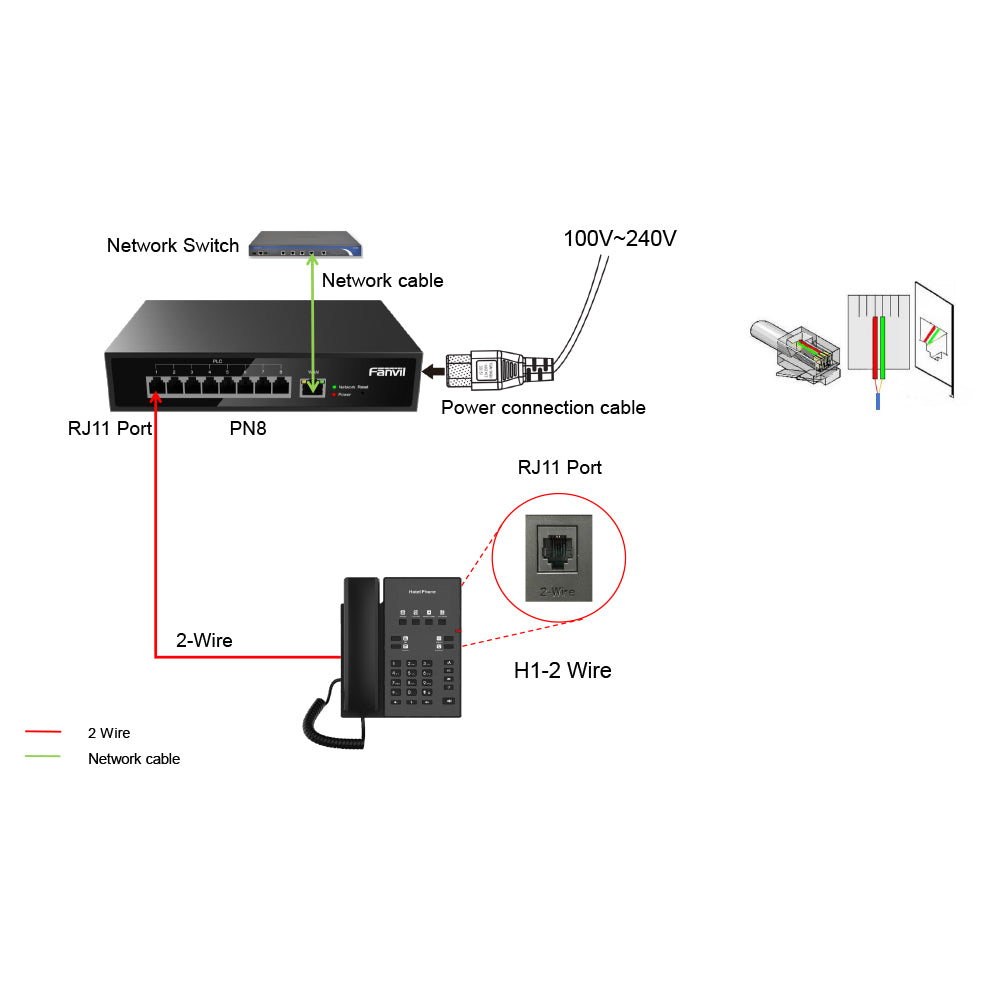

- A compatible Fanvil PN8 or PN24 2-Wire PoE switch is required to provide network access and power through the 2-wire connection
- Existing telephone cabling must be suitable for the intended 2-wire deployment
- The phone can also be powered by a compatible DC12V 1A power adapter
- Maximum supported power and network transmission distance is up to 300m with compatible cabling and Fanvil 2-wire equipment
- The phone cannot connect directly to a conventional analogue telephone line or operate as a standard analogue phone
