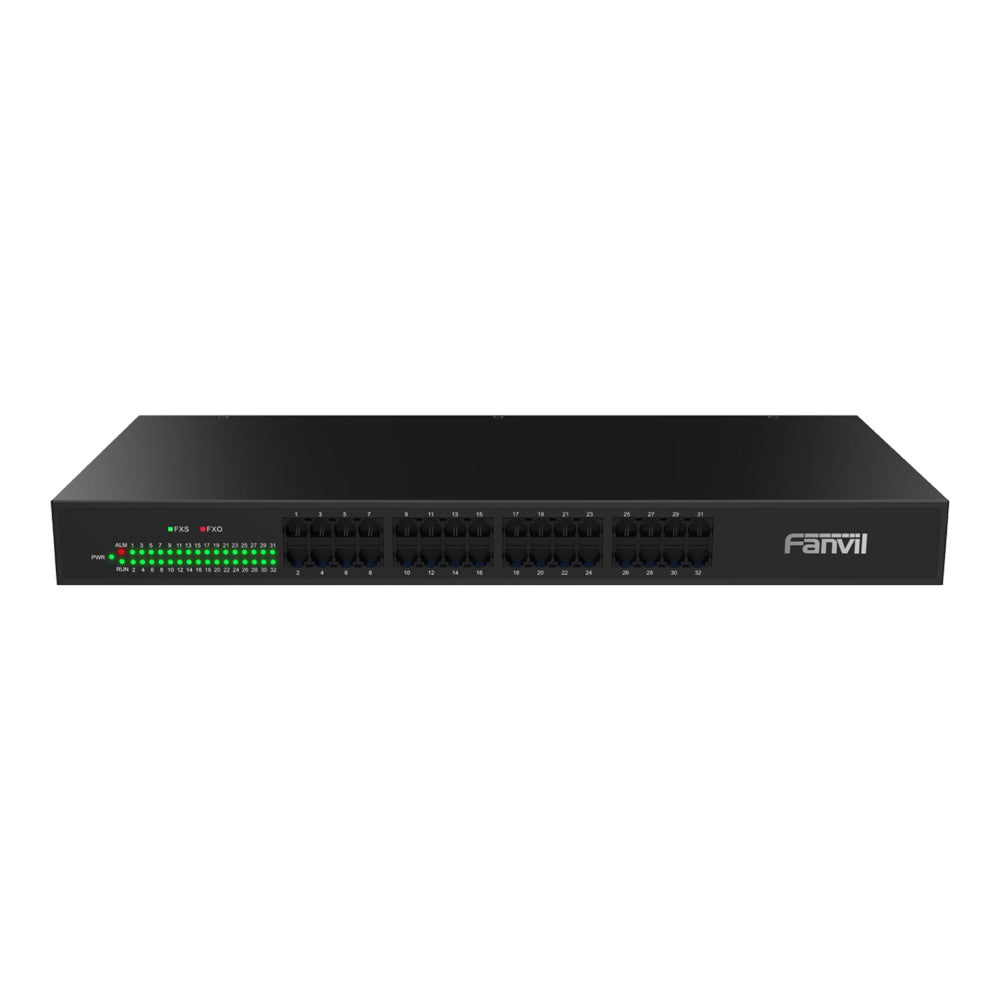

Fanvil GA100-32R 32-Port Analogue FXS VoIP Gateway
High-Density Analogue Voice Access for IP Telephony Networks.
The Fanvil GA100-32R is a 32-port analogue FXS VoIP gateway designed to connect traditional telephones, fax machines, POS machines and other analogue devices to IP-based telephone networks. Built for IP call centres, multi-branch offices and small-to-medium deployments, it supports 32-channel FXS voice access, 32 concurrent calls and seamless conversion between TDM and IP calls. With SIP/IMS registration, multiple server registration, hardware-based echo cancellation, VPN client support, web management and centralised deployment features, the GA100-32R delivers a stable and cost-effective voice gateway solution for businesses moving analogue endpoints onto modern VoIP infrastructure.
Features
- 32-Port FXS Voice Access - Connects up to 32 analogue voice devices to an IP-based telephone network
- 32 Concurrent Calls - Supports high-capacity voice access for busy business environments
- TDM To IP Call Conversion - Enables seamless conversion between traditional analogue calls and IP calls
- SIP/IMS Registration - Provides compatibility with SIP/IMS platforms and softswitch systems
- Multiple Server Registration - Supports simultaneous registration of primary and backup servers
- 4× Ethernet Ports - Provides flexible network connectivity for gateway deployment
- Hardware Echo Cancellation - Helps deliver clearer voice communication across analogue endpoints
- Fax Support - Supports fax connectivity for legacy office systems
- Polarity Reversal - Supports polarity reversal transmission on FXS ports
- VPN Client Support - Adds secure network connectivity for remote or distributed deployments
- Web Management - Allows configuration, monitoring, firmware upgrades and maintenance via web interface
- Automated Deployment - Supports automated gateway configuration deployment for easier rollout
- Centralised Management - Supports centralised third-party management for multi-site environments
- Rackmount Design - 1U rackmount form factor for server room and telecom cabinet installation
Specifications
- Voice Channels: 32-Channel FXS Voice Services
- Concurrent Calls: 32
- FXS Ports: 32× RJ11, 2× RJ21
- Ethernet Ports: 4× RJ45
- USB Port: 1× Mini USB
- Ethernet Speed: 10/100/1000Mbps
- IP Mode: IPv4, IPv6
- IP Configuration: Static IP, DHCP
- Voice Protocols: SIP, IMS
- Registration: SIP/IMS Registration, Multiple Server Registration
- Narrowband Codecs: G.711a/u, G.723, G.729A/B, iLBC, AMR
- DTMF Mode: In-Band, Out-Of-Band RFC2833, SIP Info
- Echo Cancellation: Acoustic Echo Canceller
- FXS Features: Three-Party Conferencing, Group Ringing, Round-Robin Ringing, Pick-Up, Call Forwarding, Call Waiting, Do Not Disturb, Hook Flash Detection, Caller ID, Fax and Polarity Reversal
- Network Features: IP Address And DNS Domain Name Resolution, VPN Client, Firewall
- Protocols: TCP, UDP, HTTP, HTTPS, ARP, RARP, DNS, NTP, TFTP, Telnet, STUN, TR069, SRTP, TLS, SIP, IMS, SNMP
- Management: Web Management, Firmware Upgrades, Administrator Authentication, System Monitoring, Service Status Monitoring, Automatic Deployment and Syslog
- Indicator Lights: PWR, RUN, ALM, FXS
- Reset Button: Press and Hold for 8 Seconds to Restore Factory Settings
- Lightning Protection: Grade Level 4
- Power Consumption: <30W
- Working Temperature: 0~45°C
- Storage Temperature: -20~85°C
- Working Humidity: 8~90%, Non-Condensing
- Storage Humidity: 8~90%, Non-Condensing
- Product Weight: 2.7kg, 3.3kg with Packaging
- Device Dimensions: 440 × 44 × 202mm
- Package Dimensions: 538 × 250 × 87mm
Notes
- Designed for connecting analogue endpoints such as telephones, fax machines and POS machines to IP-based telephone networks
