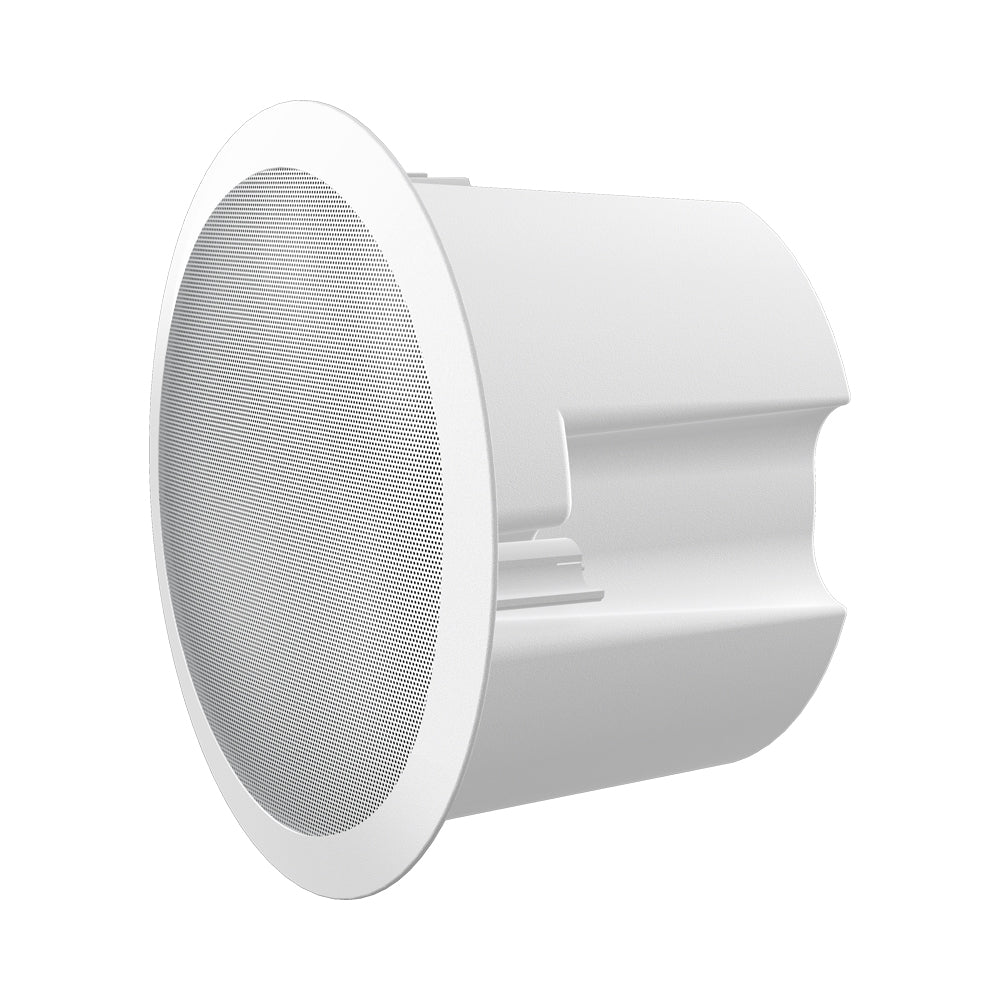

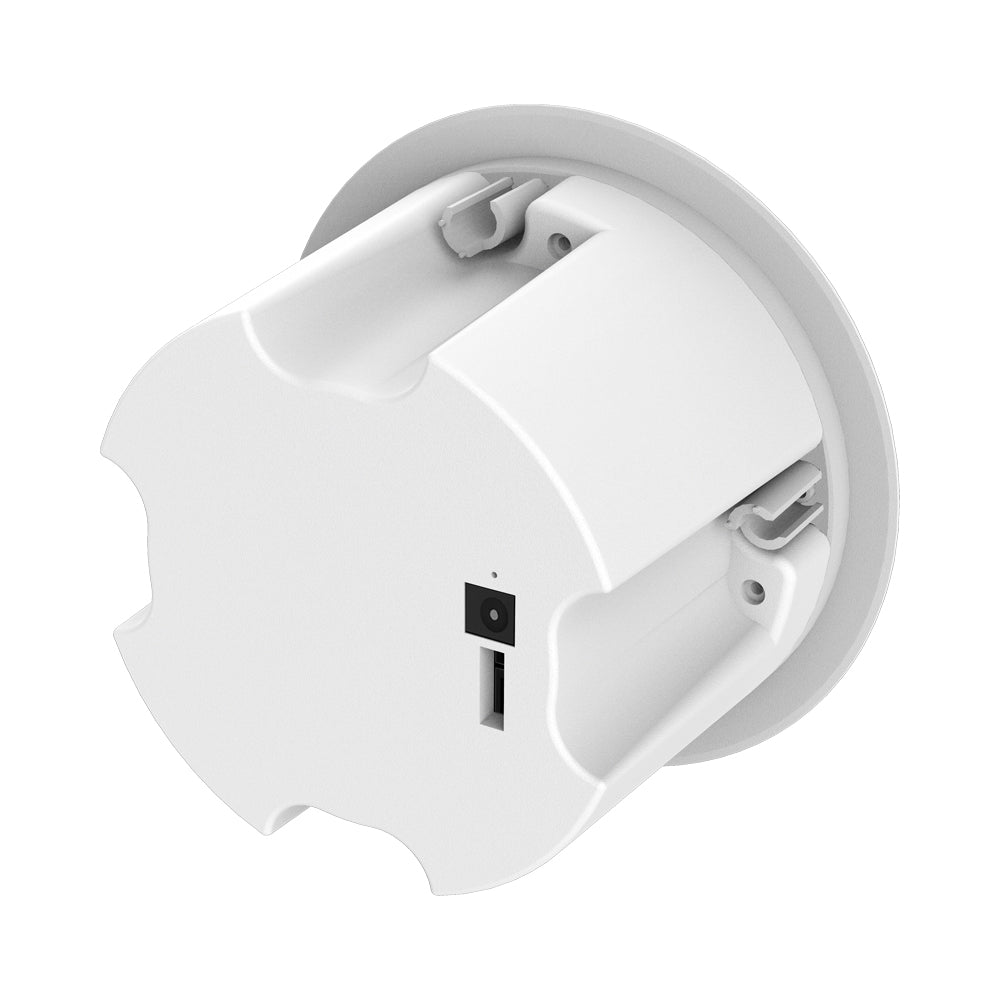

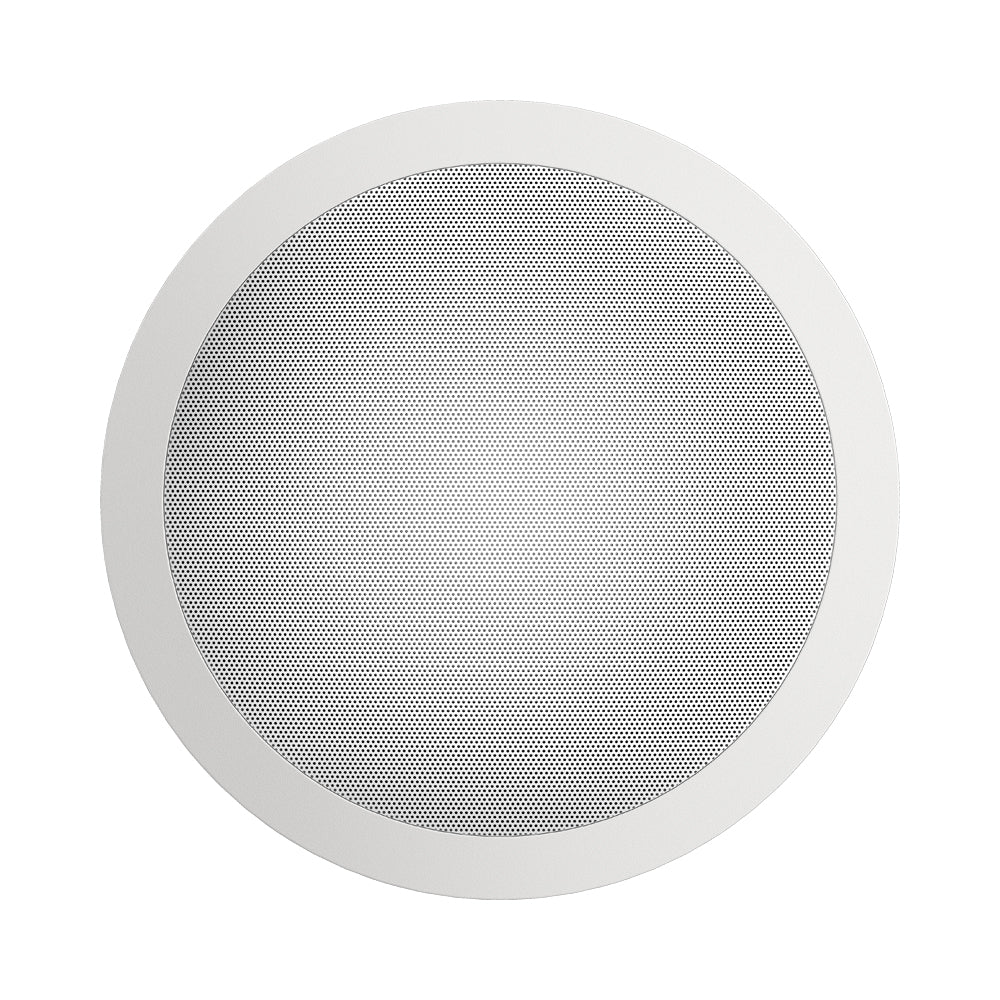

Fanvil FH‑S01 SIP Ceiling Speaker
FH-S01 is a SIP ceiling speaker featuring paging, multicasting, broadcasting and talkback functionalities. It supports up to 10 multicast zones with prioritization. It delivers high-intelligibility performance with G.722&Opus codecs. Adopted standard SIP 2.0(RFC3261) and related RFC protocols, it has strong compatibility and scalability.
Features
- SIP ceiling‑mounted speaker with built‑in digital amplifier and speaker all‑in‑one
- Supports paging, multicasting (up to 10 multicast zones with prioritisation)
- High‑intelligibility audio supporting wideband codecs: G.722 & Opus
- Built‑in omnidirectional microphone for talk‑back/intercom functionality
- Support for emergency notifications / alarm linkage (custom WAV files, RS‑/relay inputs) and remote configuration via web interface
- PoE or DC power options; built‑in 10/100 Mbps Ethernet interface
Specifications
- Audio power: up to ~20 W with built‑in Class D amplifier
- Frequency response: ~100 Hz to 20 kHz (per one region spec)
- Sensitivity: ~89 dB ±3 dB at 1 m / 1 W
- Impedance: 8 Ω (per spec sheet) for speaker driver
- Network: 10/100 Mbps Ethernet, supports IPv4/IPv6, SIP 2.0 (RFC 3261)
- Power over Ethernet: IEEE 802.3af, Class 0
- Operating temperature: Approx −20 °C to +55 °C
- Mounting: Ceiling installation
