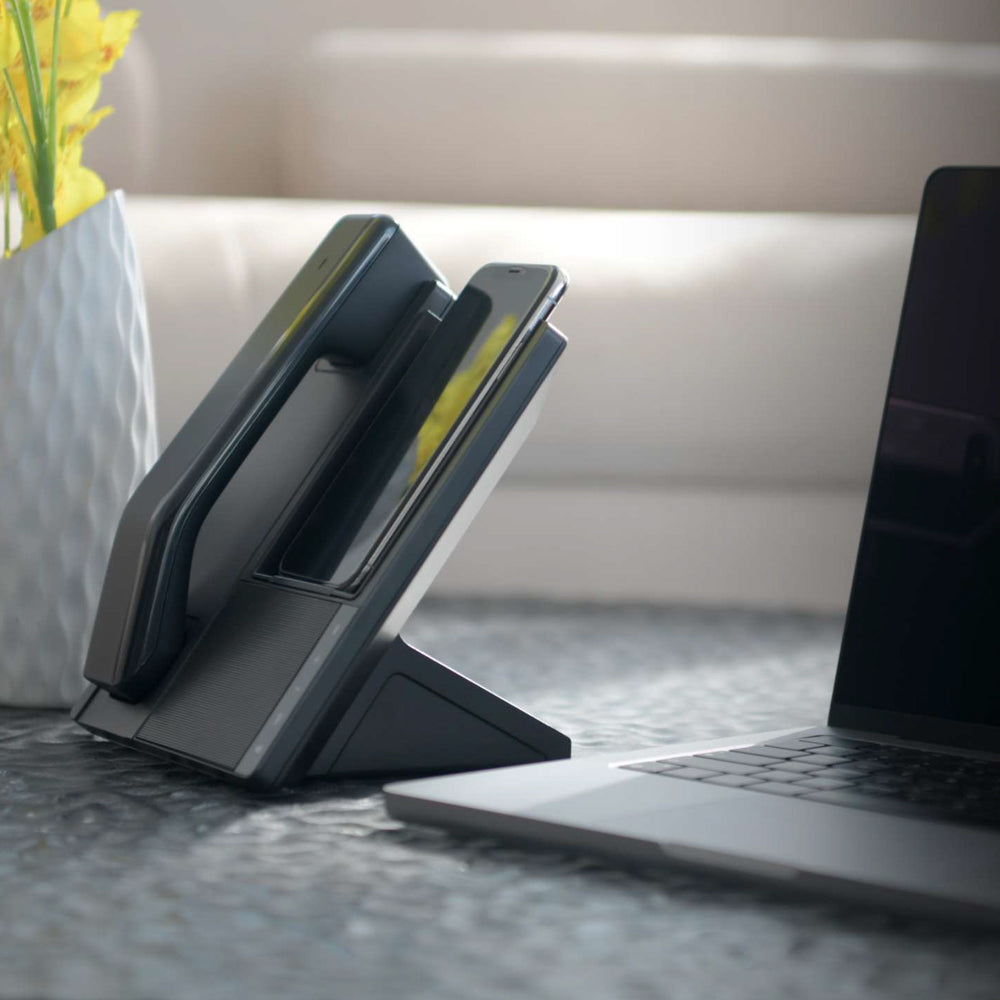

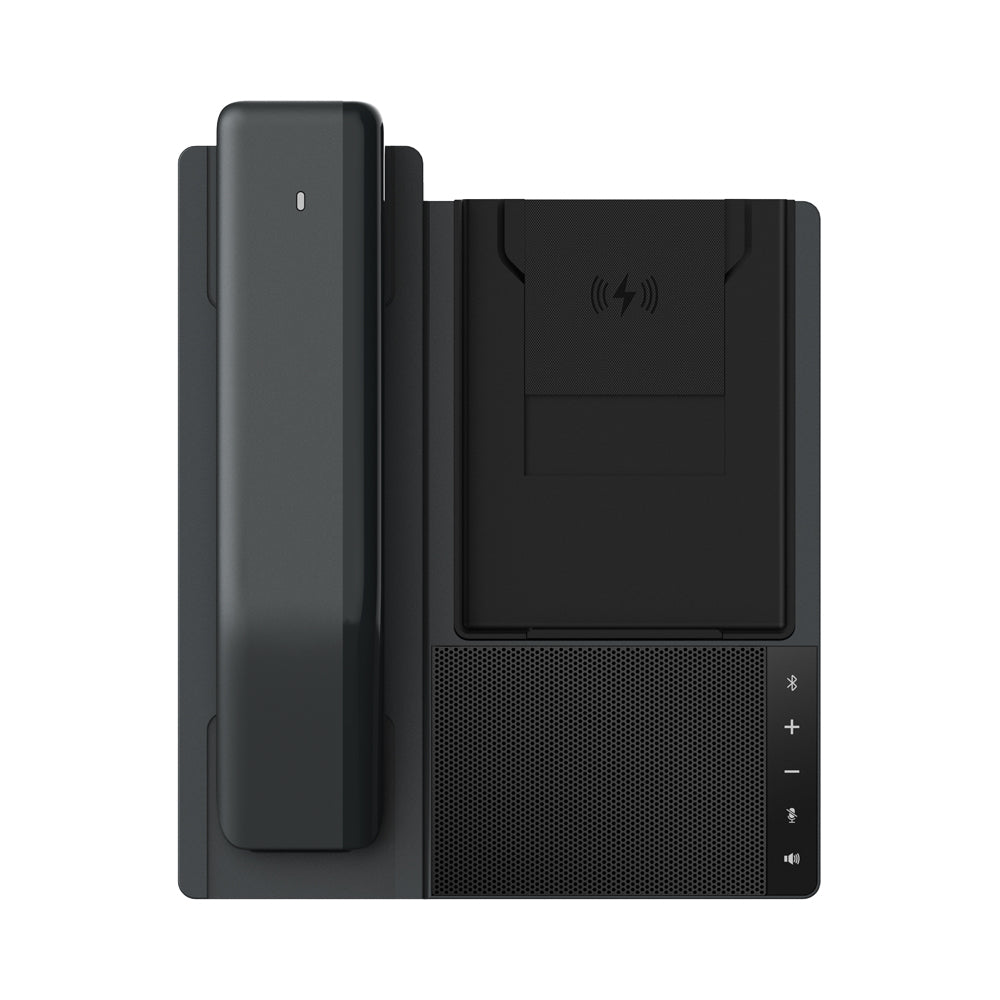

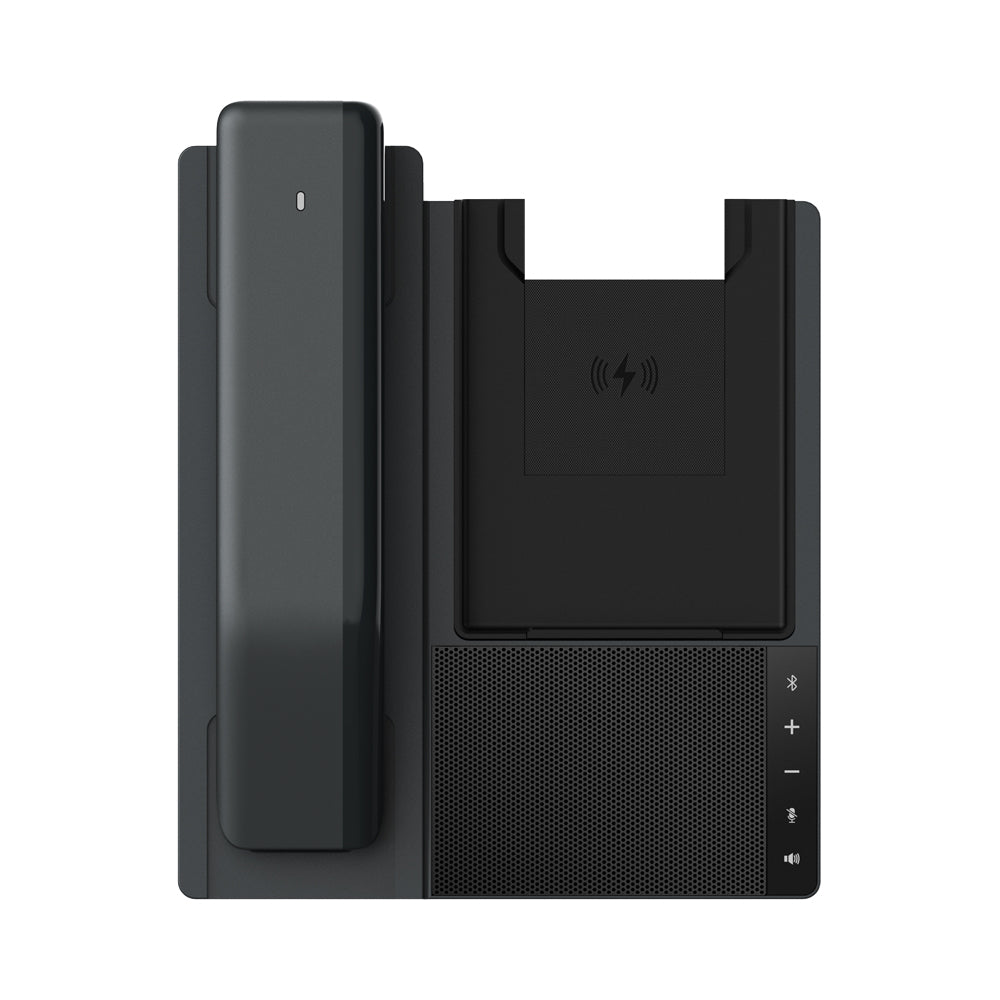

Fanvil DB20-H All-in-One Phone Station with a Wireless Handset and 10W Wireless Phone Charger
Convergence for Convenience. Seamless Smartphone-PC Collaboration and Handset-Base Switching.
The Fanvil DB20-H All-in-One Phone Station is a versatile communication hub designed to streamline modern workspaces. Combining a speakerphone, wireless handset and smartphone charging dock into a single compact unit, it eliminates desk clutter while enhancing productivity. With seamless integration between PC softphones and mobile devices, users can switch effortlessly between calls and collaboration platforms. Dual microphones with ENC and ANS deliver clear voice capture, while the Bluetooth 5.4 handset ensures reliable wireless communication. The built-in 10W wireless charger and adjustable tilt stand provide both convenience and optimal viewing during calls and meetings. Ideal for professionals and hybrid work environments, the DB20-H delivers efficient, organised and high-quality communication in one elegant solution.

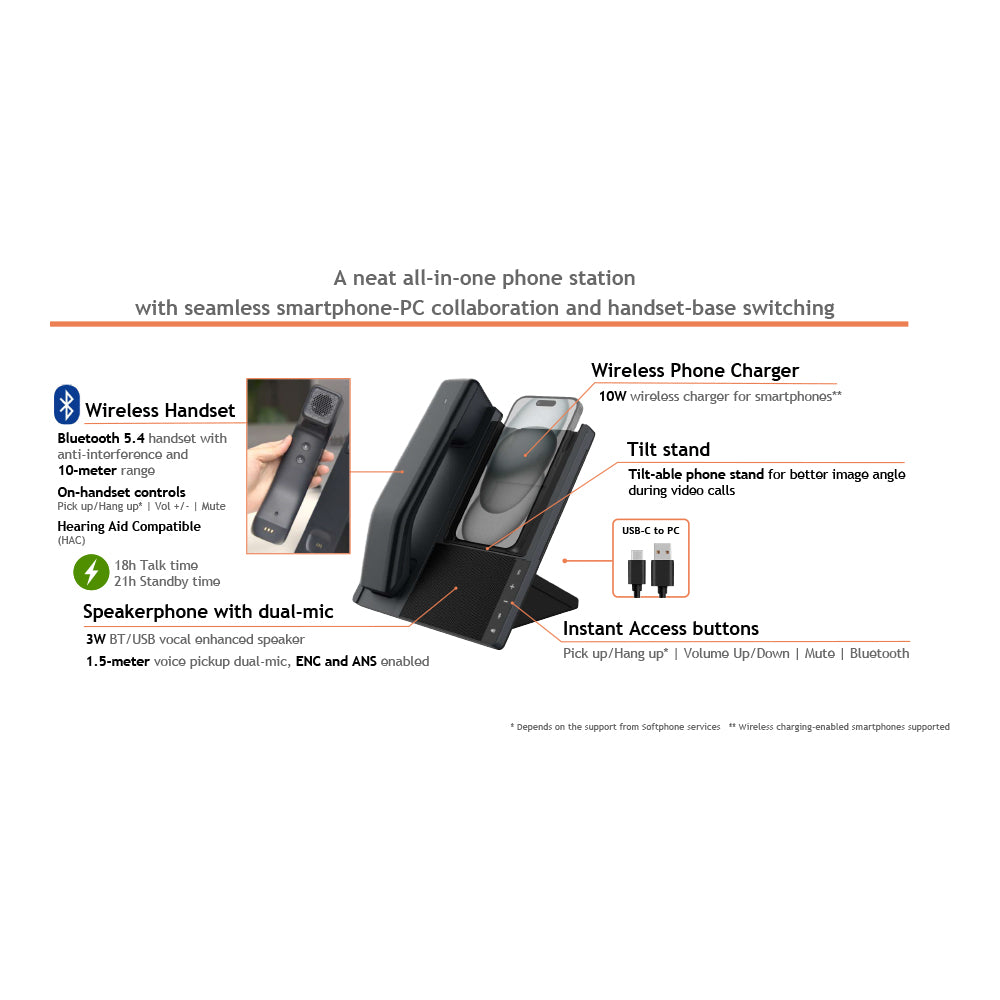

Features:

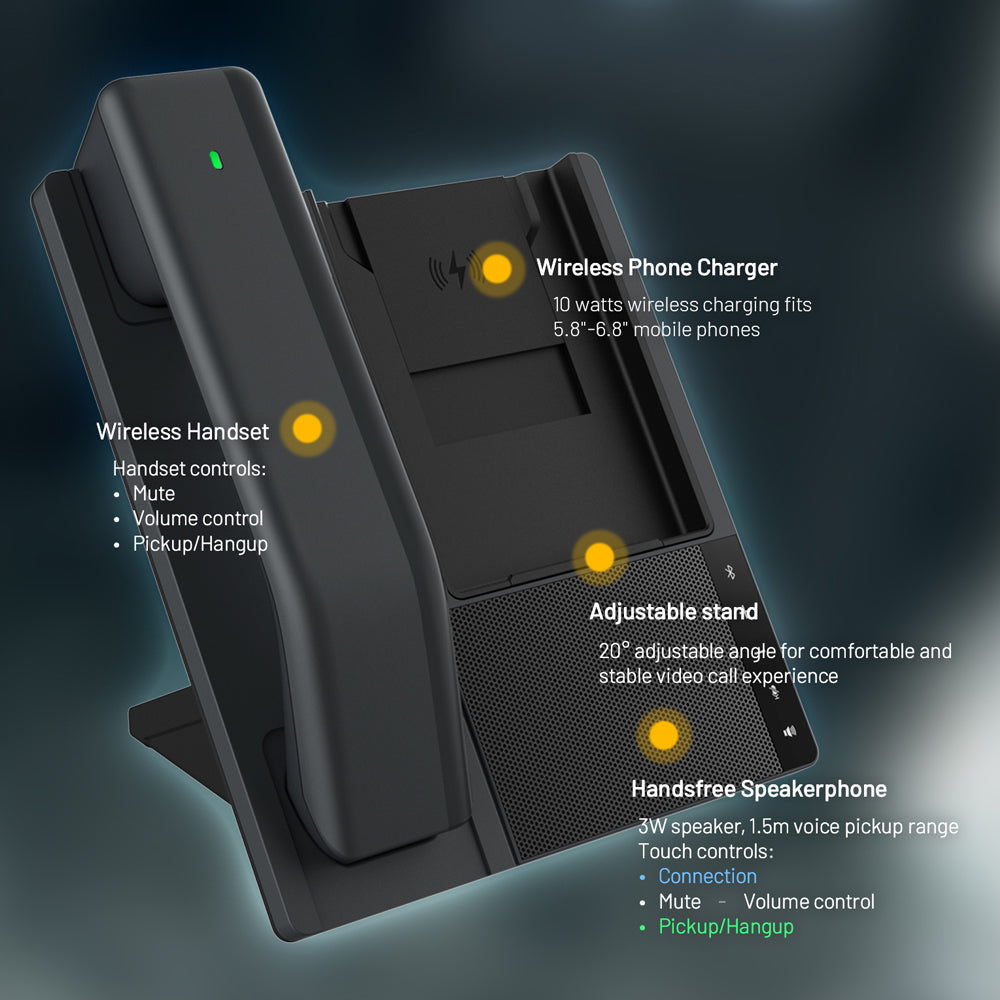

- All-in-One Design - Combines speakerphone, wireless handset and charging dock to reduce desk clutter
- Seamless Device Switching - Effortlessly switch between PC softphones and smartphone calls
- Wireless Handset with Bluetooth 5.4 - Reliable connection with up to 10m range and anti-interference performance
- Dual Microphone with ENC and ANS - Clear voice pickup with advanced noise reduction for improved call quality
- 10W Wireless Charging - Conveniently charge smartphones while working

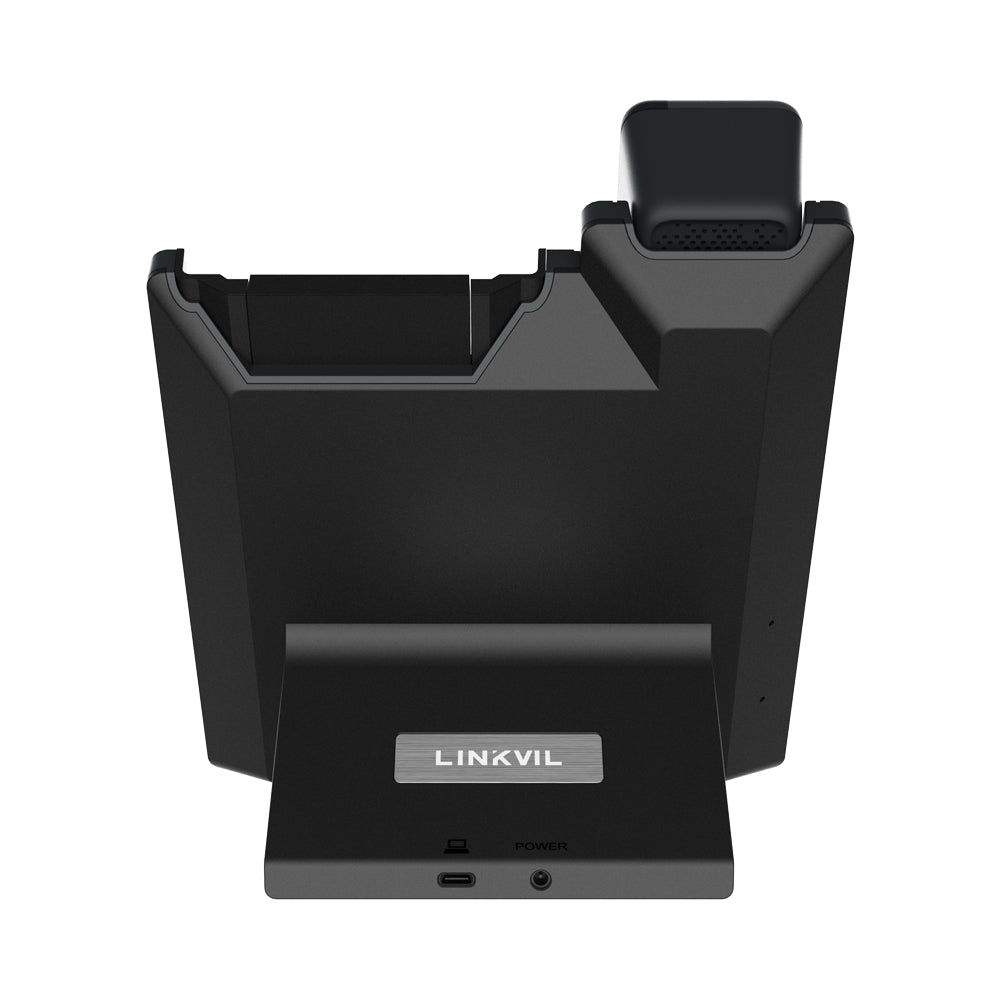

- USB Type-C Connectivity - Easy connection to PC for unified communication platforms

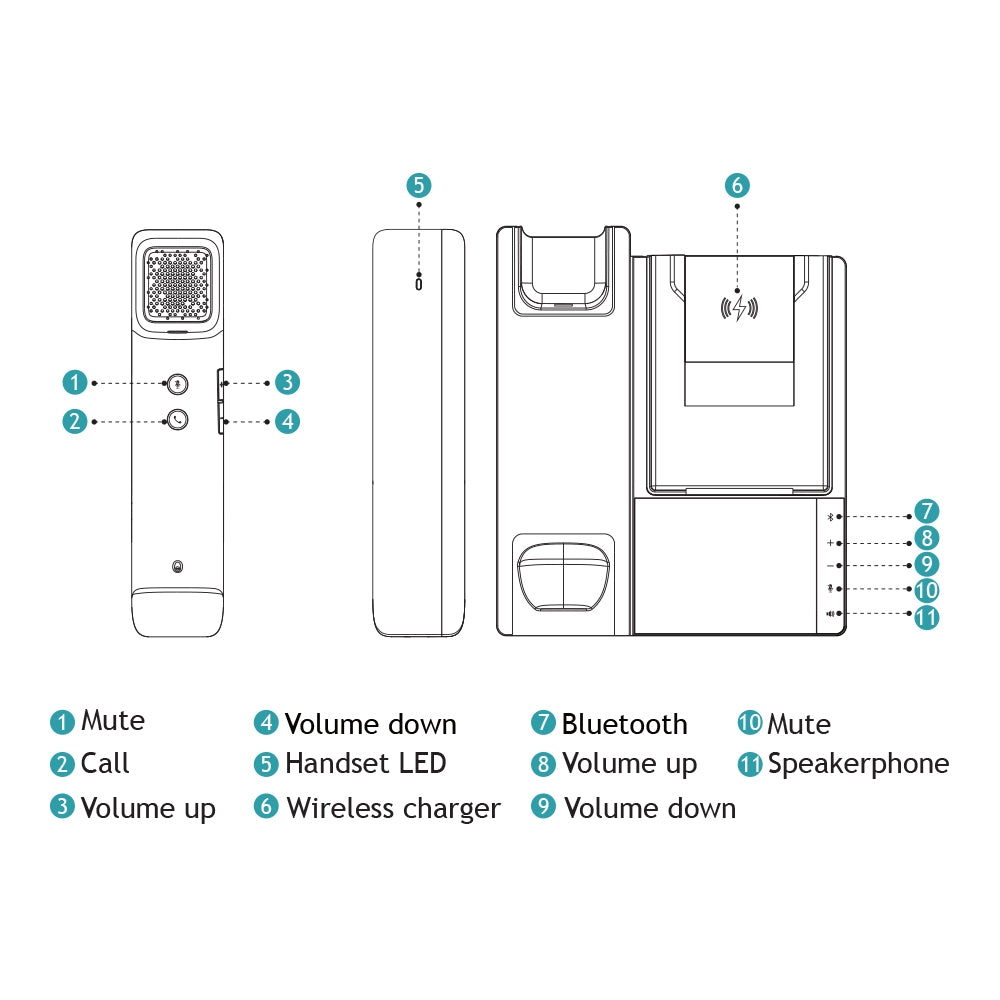

- Instant Access Controls - Quick buttons for call handling, volume, mute and Bluetooth

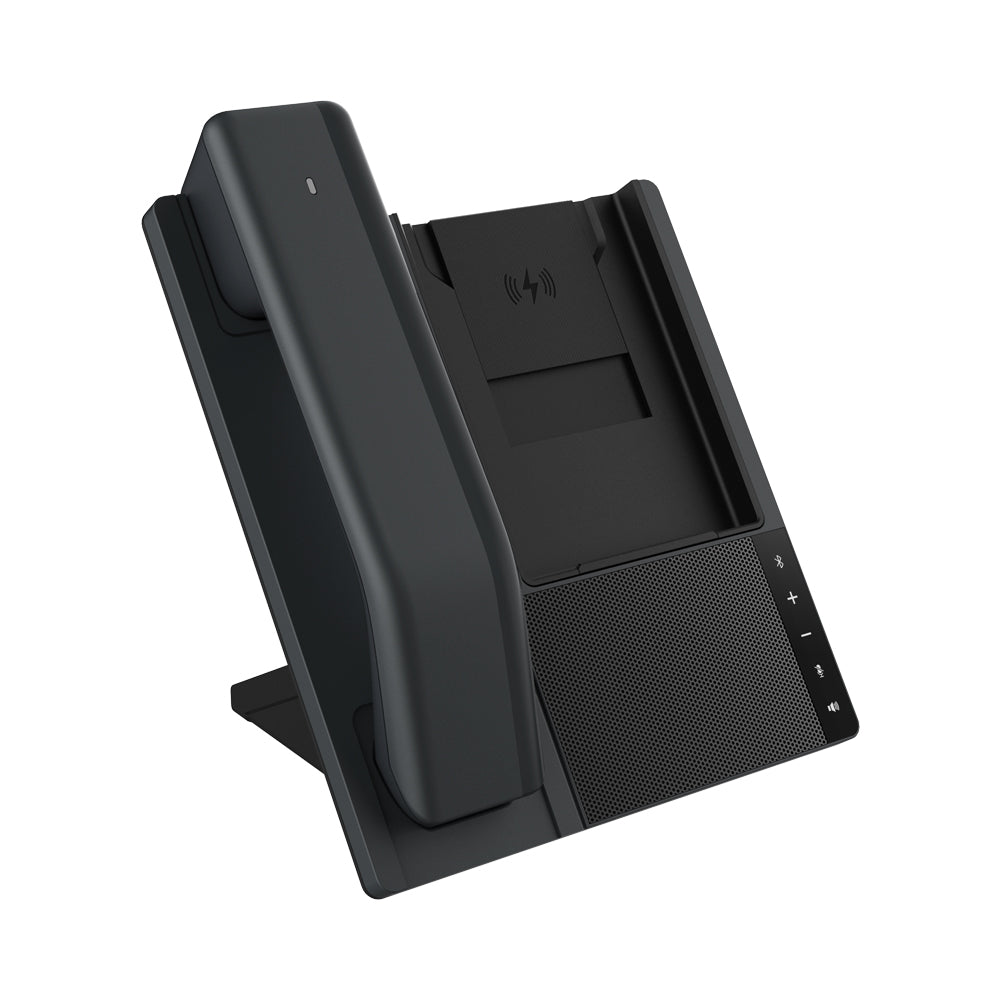

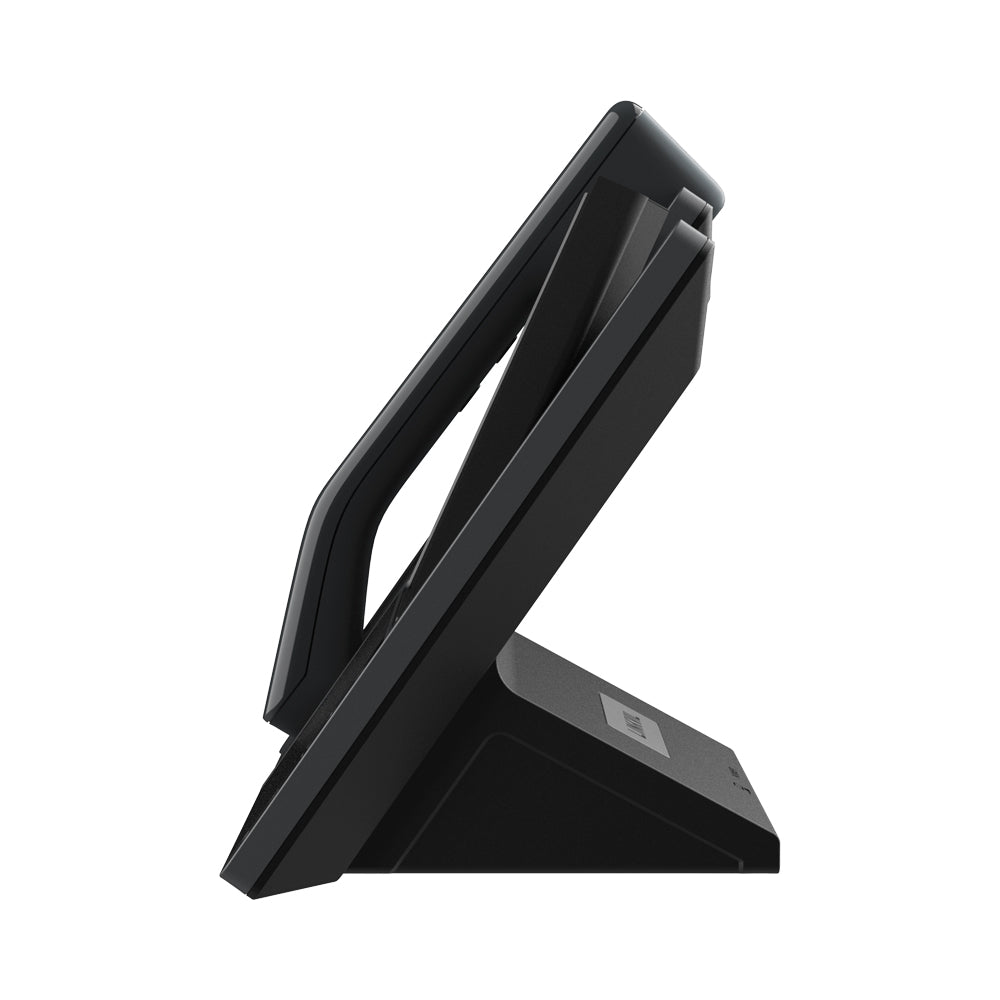

- Adjustable Tilt Stand - Optimised viewing angle for video calls and daily use
Specifications
Base
- Microphone: 2× Omnidirectional Analogue Microphones
- Voice Pickup Range: 1.5m
- Sensitivity: -32dBFS
- Frequency Range: 45Hz~7kHz
- SNR: >65dB(A)
- Full Duplex: Supported
- Beamforming: Supported
- ENC: Environmental Noise Cancellation
- ANS: Adaptive Noise Suppression
- AGC: Automatic Gain Control
- Reverberation Reduction: Supported
Speakerphone
- Speaker Size: ø40mm
- Rated Power: 4Ω 3W
- Sensitivity: 87dB ±2dB
- Frequency Range: 195Hz~20kHz
- Impedance: 4Ω @1kHz
- Max Input Power: 5W
- Music Mode Bandwidth: 195Hz~20kHz
- Speak Mode Bandwidth: 195Hz~8kHz
- Audio Codec: SBC
- Power Supply: 12V 1.5A
- Power Consumption: Max. 18W

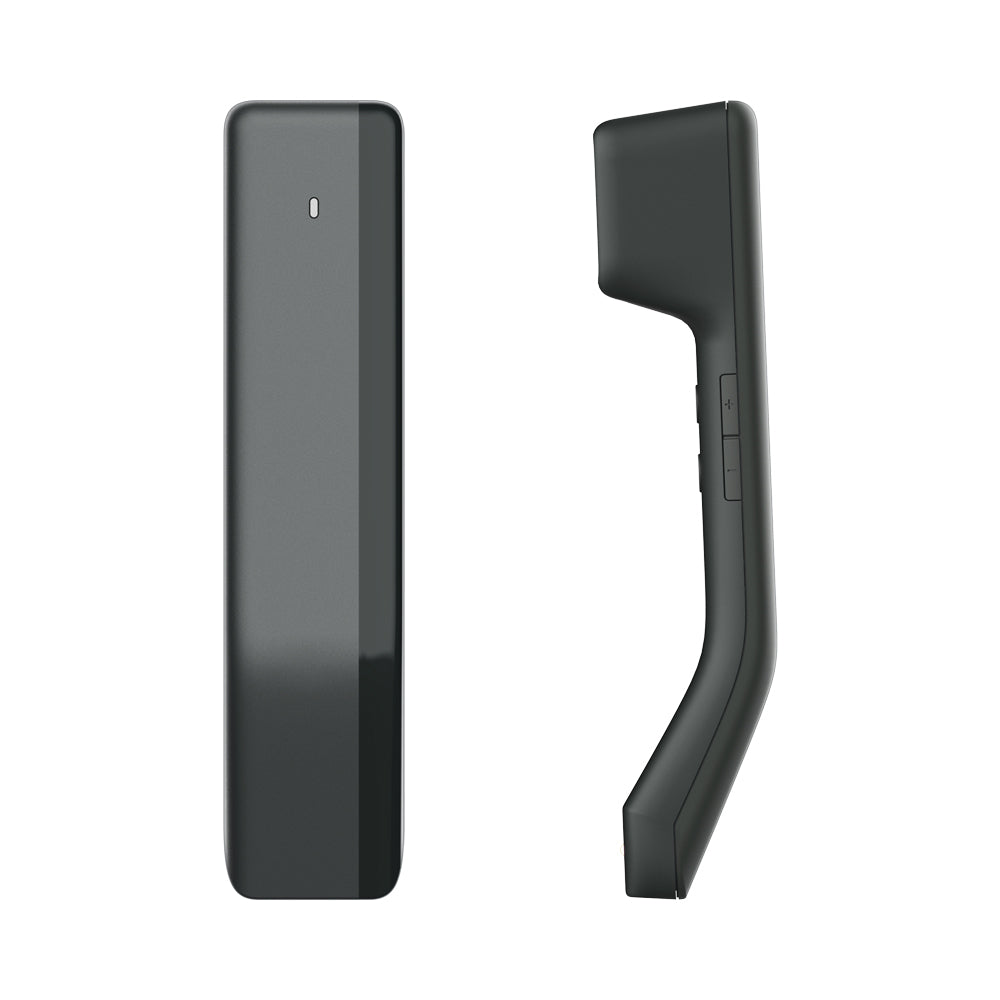

Wireless Handset
- Microphone: 1× Omnidirectional Analogue Microphone
- Sensitivity: -38dBFS
- Frequency Range: 45Hz~8kHz
- Battery Type: Lithium Polymer
- Battery Capacity: 300mAh
- Talk Time: up to 18 Hours
- Charging Time: 3.5 Hours
- Standby Time: up to 21 Hours (Auto Sleep After 10 Minutes)
- HAC: Hearing Aid Compatible
Wireless Charging
- Charging Coils: 1×
- Output Power: 10W
- Effective Charging Distance: 3~5mm (Centre Aligned)
Connectivity
- Base Connectivity: USB Type-C / Bluetooth
- Wireless Handset: Bluetooth
- Bluetooth Version: 5.4
- Profiles: A2DP, HSP, HFP
- Operating Range: up to 10m
- Pairing Capacity: up to 8 Devices
- Simultaneous Connections: 2×
Physical
- Dimensions:
- Base: 204.8 × 174.9 × 114.8mm
- Handset: 203.7 × 45.8 × 47mm
- Weight:
- Base: 561g
- Handset: 190g
- Operating Temperature: -10~60°C
- Operating Humidity: 10~95% RH
