Fanvil CP20 4K Wireless Screen-Sharing Pod for Fanvil CA200/CA400
Share, Freeze and Control Content with One Touch.

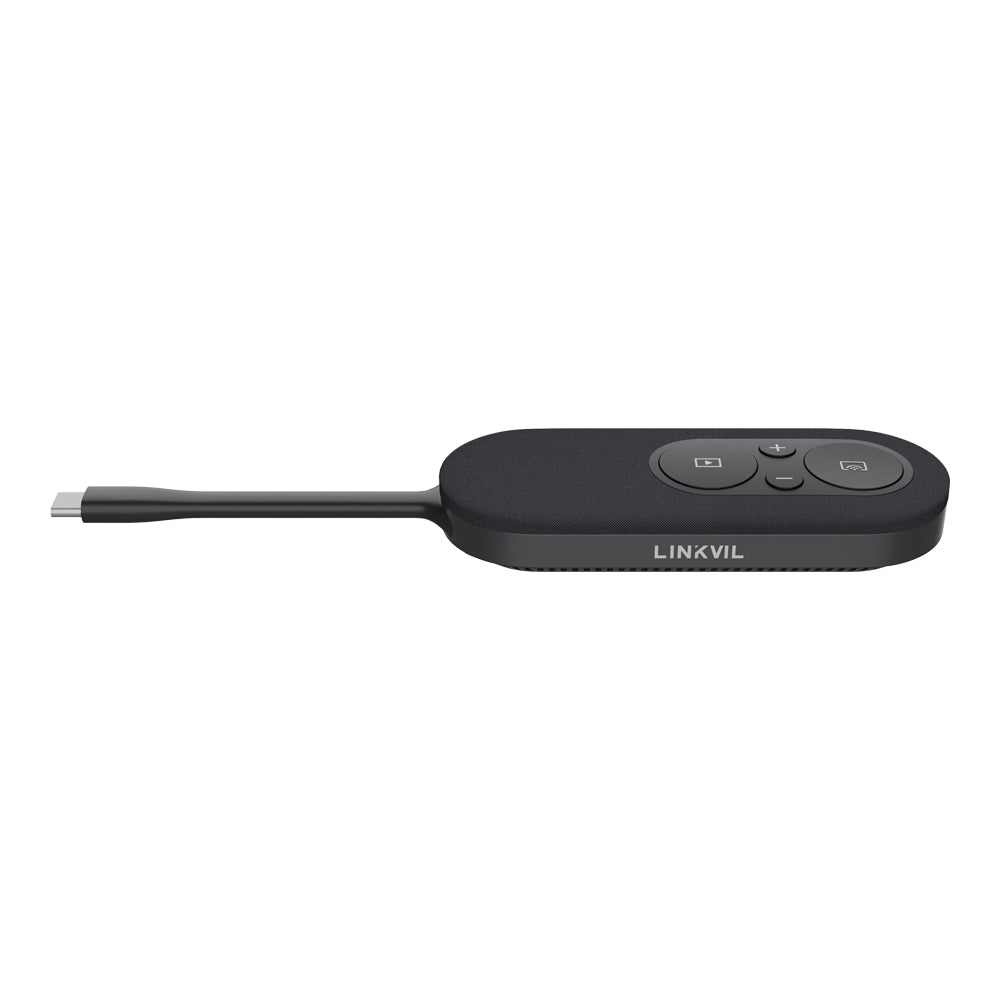

The Fanvil CP20 is a compact 4K wireless screen-sharing pod designed for the Fanvil CA200 and CA400 conferencing systems. Connect it to a compatible full-featured USB Type-C port to share content at up to 3840 × 2160 @30fps without installing drivers or software. Dedicated buttons provide one-touch screen sharing, screen freezing and synchronised volume control. The CP20 can also provide wireless access to compatible UVC cameras, microphones and speakers through the connected conferencing system. Up to four CP20 transmitters can be paired for seamless switching between presenters, while Wi-Fi 5 and Wi-Fi 6 connectivity, WPA3-PSK encryption and a transmission range of up to 10m support secure and flexible meeting-room collaboration.
Features
- 4K Wireless Screen Sharing - Shares content at resolutions up to 3840 × 2160 @30fps
- One-Touch Operation - Starts or ends screen sharing with a single button press
- Screen Freeze Control - Pauses and resumes shared content without disconnecting
- Multi-Presenter Support - Supports up to four paired CP20 transmitters for seamless switching
- Plug-and-Play - Requires no additional drivers or screen-sharing software
- Wireless AV Access - Provides access to compatible UVC cameras, microphones and speakers
- Synchronous Volume Control - Adjusts the connected conferencing system’s audio level directly from the pod
- Mirror and Extended Modes - Supports compatible mirrored and extended desktop configurations
- Low-Latency Transmission - Provides an average screen-sharing latency of approximately 150ms
- WPA3-PSK Security - Protects wireless screen-sharing data with modern encryption
- Wi-Fi 5 and Wi-Fi 6 - Supports stable 5.0GHz wireless transmission
- 10m Wireless Range - Provides flexible presenter movement within compatible meeting spaces
- Compact USB Type-C Design - Connects directly to compatible laptops, tablets and smartphones
- CA200 And CA400 Integration - Designed for seamless operation with Fanvil wireless conferencing solutions
Specifications
- Compatible Systems: Fanvil CA200 And CA400
- Maximum Screen Output Resolution: 3840 × 2160 @30fps
- Average Latency: Approximately 150ms
- Desktop Modes: Mirror and Extended
- Maximum Simultaneous Transmitters: up to 4
- Wireless Standards: Wi-Fi 5 and Wi-Fi 6
- Wireless Frequency Band: 5.0GHz
- Wireless Security: WPA3-PSK
- Transmission Distance: up to 10m
- Host Interface: USB Type-C with Power Delivery and DisplayPort Alternate Mode
- USB Cable Length: 85mm
- Operating Voltage: 5V
- Power Consumption: 2.5W
- Buttons: Screen Sharing, Screen Freeze, Volume Up and Volume Down
- LED Indicators: Red and Green
- Freeze Indicator: Green for Resume, Red for Pause
- UVC and UAC Access: Supported with Compatible Equipment
- Supported Operating Systems: Windows 10, Windows 11 and macOS 10.8 or Later
- Compatible Host Devices: PCs, Laptops, Tablets and Smartphones with Full-Featured USB Type-C
- Dimensions: 189 × 40 × 18mm
- Weight: 62g
- Operating Temperature: -10~40°C
- Operating Humidity: 0~90% RH
- Certifications and Compliance: CE, FCC and RoHS
Notes
- A full-featured USB Type-C port supporting DisplayPort Alternate Mode is required for direct connection
- Wireless camera and audio access require the Fanvil RC10 receiver hub within a compatible CA200 or CA400 system
- Voice and video functions require compatible UAC and UVC equipment
