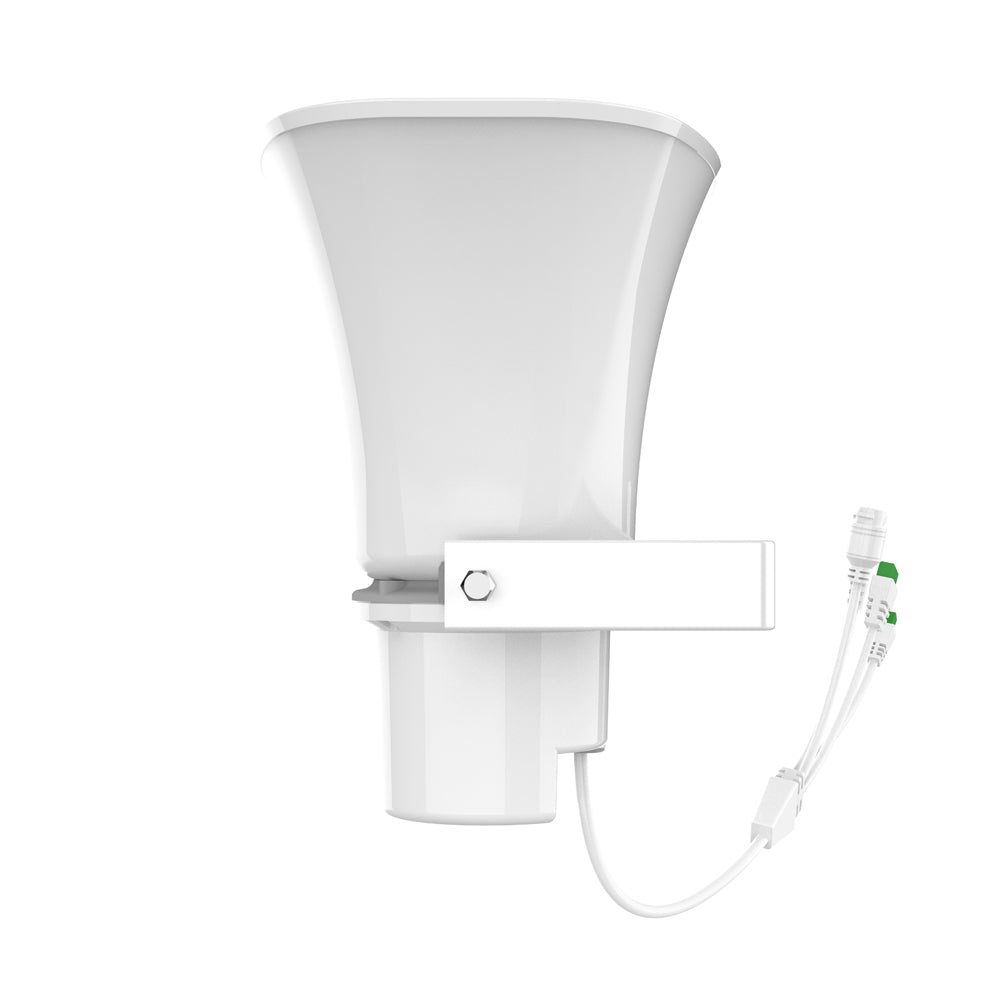

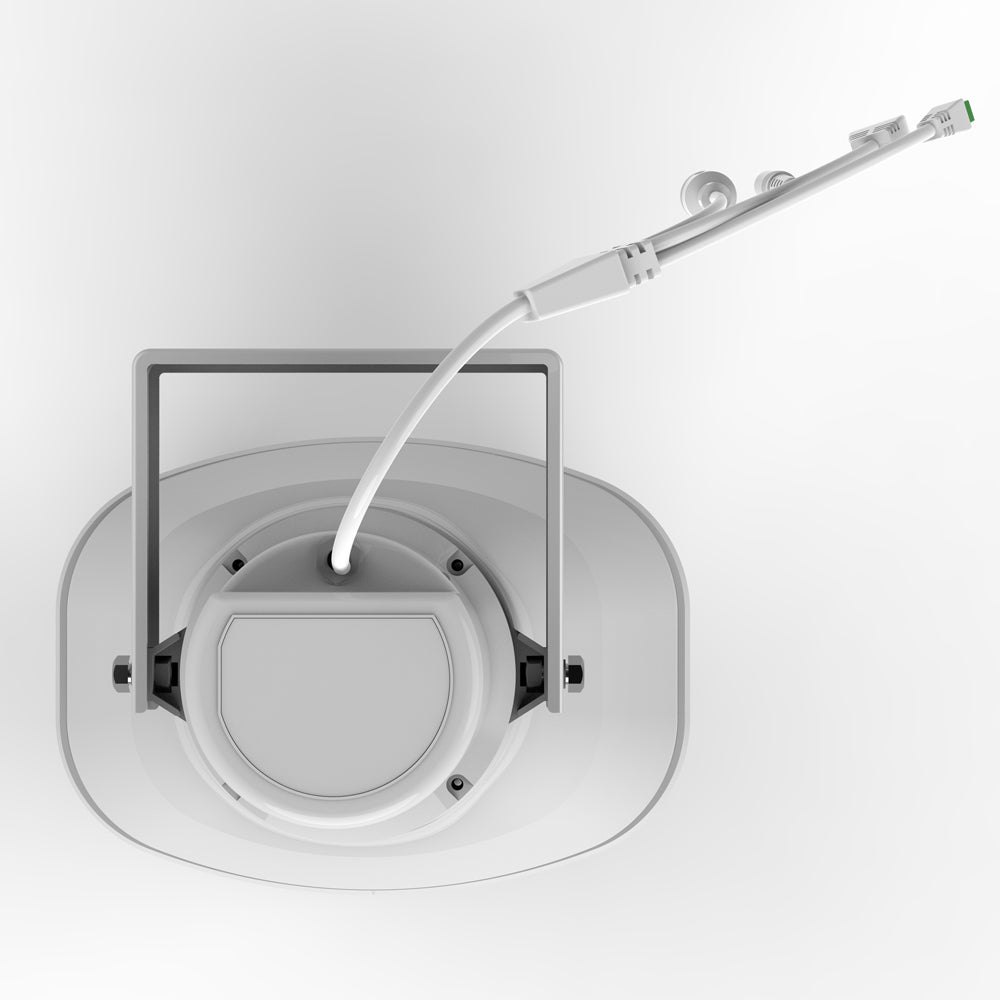

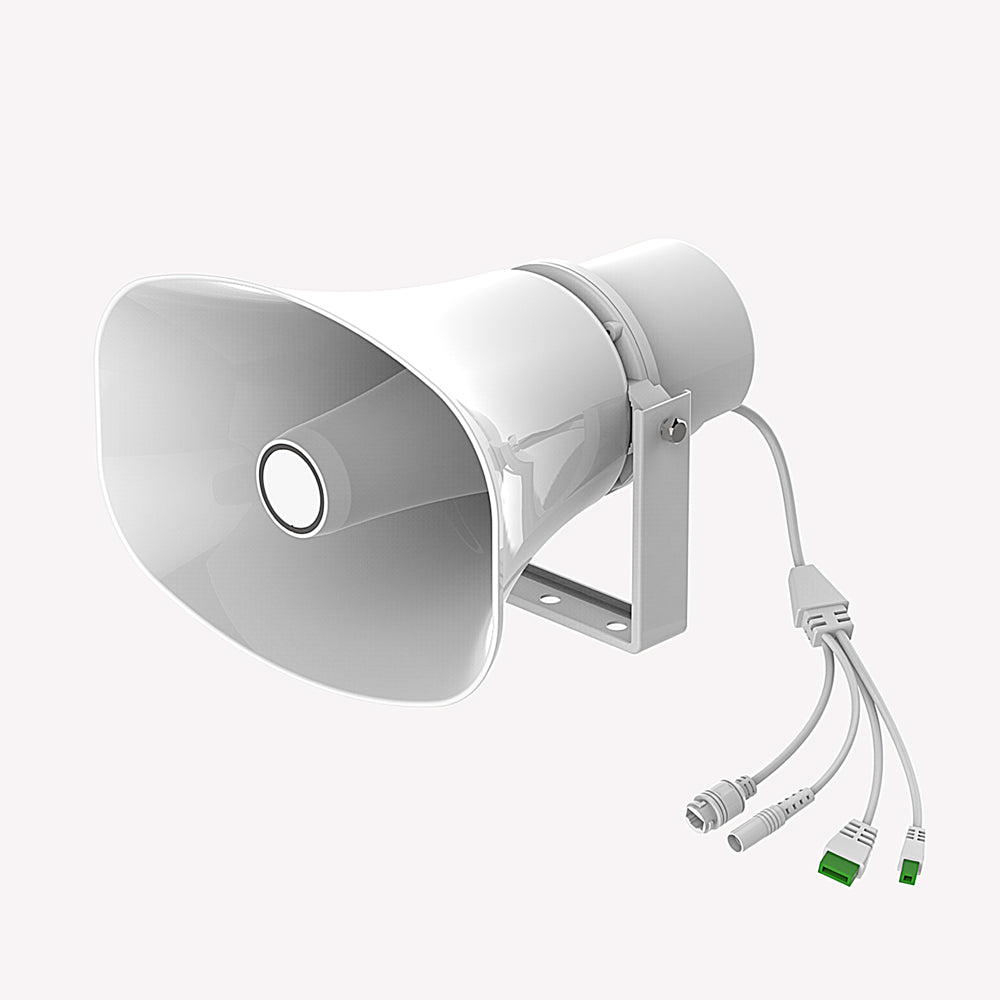

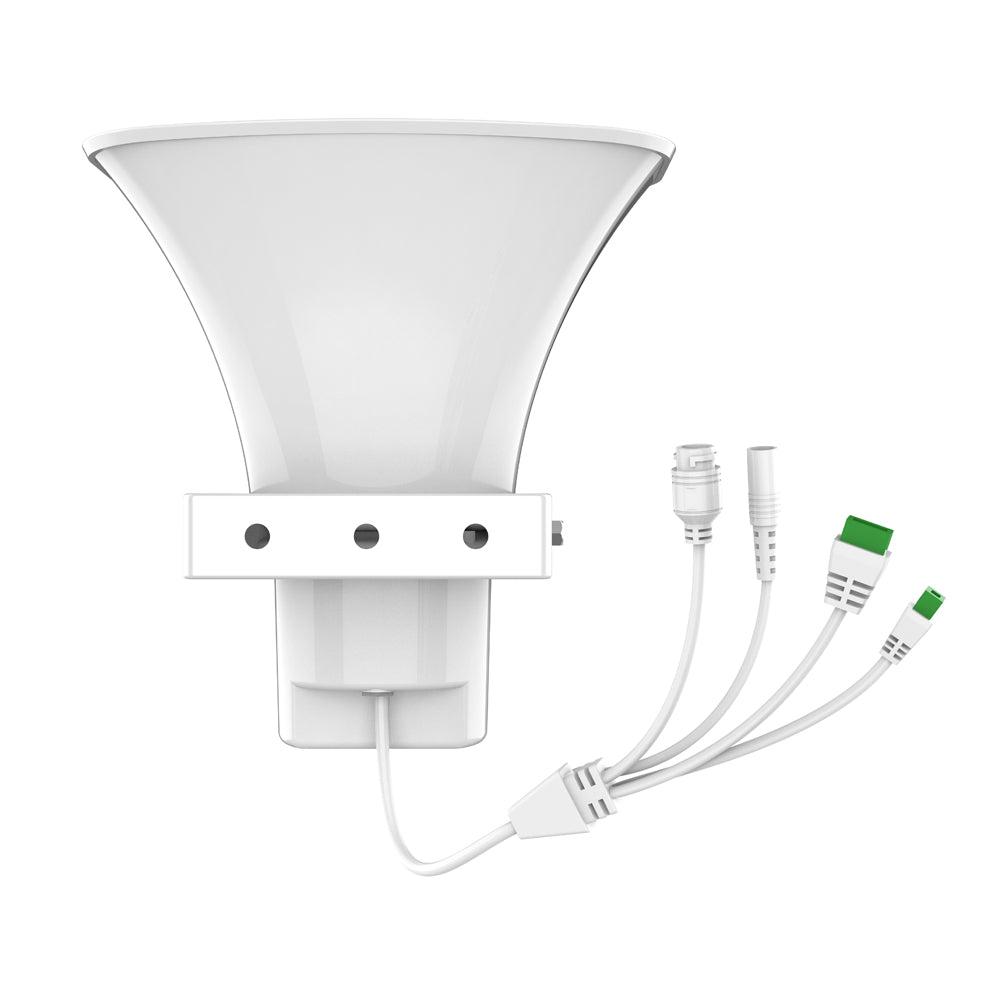

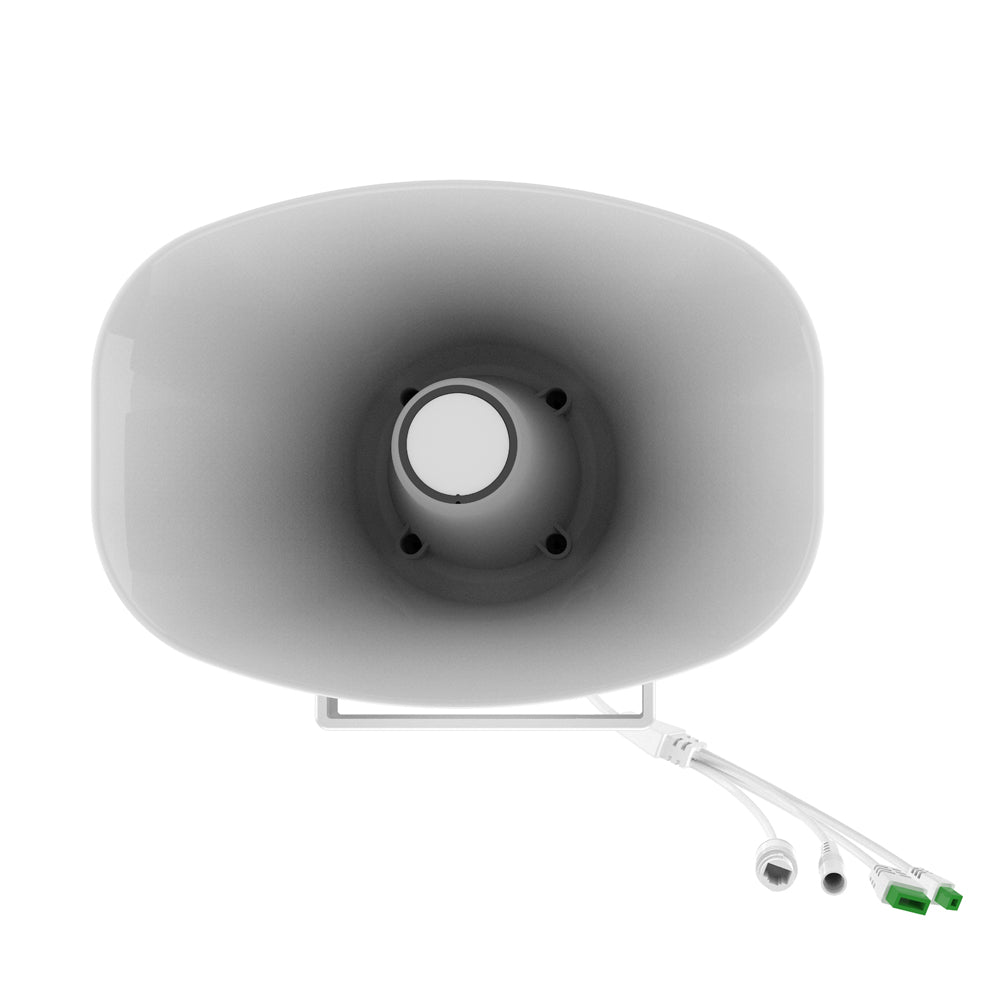

Fanvil A233 SIP Horn Speaker with PoE+ Support
The Fanvil A233 horn speaker is a commercial-grade IP audio terminal. It can function independently as an audio system or integrate with external systems such as unified communication systems, video surveillance systems, Fanvil broadcast and intercom system, access control systems, digital billboards and fire alarm systems, facilitating unified configuration and operation. The IP66 protection rating ensures effective waterproofing and dustproofing, making it suitable for most outdoor environments.
Features
- Excellent Sound Quality - Support HD intercom, lossless music broadcast
- Flexible Integration - Supports standard SIP protocol, HTTP API, short-circuit input and output and video linkage, easy to integrate with third-party systems
- Easy to Manage - Support Web, DM software, FDMCS and Fanvil broadcast intercom APP management equipment
- Functional Integration - Set paging broadcast, timing broadcast, emergency broadcast, two-way intercom, self-check / monitoring, priority management and other functions in one
- Multi-Mode - Serverless mode, converged communication mode, Fanvil broadcast intercom system mode and external linkage mode
- Protection Grade - IP66 waterproof and dustproof grade, suitable for all kinds of harsh environments
Specifications
- Protection Level: IP66
- Installation and Accessories: U-Bracket
- Microphone: Built-In
- Speaker Power: 15W with PoE+ or 30W with DC24V
- Frequency Response: 300Hz~7.5kHz
- Sensitivity: 107±3dB at 1m/1W
- Audio File Storage: 24MB
- Supported Protocols: SIP and ONVIF
- Maximum Sound Pressure Level: 120dB at 1m

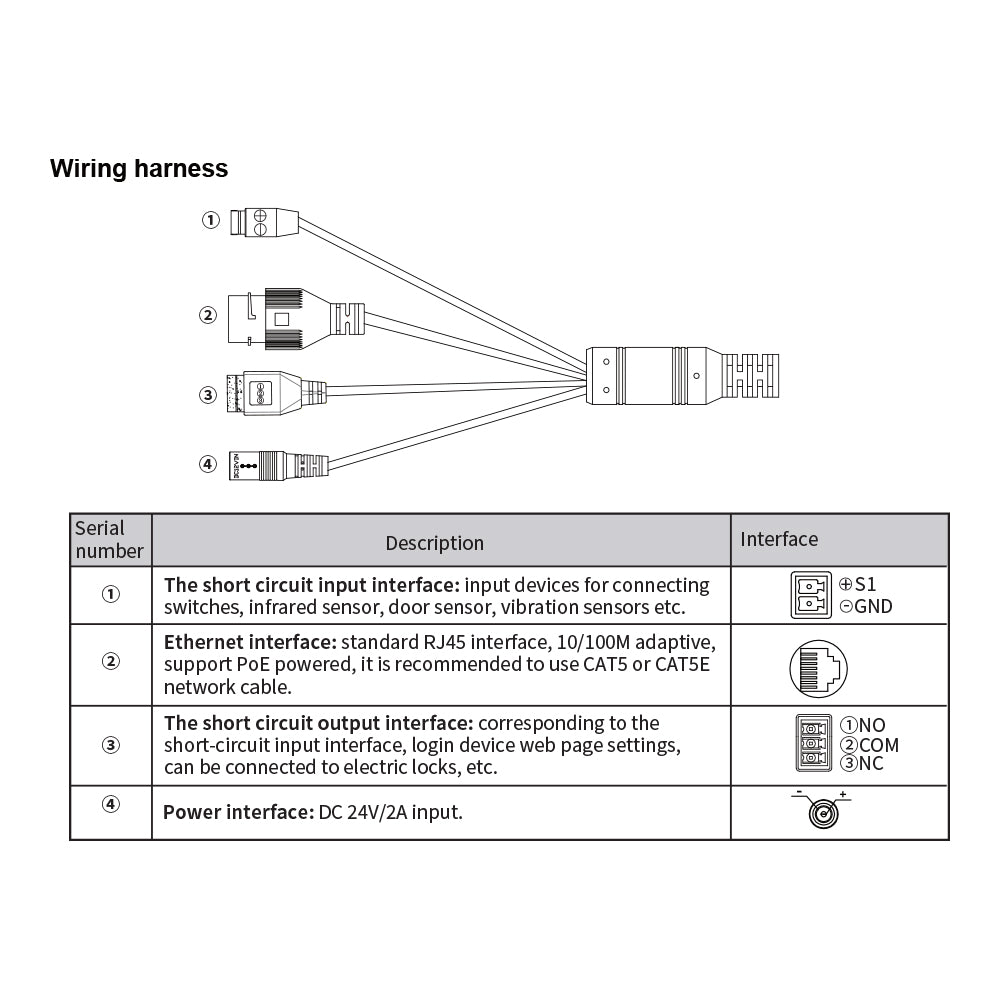

- Short-Circuit Input Interface: 1×
- Short-Circuit Output Interface: 1×
- Power Supply: PoE+ IEEE 802.3at or DC24V 2A
- Operating Temperature: -30~60°C
- Weight: 1.9kg

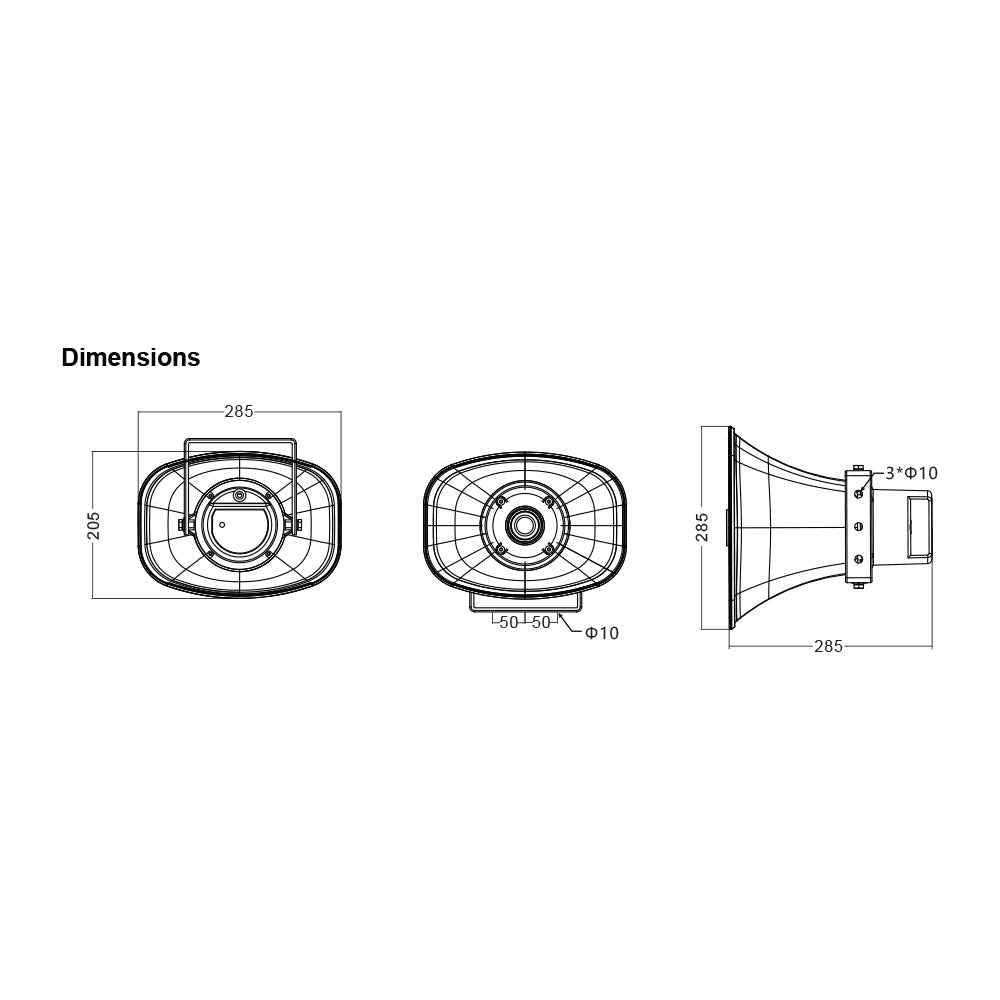

- Dimensions: 285 × 285 × 205mm
