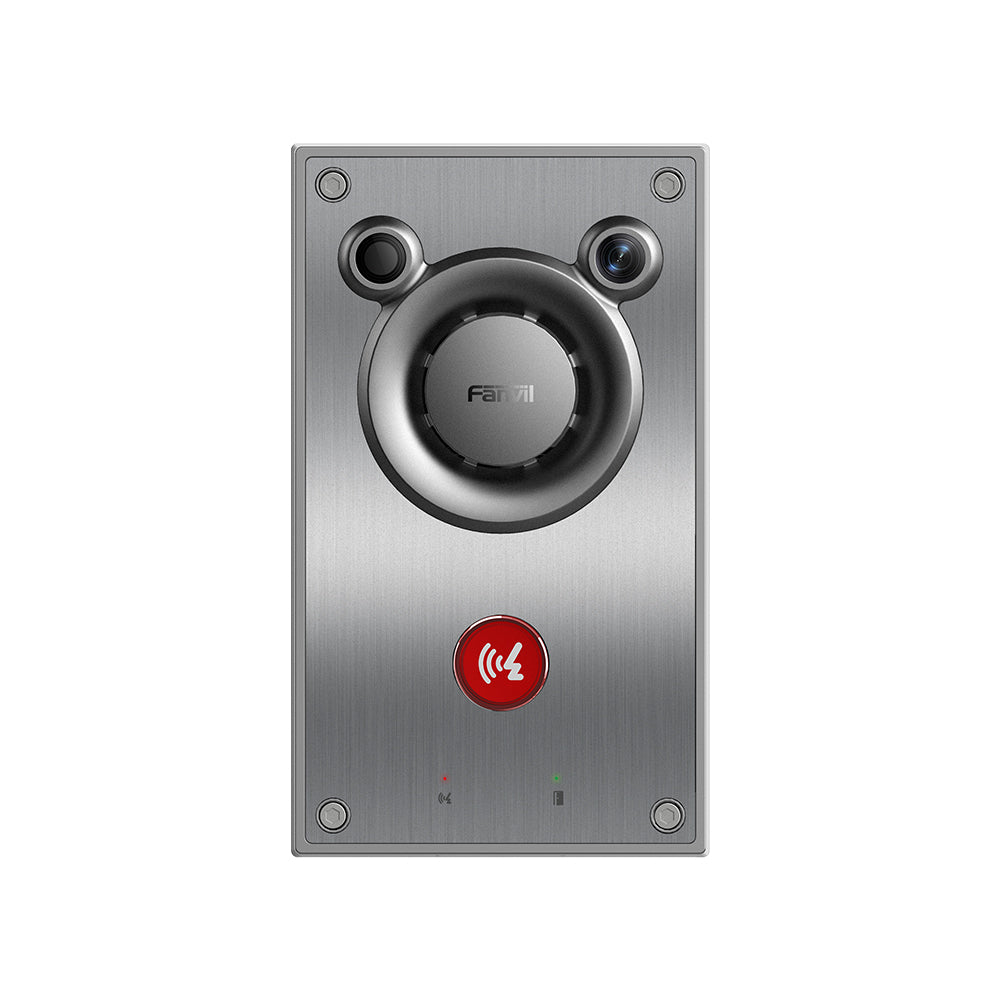

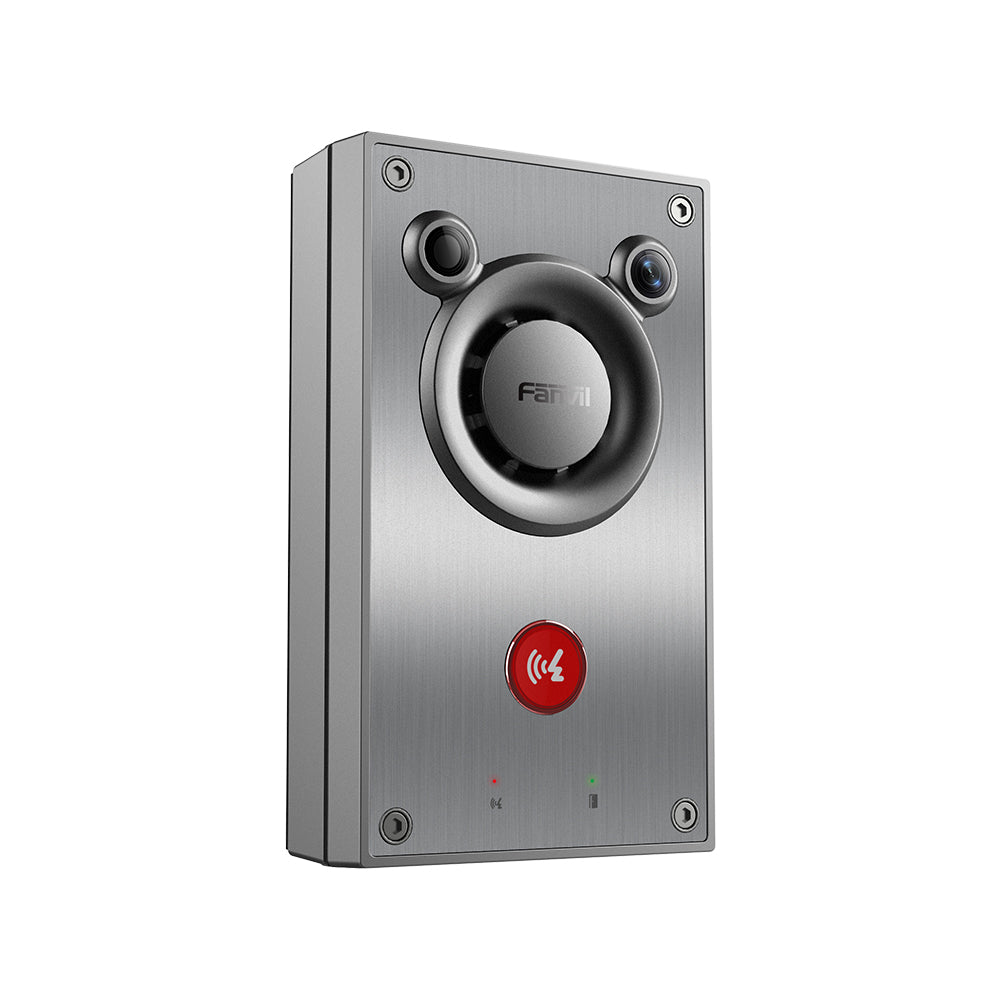

Fanvil A12V 4MP Outdoor Video Intercom with 10W Speaker
Fanvil A12V Video Intercom is a brand-new intercom featuring a 10W speaker and turbo sound chamber for powerful sound quality. With Fanvil’s advanced dual-microphone noise reduction and voice enhancement technology, it captures clear audio even in challenging environments. Equipped with a 4MP starlight wide-angle camera, built-in infrared lighting and HDR technology, it ensures excellent imaging. Designed with a unique combination of a stainless-steel panel and integrated aluminium-alloy structure, the A12V stands out with exceptional corrosion resistance and a high protection rating, making it highly durable and adaptable to diverse environments.
Features
- HD Video - Built-in 4MP Starlight HD camera and infrared light, enabling high-definition video calls
- Excellent Sound Quality - With a unique turbine cavity design, bringing extraordinary audio
- Intelligent Audio - Equipped with AEC, ANR, AGC, AVC speech algorithms to ensure clear communication in complex environments
- Loud Sound - 10W speaker, 90dB hands-free call and 100dB broadcast, producing thunderous and immersive sound
- Remote Pickup - Remote pickup can reach up to 5m and accurately captures every word
- Self-Check Function - Voice loop self-check, simplify maintenance, reduce costs
- Recording Broadcast - Built-in SD card slot supports recording and preset broadcast, flexible and diverse
- Beautiful and Durable - Stainless steel panel with aluminium-alloy structure, corrosion resistance, up to IK10 anti-theft
- Protection Grade - IP66 waterproof and dustproof grade, suitable for all kinds of harsh environments
- Friendly Interaction - 27mm backlit big button, dual status indicator (call, control), intuitive and friendly operation
- High Compatibility - Compatible with SIP-based mainstream IP PBX / softswitch / IMS platforms, such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc
- Alarm Light - Built-in 1× wet node output, can drive the external alarm light

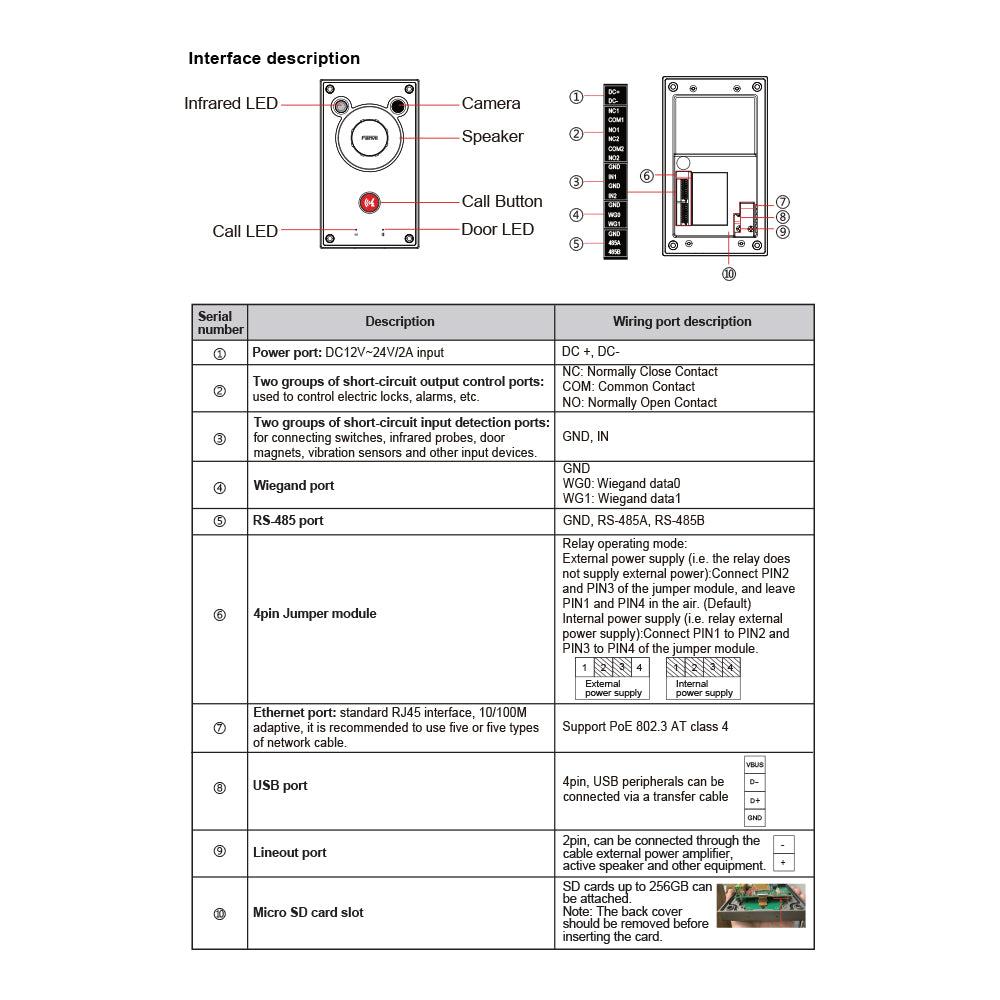

- Rich Interfaces - Audio line output, short-circuit input / output, Wiegand, USB, RS485, to meet diverse needs
Specifications
System
- OS: Linux
- SIP Lines: 2×
- Tamper-Proof: Yes
- Third-Party Integration: Supported
- Auto-Provisioning: DHCP / TR069 / SIP PnP
Audio
- HD Audio: Yes
- Wideband Codec: G.722, Opus
- Narrowband Codec: G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K
- Speaker Power: 10W
- Noise Reduction: Yes
- Acoustic Echo Cancellation: Yes
- Automatic Volume Control: Yes
- SPL: 100dB (1W/1m)
- Full Duplex: 90dB
- Half Duplex: 100dB
- Broadcast: 100dB
Video
- Image Sensor: 1/2.9" Colour CMOS
- Camera: Built-In 4MP
- Lens: F2.0, Fixed
- Video Codec: H.264
- Resolution: 720p / 1080p
- Minimum Illumination: 0.05 Lux
- Fill Light: Infrared
- Field of View: 103° (Horizontal), 54.8° (Vertical)
Network
- Protocols: SIP, ONVIF, RTSP
Hardware
- Power: PoE or DC12~24V 2A
- TF Card Slot: Yes
- USB Interface: Yes
- Button Backlight: Yes
- Microphone: Dual Microphone
- Audio Line-Out: 1×
- Short-Circuit Input: 2×
- Short-Circuit Output: 2×
- RS485 Interface: 1×
- Ethernet: RJ45 (PoE)
General
- Faceplate: Stainless Steel
- Installation: Wall-Mounted / Flush-Mounted
- Protection Rating: IP66, IK10
- Operating Temperature: -40~70°C
