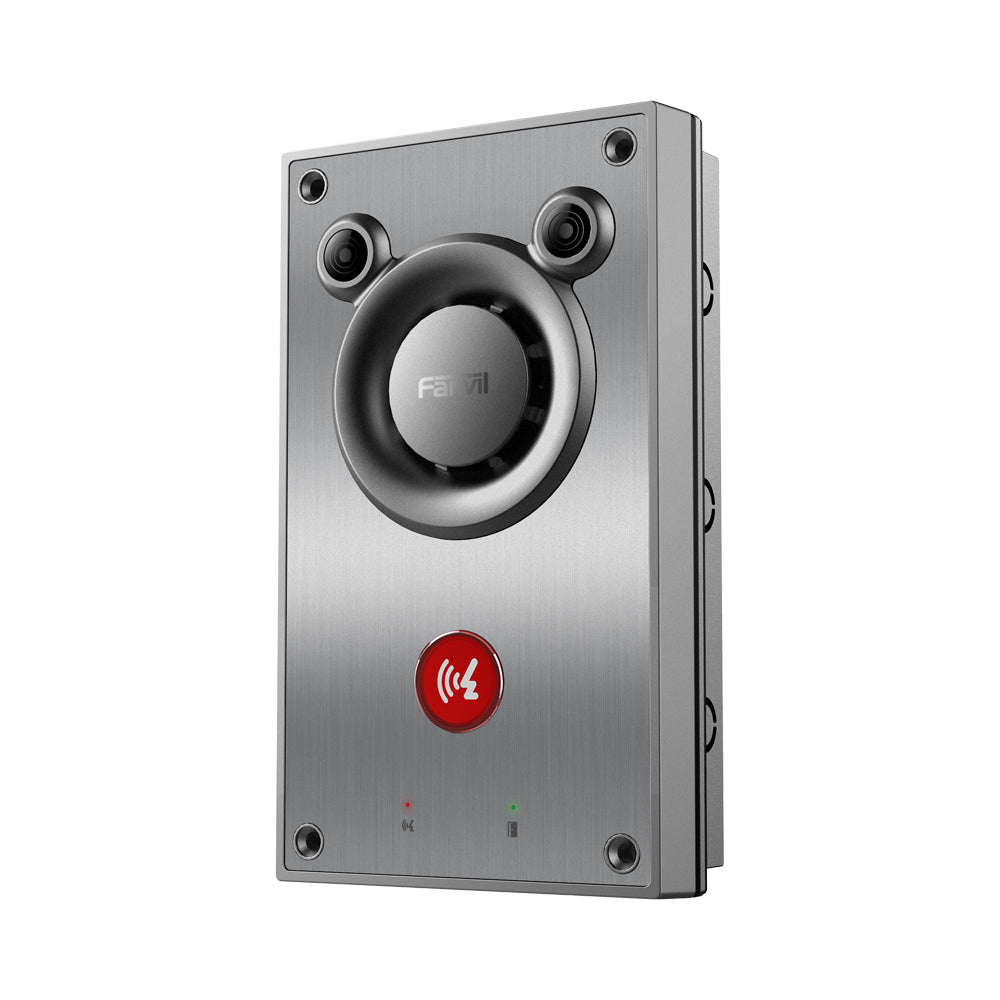

Fanvil A12 Outdoor Audio Intercom with 10W Speaker
Fanvil A12 audio intercom is a brand-new device featuring a built-in 10W speaker and a unique turbo sound chamber design, delivering impressive audio performance. It utilises Fanvil's advanced dual-microphone noise reduction technology and voice enhancement algorithms, ensuring clear audio capture even in noisy environments. Additionally, it combines a stainless steel panel with an integrated aluminium-alloy structure, making it not only aesthetically pleasing but also corrosion-resistant, and suitable for various harsh environments.
Features
- Excellent Sound Quality - With a unique turbine cavity design, bringing extraordinary audio
- Intelligent Audio - Equipped with AEC, ANR, AGC, AVC speech algorithms to ensure clear communication in complex environments
- Loud Sound - 10W Speaker, 90dB hands-free call and 100dB broadcast - sound shock
- Remote Pickup - Remote pickup can reach up to 5m and accurately capture every word
- Self-Check Function - Voice loop self-check, simplifies maintenance and reduces cost
- Recording Broadcast - Built-in SD card slot supports recording and preset broadcast - flexible and diverse
- Stylish and Durable - Stainless steel panel with an aluminium-alloy structure, corrosion resistance and up to IK10 anti-theft standard
- Protection Grade - IP66 Waterproof and dustproof grade, suitable for all kinds of harsh environment
- Friendly Interaction - Large 27mm backlit button, dual status indicator (call, control), intuitive and friendly operation
- High Compatibility - Compatible with SIP-based mainstream IP PBX / softswitch / IMS platforms, such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc
- Alarm Light - Built-in 1× wet node output, can drive the external alarm light

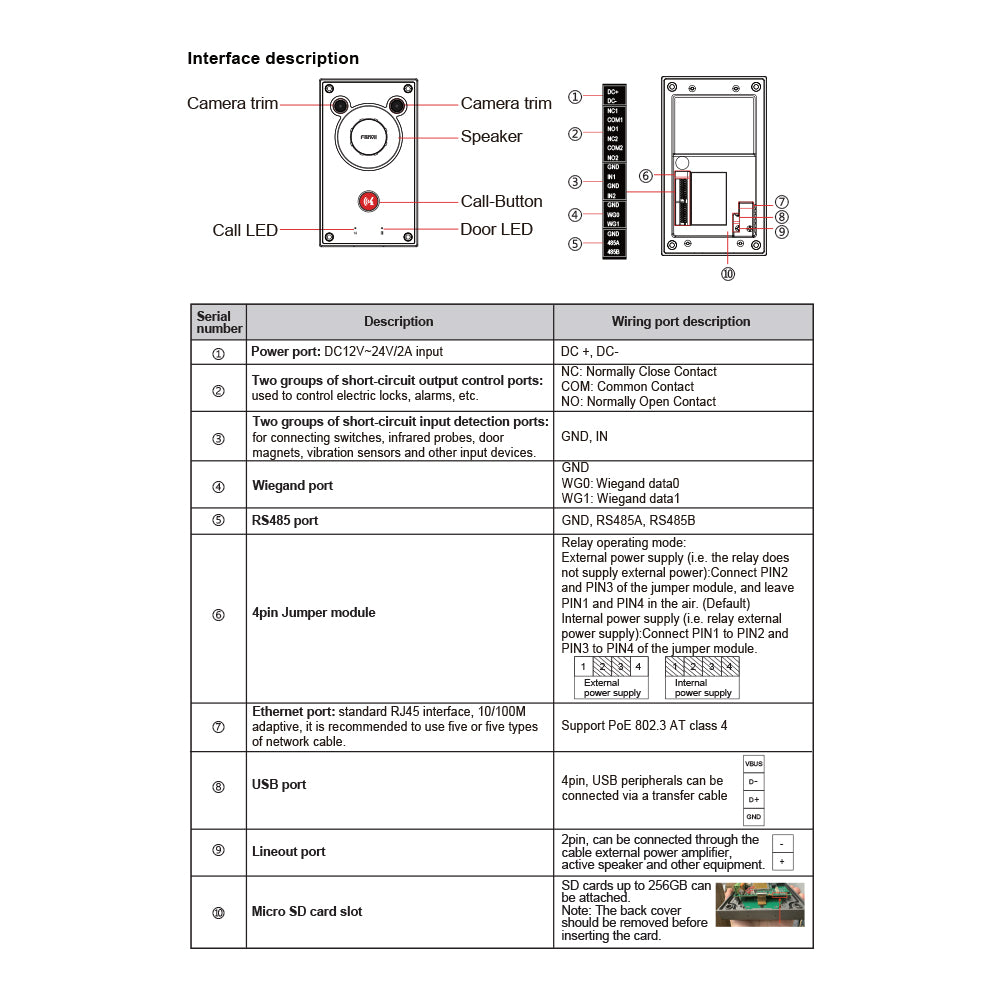

- Rich Interfaces - Audio line output, short circuit input / output, Wiegand, USB, RS485, to meet diverse needs
Specifications
System
- OS: Linux
- Appearance: Front Shell - Stainless Steel, Bottom Shell - Aluminium-Alloy
- DSS Key: 1×

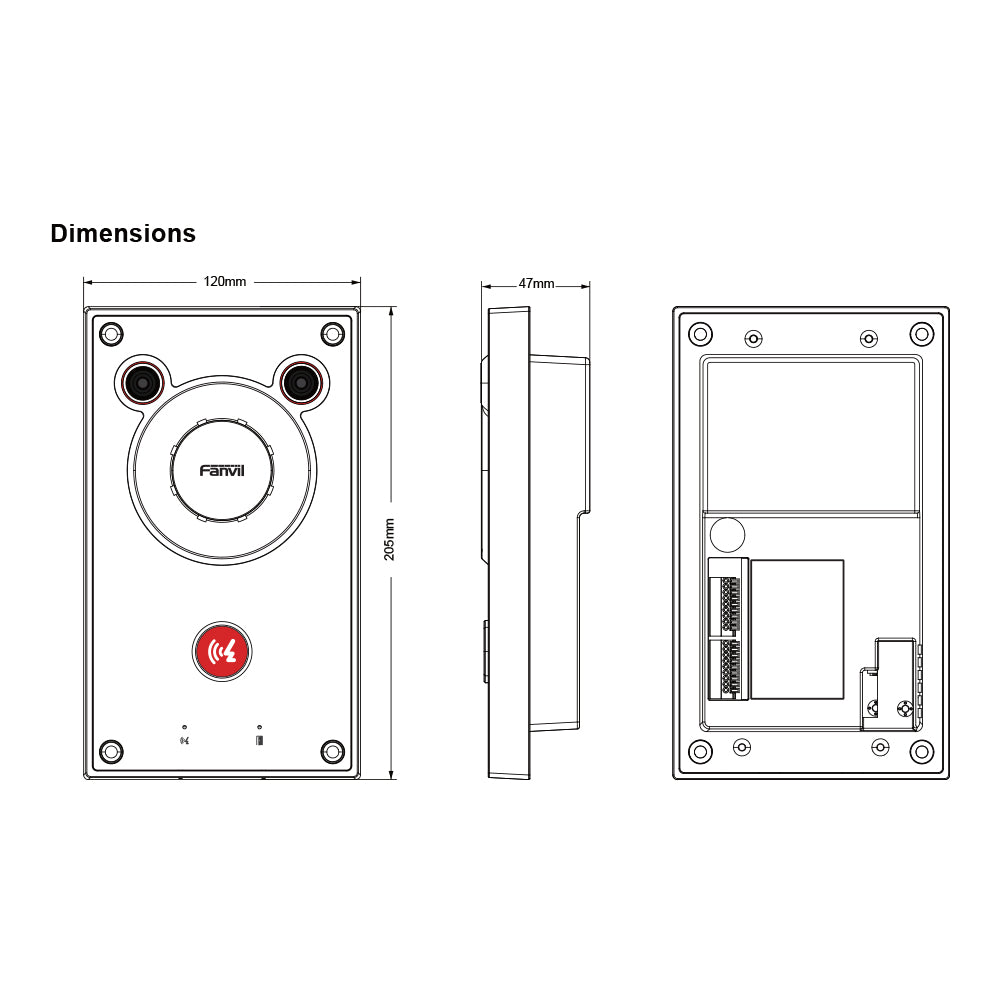

- Dimensions: 205 × 120 × 47mm
- SIP Lines: 2×
- Tamper-Proof: Yes
- Third-Party IP Camera Integration: Supported
- Auto-Provisioning: DHCP / TR069 / SIP PnP
- ONVIF: Supported
- Call LED: Yes
- Door LED: Yes
Audio And Video
- HD Audio: Yes
- Wideband Codec: G.722, Opus
- Broadcast Codec: G.722, Opus, MP3
- Narrowband Codec: G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K
- Microphone: 2×
- Microphone Pickup Distance: up to 5m
- Power Amplifier: 10W Class D
- Speaker Power: 10W
- Full Duplex (1m): 90dB
- Half Duplex (1m): 100dB
- Broadcast (1m): 100dB
- Acoustic Echo Cancellation: Yes
- Noise Reduction: Yes
Interfaces
- PoE: PoE+
- DC Power: Supported
- TF Card Slot: SD Card (Max. 256GB)
- Audio Interface: 1× Audio Output (1KΩ)
- Relay: 2× (Max. DC 30V 2A, AC 125V 0.5A)
- Short-Circuit Output: 2× (1× Wet-Node)
- Short-Circuit Input: 2×
- RS485 Interface: 1×
- Ethernet Port: 1× RJ45
- USB Interface: 1×
- Installation: Flush-Mounted / Wall-Mounted
Protection And Environment
- Protection Rating: IP66, IK10
- Operating Temperature: -40~70°C
