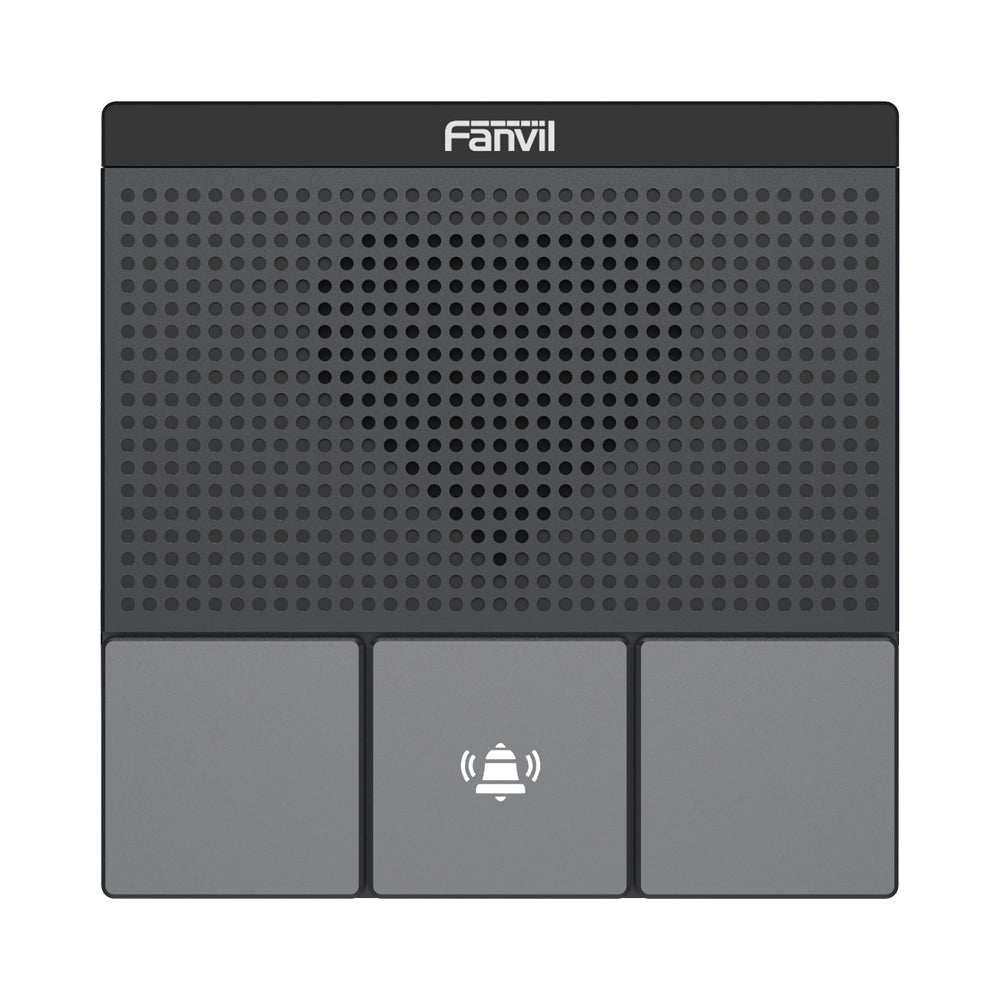

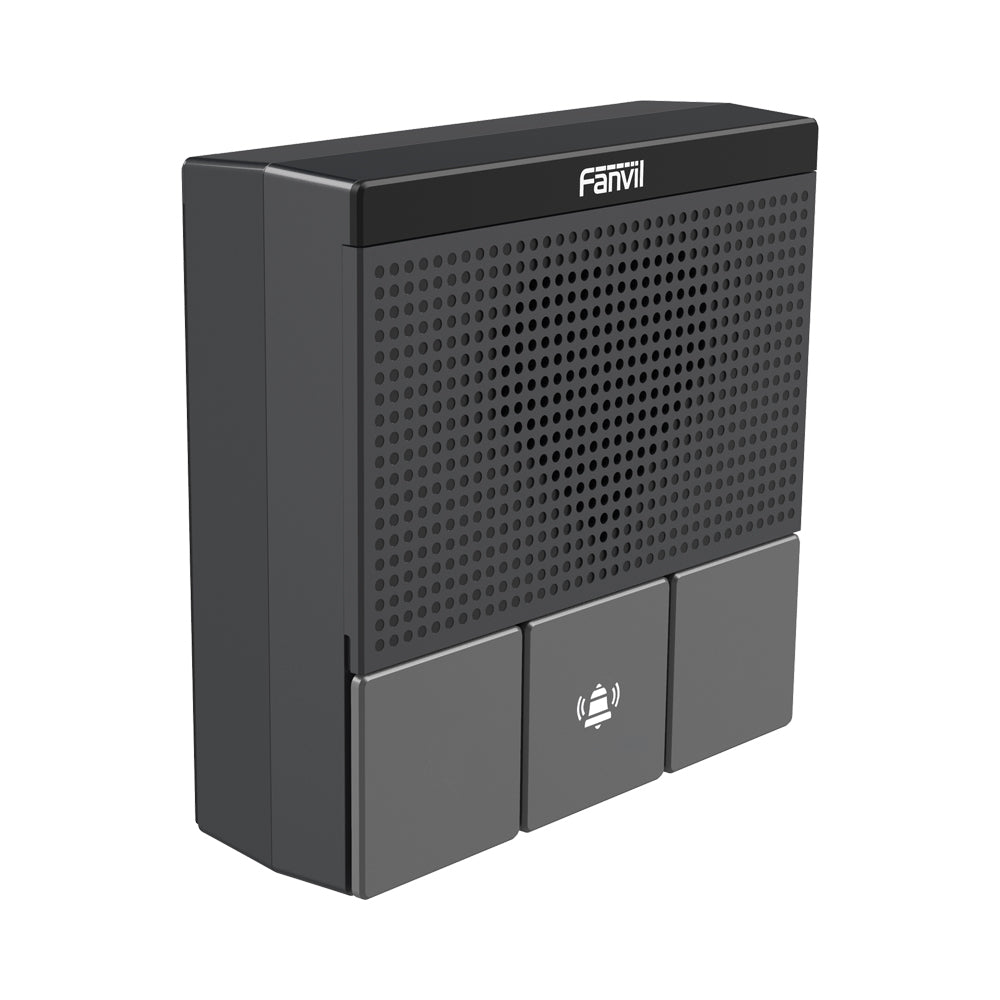

Fanvil A10 Series SIP Mini Intercom
Fanvil A10 Series SIP mini intercoms are designed for indoor scenes with security, intercom, and broadcasting functionality. They have a compact and fashionable appearance, featuring 3 detachable function buttons that can be customized according to your needs. They have rich functions such as HD audio, IP54 waterproof and dustproof, and built-in 2.4G & 5G Wi-Fi, providing a high-quality communication experience for the user. Moreover, they support wall mountable and standard 86 box embedded installation for more indoor application scenarios.
Features
- Supports 2 SIP accounts and includes 3 detachable function buttons for flexible configuration
- Built‑in HD audio support (wideband codecs such as G.722 and Opus) with Acoustic Echo Canceller (AEC) for clear intercom communication
- Network interface: 10/100 Mbps Ethernet. For the “W" variant (A10W/A10W‑E) there is also built‑in dual‑band Wi-Fi (2.4GHz & 5GHz)
- PoE support (Power over Ethernet) or external DC power option - simplifies installation
- IP54 rated - dust and splash‑resistant, suitable for indoor (and light protected) use
- Additional features: Supports auto‑answer, comes with short‑circuit input/output and relay interface (for external devices such as alarms/locks)
Specifications
- Audio Codecs
- Narrowband: G.711a/u, G.729AB, G.723.1, G.726, iLBC
- Wideband: G.722, Opus
- Networking & Security: IPv4/IPv6 support, DHCP/Static/PPPoE configurations
- Wi-Fi Encryption & VPN support (for Wi-Fi models): WPA/WPA2‑PSK, 802.1X EAP, L2TP/OpenVPN
Physical / Environmental
- Power consumption: for the Wi-Fi variant approx 1.42W – 2.35W (adapter) or 1.99W – 3.05W (PoE) depending on model
- Operating temperature: −10 °C to 50 °C
- Body material: ABS housing
- Installation styles supported: Wall mountable and standard 86‑box embedded
