Description
High Voltage Outputs
Typical energy output into 500 ohms load (Joules) : 7.6J
Output voltage into an open circuit : 9300V
High or low voltage modes, alarm monitoring is enabled in both modes. output voltage settings can be changed for both the high and the low voltage modes : Yes
Number of high voltage monitored zones : 1
Number of earth loop monitored zones : 1
Adaptive power technology (APT), reducing false alarms and arcing on the fence : No
Fence Interference detection from foreign energizers : No
Energizer Controls and Displays
Keypads for the remote control of the energizer : 4 max
Tag switch – to control the energizer without using a keypad : Yes
Remote on/off input : Yes
Displays the output and return voltages : No
Display type : LED
Gate and Panic Button inputs
Timed gate switch input, used to monitor open and closing of the gate : Yes
Panic button input : Yes
Alarm outputs
Siren output, time programmable : Yes
Strobe light output to visually indicate an alarm condition : 1
Power supply and battery backup systems
Mains supply voltage : 230V
Typical power consumption under normal operating conditions : 27VA
Internal battery backup system in case of power failure, capacity of battery : 7 Ah
Typical standby time, with a fully charged battery : 8 hours
Solar power panels can be connected to power the energizers, (recommend Watt size for 24 hr operation) : 140 Watts
Solar voltage regulator deep cycle battery size : 10 Amp
Recommended in amp hours (20% discharge over a 24 hr cycle) : 150 Ah
Wire length per energizer (live wires in a series system) for both solid and stranded wires
Galvanised wires, 1.2mm
Optimal performance up to : 10km
Maximum : 25km
Galvanised wires, 2.0mm,2.24mm
Optimal performance up to : 20km
Maximum : 50km
Stainless Steel 1.0mm, 304 and316 grade
Optimal performance up to : 0.7km
Maximum : 1km
Stainless Steel 1.2mm, 304 and316 grade
Optimal performance up to : 1km
Maximum : 1.3km
Stainless Steel 1.6mm, 304 and316 grade
Optimal performance up to : 2km
Maximum : 2.6km
Stainless Steel 2.0mm, 304 and316 grade
Optimal performance up to : 3.3km
Maximum : 3.9km
Aluminium Wire 1.6mm and2.0mm
Optimal performance up to : 40km
Maximum : 80km
Can be used in multi-energizer network system : No
IEC 60335-2-76 : Yes
CISPR 14, EN 61000 : Yes
Dimensions (mm): 365x230x140

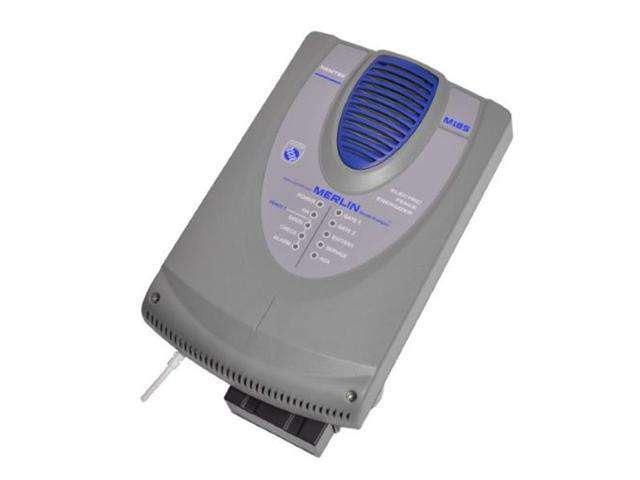

The Nemtek Merlin Stealth is a powerful range of energizers, that can be used as simple high end security energizers and can also be programmed to offer a customised solution
