Description
High Voltage Outputs
Typical energy output into 500 ohms load (Joules) : 4.6J
Output voltage into an open circuit : 9000V
High or low voltage modes, alarm monitoring is enabled in both modes. output voltage settings can be changed for both the high and the low voltage modes : Yes
Number of high voltage monitored zones : 1
Number of earth loop monitored zones : 1
Adaptive power technology (APT), reducing false alarms and arcing on the fence : Yes
Fence Interference detection from foreign energizers : Yes
Energizer Controls and Displays
Keypads for the remote control of the energizer : 2 max
Tag switch – to control the energizer without using a keypad : Yes
Remote on/off input : Yes
Displays the output and return voltages : Yes
Display type : LED
Gate and Panic Button inputs
Timed gate switch input, used to monitor open and closing of the gate : Yes
Panic button input : Yes
Alarm outputs
Siren output, time programmable : Yes
Strobe light output to visually indicate an alarm condition : 1
Power supply and battery backup systems
Mains supply voltage : 230V
Typical power consumption under normal operating conditions : 18VA
Internal battery backup system in case of power failure, capacity of battery : 7 Ah
Typical standby time, with a fully charged battery : 24 Hours
Solar power panels can be connected to power the energizers, (recommend Watt size for 24 hr operation) : 60 Watts
Solar voltage regulator deep cycle battery size : 5 Amp
Recommended in amp hours (20 % discharge over a 24 hr cycle) : 60 Ah
Wire length per energizer (live wires in a series system) for both solid and stranded wires
Galvanised wires, 1.2mm
Optimal performance up to : 5 km
Maximum : 8 km
Galvanised wires, 2.0mm,2.24mm
Optimal performance up to : 5 km
Maximum : 12 km
Stainless Steel 1.0mm, 304 and316 grade
Optimal performance up to : 0.7 km
Maximum : 1 km
Stainless Steel 1.2mm, 304 and316 grade
Optimal performance up to : 0.8 km
Maximum : 1.1 km
Stainless Steel 1.6mm, 304 and316 grade
Optimal performance up to : 1.6 km
Maximum : 2.2 km
Stainless Steel 2.0mm, 304 and316 grade
Optimal performance up to : 2.4km
Maximum : 3.3 km
Aluminium Wire 1.6mm and2.0mm
Optimal performance up to : 10 km
Maximum : 20 km
Can be used in multi-energizer network system : No
IEC 60335-2-76 : Yes
CISPR 14, EN 61000 : Yes
Dimensions(mm) : 180x205x120

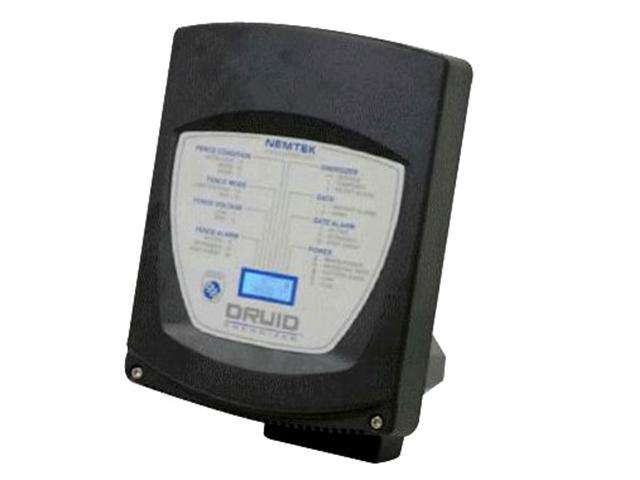

The Druid 15 offer 4.6 J output energy. Using the Adaptive Power Technology (APT), this energizer offer a new and unique method in detecting how much power a fence can accept and handle before it starts to arc and waste energy. The APT actively analyses the fence and adapts the transfer of power as required to ensure maximum performance. The energizer ensures that the fence only receives the amount of power it can manage thus making it energy efficient and economical.
