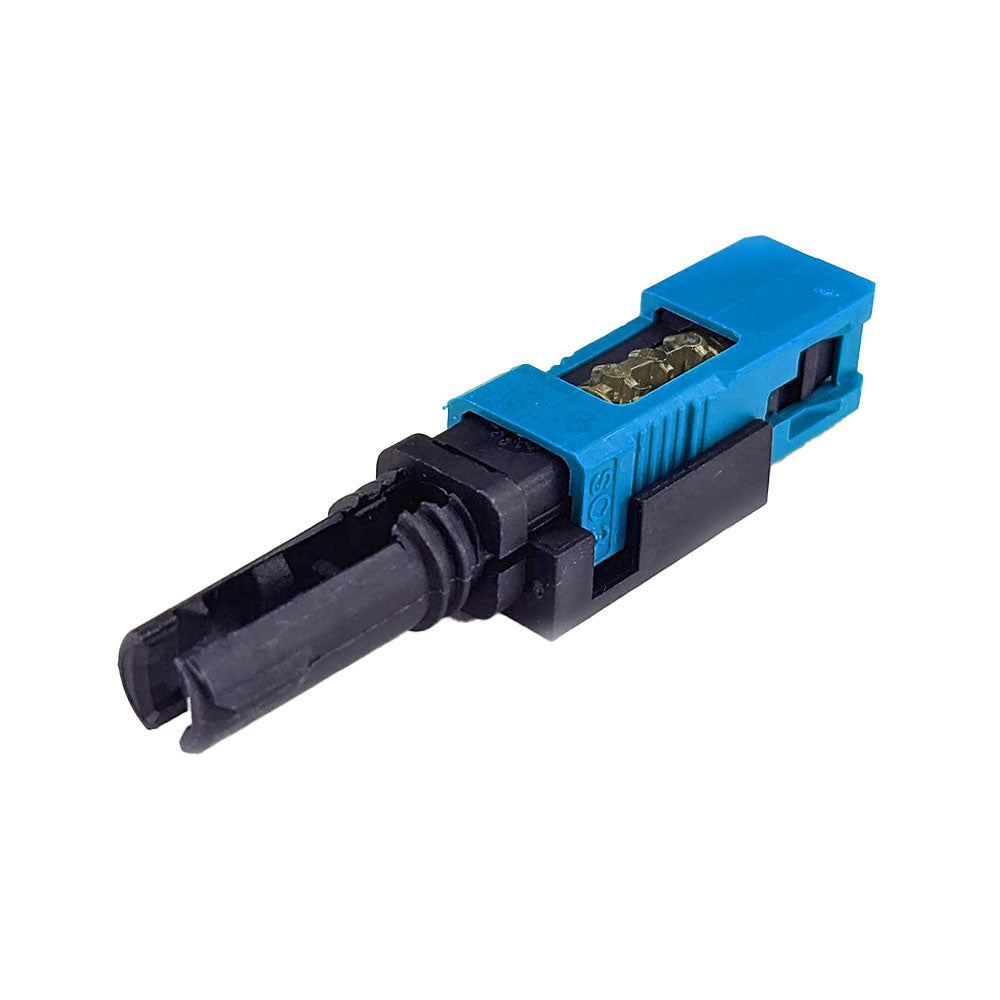

EasyFiber EF-CON-SM-SC Field-Assembly SC Single Mode Fiber Connector
The EasyFiber Field‑Assembly SC Single Mode Fiber Connector is a field-installable SC-type fiber optic connector that lets you terminate single-mode (OS1 & OS2) fiber cable quickly and reliably without epoxy, polishing, or special tools - ideal for onsite network installations or repairs. The connector is pre-polished for standard UPC (Ultra Physical Contact) (and supports APC variants), and works with a variety of cable sizes including 250 µm, 900 µm, 2.0 mm and 3.0 mm jackets, including distribution and zip-cord types. It features a built-in verification window to visually confirm correct fiber placement, a self-centering alignment groove for easier insertion, and a one-click locking button that typically completes termination in about two minutes. This connector is also reusable for up to about five cycles, giving flexibility for adjustments or re-terminations.
Features
- SC type connectors
- Pre-polished for UPC (standard) & APC (angled) connections
- Compatible with single mode (OS1 & OS2) & multimode (OM2, OM3 & OM4) cable
- Compatible with 250μm, 900μm, 2.0mm & 3.0mm, including distribution and zipcord formats
- No proprietary tools required
- No epoxy, crimping or polishing required
- Built-in verification window showing proper termination
- Self-centering alignment groove for easy & reliable insertion of the fiber optic strand
- Built-in button for one click termination & locking jig release
- Average termination time around two minutes
- Re-usable (five or less termination cycles recommended)
