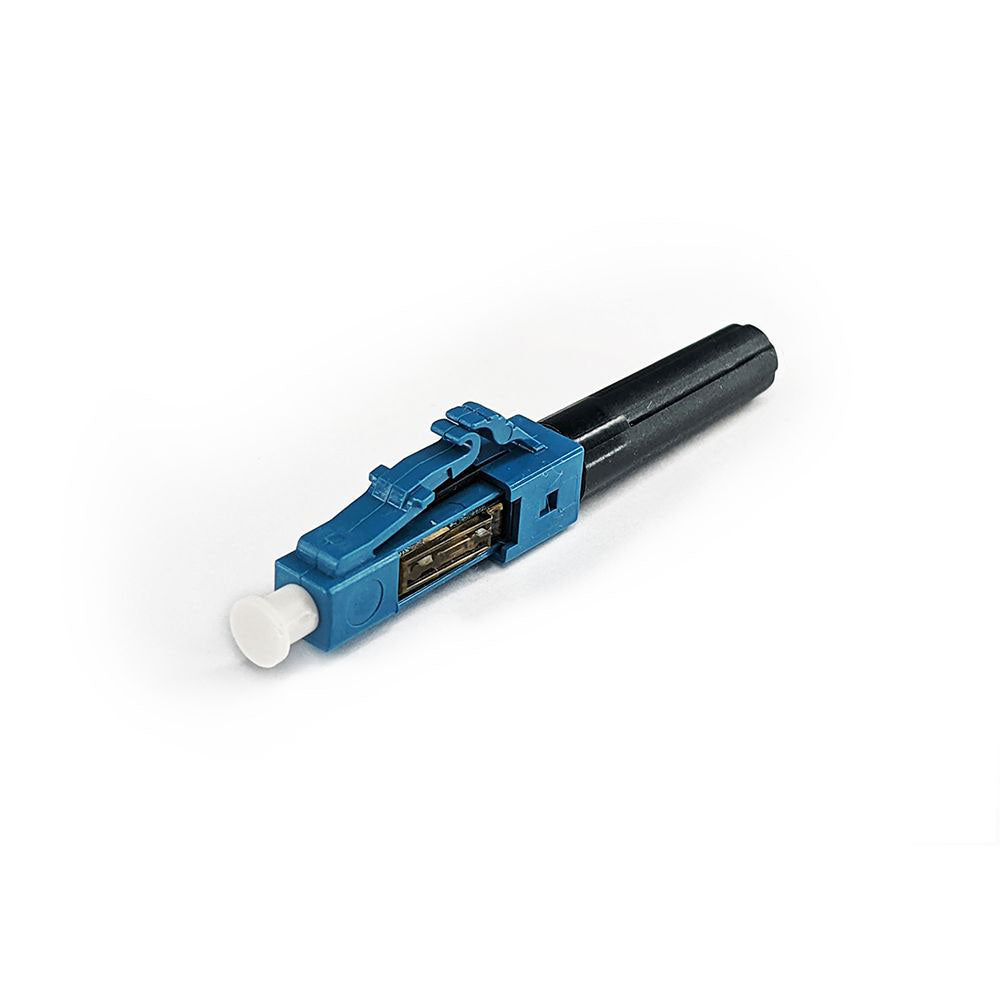

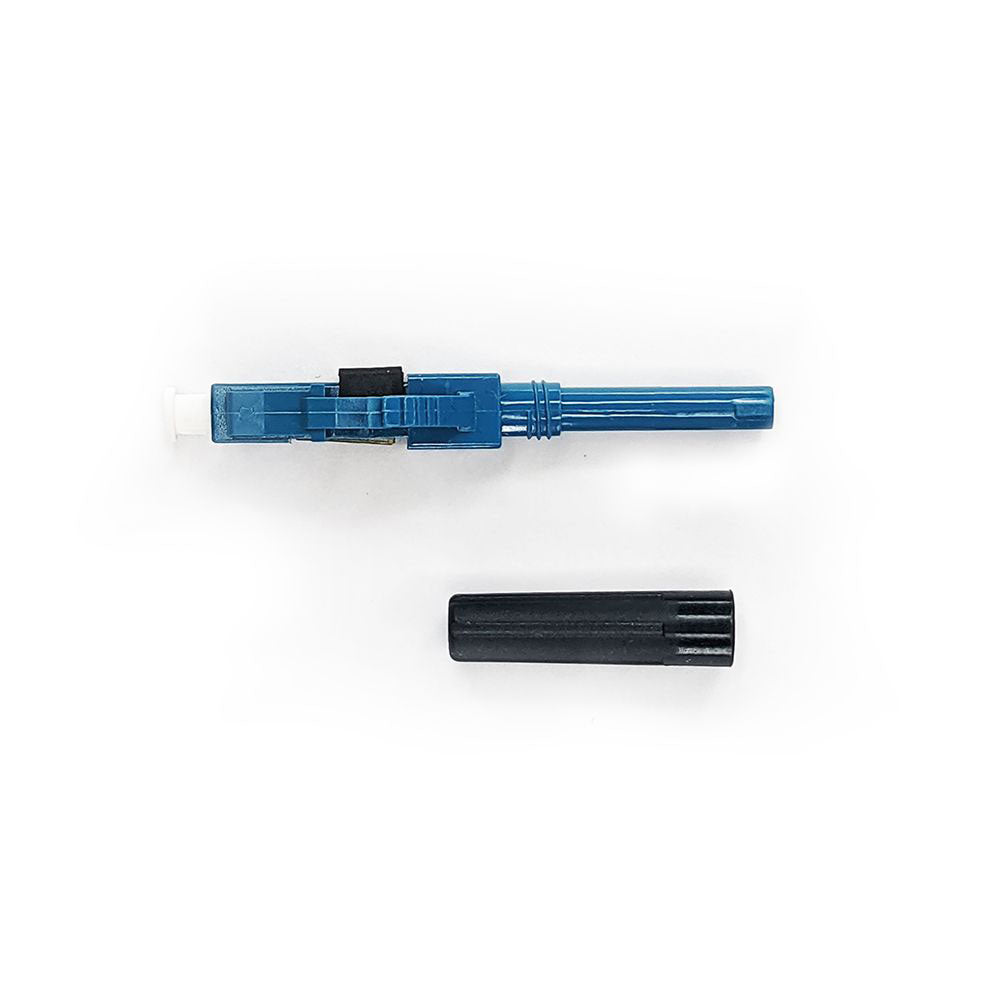

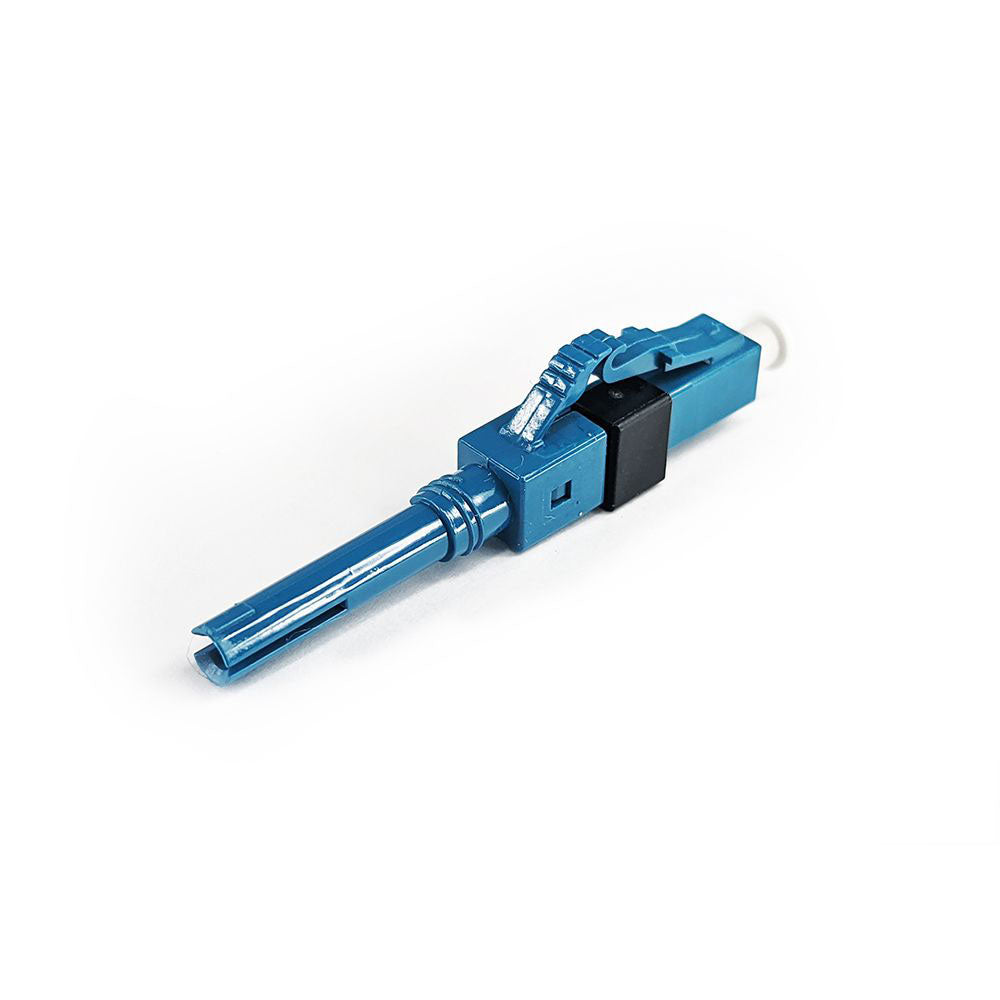

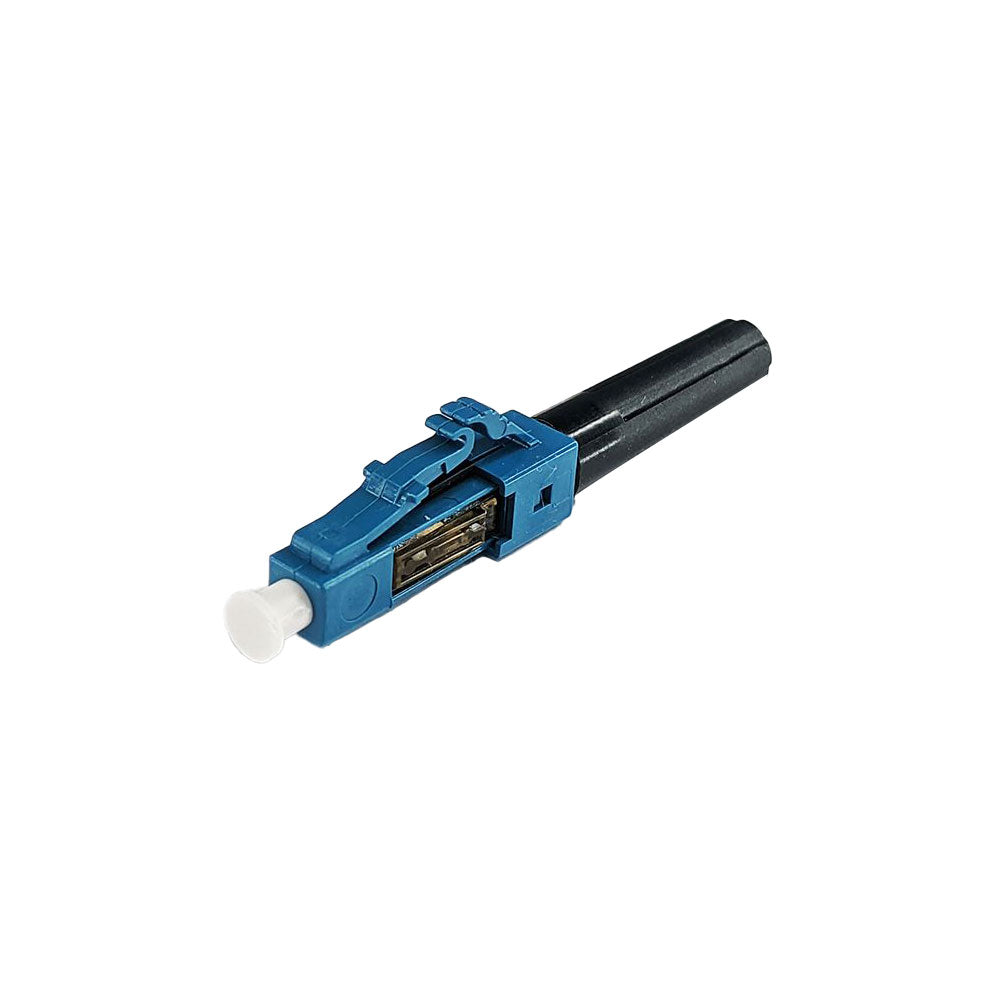

EasyFiber EF-CON-SM-LCZ Field-Assembly LC Single Mode Fiber Connector
The Easyfiber Field‑Assembly LC Single Mode Fiber Connector is a field-installable LC single-mode fiber optic connector designed to make onsite termination quick and reliable without the need for epoxy, polishing, or specialized tools. It features a pre-polished LC UPC end face and is compatible with both single-mode (OS1 & OS2) and common multimode fibers (OM2, OM3, OM4) as well as 250 μm, 900 μm, and 2.0 mm cable formats, including distribution and zip-cord styles. The connector includes a built-in verification window and a self-centering alignment groove to help ensure correct fiber placement, and its “one-click" button mechanism enables fast termination - typically in around two minutes - making it ideal for network installations, repairs, and upgrades where field termination is needed.
Features
- LC type connectors
- Pre-polished for UPC
- Compatible with single mode (OS1 & OS2) & multimode (OM2, OM3 & OM4) cable
- Compatible with 250μm, 900μm & 2.0mm cable, including distribution and zip-cord formats
- No proprietary tools required
- No epoxy, crimping or polishing required
- Built-in verification window showing proper termination
- Self-centering alignment groove for easy & reliable insertion of the fiber optic strand
- Built-in button for one click termination & locking jig release
- Average termination time around two minutes
- Re-usable (five or less termination cycles recommended)
