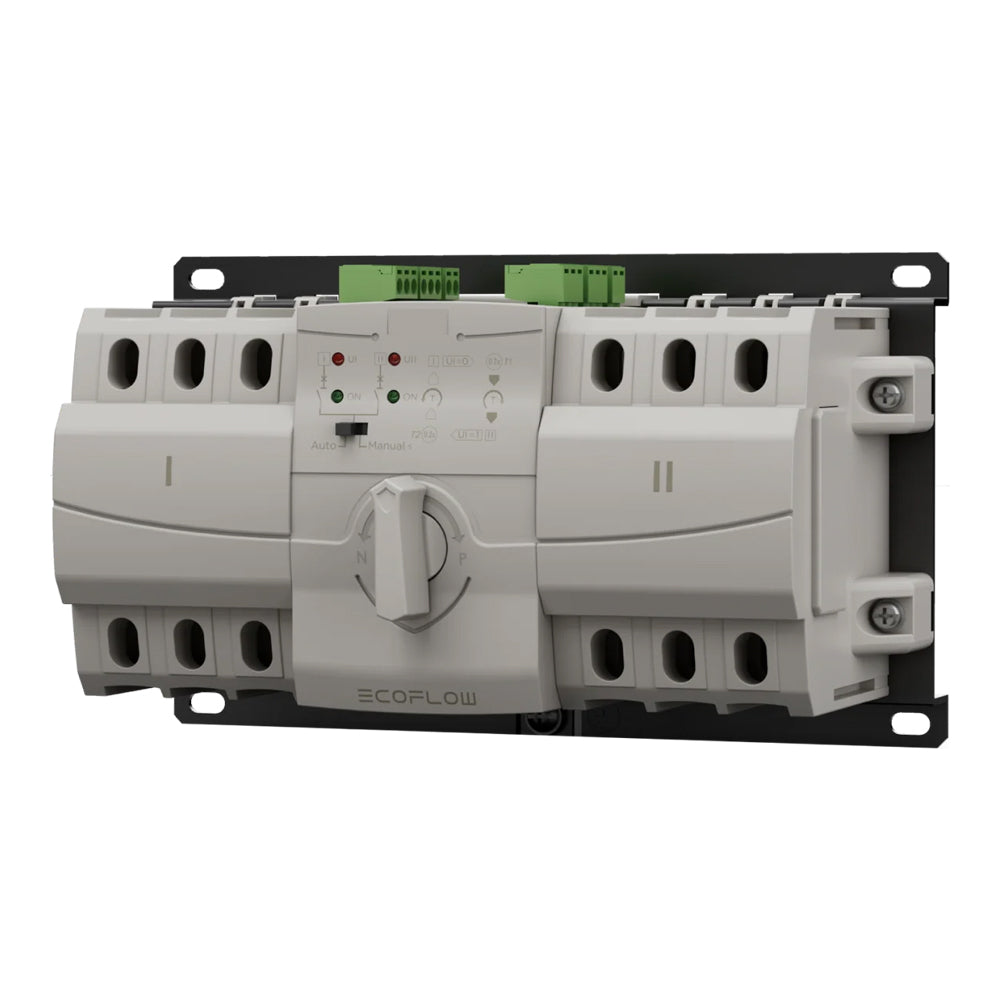

ECOFLOW AUTOMATIC TRANSFER SWITCH

Features

• Automatic Power Switching - Automatically transfers connected loads between utility and backup power
• Fast 0.2 Second Transfer Time - Minimises interruption during power failures and loadshedding and power outages
• Compatible With EcoFlow Power Stations - Designed for seamless integration with EcoFlow backup systems
• Automatic and Manual Modes - Allows automatic operation or manual source selection
• Integrated Installation Design - Compact form factor for professional electrical installations
• Dual Power Source Support - Supports main and backup power input connections
• Intelligent Power Monitoring - Monitors incoming power supply status continuously
• Indoor Electrical Panel Integration - Designed for indoor circuit breaker panel installations

Specifications

• Controller Type: Type-A Controller
• Operating Voltage: AC185V-280V Single Phase
• Rated Voltage: AC230V
• Rated Current: 63A
• Poles: 2P
• Frequency: 50Hz
• Operating Modes: Automatic and Manual
• Transfer Delay: 0.2 Seconds
• Return Delay: 0.2 Seconds
• Power Consumption: <5W
• Installation Method: Qualified Professional Electricians
• Operating Temperature: -5°C to 40°C
• Dimensions: 212.5 × 125 × 121mm
• Mounting Dimensions: 193.5 × 113mm
• Short-Circuit Switching Capacity: 7.65kA
• Standard Compliance: IECEN 60947-6-1

Notes

• Installation must be completed by a licensed electrician or qualified professional
• Designed for indoor electrical panel installations only
• High-power appliances such as stoves, geysers and pool pumps may need exclusion from backup circuits
• Compatible EcoFlow portable power station required
• Protective enclosure recommended for safe installation
