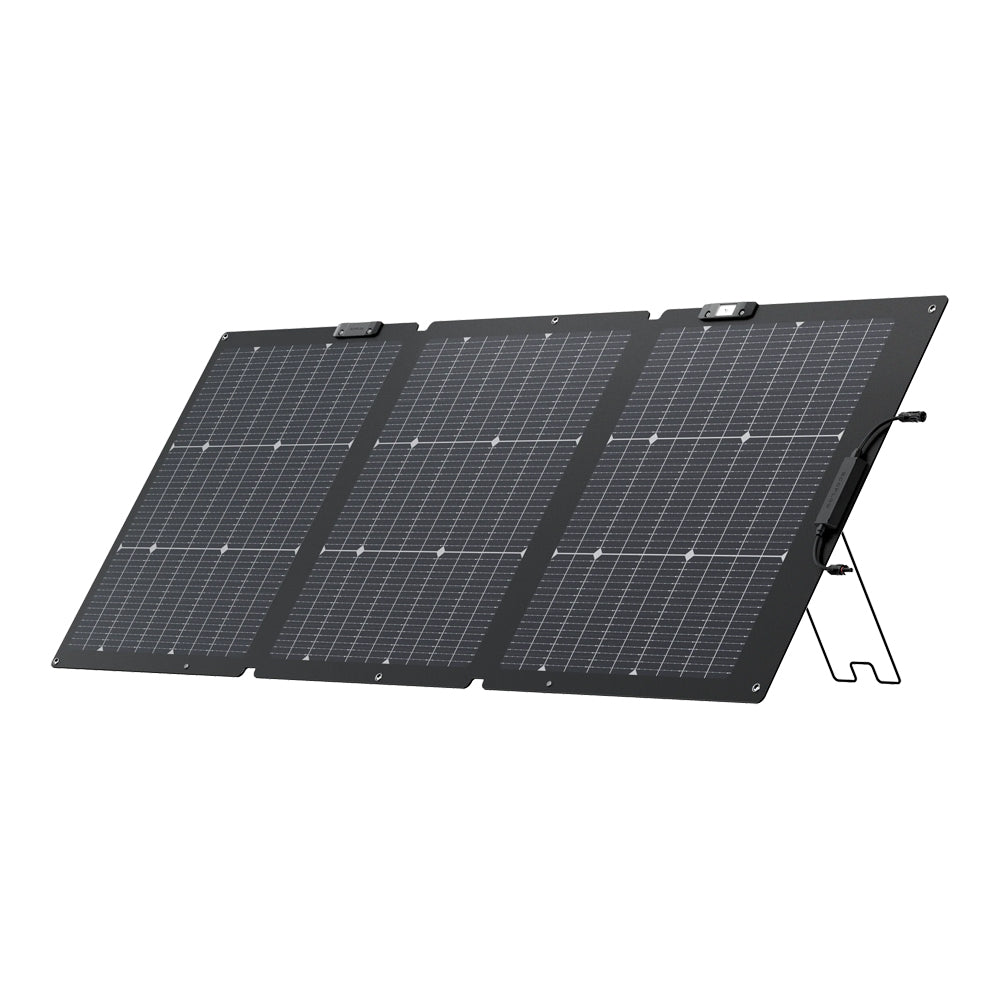

ECOFLOW 160W PORTABLE SOLAR PANEL

Features

• 160W Bifacial Solar Panel - Generates power from both the front and rear surfaces for enhanced solar harvesting
• Up To 28% More Energy Capture - Rear-side collection harnesses reflected ambient light to increase total energy generation
• TOPCon Monocrystalline Cells - Advanced solar cell technology delivers up to 25% conversion efficiency
• Integrated Solar Angle Guide - Helps align the panel for maximum sunlight exposure and peak charging performance
• 30° To 60° Adjustable Stand - Easily optimise panel positioning throughout the day for improved energy collection
• Foldable Three-Panel Design - Compact construction simplifies transport, storage and deployment
• IP68 Waterproof and Dustproof - Built to withstand demanding outdoor environments and changing weather conditions
• Lightweight Portable Design - Easy to carry for camping, overlanding, caravanning and mobile power applications
• MC4 Compatible Connectivity - Photovoltaic connectors adapt to MC4-compatible solar systems and accessories
• Preset Mounting Points - Six integrated mounting holes support permanent or temporary installation options
• Solar to XT60i Charging Cable Included - Ready for direct connection to compatible EcoFlow devices

Specifications

• Rated Power (Front): 160W (±5W)
• Rated Power (Rear): 125W (±5W)
• Cell Type: TOPCon Monocrystalline Silicon
• Conversion Efficiency: Up To 25%
• Bifaciality Coefficient: 80% ±5%
• Open Circuit Voltage (Voc): 21.3V
• Short Circuit Current (Isc): 9.1A Front / 7.1A Rear
• Optimal Operating Voltage (Vmp): 18.6V
• Optimal Operating Current (Imp): 8.6A Front / 6.7A Rear
• Connector Type: Photovoltaic Connectors (MC4 Compatible)
• Adjustable Stand Angle: 30~60°
• Waterproof Rating: IP68
• Operating Temperature: -20~85°C
• Unfolded Dimensions: 1628 x 615 x 25mm
• Folded Dimensions: 586 x 615 x 32mm
• Weight: Approx. 5.1kg
