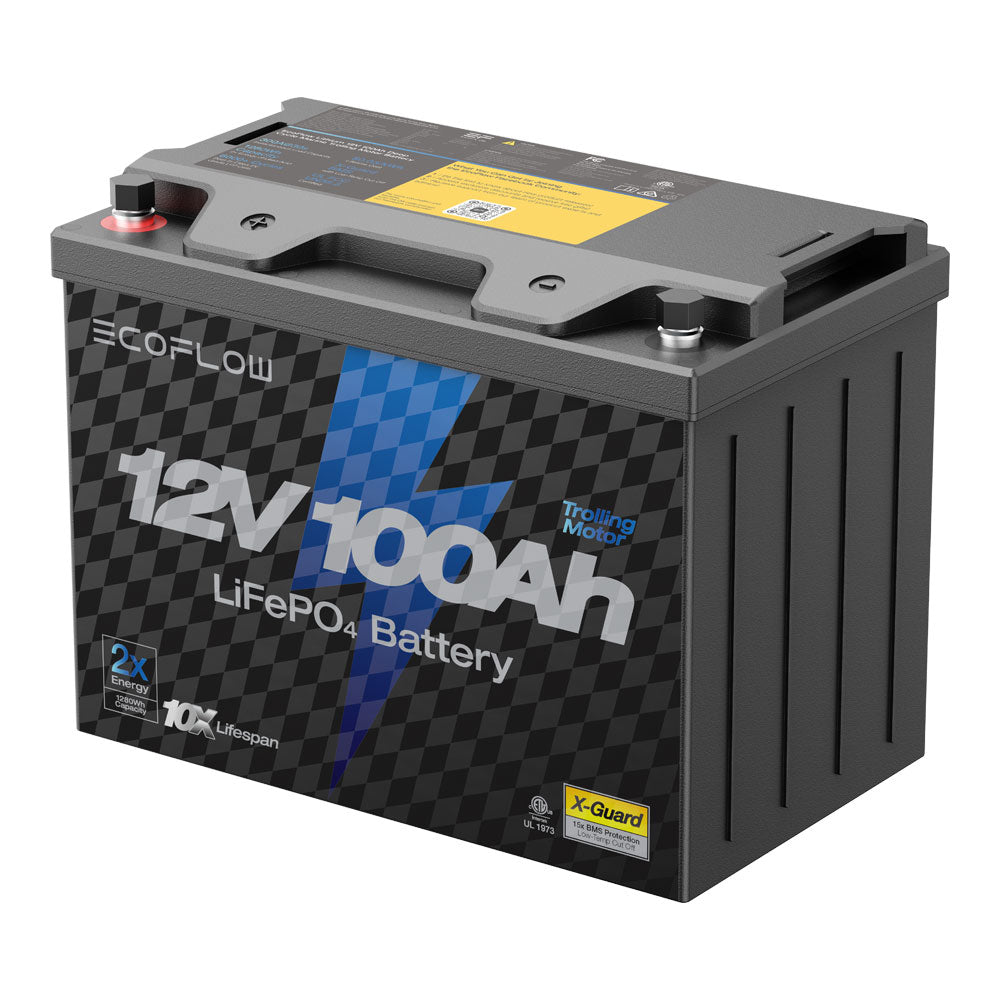

ECOFLOW 12V 100AH LITHIUM DEEP CYCLE MARINE AND TROLLING MOTOR BATTERY

Features

• Optimised for Trolling Motors - Ideal for 13.6~31.8kg trolling motors
• High Instantaneous Output - 300A @30s output current for smoother and more precise trolling motor control
• 1280Wh Energy Capacity - Supports 1280W continuous output performance
• EV-Grade LiFePO4 Cells - Best-in-class LFP cells with 6000+ charge cycles
• Certified Safety Standards - UL1973, FCC, UN38.3 and RoHS certified
• Lightweight High-Energy Design - Up to 50% less weight and 50% more energy compared to lead-acid batteries
• IP65 Waterproof Rating - Suitable for demanding outdoor and marine environments
• X-Guard BMS Protection - Intelligent battery management with low-temperature cut-off protection
• UL5VA Flame-Retardant Casing - Enhanced durability and safety protection

Specifications

• Cell Type: LiFePO4
• Nominal Voltage: 12.8V
• Rated Capacity: 100Ah
• Energy Capacity: 1280Wh
• Max. Continuous Output Power: 1280W
• Max. Continuous Discharge Current: 100A
• Max. Discharge Current: 300A @30s
• BMS Rating: 100A
• Max. Continuous Charge Current: 100A
• Recommended Charge Current: 50A 0.5C
• Charge Voltage: 14.4V ±0.2V
• Charge Method: CC/CV
• Cycle Life: 6000 Cycles @80% DOD
• Max. Expansion: 4P4S, 2S8P
• Charge Operating Temperature: 0~55°C
• Discharge Operating Temperature: -10~55°C
• Storage Temperature: 0~45°C
• Terminals: M8 Bolts
• Protection Class: IP65
• Weight: 12.1kg
• Dimensions: 290 x 175 x 220mm
• Certifications: IEC62619, UL1973
