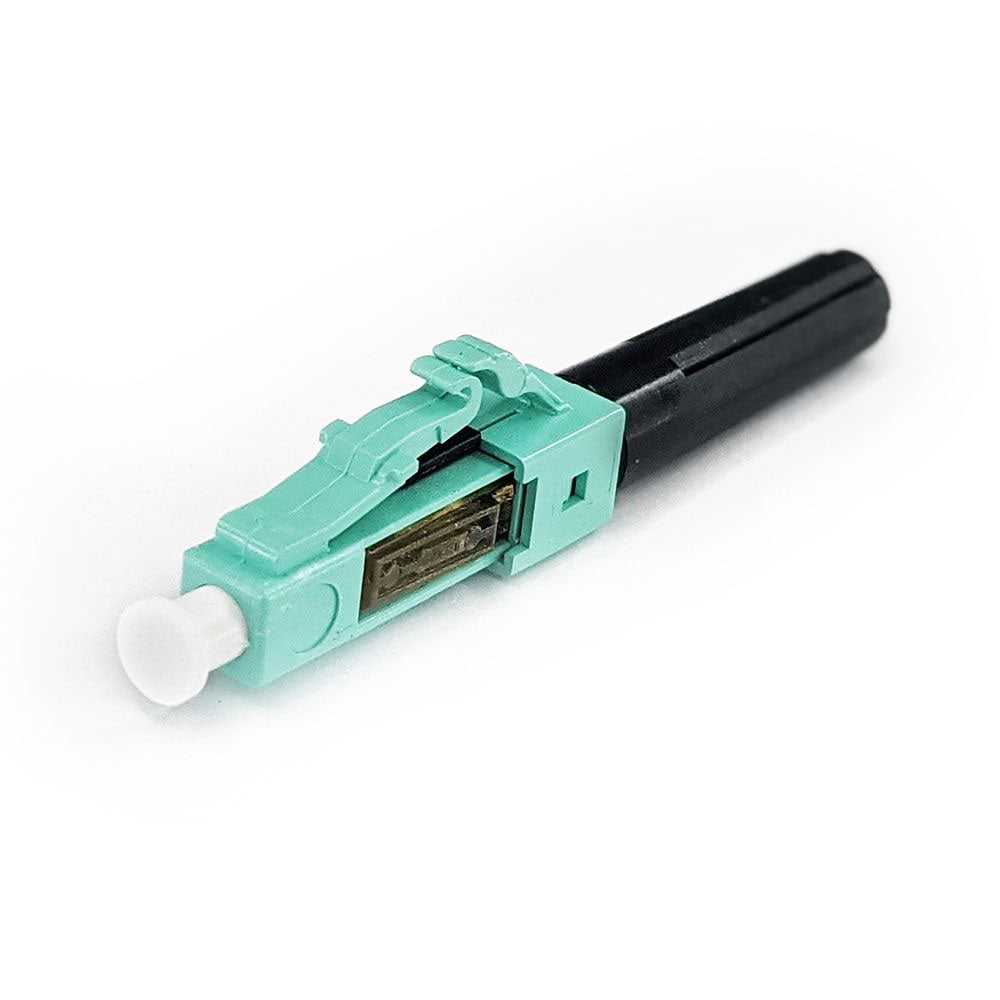

EASYFIBER FIELD-ASSEMBLY LC SIMPLEX MULTIMODE 50/125 OM3/OM4 FIBRE CONNECTOR - AQUA

Features

• LC Type Connector - Standard LC interface for reliable multimode fibre connections
• Field-Assembly Design - Enables fast, on-site fibre termination without specialised tools
• Tool-Free Installation - No epoxy, crimping or polishing required for quick deployment
• One-Click Termination - Built-in button ensures secure and simple fibre locking
• Multimode Fibre Support - Designed for OM2, OM3 and OM4 applications
• 2.0mm Zip-Cord Compatibility - Optimised for precise alignment with 2.0mm cable
• Pre-Polished UPC Ferrule - Delivers consistent low-loss optical performance
• Self-Centring Alignment - Precision groove ensures accurate fibre positioning and reduced signal loss
• Verification Window - Built-in visual check confirms correct fibre insertion
• Rapid Installation - Typical termination time of around 2 minutes
• Reusable Connector - Supports multiple re-terminations for added flexibility
• Multimode Aqua Finish - Easy identification for OM3 and OM4 applications

Specifications

Physical

• Connector Type: LC
• Fibre Type: Multimode (OM2, OM3, OM4)
• Cable Type: 2.0mm Zip-Cord
• Termination Strength: 28.9N Sustained Tension

Performance

• Insertion Loss: Typical 0.3dB, Maximum 0.5dB
• Return Loss: UPC ≥50dB

Build

• Ferrule: Zirconia
• Body Material: Ultem Plastic
• Alignment: Internal Index Matching Gel

Compliance

• Certifications: RoHS, IEC 61754-20

Shipping Dimensions

• Length: 5 cm
• Width: 1 cm
• Height: 1 cm
• Weight: 0.10 kg
