EZVIZ H8C 3MP PT WIFI CAMERA - E-H8C3MP
H8c
Pan & Tilt Wi-Fi Camera
Specifications
Model: Model CS-H8c (1080P)
Camera
Image Sensor: 1/2.7 Progressive Scan CMOS
Shutter Speed: Self-Adaptive Shutter
Lens: 4mm @ F2.0, Viewing Angle: 46° (Vertical), 89° (Horizontal), 104° (Diagonal) 6mm @ F2.0, Viewing Angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal)
PT Angle: Pan: 350°, Tilt: 80°
Minimum Illumination: 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ Laboratories)
Lens Mount: M12
Day & Night: IR-Cut Filter with Auto-Switching
DNR: 3D DNR
WDR: Digital WDR
Night Vision Distance: 30 m / 98 ft
Video & Audio
Max. Resolution: 1920 × 1080
Frame Rate: Max: 30fps; Self-Adaptive during Network Transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Full HD; Hi-Def; Standard. Adaptive Bit Rate.
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 2 Mbps
Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz - 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Transmission Rate: 11b: 11 Mbps,11g: 54 Mbps,11n: 72 Mbps
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Storage
Local Storage: MicroSD Card Slot (Up to 512GB)
Cloud Storage: EZVIZ Cloud Storage (Subscription Required)
Function
Smart Alarm: AI-Powered Human Shape Detection
Customized Alert Area Supports
Two-way Talk: Supports
General Function: Anti-Flicker, Dual-Stream, Heartbeat, Password Protection, Watermark
General
Operating Conditions: -30 °C to 50°C ( -22 °F to 122 °F), Humidity 95% or less (Non-Condensing)
IP Grade: Weatherproof Design
Power Supply: DC 12V / 1A
Power Consumption: MAX. 12W

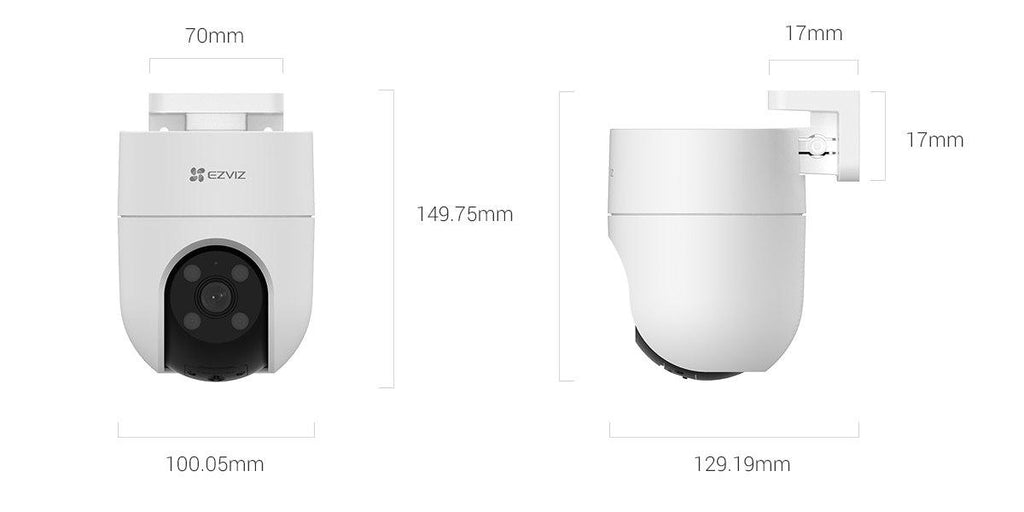

Dimensions: 100.05 × 129.19 × 149.75 mm (3.94 × 5.09 × 5.9 inch)
Packaging Dimensions: 140 × 140 × 192 mm (5.51 × 5.51 × 7.56 inch)
Weight (With package): 730 g (25.75 oz)
Net Weight: 420 g (14.8 oz)
In The Box
H8c Camera
Drill Template
Screw Kit
Waterproof Kit
Power Adapter
Regulatory Information
Quick Start Guide
Certifications: CE / FCC / UKCA / UL / WEEE / RoHS / REACH
