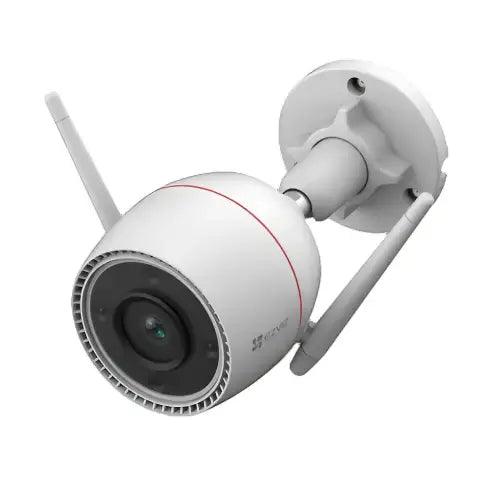

EZVIZ H3C 2K 3MP WIFI CAM - E-H3C3
H3c 2K
Wi-Fi Smart Home Camera
Specifications
Model: CS-H3c-R100-1K3WKFL
Camera
Image Sensor: 1/2.7 Progressive Scan CMOS
Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
IR Night Vision Distance: Up To 98 ft / 30 m
Shutter Speed: Self-Adaptive Shutter
Lens: 4mm @ F2.0, View Angle 82 (Horizontal), 98 (Diagonal)
Lens Mount: M12
DNR: 3D DNR
WDR: Digital WDR
Day / Night Switch: IR-Cut Filter With Auto-Switching
Video & Audio
Max. Resolution: 3MP, 2304 × 1296
Frame Rate: Max: 30fps; Self-Adaptive During Network Transmission
Video Compression: H.265 / H.264
Video Bit Rate: Quad HD; Hi-Def; Full HD; Standard. Adaptive Bit Rate
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 1.5 Mbps
Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz - 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network
RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Function
Detection: Human Shape Detection, Motion Detection
Customized Alert Area: Supports
Integration: Works with Alexa, Google Assistant, IFTTT
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Storage
Local Storage: Supports MicroSD Card (Up To 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay Storage (Subscription Required)
General
Operating Conditions: -30 °C to 50°C ( -22 °F to 122 °F ), Humidity 95% Or Less (Non-Condensing)
IP Grade: IP67
Power Supply: DC 12V / 1A
Power Consumption: MAX. 9W
Dimensions: 72 × 72 × 157 mm (2.83 × 2.83 × 5.98 Inch)
Packaging Dimensions: 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 Inch)
Weight (With Package): 539 g (19.01 oz)
Net Weight: 330 g (11.64 oz)
In The Box
H3c 2K Camera
Drill Template
Screw Kit
Waterproof Kit
Power Adapter
Regulatory Information
Quick Start Guide
Certifications: CE / FCC / UKCA / UL / WEEE / RoHS / REACH
