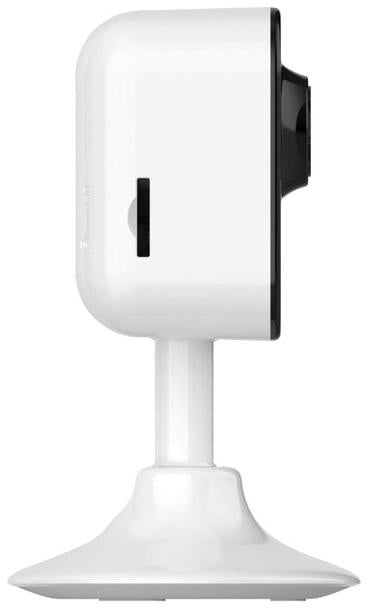

EZVIZ H1C 1080P HOME SECURIT - E-H1C
H1C Type C
Smart Home Wi-Fi Camera
Specifications
Model: CS-H1c
Camera
Image Sensor: 1/3 Progressive Scan CMOS
Shutter Speed: Self-Adaptive Shutter
Lens: 2.8mm, View Angle:108°(Diagonal), 91° (Horizontal), 50°(Vertical)
Minimum Illumination: 0.5 Lux @ (F2.2, AGC ON), 0.1 Lux with IR
Lens Mount: M12
Day & Night: IR-Cut Filter with Auto-Switching
DNR: 3D DNR
IR Night Vision Distance: Up to 32 ft / 10 m
Video & Audio
Max. Resolution: 1920 × 1080
Frame Rate: Max: 25 fps; Self-Adaptive during Network Transmission
Video Compression: H.264
H.264 Type: Main Profile
Video Bit Rate: HD; Standard. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 1 Mbps
Function
Smart Alert: Motion detection
Two-Way Talk: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Network
Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz - 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Storage
Local Storage: Supports MicroSD Card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay Storage (subscription required)
General
Operating Conditions: -10 ºC - 45 ºC (14 °F - 113 °F ), Humidity 95% or less (non-condensing)
Power Supply: DC 5V / 1A
Power Consumption: MAX. 3.0 W
Dimensions: 53.89 × 53.89 × 90.3 mm (2.12 × 2.12 × 3.56 inch)
Packaging Dimensions: 91.5 × 87.5 × 149 mm (3.60 × 3.44 × 5.87 inch)
Net Weight: 87 g (3.07 oz)
Weight: (With Package) 305 g (10.76 oz)
In The Box
H1c Camera
Power Adapter
2-Meter Power Cable
Foam Sticker
Metal Plate
Regulatory Information
Quick Start Guide
Certifications: CE/RoHS/WEEE/REACH
