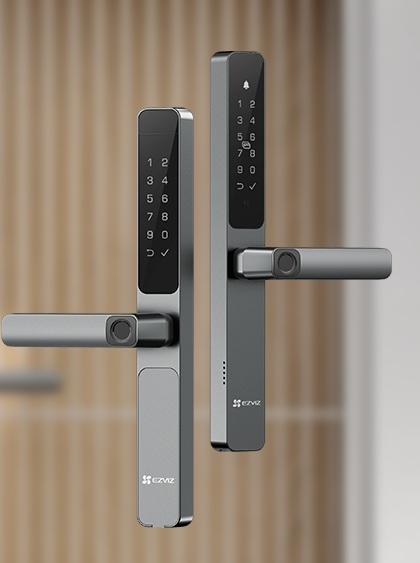

SMART DUAL-SIDED FINGERPRINT LOCK - E-DL06P
EZVIZ
DL06 Pro
Double Protection, Twice The Convenience
Specifications
Model:CS-DL06-R101-WBCP-GR(M)
Specification
Panel Material: Aluminum Alloy
Panel Size: 331 × 40 × 25.8 mm
Color: Metallic Grey
Lock Body Type: Lift-Up Lock Body
Lock Cylinder: 2885 / 3585
Weatherproof: IP65 (Front & Rear Panel)
Emergency Charging: Type-C
Working Power: 1,450 mAh Rechargeable Lithium Battery
Technical Specification
Unlocking Method: Fingerprint, Passcode, Proximity Card, Mechanical Key
Bluetooth Remote Control, Bluetooth Key Via EZVIZ App, Temporary Codes, Remote Unlock
User Capacity: 50 Pcs
Fingerprint Capacity:50 Pcs
Passcode Capacity: 50 Pcs
Card Capacity: 50 pcs
Communication Methods: 2.4GHz Wi-Fi, Bluetooth
Temporary Access Codes: Supports
Anti-Peeping Codes: Supports, Max. 20 Digits
Low Battery Warning: Supports
Privacy Mode: Supports
User Management: Supports
Real Time Notification: Supports
Anti-Test Locking: Supports, Enter Error 5 Times Within 5 Min, Locking 3 Min
Anti-Tamper Alarm: Supports
Remote Control: Supports
Supported Door Thickness: 30-110 mm
Working Temperature: -25°C~70°C
Operating Humidity: 10% - 95%
In The Box
DL06 Pro Front Panel
DL06 Pro Rear Panel
Hole Templet
Lock Body
Standard Screw Bag
Lithium Battery
Mechanical Key × 2
Square Rod
Proximity Card × 2
Screwdriver
Regulatory Information
Quick Start Guide
Certifications: CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE
