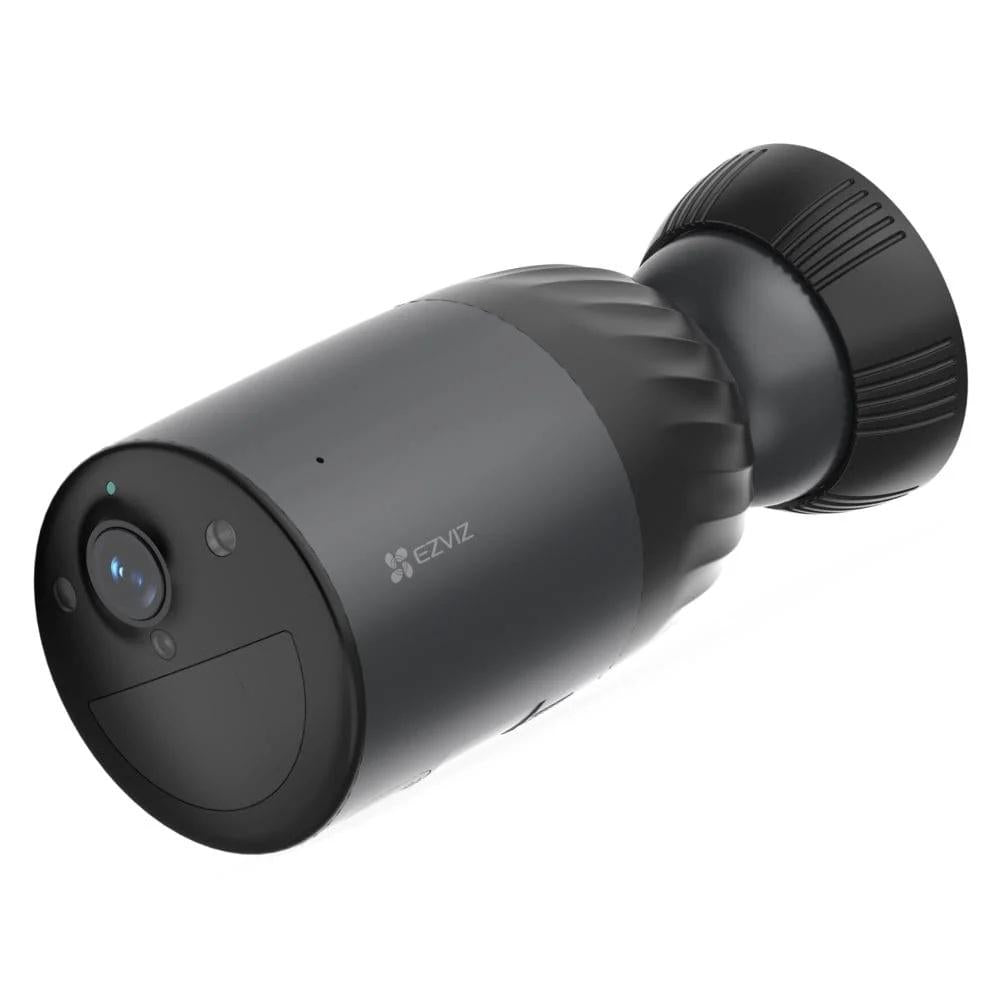

EZVIZ BC1C 4K WIFI KIT INCL SOLAR PANEL - E-BC1CSP4
BC1c 4K + Solar Charging Panel-F
Smart Home Battery Camera Kit
All-Day Recording with Always-On Video Mode
Specifications
Model: CS-BC1c-R100-2F8WFL
Camera
Image Sensor: 1/2.7 8-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed: Self-adaptive Shutter
Lens: 2.8mm@ F1.6; 135° (Diagonal), 113° (Horizontal), 60° (Vertical)
Day & Night: IR-Cut Filter With Auto-Switching
DNR: 3D DNR
Night Vision: IR Distance:15m
Color Night Vision Distance:15m
Video & Audio
Max. Resolution: 3840 x 2160/4K/8MP
Frame Rate: 15fps. Self-Adaptive During Network Transmission
Video Compression: H.265 / H.264
Video Bit Rate: Ultra HD; Quad HD; Full HD; Hi-Def Adaptive Bit Rate
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 4 Mbps
Network
Bluetooth: Supports
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ax
Frequency Range: 2.4 GHz - 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: WPA-PSK/WPA2-PSK, WPA3-Personal
Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement: 8Mbps
Function
Smart Alarm: AI-Powered Human Shape Detection, AI-Powered Vehicle Detection
Two-Way Talk: Supports
General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark
General
Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F ), Humidity 95% Or Less (Non-Condensing)
IP Grade: IP65
Power Supply: DC 5V/2A (Compatible Power Adapter Needs To Be Purchased Separately)
Battery Capacity: 10400 mAh
Power Consumption: Max. 10W
Product Dimensions: 149.33 x 62.95 x 62.95 mm
Packaging Dimensions: 103 x 103 x 186 mm
Weight
Net Weight: 348g
With Package: 671g
Specifications
Model: CS-CMT-Solar Panel-F
Performance Parameter
Power Voltage: 6.36V±5%
Max. Power Current: 660mA±5%
Max. Power: 4.2W
Solar Cell Efficiency: 21.6%
Operation Temperature
-20~60 (-4~140),Humidity 90% Or Less (Non-Condensing)
(The Working Environment Temperature Range For Battery Camera Charging Should Be Maintained At 0-45°C )
IP Grade: IP65
Mechanical Data
Solar Cell Type: Monocrystalline Solar Cells
Product Dimensions: 216.25 × 149.58 × 2.4 mm (8.51 × 5.89 × 0.09 inch)
Packaging Dimensions: 230 × 161 × 78 mm (9.06 × 6.34 × 3.07 inch)
Weight With Package: 611 g (21.5 oz) Panel body without bracket: 334 g (11.78 oz)
In The Box
EZVIZ Solar Panel-F
EZVIZ BC1c Camera
Magnetic Base
Adjustable Mounting Bracket
Screw Base
USB Cable
Screw Kit x
Drill Template x 2
Regulatory Information
Quick Start Guide
Pin
Certifications: CE / WEEE / ROHS / REACH
