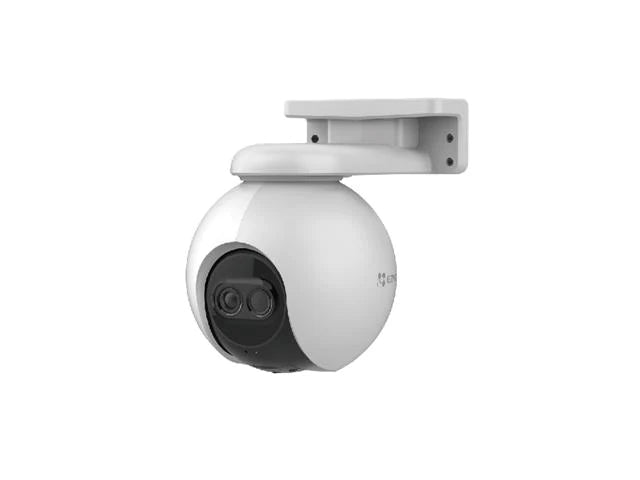

With the award-winning C8PF, you will never miss the bigger picture while also seeing what’s important – down to every detail. This pan-tilt-zoom camera features advanced dual-lens technologies to fulfill unprecedented 8× mixed zoom for home protection, and provides a picture-in-picture video display mode of both wide and close-up views.
Camera
- Image Sensor : Dual-1/2.7" Progressive Scan CMOS
- Minimum Illumination : 0.05Lux @ (F1.6 AGC ON), 0 Lux with IR
- Shutter Speed : Self-adaptive shutter
- Lens : 2.8 mm @ F1.6 + 12 mm @ F1.6
- PT Angle : Pan: 340°, Tilt: 80°
- Lens Mount : M12
- Day & Night : IR-cut filter with auto-switching
- DNR : 3DDNR
- WDR : Digital WDR
- BLC Supports
- Black & White Night 30 m/ 98 ft
Video & Audio
- Max Resolution : 1920 × 1080
- Frame Rate : Max. 15fps, self-adaptive during network transmission
- Video Compression : H.265 / H.264
- H.265 Type : Main profile
- Video Bit Rate : Full HD; HD; Standard. Adaptive bit rate.
- Audio Bit Rate : Self-Adaptive
- Max. Bitrate : 2 Mbps
Network
- Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n
- Frequency Range : 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth : Supports 20MHz
- Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- Transmission Rate : 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps
- Wi-Fi Pairing : AP pairing
- Protocol : EZVIZ Cloud Proprietary Protocol
- Interface Protocol : EZVIZ Cloud Proprietary Protocol
- Wired Network : RJ45 × 1(10M/100M Adaptive Ethernet Port)
Function
- Smart Alarm : AI-powered human shape detection
- Customized Alert Area : Supports
- Audio : Supports mic
- General Function : Anti-flicker, dual-stream, heart beat, password protection, watermark
Storage
- Local Storage : MicroSD card slot (Max. 512GB)
- Cloud Storage : EZVIZ Cloud Storage
General
- Operating Conditions : -30ºC to 60ºC (14°F to 113°F), humidity 95% or less (non-condensing)
- IP Grade : Weatherproof design
- Dimensions : 154 × 116 × 164 mm (6.06 × 4.57 × 6.46 inch)
- Power Supply : DC 12V / 1A
- Power Consumption : MAX. 12W
- Packaging Dimensions : 197 × 185 × 205 mm (7.76 × 7.28 × 8.07 inch)
- Weight Product:
- 578 g (20.39 oz)
- With package: 938 g (33.09 oz)
