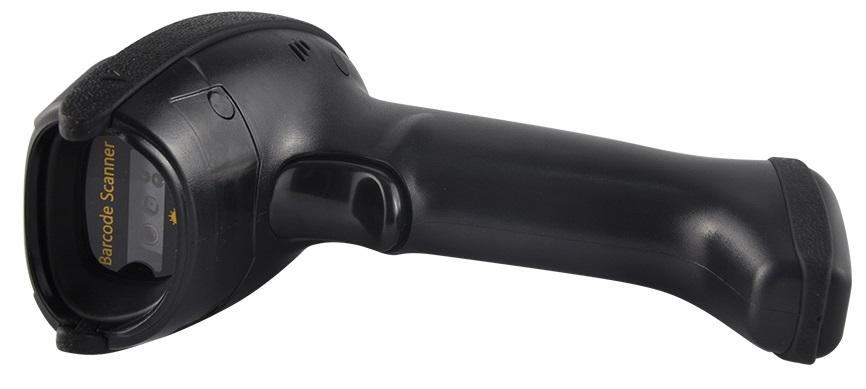

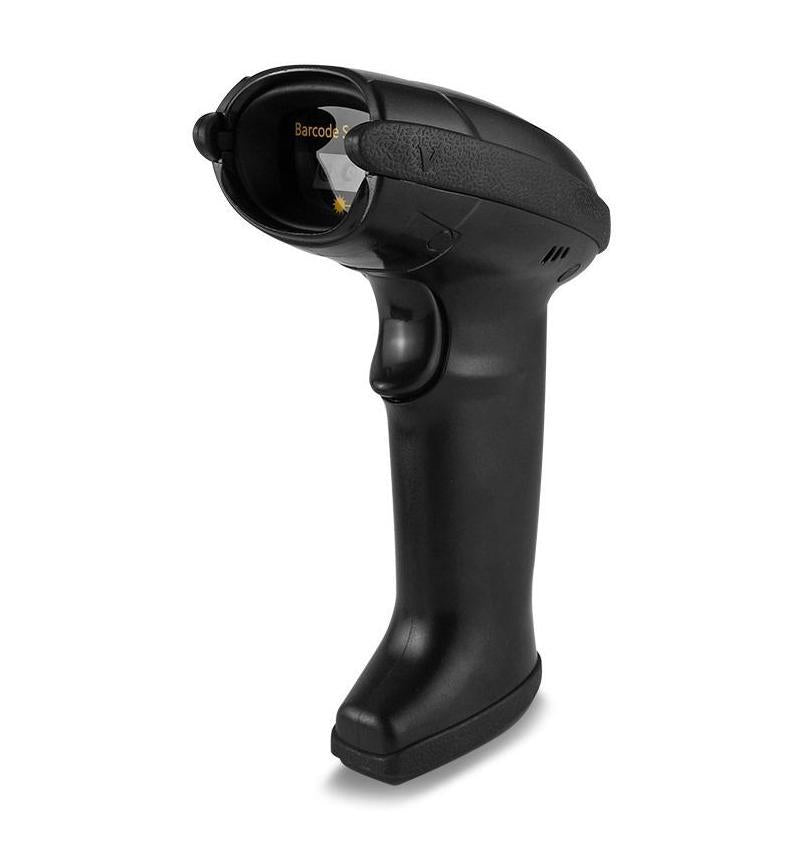

DY BARCODE SCANNER - DS6202B
Product Description
DS6202 is a high-performance 2D barcode scanner with leading CMOS image recognition technology
It can easily read the paper, goods, screen and other media barcodes
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment
Express delivery, inventory management, food traceability, asset inventory, etc
Features
Ergonomic design, comfortable using
Read all the mainstream 1D & 2Dcodes in the market easily
High-performance processor, fast decoding (3mil)
Support interface: USB
Support multiple languages and systems
Interface: USB, Wireless 2.4G Bluetooth
Long tramission distance, intelligent automatic connection when its beyond range
Not manual setting
Widely used in supermarket, warehouse, mobile payment, chain stores
Application
Supermarket
Warehouse
Mobile payment
Retail chain
Courier
Health care
Cable Interface DS6202B scanner must be connected with terminals, PC host, POS and Android host etc.
Performance
Scan Type: CMOS
Light Source: Red light LED 625nm (aiming & Illumination )
CPU: 32-bit
Resolution: 4mil
Decoding speed: 35CM/S
Depth Of Field: 35mm-500mm
Scan Mode: Manual, Auto sense
Scan Angle: Roll360 ,Pitch±60 ,Skew±55 (PCS90%, Code 39,10mil / 0.25mm)
Print Contrast Signal: 20%
Ambient Light: Dark environment , indoor natural light
Wireless communication mode: Synchronization , storage
Wireless transmission distance: 2.4GHz 100m, Bluetooth 30m,(Open distance)
Storage 350Kb:(over 20,000 Product code)
Battery capacity: 2200mAh
Battery charging time: About 7 h
Continuous working time: 15 h
Symbologies: 1D:UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39,Code 32
Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5
(Straight 2 of 5) Codabar (NW-7), MSI, GS1 Databar (Omnidirectional, Limited, Expanded), etc
2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, Maxicode etc
Physical Parameter
Weight: 205g(scanner), 230g(base)(without cable)
Dimension: L175mm x W72mm x H100mm
L200mm * W90mm * H51mm(Communication base)
Interface Type: USB
Communication: USB, Wireless 2.4G, Bluetooth
Power Supply: DC 5V@180mA(work)
Environmental
Operating Temperature: 20 to 50
Storage Temperature: 20 to 60
Humidity: 5% to 95%(non-condensing)
Drop Height: 1.8m
Temp. Test: 30 minutes for high Temp., 30 minutes for low Temp
High Temp. 60
Low Temp. -20
Transport Vibration Test: 10H@125RPM
Accessories List
Cable: USB, Connect The Scanner To A Host Device And Charging
Communication: Used to receive and transmit scanner data
No USB Receiver Included
Stand To Be Connected To Host Device Through USB Cable
