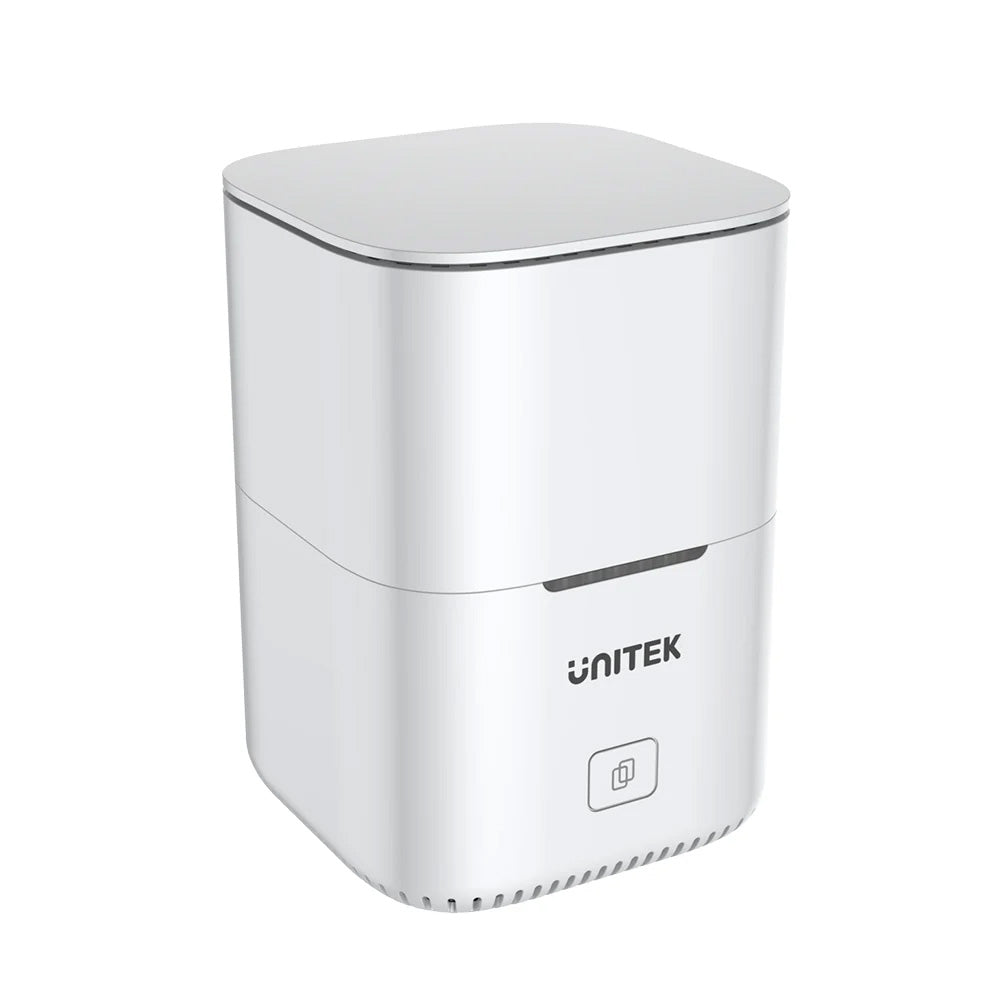

UNITEK S1207A SyncStation Marshmallow M.2 USB3.2 Gen2 Type-C 10Gbps Dual-Bay NVMe SSD Docking Station with Offline Clone
Dual-Drive Access. Standalone Cloning.
The UNITEK S1207A SyncStation Marshmallow M.2 is a dual-bay docking station designed for accessing, managing and duplicating compatible NVMe SSDs. Both drives can be accessed through a USB Type-C connection, while the offline cloning function copies Disk A directly to Disk B without requiring a computer. Its USB3.2 Gen2 host interface supports data-transfer rates of up to 10Gbps, with UASP and TRIM support for efficient drive operation. The station accommodates PCIe Gen4 and Gen3 NVMe SSDs in 2242, 2260 and 2280 sizes. A built-in cooling fan helps control operating temperatures, while the removable dust cover protects installed drives when not in use. Tool-free drive installation, clone-progress indicators and automatic sleep mode provide convenient everyday operation.
Features
- Dual-Bay NVMe Docking - Provides simultaneous computer access to two compatible M.2 NVMe SSDs

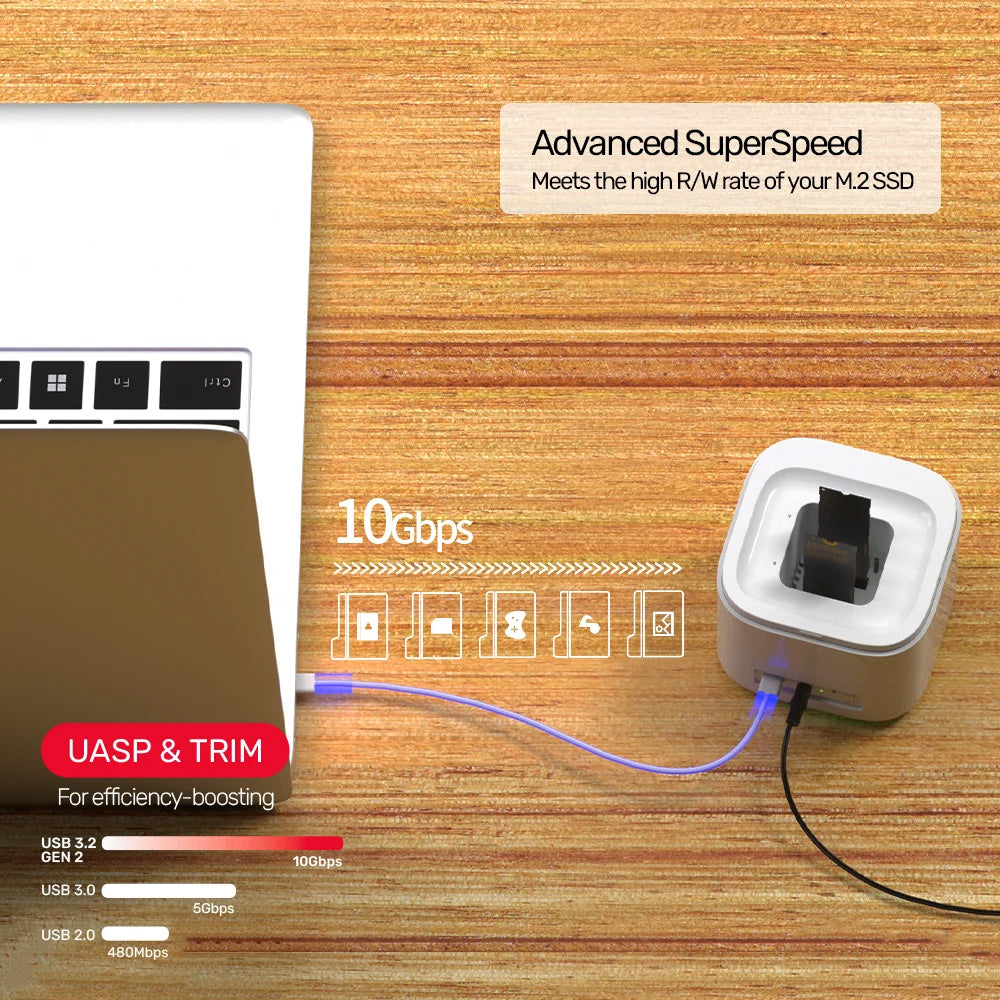

- 10Gbps USB Connectivity - USB3.2 Gen2 host interface supports data-transfer rates of up to 10Gbps

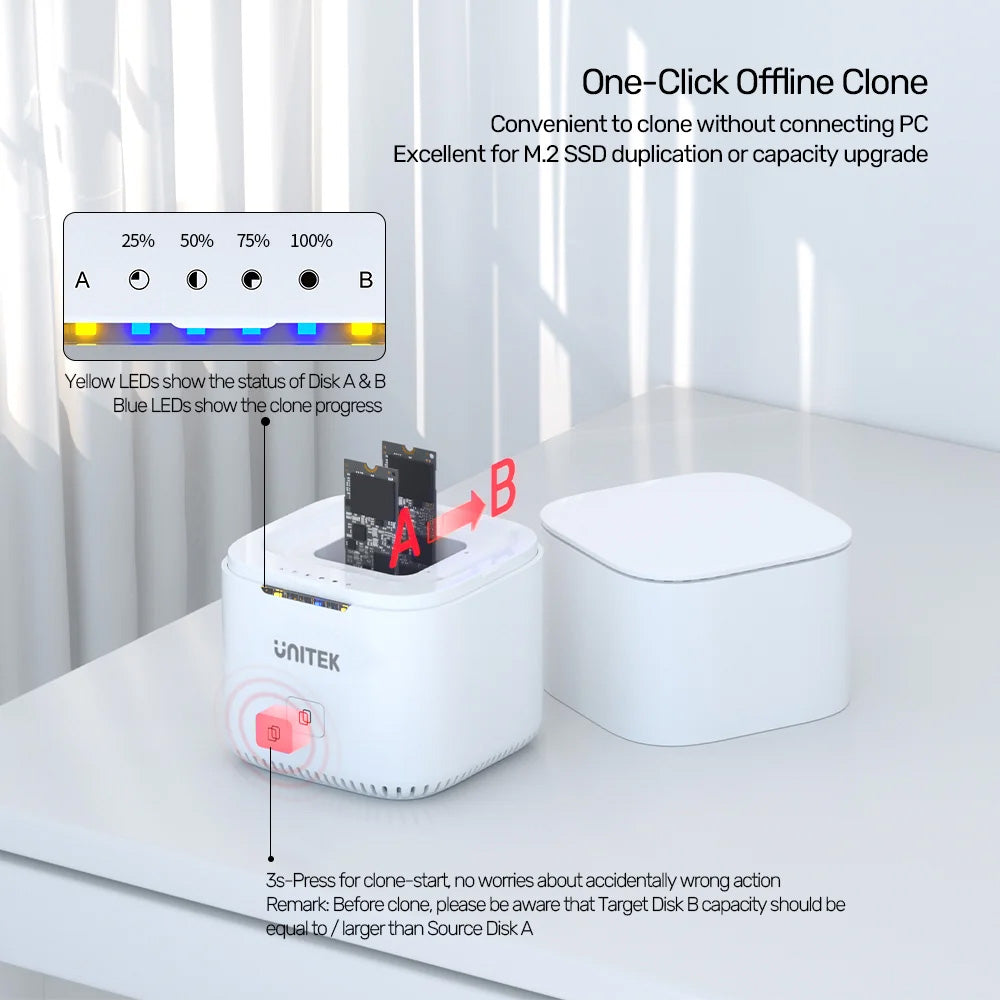

- Offline Drive Cloning - Copies Disk A directly to Disk B without requiring a connected computer
- PCIe NVMe Compatibility - Supports compatible PCIe Gen4 and Gen3 NVMe SSDs
- Multiple M.2 Sizes - Accommodates 2242, 2260 and 2280 M.2 form factors
- UASP and TRIM Support - Helps provide efficient data transfers and compatible SSD management

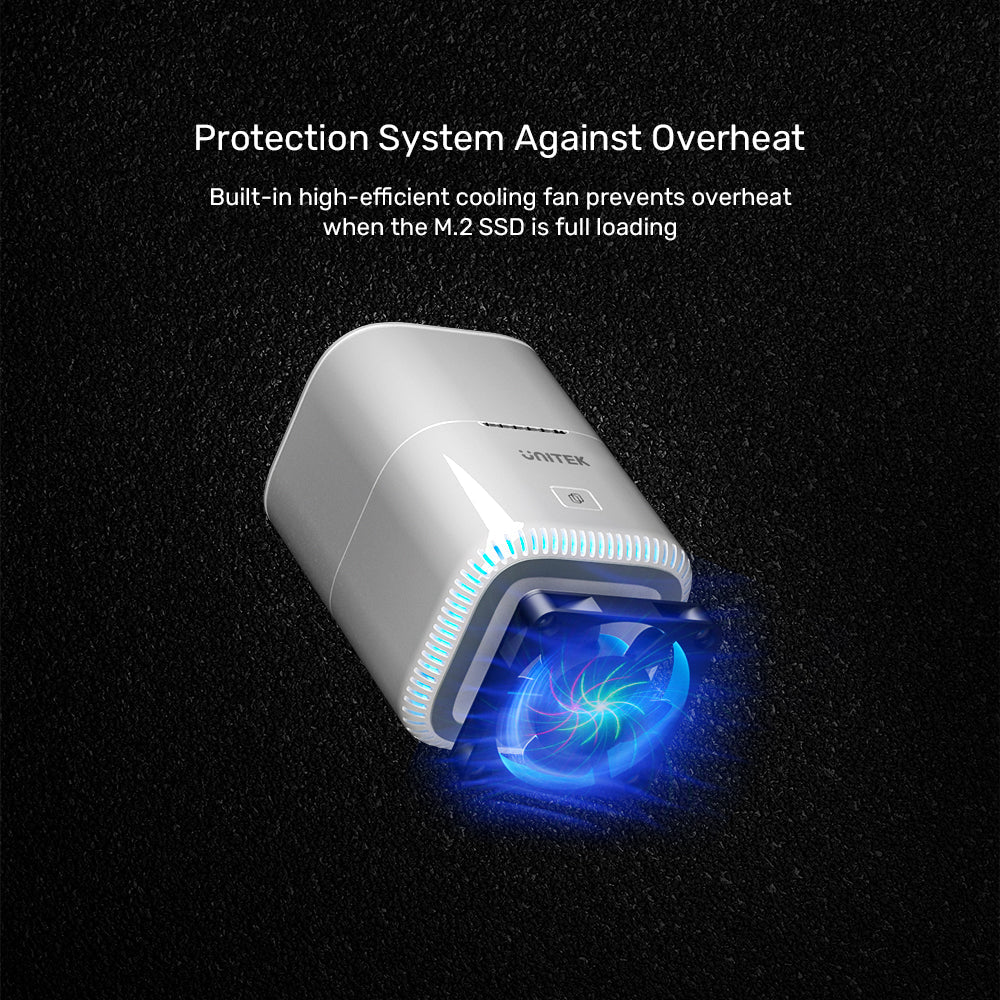

- Built-In Cooling Fan - Promotes airflow around installed SSDs during operation

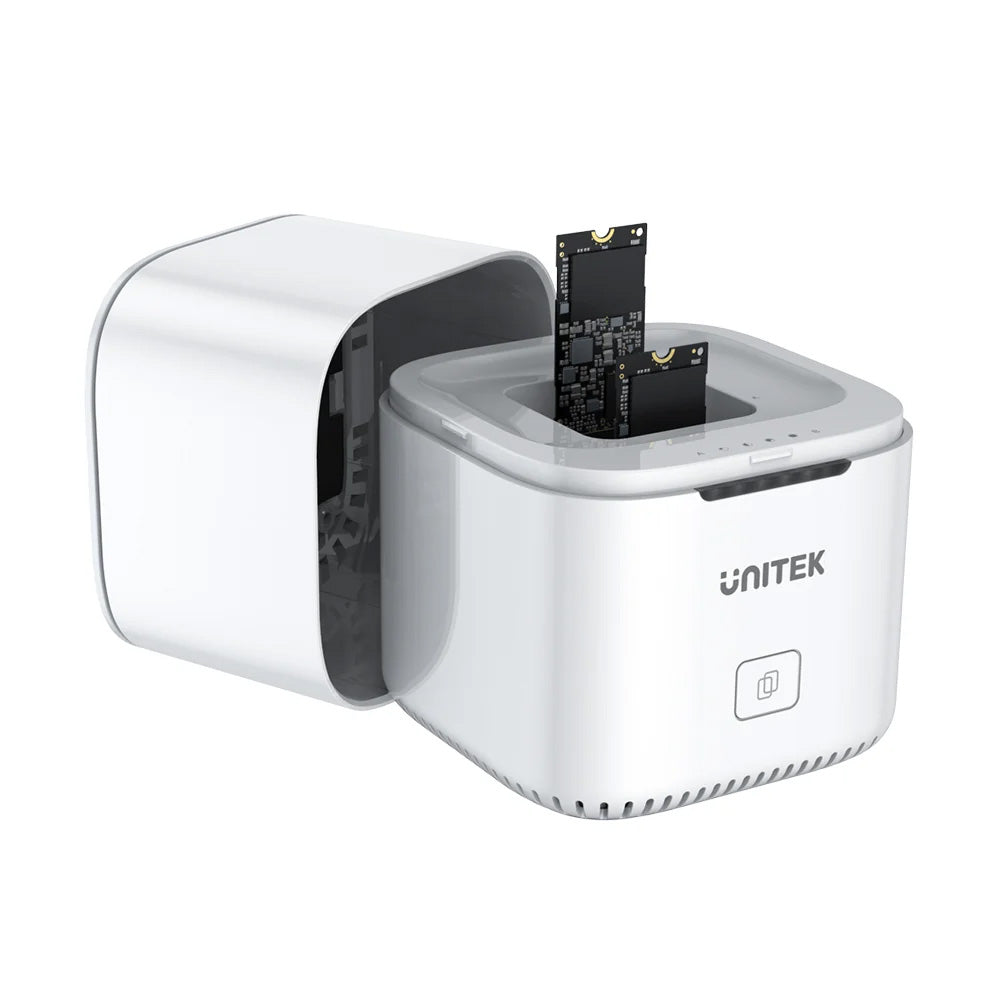

- Tool-Free Installation - Allows compatible drives to be inserted and removed without installation tools
- Clone-Progress Indicators - Displays cloning progress at 25%, 50%, 75% and 100%

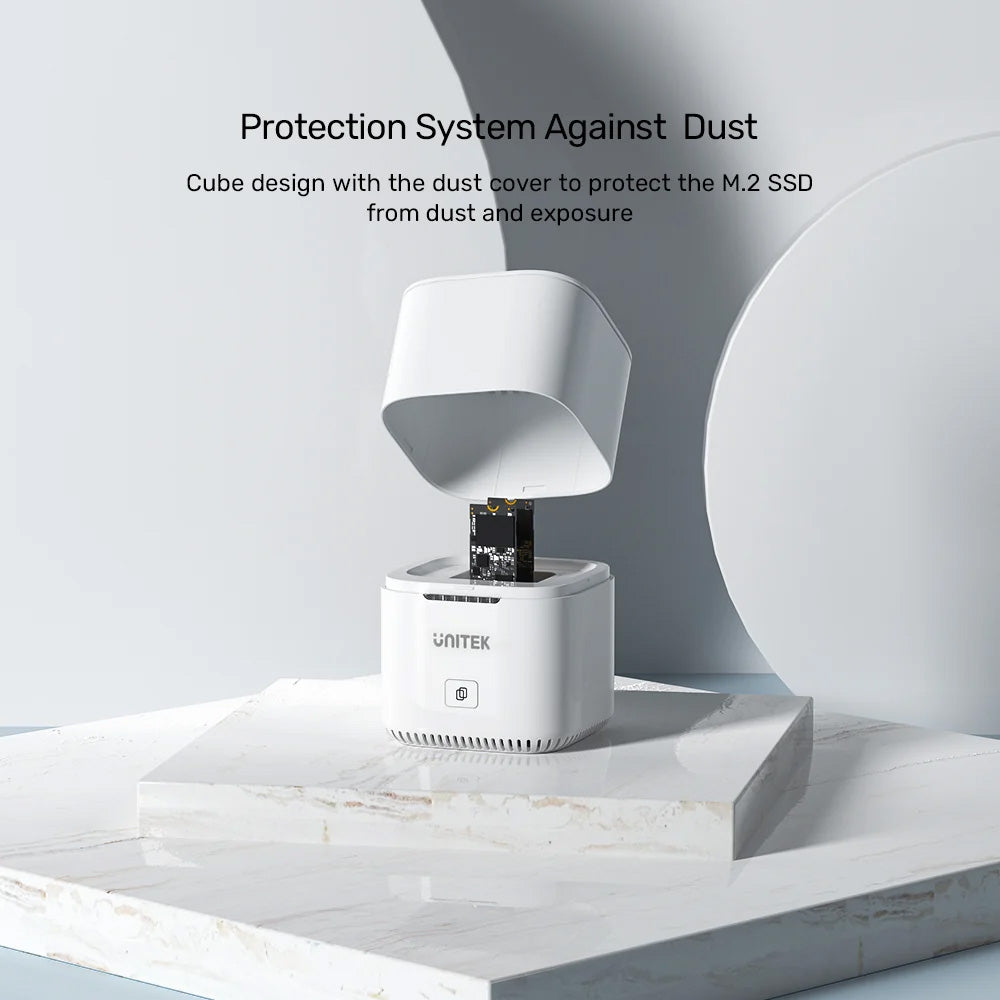

- Protective Dust Cover - Helps reduce dust exposure when the station is not being accessed
- Automatic Sleep Mode - Enters a power-saving state after approximately 30 minutes of inactivity
Specifications
General
- Drive Bays: 2×
- Material: ABS
- Colour: White
Ssd Compatibility

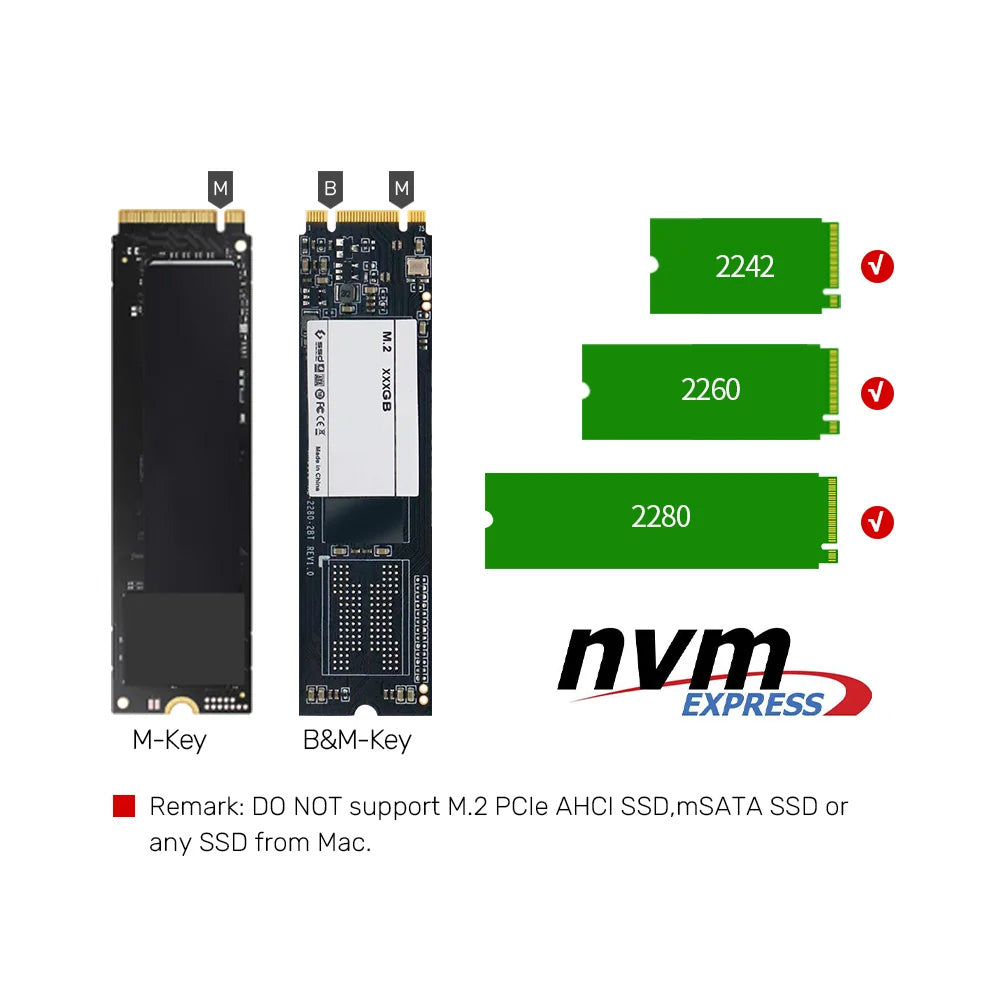

- Supported Drive Type: M.2 PCIe NVMe SSD
- Supported PCIe Generations: PCIe Gen4 and Gen3
- Supported Key Types: M-Key and M+B-Key
- Supported Drive Sizes: 2242, 2260 and 2280
- SATA SSD Support: No
Host Connection
- Host Interface: USB3.2 Gen2
- Docking Station Port: 1× USB Type-C Female
- Maximum Data-Transfer Rate: Up to 10Gbps
- Included Cable: USB Type-C Male to USB Type-C Male
- Cable Length: 1m
- UASP Support: Yes
- TRIM Support: Yes
Offline Cloning
- Clone Mode: Standalone Offline Cloning
- Clone Direction: Disk A to Disk B
- Computer Required: No
- Destination Drive Requirement: Equal to or Larger Than the Source Drive
- Progress Indicators: 25%, 50%, 75% and 100%
Cooling And Controls
- Cooling: Built-In Fan
- Drive Protection: Removable Dust Cover
- Installation: Tool-Free
- Automatic Sleep: After Approximately 30 Minutes of Inactivity

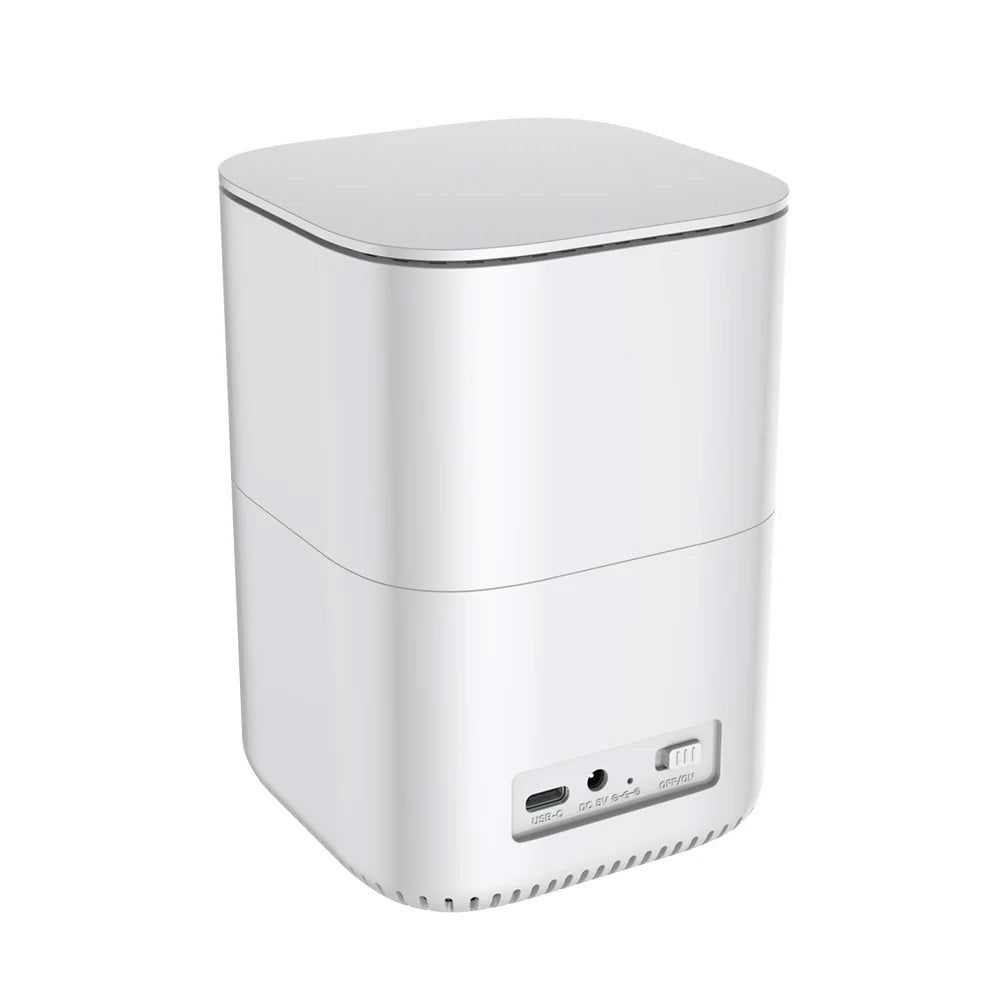

- Controls: Clone Button and Power Switch
- Drive Indicators: Disk A and Disk B Status
- Clone Indicator: Four-Stage LED Progress Display
- Base: Slip-Resistant Silicone Mat
Power
- Power Adapter Input: 100~240V AC, 50/60Hz
- Power Adapter Output: 12V DC 2A, 24W
System Compatibility
- Windows: Windows 10 and Windows 11, 32-bit and 64-bit
- macOS: Mac OS 10.6 or Later
- Linux: Linux Kernel 3.x
Physical
- Dimensions: 93 × 93 × 132mm
Notes
- Compatible with M.2 PCIe NVMe SSDs only; M.2 SATA and AHCI SSDs are not supported
- Offline cloning copies the complete contents of Disk A to Disk B and overwrites existing data on the destination drive
- The destination SSD must have a capacity equal to or greater than the source SSD
- Do not remove an installed SSD or disconnect the power adapter while the station is operating, transferring data or cloning
