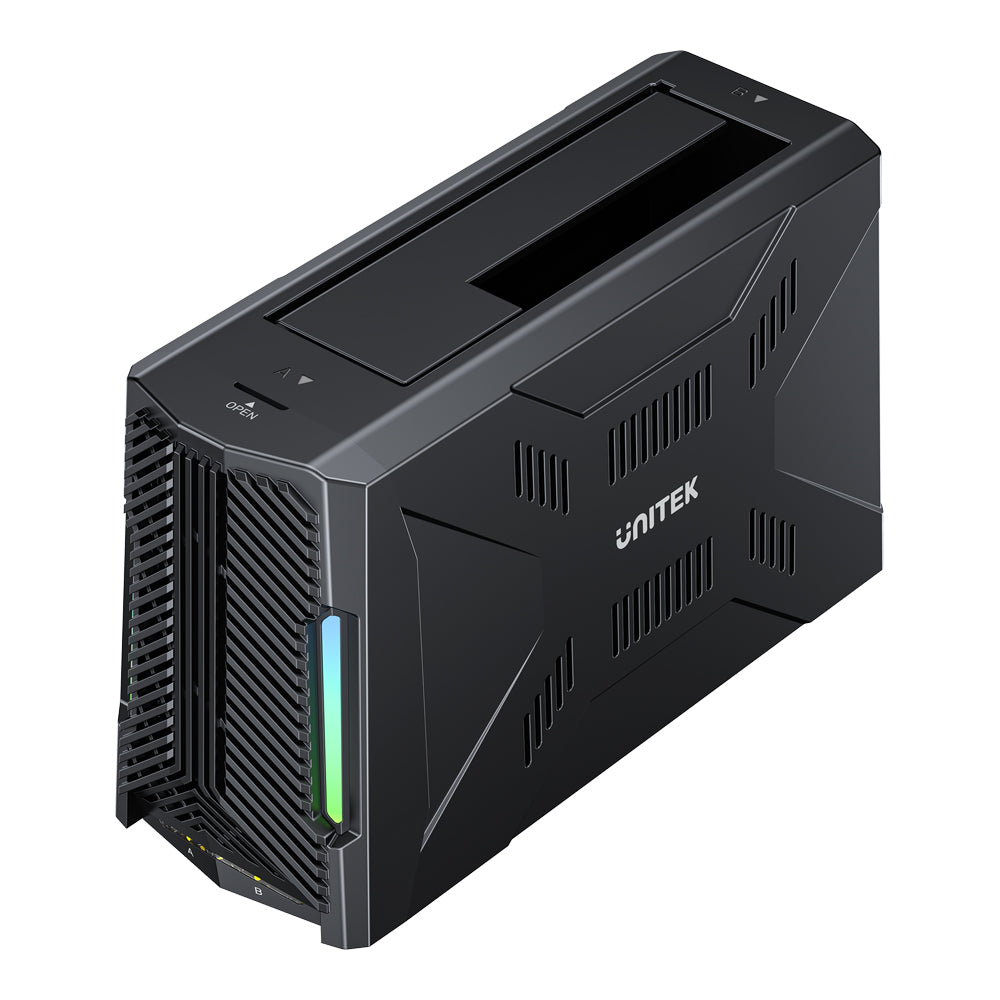

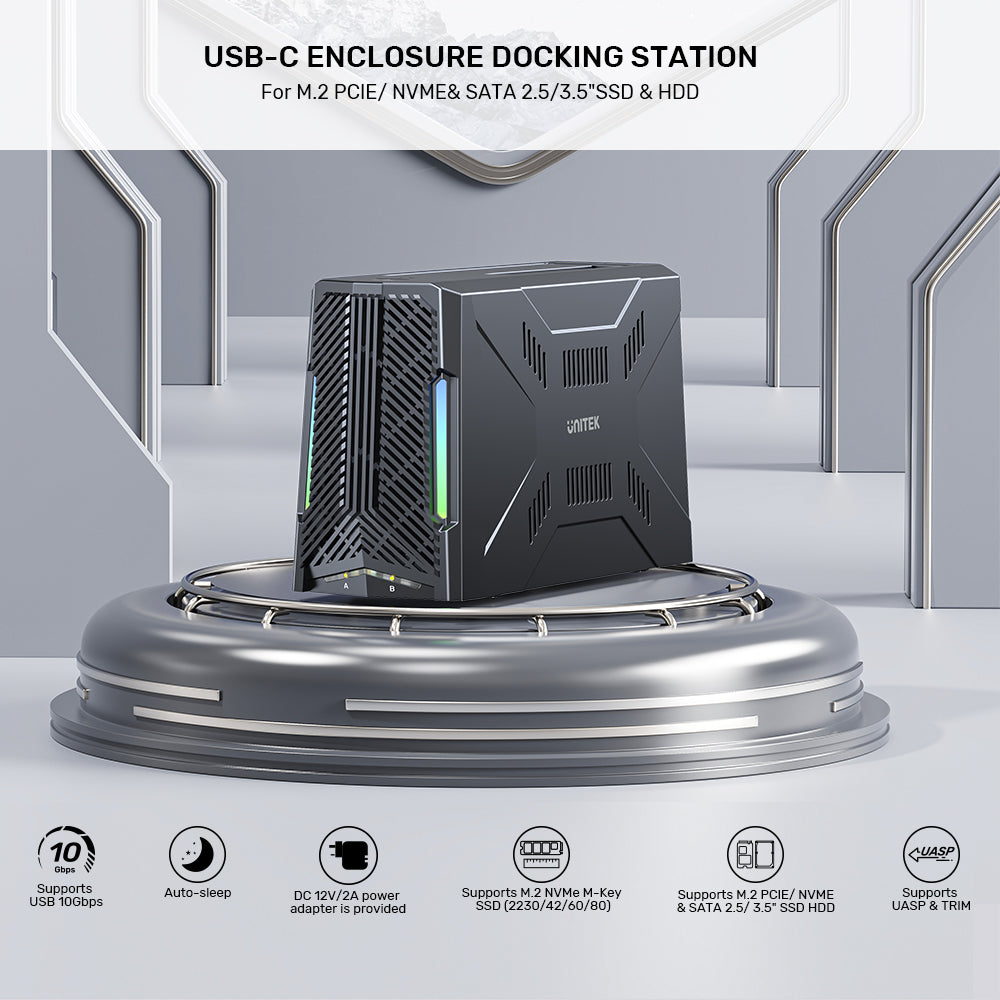

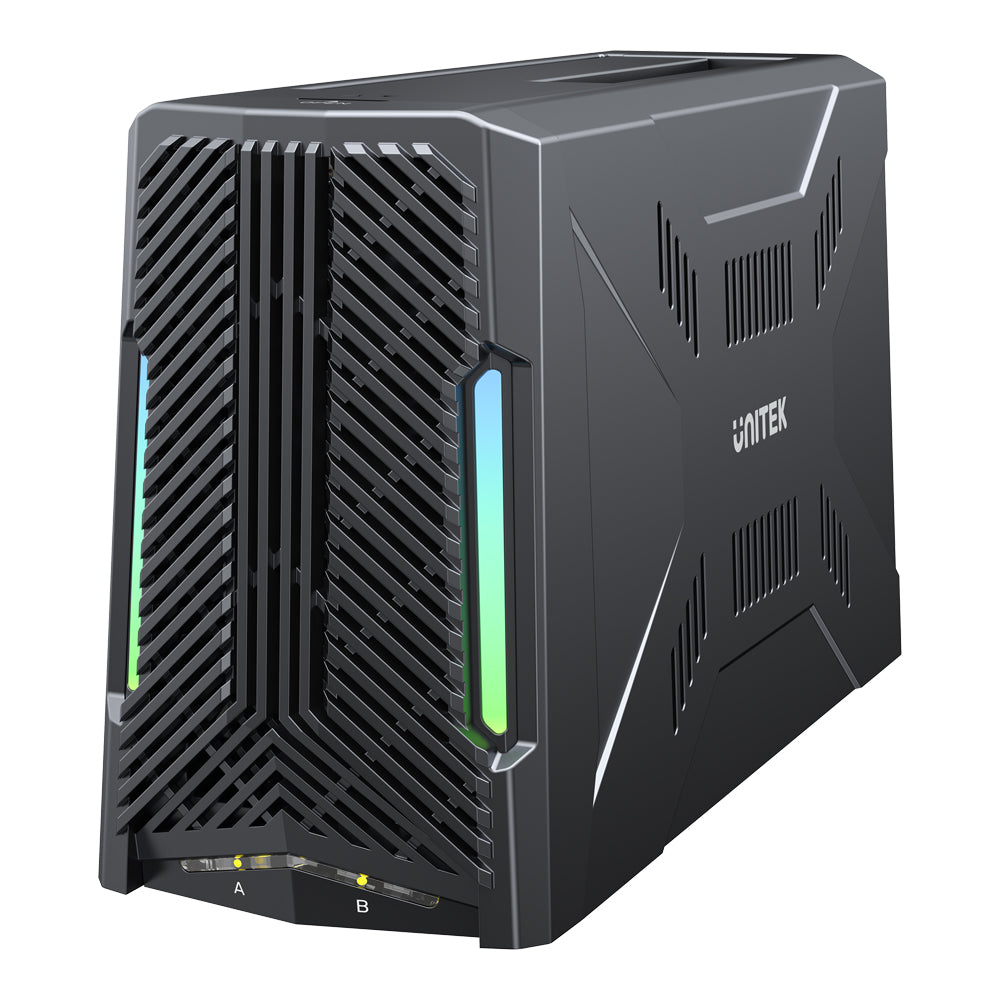

Unitek S1234B USB3.2 Gen2 Type-C 10Gbps M.2 NVMe and 2.5/3.5" SATA HDD/SSD Docking Station
High-Speed Dual-Drive Access for NVMe and SATA Storage.
The Unitek S1234B USB Type-C Docking Station provides convenient access to M.2 PCIe NVMe SSDs and 2.5" or 3.5" SATA HDDs and SSDs through a single USB Type-C connection. Single-drive and dual-drive modes allow both storage interfaces to be accessed simultaneously, making the dock ideal for transferring data, backing up files, upgrading storage and managing multiple drives. USB3.2 Gen2 connectivity supports transfer rates of up to 10Gbps, while the tool-free design, hot-swapping support and driver-free operation simplify everyday use. An intelligent active cooling fan starts automatically when the drive temperature exceeds 45°C, helping control heat during intensive workloads. RGB power lighting, individual drive activity indicators and an automatic sleep mode provide clear status information and efficient operation.
Features

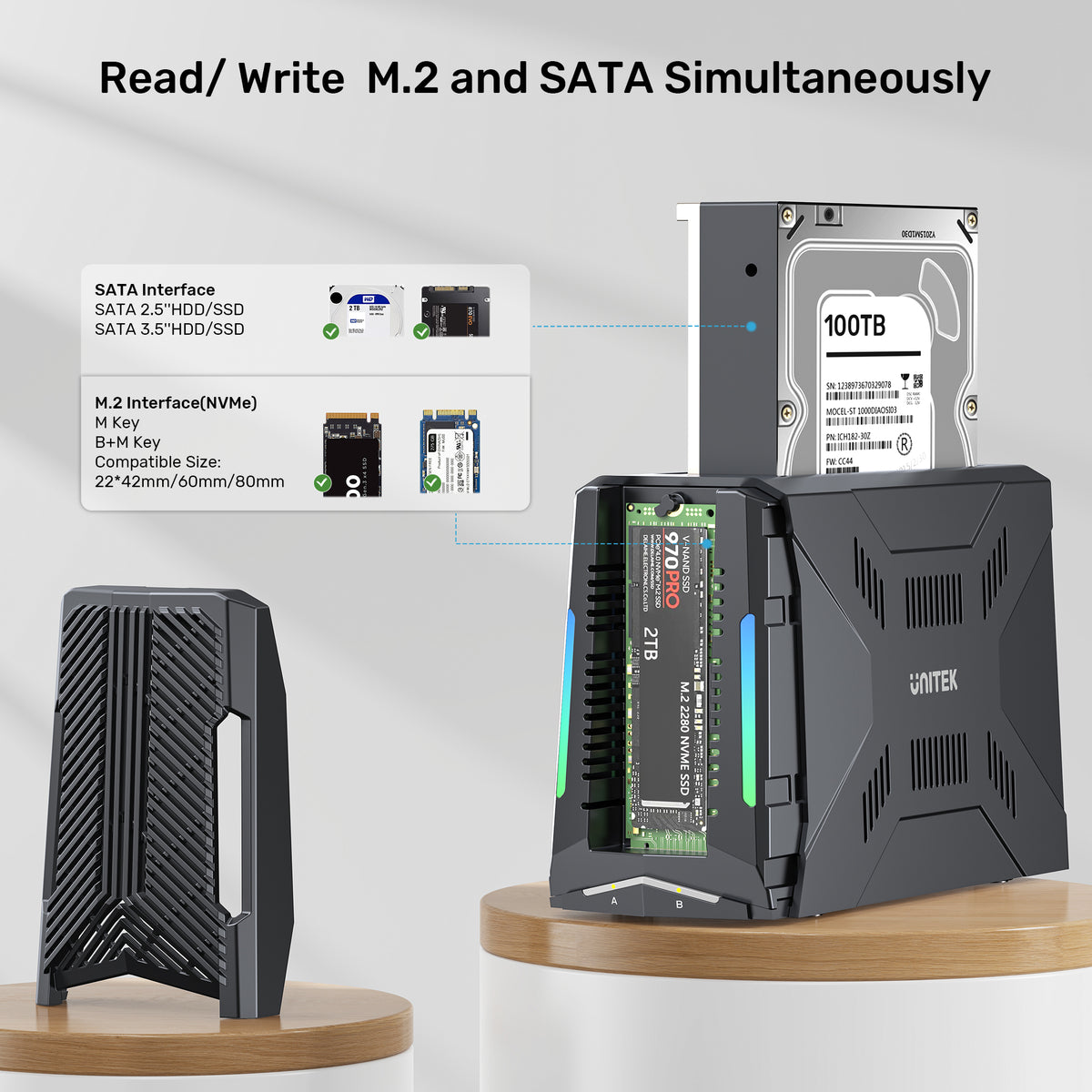

- Dual-Drive Access - Reads and writes M.2 PCIe NVMe and SATA drives simultaneously

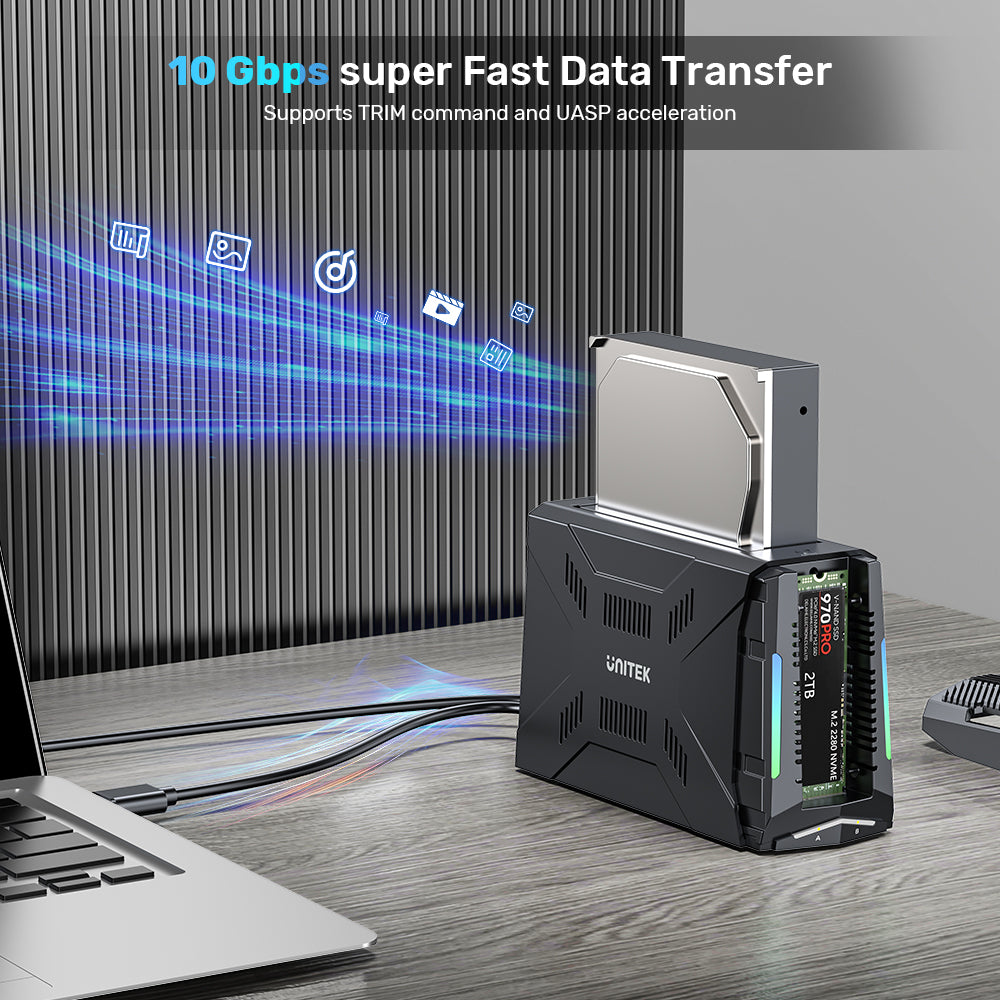

- Up to 10Gbps Data Transfer - USB3.2 Gen2 connectivity supports fast file transfers and storage management
- Broad SATA Drive Support - Accommodates compatible 2.5" and 3.5" SATA HDDs and SSDs
- Multiple M.2 Sizes - Supports 2242, 2260 and 2280 M.2 PCIe NVMe SSDs

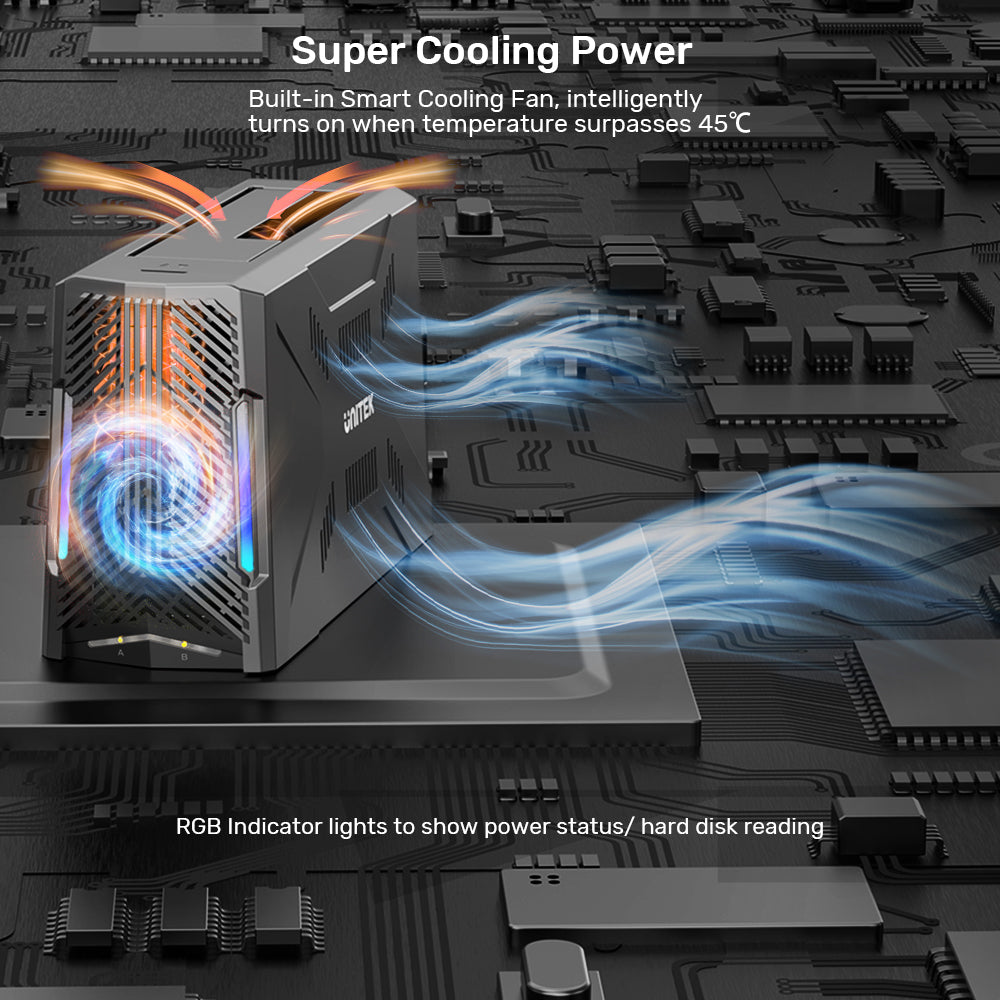

- Intelligent Active Cooling - Integrated fan starts automatically when the drive temperature exceeds 45°C

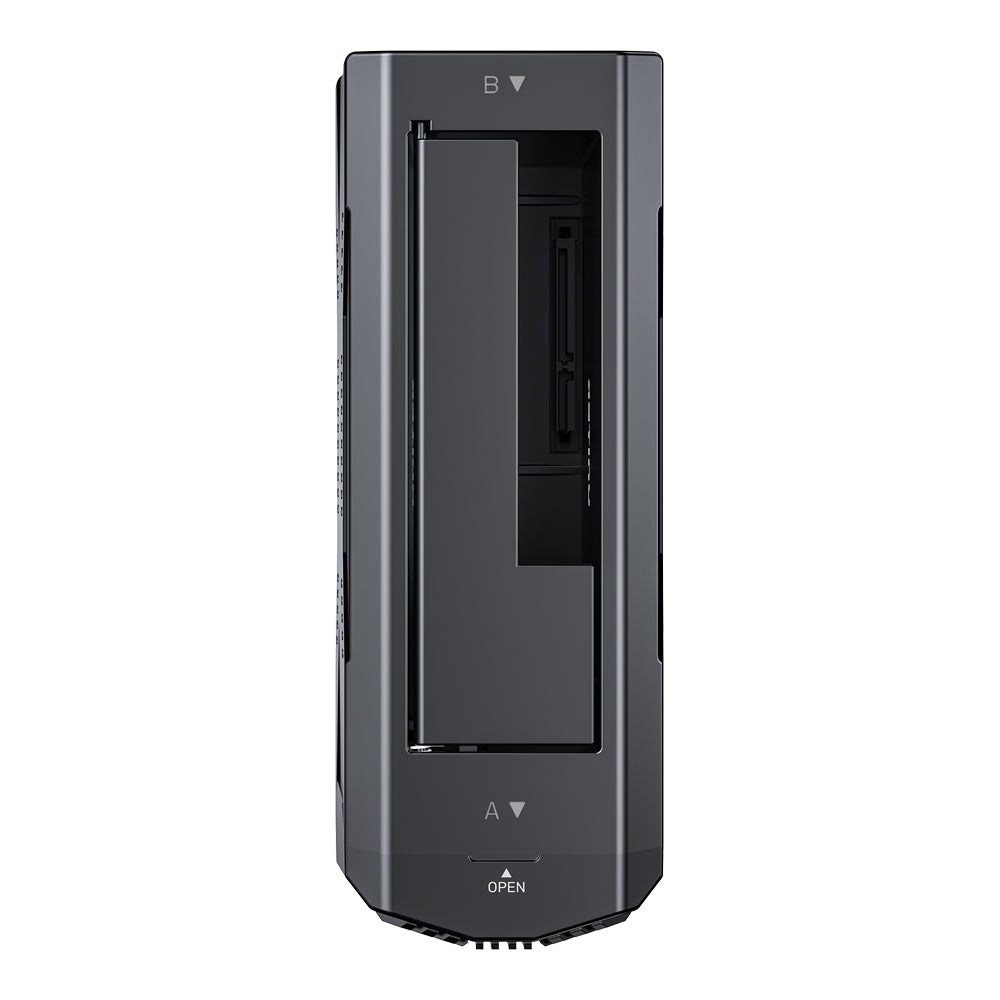

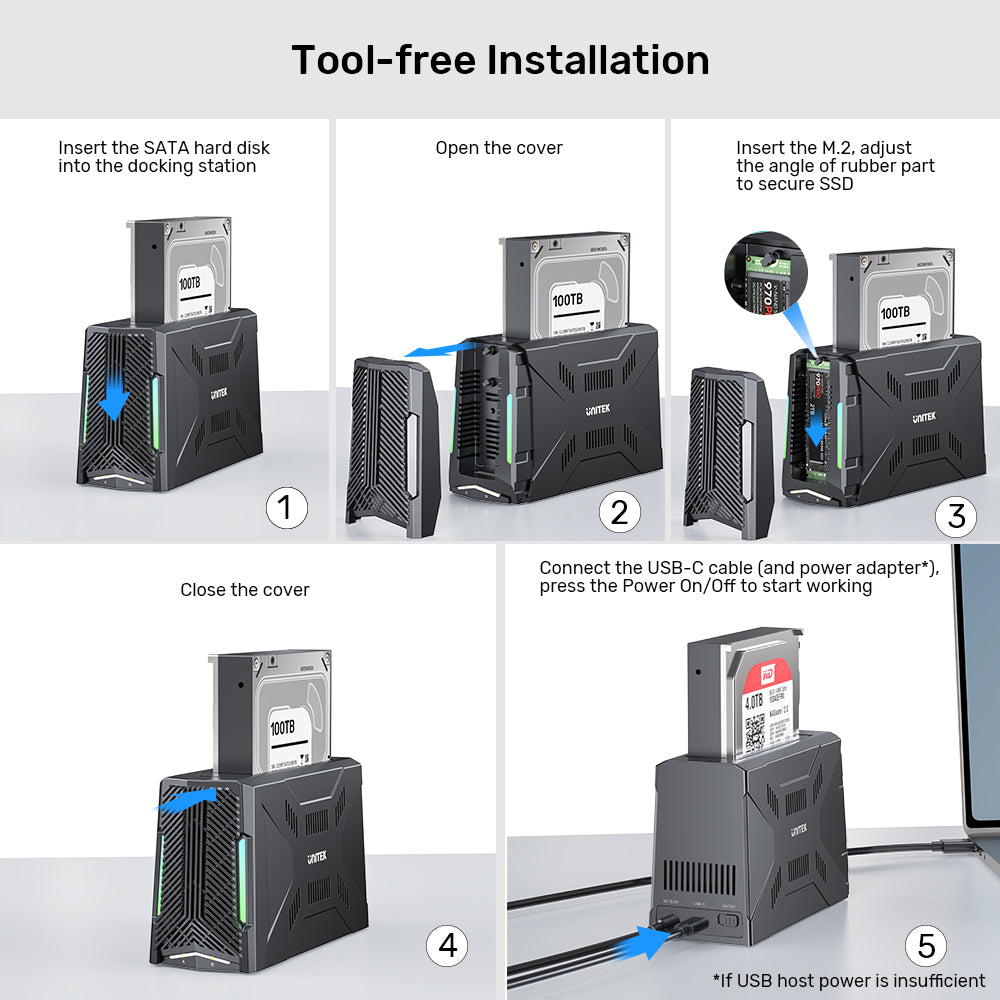

- Tool-Free Installation - Allows compatible drives to be inserted and removed without tools
- Hot-Swapping Support - Change drives without restarting the connected computer when safely ejected

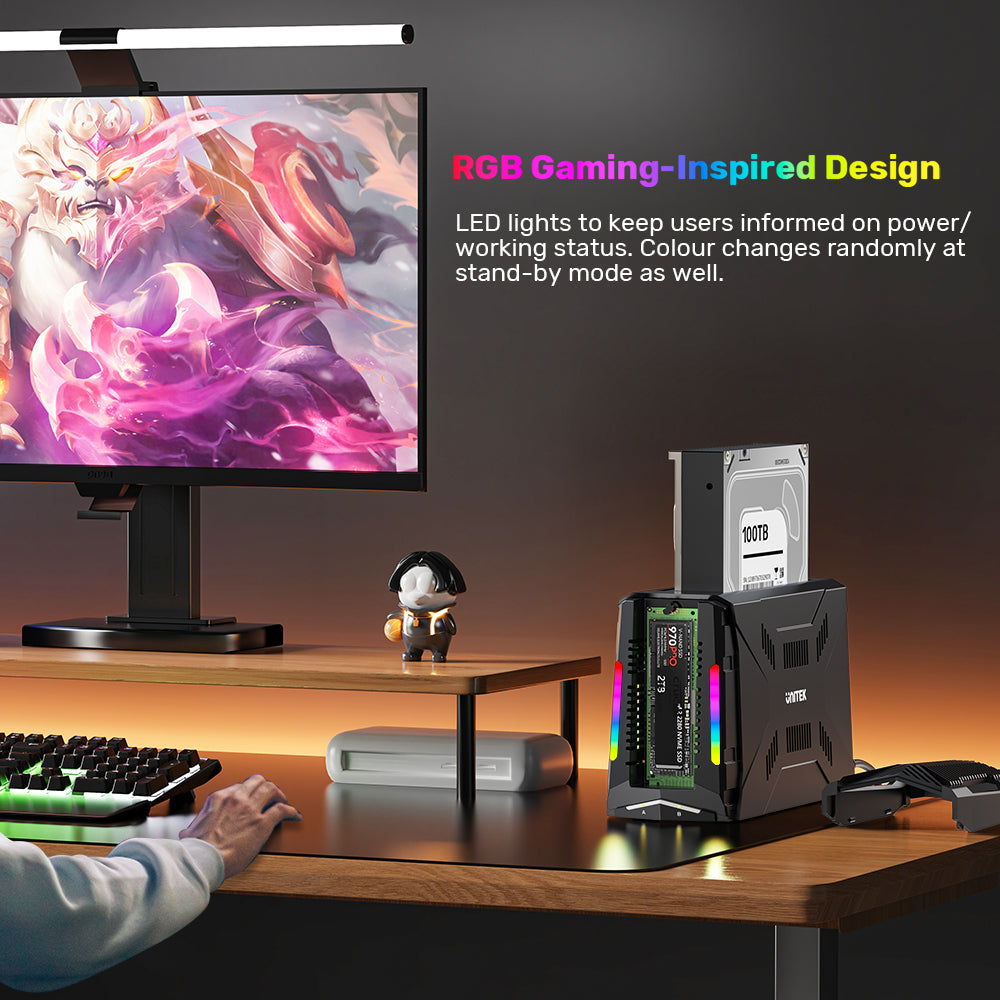

- RGB Status Lighting - Side lighting provides clear power and standby indication

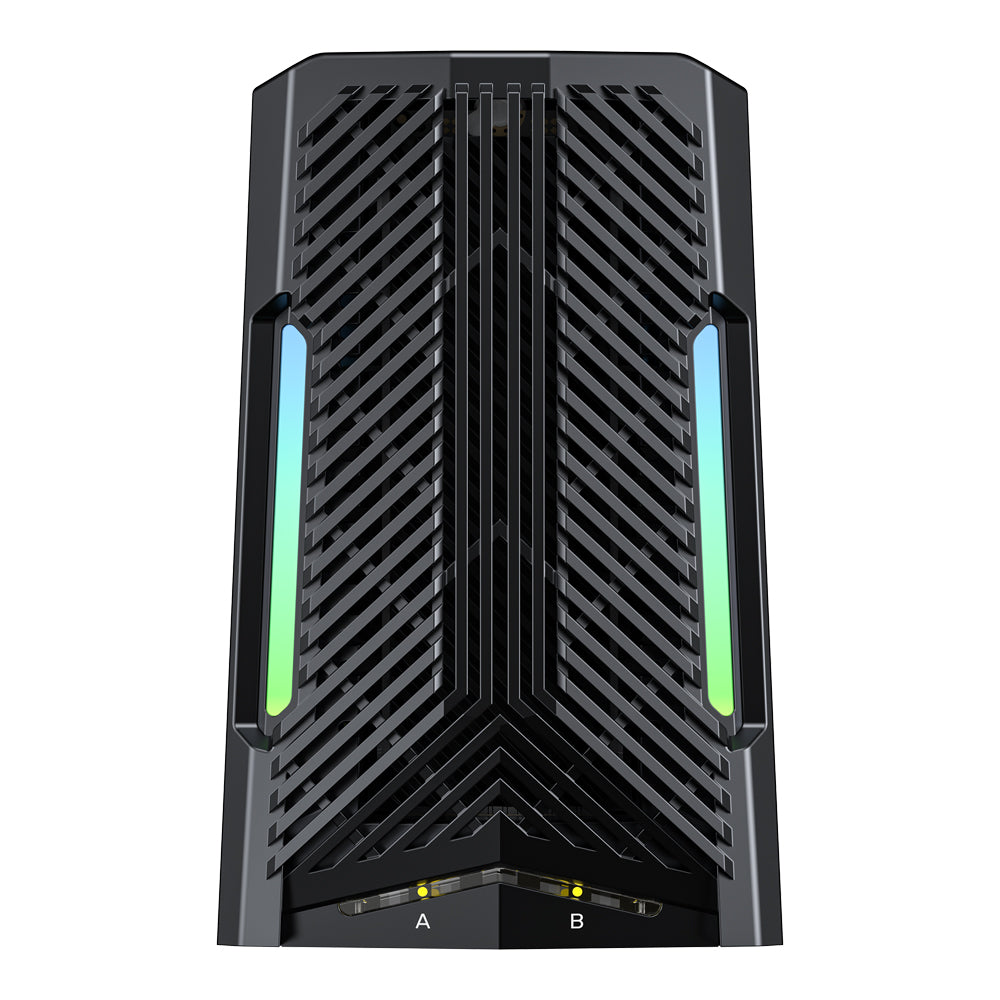

- Individual Drive Indicators - Dedicated LEDs show the operating and data-access status of each drive

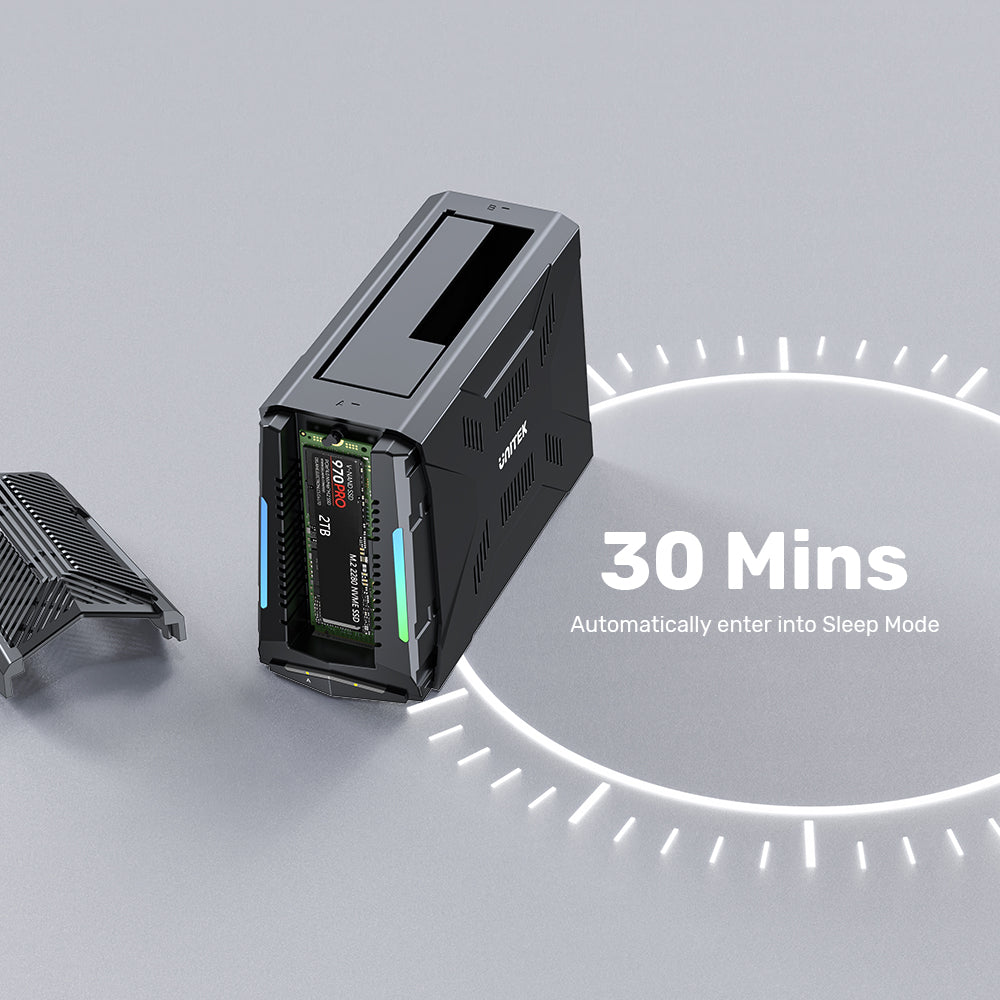

- Automatic Sleep Mode - Enters sleep mode after 30 minutes of inactivity to reduce idle power consumption
- Plug-and-Play Operation - Works without additional drivers on supported operating systems
Specifications
Drive Support
- M.2 Drive Interface: PCIe NVMe
- M.2 Key Support: M-Key and B+M-Key NVMe Drives
- M.2 Form Factors: 2242, 2260 and 2280
- SATA Drive Support: 2.5" and 3.5" SATA HDDs and SSDs
- Operating Modes: Single-Drive and Dual-Drive Access
- Simultaneous Access: M.2 PCIe NVMe and SATA Drives
- Hot-Swapping: Supported
Data And Connectivity
- Host Interface: USB Type-C
- USB Standard: USB3.2 Gen2
- Maximum Data Transfer Rate: Up to 10Gbps
- Included Data Cable: 1m USB Type-C to USB Type-C
- Installation: Tool-Free
Cooling And Indicators
- Cooling System: Intelligent Active Fan
- Fan Activation: Automatically Activates Above 45°C Drive Temperature
- Power and Standby Indicators: 2× RGB Side LEDs
- Drive Activity Indicators: 2× Drive Status LEDs
- Automatic Sleep: After 30 Minutes of Inactivity

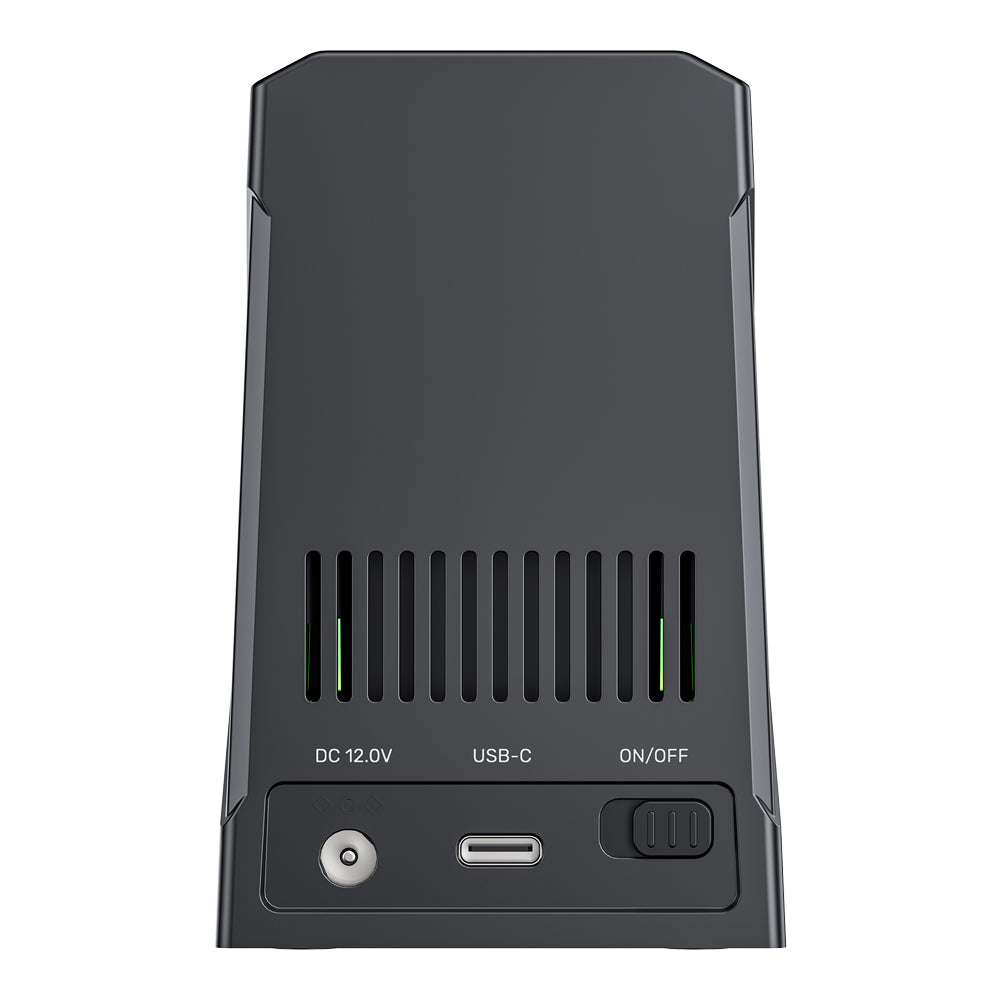

Power
- Power Input: DC12V 2A
- Power Adapter Input: AC100~240V, 50/60Hz
- Power Adapter Output: DC12V 2A, 24W
- Power Switch: On/Off
Compatibility
- Supported Operating Systems: Windows 10/11, macOS 10.5 or Later and Linux

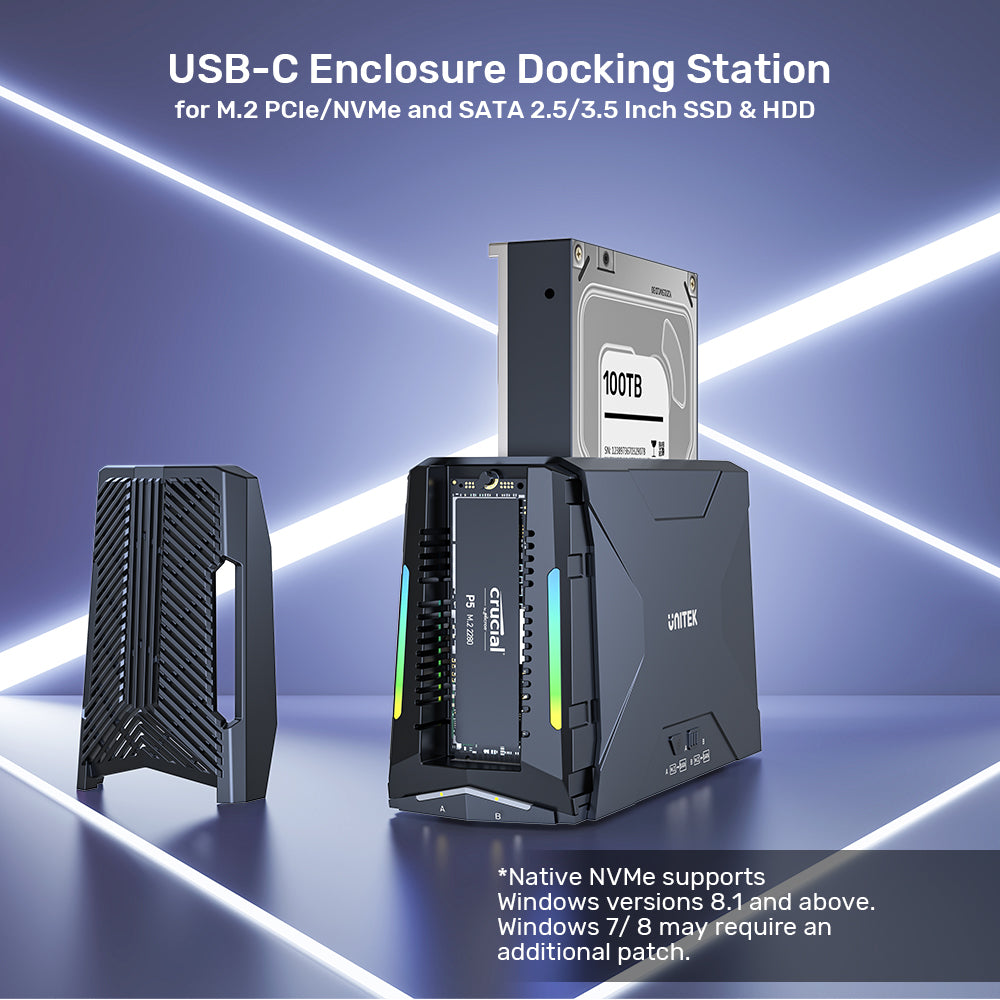

- Native NVMe Support: Windows 8.1 or Later

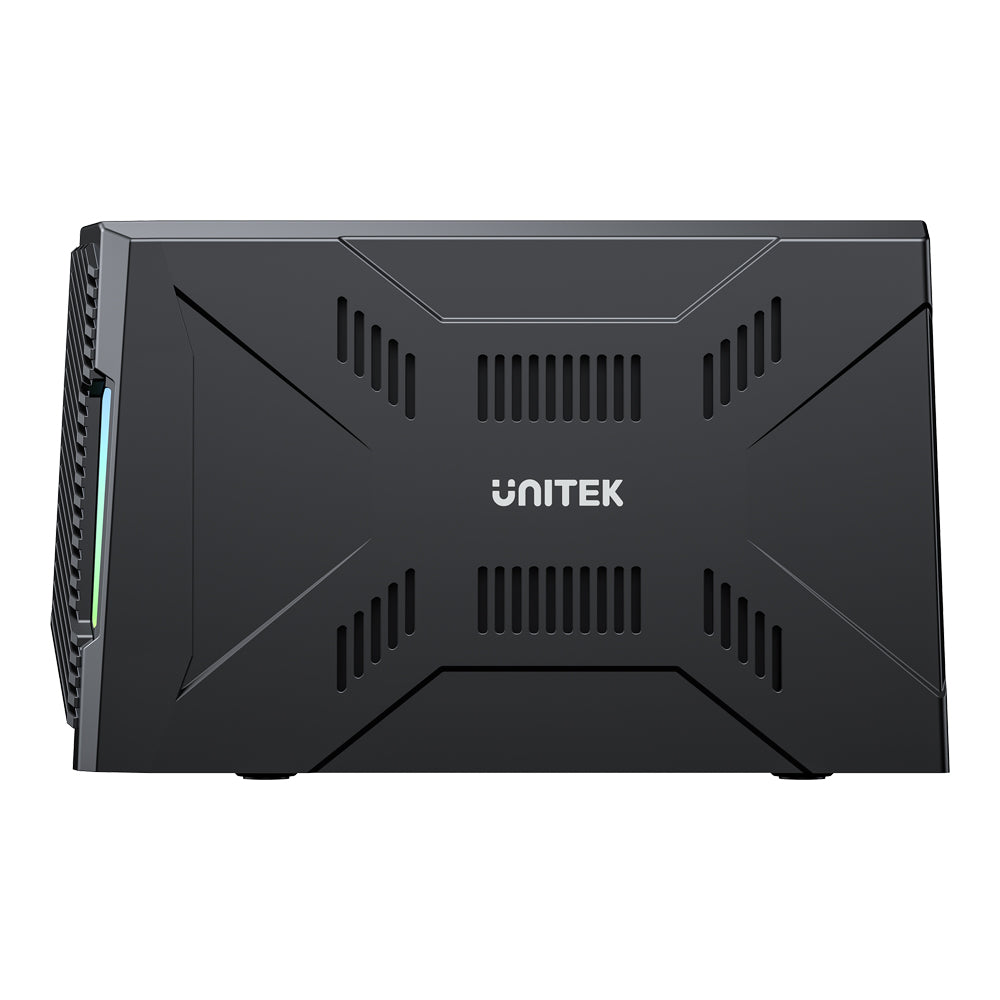

Physical
- Housing Material: ABS
- Colour: Black
- Dimensions (W × D × H): 62.5 × 161 × 99mm
Note
- Windows 7 and Windows 8 may require an additional patch for NVMe support
