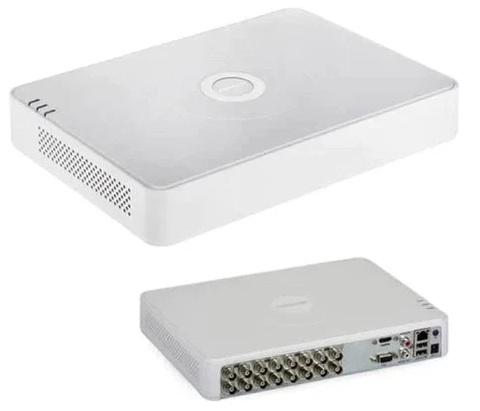

16CH TURBO HD DVR - DS-7116HGHI-M1
Hikvision
Specifications
Video Inputs
16-Channel BNC Interfaces Supporting HDTVI, AHD, CVI
And CVBS Signals, Plus Up To 2 Additional IP Camera Channels
(Expandable Up To 18 Channels Total, Up To 5 MP Resolution)
Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264
Recording / Encoding: Up To 1080p Lite @ 15 fps, Or 720p Mainstream
Video Outputs: Simultaneous HDMI And VGA Output At Up To 1920 × 1080 Resolution
Audio: 1 Channel RCA Input, 16 Channels Via Coaxial Cable, And 1 Channel RCA Output
Storage: 1 SATA Interface Supporting Up To 6TB To 10TB Capacity
Network & Interface: 1 RJ45 10M/100M Self-Adaptive Ethernet Port; Supports Hik-Connect For Remote Management
Physical Dimensions: Mini 1U Form Factor Measuring 285 × 210 × 48 mm, Weighing Under 1.8 kg (Without A Hard Drive)
Power Supply: 12 VDC, 2 A (Consumption Under 7W Without A Hard Drive)
Total Bandwidth: 96 Mbps
Remote Connection: 128
Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP, HTTPS, ONVIF
Auxiliary Interface: SATA1, SATA Interface
Capacity: Up To 6 TB Capacity For Each Disk
USB Interface: 2 × USB 2.0
General
Power Supply: 12 VDC, 2 A
Consumption: 7 W (Without HDD)
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% To 90%
