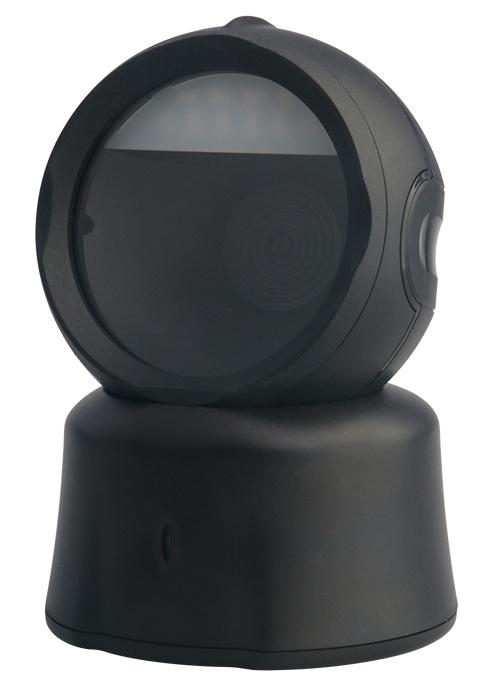

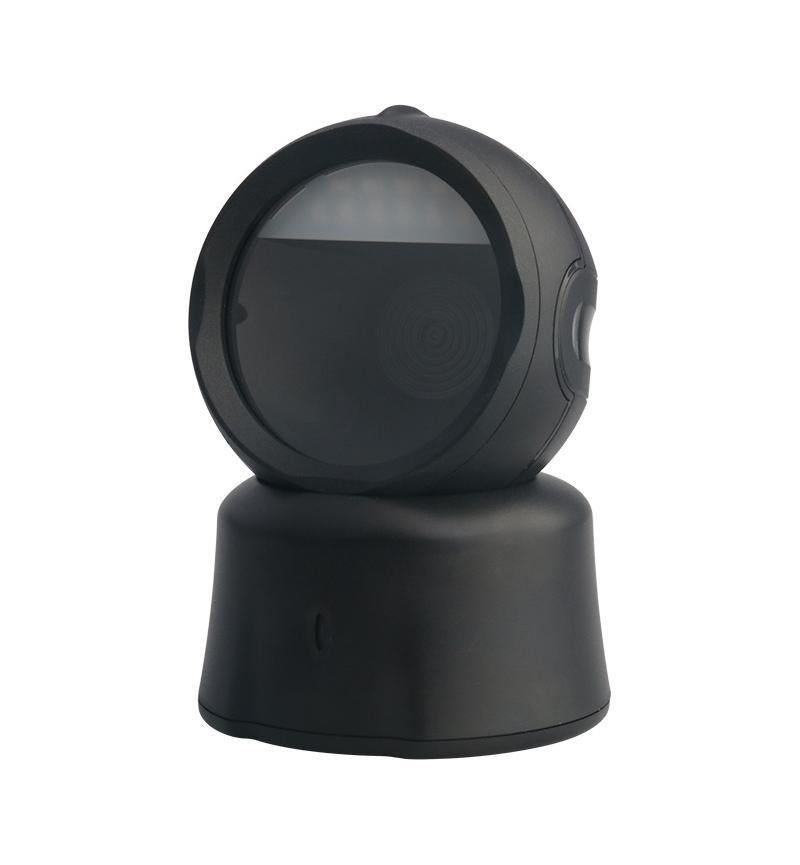

USB+RS232 DESKTOP BARCODE SCANNER - DP8210
MLINK
The DP8210 Is A Desktop 2D Omnidirectional Barcode Scanning Platform
Designed For High-Flow Retail Environments
Featuring Both USB And RS232 Interfaces
It utilizes advanced CMOS Image Recognition Technology
To Read Both 1D And 2D Barcodes From Paper, Products, and Screens
Specifications
Technology: CMOS Image Sensor (640 x 480 Pixels)
Interfaces: USB (HID-KBW, USB-COM) And RS232
Scanning Performance
Light Source: Red Light LED (625±10nm aim, 5600K LEDs Lighting)
Scan Mode: Automatic Induction / Continuous / Auto Sense
Scan Speed (Motion Tolerance): Up To 100cm/s (Or 100 Times Per Second)
Resolution
5mil/0.127mm (PCS90%, Code 39)
Depth of Field: 0-380mm
Symbologies (1D/2D)
Reads All Mainstream 1D (UPC, EAN, Code 128, Code 39, etc.)
And 2D (QR Code, Data Matrix, PDF417, Aztec) Codes
Physical & Electrical
Dimensions
Approximately L86.7mm x W96.7mm x H143.6mm
Weight: Approximately 270g (Without Cable)
Voltage: DC 5V
Operating Current: -280mA
Cable Length: 1.8M
Environmental & Features
Operating Temp: -10°C to 50°C
Support: Multi-Language, Inserting / Replacing Characters
And High-Speed HID-POS Protocol
Application Scenarios
The scanner Is Suitable For Supermarkets, Department Stores, Pharmacies, Libraries
And Convenience Stores, Particularly For Mobile Payment, Coupon Scanning
And Inventory Management
