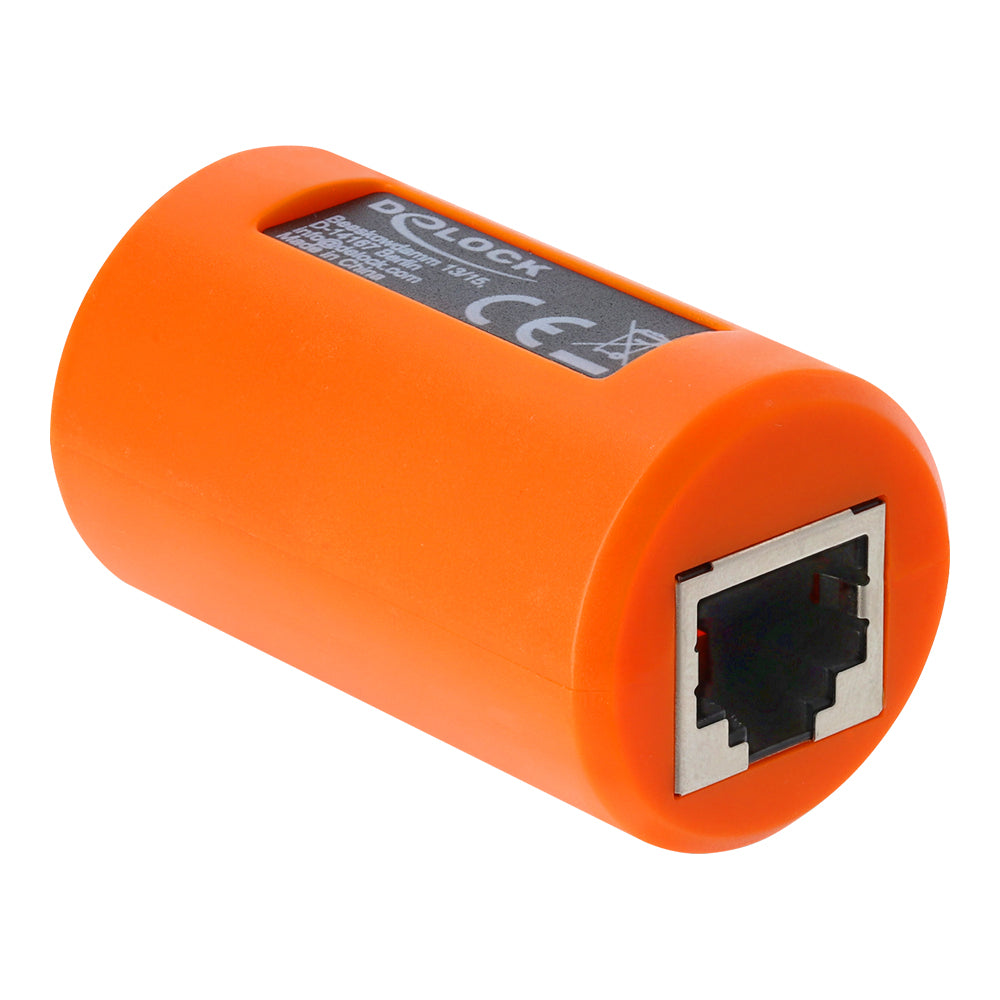

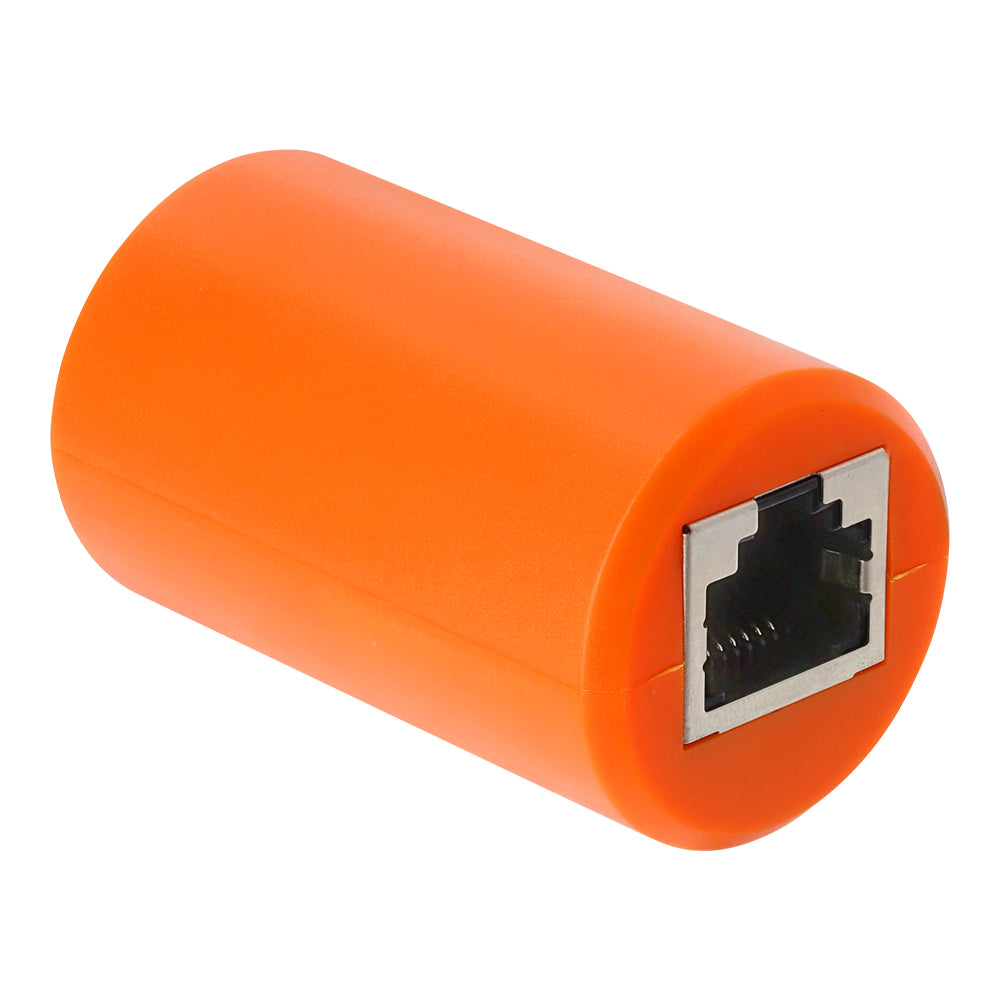

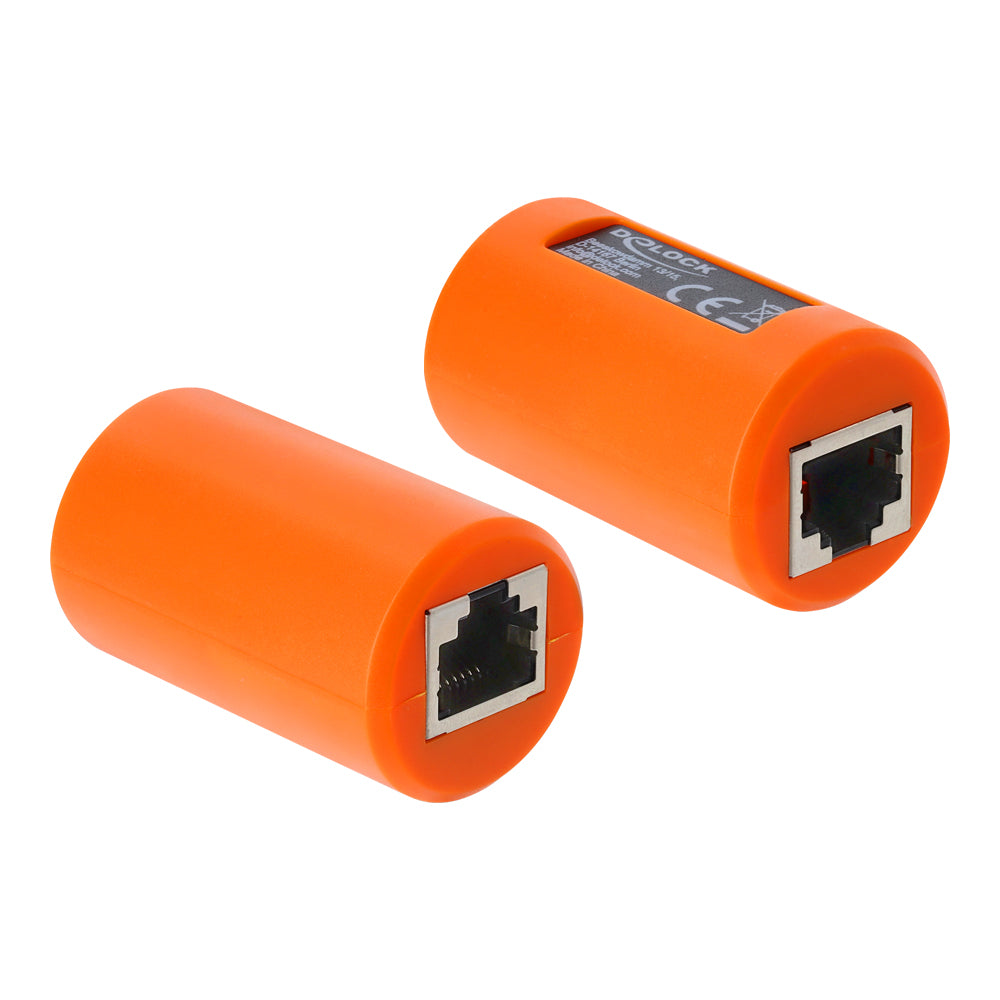

Delock 90988 CAT6A Shielded RJ45 Female-to-Female Coupler with Surge Protection - Orange
Extend Your Network with Added Surge Defence
The Delock 90988 connects or extends two compatible RJ45 network cables through a shielded female-to-female interface. Specified as CAT6A, it uses a straight-through 1:1 connection and is suitable for installations requiring a compact inline coupler. Eight integrated TVS protection components help suppress electrical transients travelling through the network cable, reducing the risk of surge-related damage to connected equipment. Protection ratings include a 48V reverse stand-off voltage, breakdown voltages of 53.3V at 1mA and 61.3V at 5mA, and a maximum clamping voltage of 77.4V. The round orange ABS housing is easy to identify and measures approximately 48 × 28.3mm.
Features
- CAT6A Network Coupling - Connects or extends two compatible RJ45 network cables
- Integrated Surge Protection - Uses 8 TVS protection components to help suppress voltage transients
- Shielded RJ45 Interfaces - Designed for use with compatible shielded network connections
- 1:1 Pin Assignment - Maintains a direct connection between corresponding conductors
- Female-to-Female Design - Joins two RJ45 male network cable connectors
- Orange Housing - Provides clear visual identification within an installation
Specifications
Network Characteristics
- Network Category: CAT6A
- Connection Type: 1:1 Straight-Through
- Shielding: Shielded
Surge Protection
- Protection Components: 8× Integrated TVS Components
- Reverse Stand-Off Voltage: 48V
- Breakdown Voltage: 53.3V at 1mA Test Current
- Breakdown Voltage: 61.3V at 5mA Test Current
- Maximum Clamping Voltage: 77.4V
- Peak Pulse Current: 5.2A
- Reverse Leakage at VRWM: 5µA
Physical Characteristics
- Housing Shape: Round
- Housing Material: ABS
- Colour: Orange
- Dimensions: Approximately 48 × 28.3mm
Compliance
- RoHS: Complies with EU Directives 2011/65/EU, 2017/2102 and 2015/863
