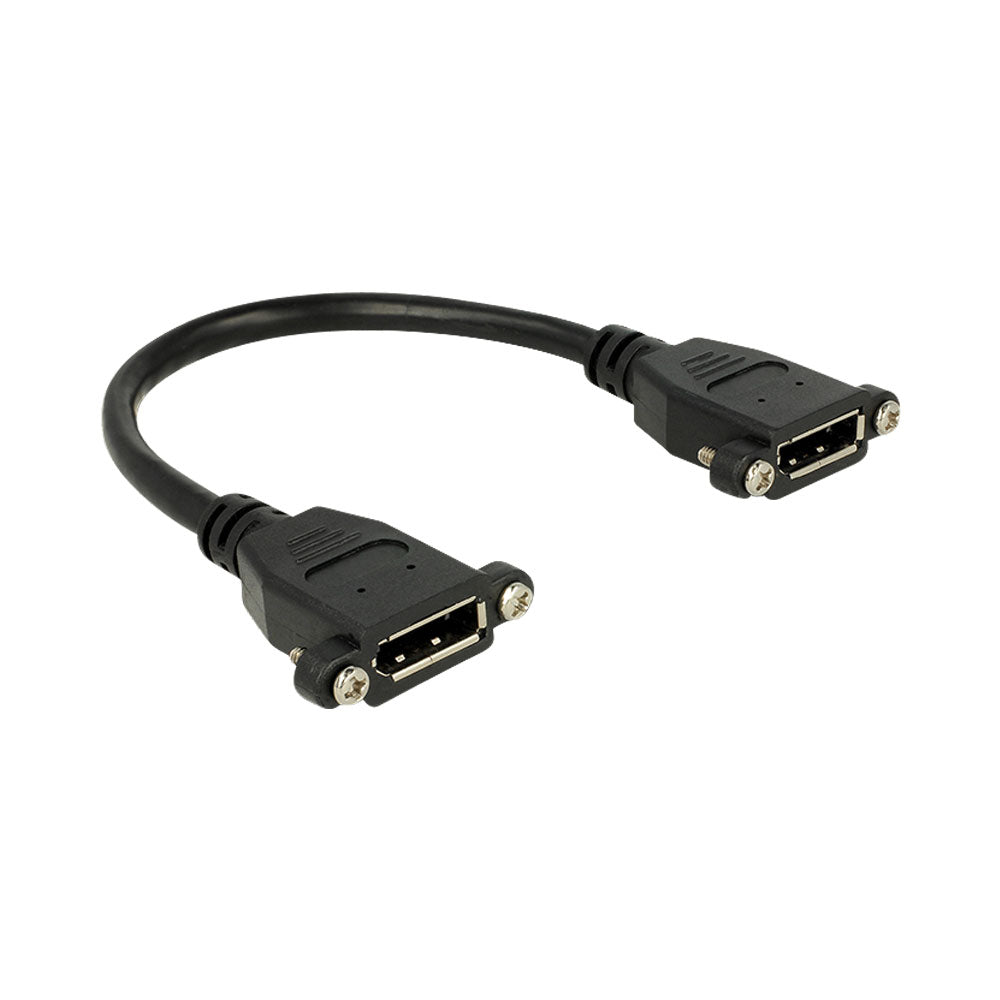

Delock 85113 0.25m DisplayPort Female to Female Panel Mount 4K @60Hz Cable
This cable by Delock can be used to extend an DisplayPort connection and to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a DisplayPort connector in an easily accessible position.
Features
- Connectors:
- 1 x DisplayPort 20 pin female >
- 1 x DisplayPort 20 pin female panel-mount
- DisplayPort 1.2 specification
- Pin 20 is connected (supports 3.3 V)
- Screw type: #4-40 UNC
- Mounting hole: ca. 18 x 7 mm, screw hole pitch ca. 27 mm
- Cable gauge: 30 AWG
- Cable diameter: ca. 6 mm
- Gold-plated connectors
- Transfer of audio and video signals
- Data transfer rate up to 21.6 Gb/s
- Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
hardware)
- Colour: black
- Length incl. connectors: ca. 25 cm
