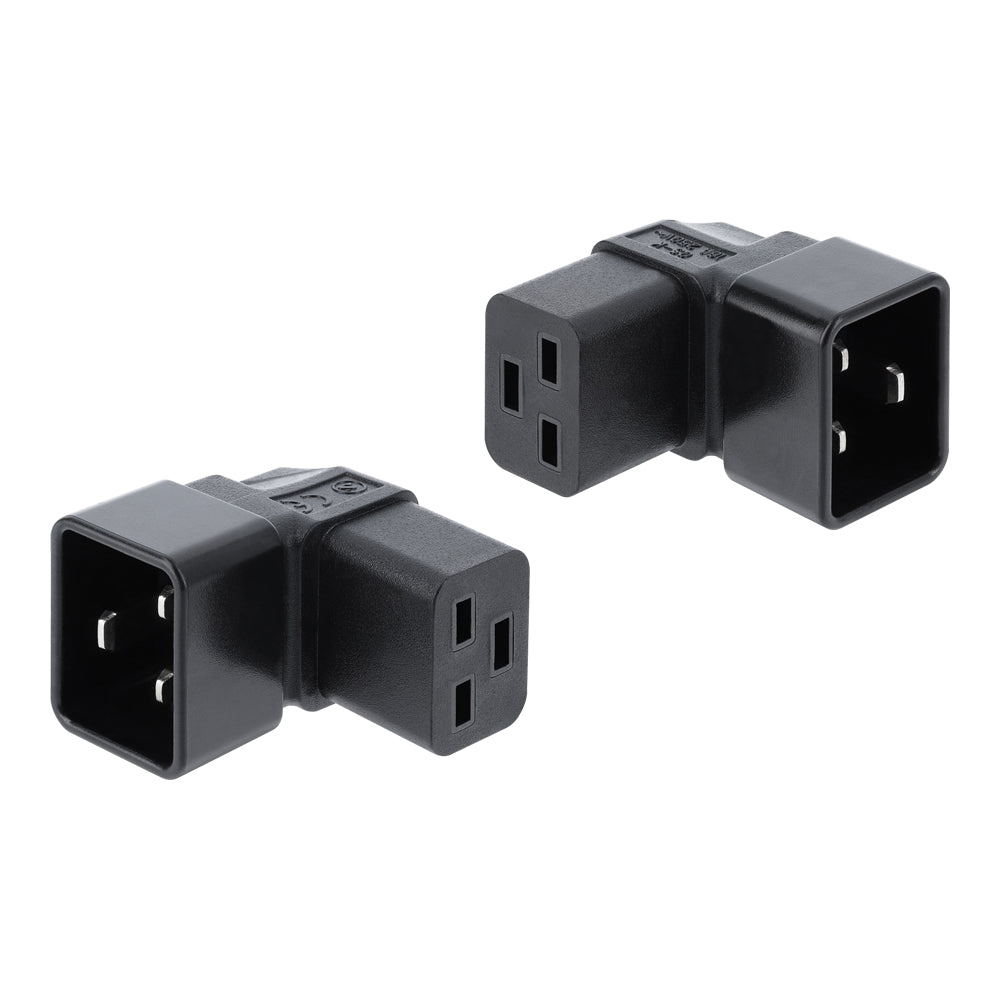

Delock 80658 16A 250V IEC C20 Male to C19 Female 90° Angled Power Adapter
Redirect High-Current IEC Power Connections in Tight Spaces
The Delock 80658 provides a compact solution for redirecting compatible IEC 60320 power connections where space behind equipment is limited. Equipped with a 3-pin IEC 60320 C20 male connector and C19 female connector, it creates a direct 90° angled connection without adding a separate cable. The adapter supports a maximum output current of 16A and a voltage of up to 250V, making it suitable for compatible higher-current power applications. Its compact black housing helps organise power connections neatly while reducing the rear clearance required around connected equipment. The cable-free design is quick to install and measures only 46.5 × 33.7 × 48.5mm.
Features
- 90° Angled Connection - Redirects the power connection where rear clearance is limited
- 16A Power Rating - Supports a maximum output current of 16A with compatible equipment
- 250V Support - Rated for power connections up to 250V
- IEC 60320 Connectivity - Features C20 male and C19 female connectors
- Cable-Free Design - Creates a direct connection without adding a separate extension cable
- Compact Construction - Fits neatly behind compatible equipment
Specifications
Connections
- Input Connector: 1× 3-Pin IEC 60320 C20 Male
- Output Connector: 1× 3-Pin IEC 60320 C19 Female
- Connector Orientation: 90° Angled
Electrical Characteristics
- Maximum Output Current: 16A
- Maximum Voltage: 250V
Physical Characteristics
- Colour: Black
- Dimensions (L × W × H) 46.5 × 33.7 × 48.5mm
