Delock 64055 USB 2.0 Type-A to Serial RS-422/485 DB9 with 600W Surge Protection and Extended Temperature Range
This USB Type-A to RS-422/485 Adapter by Delock expands the computer by an industrial interface for machine controls, fieldbus systems, measuring instruments, computers, printers etc.
Protection features
The adapter protects itself and externally connected devices against electrostatic discharges (ESD) and surge voltage.
Extended temperature range
The adapter supports with extended temperature range high reliability even in demanding environments.
Features

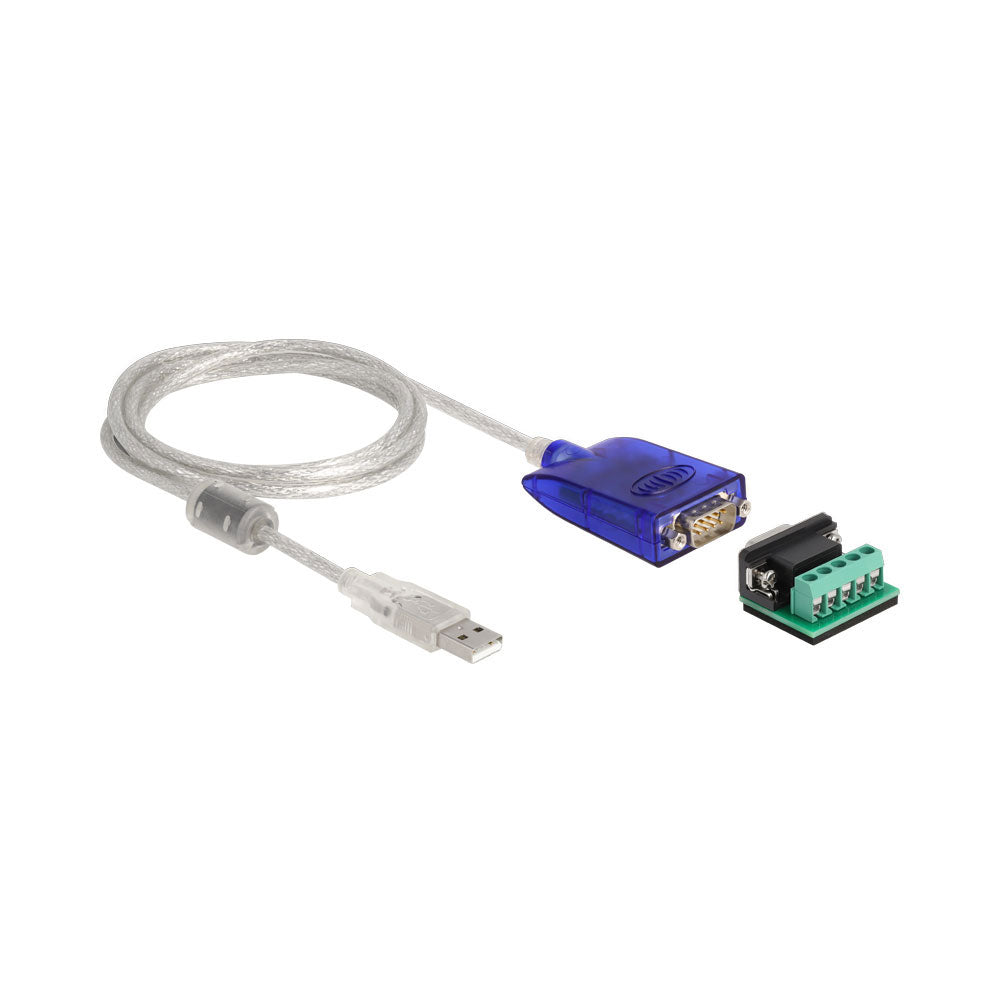

Cable:
- 1 x USB Type-A male
- 1 x serial RS-422/485 DB9 male

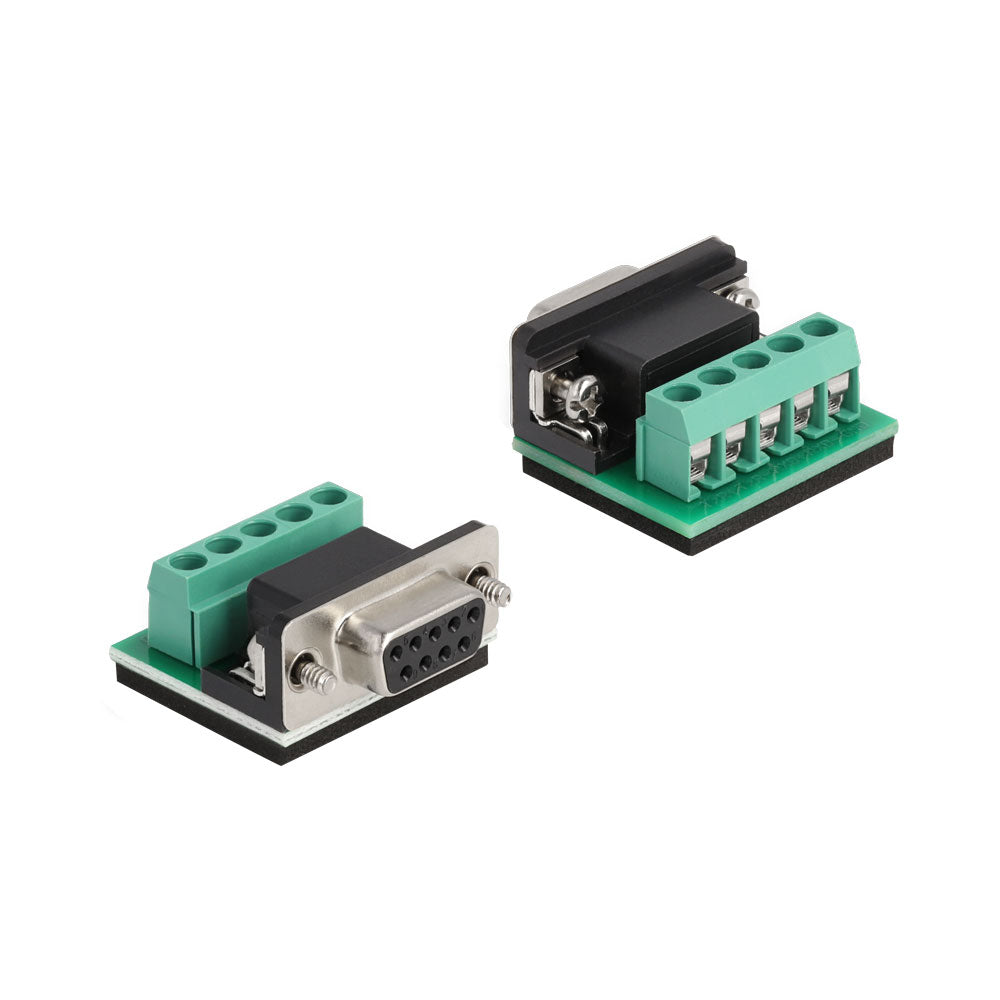

Terminal block:
- 1 x serial RS-422/485 DB9 female

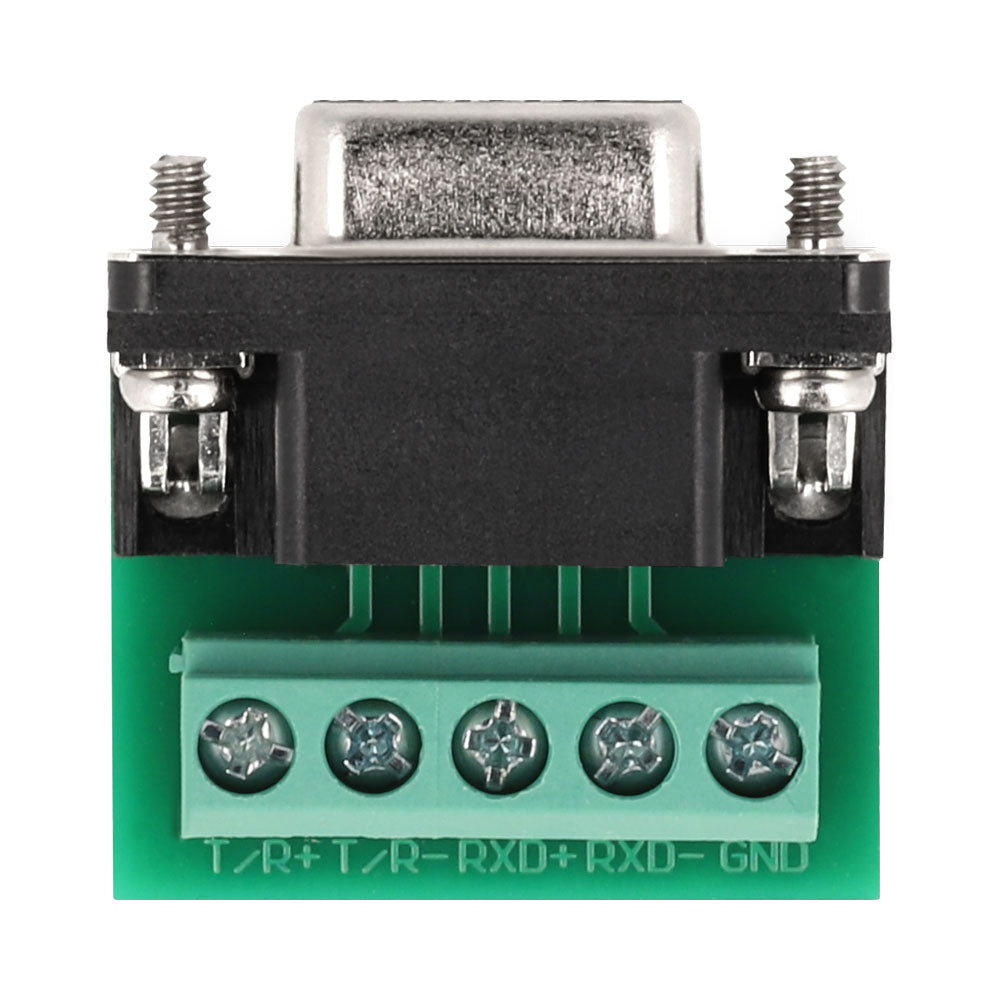

- 1 x RS-422/485 Terminal Block 5 pin
- Chipset: FTDI FT232R
- Auto data flow control
- Data transfer: asynchronous, full duplex, half duplex
- Data transfer rate up to 921.6 Kbps
- Supports Modbus
- ±15 kV ESD protection on all signal pins
- Surge Protection: 600 W peak pulse (TVS)
- 3 x LED indicator for power and activity
- Housing material: plastic
- Colour: blue
- Operating temperature: -40 °C ~ 85 °C
- Relative humidity: 5 - 95 % (non condensing)
- Cable length incl. connectors: ca. 1.5 m
- Plug & Play
